Bosch GCM 800 SJ / 3601M19070 / GB 230 Volt Spare Parts

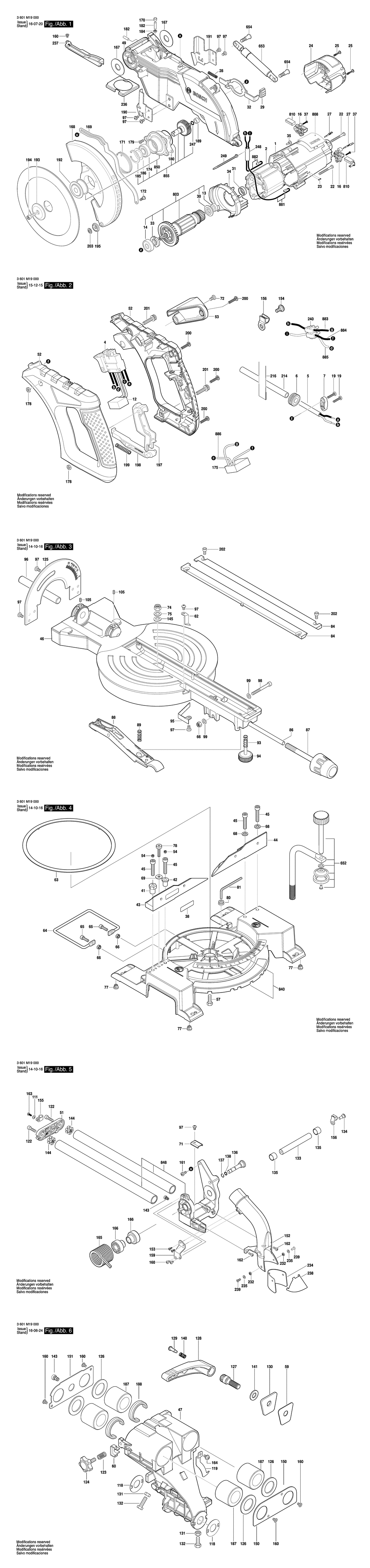

An exploded drawing and listing for the Bosch GCM 800 SJ / 3601M19070 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1619P06205.A3 1619P06205	£21.42	£25.71
2 - FIELD 230V BSD-1619P04474.A10 1619P04474	£33.74	£40.49
4 - ON-OFF SWITCH BSD-1609B04211.A3 1609B04211	£12.04	£14.45
5 - POWER SUPPLY CORD GB 230V BSD-1609B02231.A1 1609B02231	£18.96	£22.75
6 - CORD GUARD BSD-1609B01533.A13 1609B01533	£1.75	£2.10
7 - CABLE CLIP BSD-1609B00821.A12 1609B00821	£1.75	£2.10
12 - SUPPRESSION CAPACITOR BSD-1609B02210.A3 1609B02210	£1.75	£2.10
13 - BALL BEARING BSD-1609B04083.A2 1609B04083	£2.61	£3.13
14 - BEARING COVER PLATE BSD-1619P06374.A16 1619P06374	£8.67	£10.41
16 - BRUSH HOLDER BSD-1619P06212.A18 1619P06212	£8.67	£10.41
19 - SCREW ECO-SYN St 3.5x16 BSD-1619P03833.A16 1619P03833	£1.75	£2.10
22 - SCREW BSD-1609B04117.A10 1609B04117	£1.75	£2.10
23 - BALL BSD-1619P00291.A11 1619P00291	-
24 - END CAP BSD-1609B04008.A5 1609B04008	£6.52	£7.83
25 - SPECIAL SCREW BSD-1609B00921.A18 1609B00921	£1.75	£2.10
27 - RIGHT ANGLE PLUG BSD-1619P06213.A6 1619P06213	£2.40	£2.88
28 - COMPRESSION SPRING BSD-1619P01642.A44 1619P01642	£1.75	£2.10
29 - CAP BSD-1609B04070.A10 1609B04070	£1.75	£2.10
30 - SEALING WASHER BSD-1609B04071.A8 1609B04071	£1.75	£2.10
31 - RUBBER RING BSD-1609B04072.A12 1609B04072	£1.75	£2.10
32 - GUIDE BRACKET BSD-1609B04073.A8 1609B04073	£5.58	£6.70
33 - LOCK NUT BSD-1609B04074.A2 1609B04074	£1.75	£2.10
34 - BAFFLE BSD-1609B04075.A8 1609B04075	£1.75	£2.10
35 - COVER BSD-1609B04200.A11 1609B04200	£1.75	£2.10
37 - SCREW BSD-1609B04208.A4 1609B04208	£1.75	£2.10
38 - WARNING LABEL BSD-1609B02218.A10 1609B02218	£2.61	£3.13
41 - BUSHING BSD-1609B02204.A3 1609B02204	£2.80	£3.36
42 - BUSHING BSD-1609B02205.A7 1609B02205	£1.75	£2.10
43 - MITRE FENCE BSD-1609B04242.A8 1609B04242	£18.96	£22.75
44 - MITRE FENCE BSD-1609B04243.A2 1609B04243	£18.96	£22.75
45 - SCREW BSD-1609B02206.A3 1609B02206	£1.75	£2.10
46 - TABLE BSD-1609B05238.A7 1609B05238	£98.11	£117.73
47 - PIVOT BSD-1609B02202.A3 1609B02202	£48.38	£58.06
49 - ARM BSD-1609B02223.A5 1609B02223	£51.22	£61.47
51 - END CAP BSD-1609B03746.A12 1609B03746	£6.52	£7.83
52 - SWITCH HANDLE BSD-1609B05243.A7 1609B05243	£13.12	£15.75
53 - COVER BSD-1609B02200.A1 1609B02200	£2.61	£3.13
54 - COVER BSD-1609B02214.A10 1609B02214	£1.75	£2.10
57 - BOLT BSD-1609B05203.A9 1609B05203	£1.75	£2.10
59 - PLATE BSD-1609B05296.A3 1609B05296	£1.75	£2.10
60 - COVER BSD-1609B05298.A9 1609B05298	£1.75	£2.10
62 - POINTER BSD-1609B00717.A17 1609B00717	£1.75	£2.10
63 - WEAR PLATE BSD-1609B03714.A12 1609B03714	£4.26	£5.11
64 - CLAMPING BAR BSD-1609B05236.A2 1609B05236	£2.80	£3.36
65 - SCREW BSD-1609B05268.A5 1609B05268	£1.75	£2.10
66 - NUT BSD-1609B01949.A17 1609B01949	£1.75	£2.10
68 - PLAIN WASHER BSD-1609B00703.A12 1609B00703	£1.75	£2.10
69 - WASHER BSD-1609B00662.A24 1609B00662	£1.75	£2.10
71 - STOP PLATE BSD-1609B04244.A8 1609B04244	£1.75	£2.10
72 - SCREW BSD-1609B02220.A0 1609B02220	£1.75	£2.10
74 - LOCK NUT BSD-1609B00704.A6 1609B00704	£1.75	£2.10
75 - WASHER BSD-1609B00670.A11 1609B00670	£1.75	£2.10
77 - RUBBER BUSHING BSD-1609B00705.A21 1609B00705	£1.75	£2.10
78 - SCREW BSD-1609B03722.A12 1609B03722	£1.75	£2.10
80 - RUBBER RING BSD-1609BP7098.A14 1609BP7098	£1.75	£2.10
81 - HEXAGON SOCKET SCREW KEY BSD-1609BP7026.A28 1609BP7026	£2.80	£3.36
84 - SUPPORT PLATE BSD-1609B05242.A4 1609B05242	-
86 - ROD BSD-1609B05240.A4 1609B05240	£2.16	£2.59
87 - KNOB BSD-1609B04079.A4 1609B04079	£7.36	£8.83
88 - LEVER BSD-1609B05241.A6 1609B05241	£2.16	£2.59
89 - SPRING BSD-1609B02211.A6 1609B02211	£1.75	£2.10
93 - CONTACT STRAP BSD-1609BP7341.A5 1609BP7341	£1.75	£2.10
94 - SUPPORTING FOOT BSD-1609B03727.A4 1609B03727	£2.16	£2.59
95 - WEAR PLATE BSD-1609B03729.A16 1609B03729	£1.75	£2.10
96 - PIVOT SHAFT BSD-1609B04108.A5 1609B04108	£4.26	£5.11
97 - SCREW BSD-1609B04086.A15 1609B04086	£2.16	£2.59
98 - SCREW BSD-1609B03723.A8 1609B03723	£1.75	£2.10
99 - PLAIN WASHER BSD-1609B01324.A6 1609B01324	£1.75	£2.10
105 - SET SCREW BSD-1609BP7143.A15 1609BP7143	£1.75	£2.10
111 - WASHER BSD-1609B01668.A14 1609B01668	£1.75	£2.10
118 - WEAR PLATE BSD-1609B01457.A4 1609B01457	£1.75	£2.10
119 - POINTER BSD-1609B03758.A8 1609B03758	£1.75	£2.10
122 - HEX SOCKET HEAD CAP SCREW BSD-1609B03749.A13 1609B03749	£1.75	£2.10
123 - CONTACT STRAP BSD-1609BP7343.A15 1609BP7343	£1.75	£2.10
124 - KNOB BSD-1609B03755.A8 1609B03755	£1.75	£2.10
125 - ROTOR BSD-1609B03762.A2 1609B03762	£7.36	£8.83
126 - FELT WASHER BSD-1609B03763.A8 1609B03763	£1.75	£2.10
127 - BOLT BSD-1609B03769.A2 1609B03769	£3.72	£4.47
128 - LEVER BSD-1609B02215.A0 1609B02215	£1.75	£2.10
129 - SCREW BSD-1609BP7081.A4 1609BP7081	£1.75	£2.10
130 - FRICTION PLATE BSD-1609B03773.A12 1609B03773	£7.36	£8.83
131 - HEX NUT BSD-1609B01041.A23 1609B01041	£1.75	£2.10
132 - STOP BOLT BSD-1609B03776.A8 1609B03776	£1.75	£2.10
133 - PIVOT PIN BSD-1609B03771.A13 1609B03771	£6.52	£7.83
134 - SHOULDER SCREW BSD-1609B03779.A12 1609B03779	£1.75	£2.10
135 - BUSHING BSD-1609B03754.A2 1609B03754	£1.75	£2.10
136 - DETENT PIN BSD-1609B03767.A16 1609B03767	£2.80	£3.36
137 - CLIP BSD-1609B03757.A12 1609B03757	£1.75	£2.10
138 - O-RING BSD-1609B00601.A33 1609B00601	£1.75	£2.10
140 - COMPRESSION SPRING BSD-1609BP7053.A3 1609BP7053	£1.75	£2.10
141 - PLAIN WASHER BSD-1609BP7045.A3 1609BP7045	£1.75	£2.10
143 - SLIDE STOP BSD-1609B03753.A16 1609B03753	£1.75	£2.10
144 - SPECIAL NUT BSD-1609B03752.A4 1609B03752	£3.72	£4.47
145 - SPRING WASHER BSD-1609B00660.A9 1609B00660	£1.75	£2.10
150 - RETAINING PLATE BSD-1609B02203.A6 1609B02203	£1.75	£2.10
151 - RETAINING PLATE BSD-1609B03766.A4 1609B03766	£1.75	£2.10
152 - DUST EXTRACTION BSD-1609B03775.A0 1609B03775	£7.36	£8.83
153 - SET SCREW BSD-1609B03777.A14 1609B03777	£1.75	£2.10
154 - SHOULDER SCREW BSD-1609B02213.A0 1609B02213	£1.75	£2.10
155 - CABLE CLIP BSD-1609B01512.A28 1609B01512	£1.75	£2.10
156 - CABLE CLIP BSD-1609B00339.A17 1609B00339	£2.16	£2.59
159 - SUPPORT BRACKET BSD-1609B04204.A0 1609B04204	£1.75	£2.10
160 - SCREW BSD-1609B01561.A12 1609B01561	£1.75	£2.10
161 - SHOULDER SCREW BSD-1609B05201.A11 1609B05201	£1.75	£2.10
162 - SCREW BSD-1609B00623.A16 1609B00623	£1.75	£2.10
163 - THREAD-FORMING SCREW BSD-1609B01168.A2 1609B01168	£1.75	£2.10
164 - SCREW BSD-1609B01690.A12 1609B01690	£1.75	£2.10
165 - TORSION SPRING BSD-1609B02209.A9 1609B02209	£13.12	£15.75
166 - SLEEVE BSD-1609B02222.A4 1609B02222	£1.75	£2.10
167 - WEAR PLATE BSD-1609B01602.A12 1609B01602	£1.75	£2.10
168 - LOWER GUARD BSD-1609B04188.A5 1609B04188	£14.91	£17.89
169 - LINKAGE BSD-1609B04001.A19 1609B04001	£12.04	£14.45
170 - COVER BSD-1609B04002.A1 1609B04002	£1.75	£2.10
171 - SPRING BSD-1609B04004.A19 1609B04004	£1.75	£2.10
172 - SCREW BSD-1609BP7145.A1 1609BP7145	£1.75	£2.10
174 - BALL BEARING BSD-1609B01255.A18 1609B01255	£5.58	£6.70
175 - SOFT START-UP MODULE BSD-1609B02201.A7 1609B02201	£27.23	£32.68
178 - LOCK NUT BSD-1609B00974.A2 1609B00974	£1.75	£2.10
179 - TAPPING SCREW BSD-1609BP7134.A1 1609BP7134	£1.75	£2.10
180 - SEAL BSD-1609B04248.A6 1609B04248	£1.75	£2.10
182 - SET SCREW BSD-1609B04205.A9 1609B04205	£1.75	£2.10
184 - NUT BSD-1609BT4033.A1 1609BT4033	£1.75	£2.10
185 - SPRING RETAINING RING BSD-1609BP7068.A10 1609BP7068	£1.75	£2.10
186 - WASHER BSD-1609BP7050.A10 1609BP7050	£2.61	£3.13
187 - BALL BEARING BSD-1609B03774.A10 1609B03774	£12.04	£14.45
188 - SPACER BSD-1609B03780.A10 1609B03780	£1.75	£2.10
189 - PLAIN BEARING BSD-1600200029.A146 1600200029	£4.26	£5.11
190 - DEFLECTOR BSD-1609B04017.A10 1609B04017	£4.26	£5.11
191 - DEFLECTOR BSD-1609B04028.A2 1609B04028	£6.52	£7.83
192 - CLAMPING FLANGE BSD-1609B04018.A10 1609B04018	£7.36	£8.83
193 - CLAMPING FLANGE BSD-1609B06289.A10 1609B06289	£8.49	£10.19
194 - FLANGE BOLT BSD-1609BP7061.A4 1609BP7061	£2.16	£2.59
195 - WHEEL BSD-1609B04020.A10 1609B04020	£1.75	£2.10
197 - TRIGGER BSD-1609B04029.A14 1609B04029	£1.75	£2.10
198 - LOCKING BAR BSD-1609B04021.A6 1609B04021	£1.75	£2.10
199 - COMPRESSION SPRING BSD-1609B04022.A10 1609B04022	£1.75	£2.10
200 - TAPPING SCREW BSD-1609B00637.A42 1609B00637	£1.75	£2.10
201 - SCREW BSD-1609B00973.A18 1609B00973	£1.75	£2.10
202 - SCREW BSD-1609B00627.A31 1609B00627	£2.16	£2.59
203 - QUICK-LOCK BSD-1609B00458.A27 1609B00458	£1.75	£2.10
214 - SHRINKABLE TUBE BSD-1609B00583.A21 1609B00583	£1.75	£2.10
216 - CABLE TAPE BSD-1609B01538.A10 1609B01538	£1.75	£2.10
232 - NUT BSD-1609B00691.A11 1609B00691	£2.16	£2.59
234 - RUBBER LIP BSD-1609B03791.A10 1609B03791	£2.38	£2.85
235 - PLAIN WASHER BSD-1609B04225.A18 1609B04225	£1.75	£2.10
236 - RUBBER STRIP BSD-1609B04220.A2 1609B04220	£2.02	£2.42
237 - COVER BSD-1609B02221.A6 1609B02221	£1.75	£2.10
238 - RUBBER STRIP BSD-1609B04222.A18 1609B04222	£2.38	£2.85
239 - SCREW BSD-1609B00633.A28 1609B00633	£1.75	£2.10
240 - CONNECTION BLOCK BSD-1609BP7059.A10 1609BP7059	£1.75	£2.10
247 - O-RING BSD-1609B04228.A16 1609B04228	£4.26	£5.11
248 - BUSHING BSD-1609B00799.A4 1609B00799	£1.75	£2.10
249 - CLIP BSD-1609B05329.A2 1609B05329	£1.75	£2.10
652 - CLAMP BSD-1609B04224.A2 1609B04224	£18.96	£22.75
653 - DAMPER BSD-1609B02225.A1 1609B02225	£18.96	£22.75
654 - SHOULDER SCREW BSD-1609B02418.A0 1609B02418	£1.75	£2.10
803 - ARMATURE ASSEMBLY 230V BSD-1609B03793.A7 1609B03793	£103.14	£123.77
808 - NAMEPLATE BSD-1609BN0133.A0 1609BN0133	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1609B06661.A10 1609B06661	£16.41	£19.69
840 - ASSEMBLY BASE BSD-1609B02472.A4 1609B02472	£81.81	£98.17
848 - YOKE BSD-1609B02471.A1 1609B02471	-
850 - GEAR COVER BSD-1609B05349.A5 1609B05349	£12.04	£14.45
855 - OUTPUT SHAFT BSD-1609B03789.A8 1609B03789	£41.62	£49.95
881 - CONNECTING WIRE BSD-1609B02207.A9 1609B02207	-
882 - CONNECTING WIRE BSD-1609B02208.A1 1609B02208	-
