Stanley STPP7502 Type 1 Planer Spare Parts

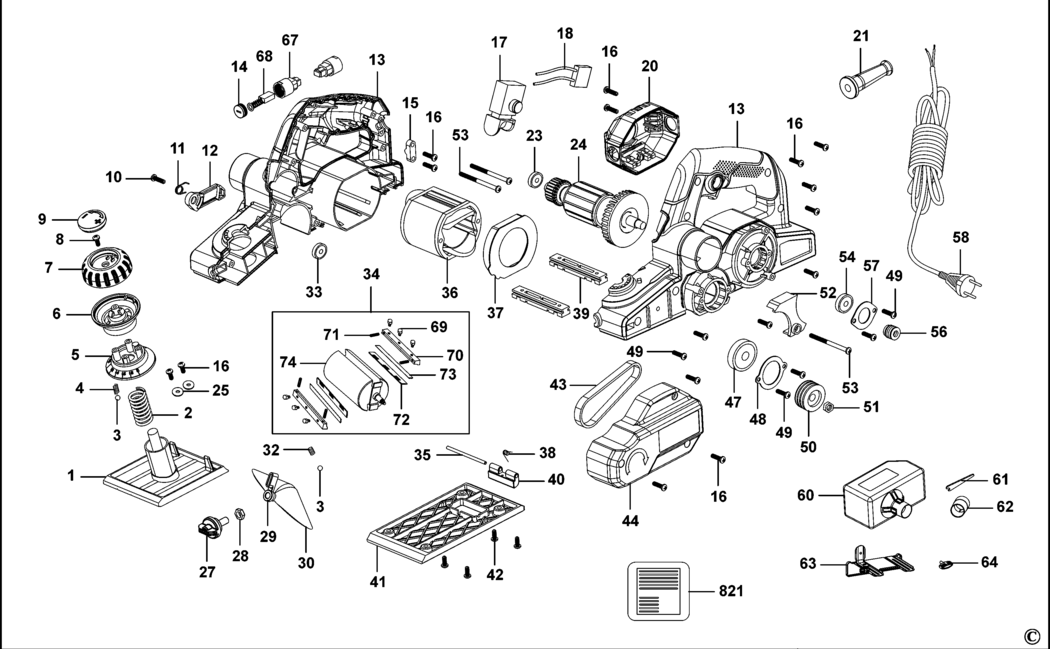

An exploded drawing and spare parts listing for the Stanley STPP7502 Type 1 Planer

	Ex VAT	Inc VAT
1 - SHOE BDE-1004526-00.A0 1004526-00	£12.17	£14.60
2 - SPRING BDE-1004526-01.A7 1004526-01	£1.50	£1.80
3 - BALL STEEL BDE-1004526-02.A0 1004526-02	£1.50	£1.80
4 - SPRING BDE-1004526-03.A7 1004526-03	£1.50	£1.80
5 - DIAL PLATE BDE-6010358-60 6010358-60	£1.50	£1.80
6 - KNOB LOWER BDE-1004526-05.A4 1004526-05	£1.50	£1.80
7 - COVER BDE-1004526-98.A3 1004526-98	£1.50	£1.80
8 - SCREW BDE-1004526-07.A5 1004526-07	£1.50	£1.80
9 - COVER BDE-6010358-61 6010358-61	£1.50	£1.80
10 - SCREW BDE-1004526-09.A6 1004526-09	£1.50	£1.80
11 - SPRING BDE-1004526-10.A2 1004526-10	£1.50	£1.80
12 - GUARD COVER BDE-1004526-11.A5 1004526-11	£1.50	£1.80
13 - CLAMSHELL SA BDE-6010358-62 6010358-62	£37.35	£44.82
14 - BRUSH CAP BDE-1004526-14.A4 1004526-14	£1.50	£1.80
15 - CORD CLAMP BDE-1004526-17.A2 1004526-17	£1.50	£1.80
16 - SCREW BDE-1004526-18.A5 1004526-18	£1.50	£1.80
17 - SWITCH BDE-1004526-19.A1 1004526-19	£9.41	£11.29
18 - CAPACITOR BDE-1004526-21.A5 1004526-21	£1.50	£1.80
20 - MOTOR COVER BDE-1004526-23.A1 1004526-23	£3.30	£3.96
21 - CORD PROTECTOR BDE-1004526-24.A5 1004526-24	£1.50	£1.80
23 - BEARING BDE-1004526-26.A2 1004526-26	£2.78	£3.34
24 - ARMATURE SA BDE-1004526-27.A3 1004526-27	£41.24	£49.49
25 - WASHER LOCK BDE-1004526-29.A2 1004526-29	£1.50	£1.80
27 - KNOB SA BDE-1004526-31.A5 1004526-31	£1.50	£1.80
28 - NUT M6 BDE-1004526-32.A1 1004526-32	£1.50	£1.80
29 - LEVER BDE-6010358-63 6010358-63	£1.50	£1.80
30 - DEFLECTOR BDE-1004526-34.A3 1004526-34	£1.50	£1.80
32 - SPRING BDE-1004526-36.A4 1004526-36	£1.50	£1.80
33 - BEARING BDE-1004526-37.A3 1004526-37	£3.30	£3.96
34 - BLADEDRUM SA BDE-1004526-38.A1 1004526-38	£44.14	£52.97
35 - PIN BDE-1004526-46.A5 1004526-46	£4.69	£5.63
36 - FIELD BDE-1004526-47.A1 1004526-47	£30.08	£36.10
37 - BAFFLE FAN BDE-1004526-49.A5 1004526-49	£1.50	£1.80
38 - SPRING BDE-1004526-50.A2 1004526-50	£1.50	£1.80
39 - CLAMPING BAR BDE-1004526-51.A5 1004526-51	£1.50	£1.80
40 - STAND BDE-1004526-52.A2 1004526-52	£1.50	£1.80
41 - SHOE BDE-1004526-53.A5 1004526-53	£12.17	£14.60
42 - SCREW BDE-1004526-54.A2 1004526-54	£1.50	£1.80
43 - BELT BDE-1004526-55.A5 1004526-55	£5.88	£7.06
44 - BELT COVER BDE-6010358-64 6010358-64	£3.30	£3.96
47 - BEARING BDE-1004526-59.A5 1004526-59	£5.88	£7.06
48 - BEARING PLATE BDE-1004526-60.A2 1004526-60	£1.50	£1.80
49 - SCREW BDE-1004526-09.A5 1004526-09	£1.50	£1.80
50 - WHEEL LARGE BDE-1004526-62.A5 1004526-62	£1.82	£2.19
51 - NUT BDE-1004526-63.A1 1004526-63	£1.50	£1.80
52 - BAFFLE BDE-1004526-64.A5 1004526-64	£1.50	£1.80
53 - SCREW BDE-1004526-65.A2 1004526-65	£1.50	£1.80
54 - BEARING BDE-1004526-66.A5 1004526-66	£2.78	£3.34
56 - WHEEL DRIVING BDE-1004526-68.A2 1004526-68	£3.30	£3.96
57 - BEARING PLATE BDE-1004526-69.A5 1004526-69	£1.50	£1.80
58 - CORDSET BDE-6010358-65 6010358-65	£7.85	£9.42
60 - DUSTBAG BDE-1004526-75.A0 1004526-75	£12.17	£14.60
61 - SPANNER BDE-1004526-76.A3 1004526-76	£2.26	£2.71
62 - ADAPTOR TUBE BDE-1004526-78.A3 1004526-78	£1.50	£1.80
63 - FENCE SA BDE-1004526-79.A0 1004526-79	£14.57	£17.48
64 - KNOB BDE-6010358-67 6010358-67	£1.50	£1.80
67 - BRUSH HOLDER BDE-1004526-15.A2 1004526-15	£2.26	£2.71
68 - BRUSH PAIR BDE-1004526-16.A5 1004526-16	£1.50	£1.80
69 - SCREW BDE-1004526-90.A1 1004526-90	£1.50	£1.80
70 - BLADE CLAMP BDE-1004526-91.A2 1004526-91	£1.82	£2.19
71 - SCREW BDE-1004526-92.A1 1004526-92	£1.50	£1.80
72 - SUPPORT BDE-1004526-93.A2 1004526-93	£1.82	£2.19
73 - BLADE BDE-1004526-94.A1 1004526-94	£12.17	£14.60
74 - CUTTER BLOCK BDE-1004526-95.A2 1004526-95	£16.03	£19.24
