Stanley STEL365 Type 1 Reciprocating Saw Spare Parts

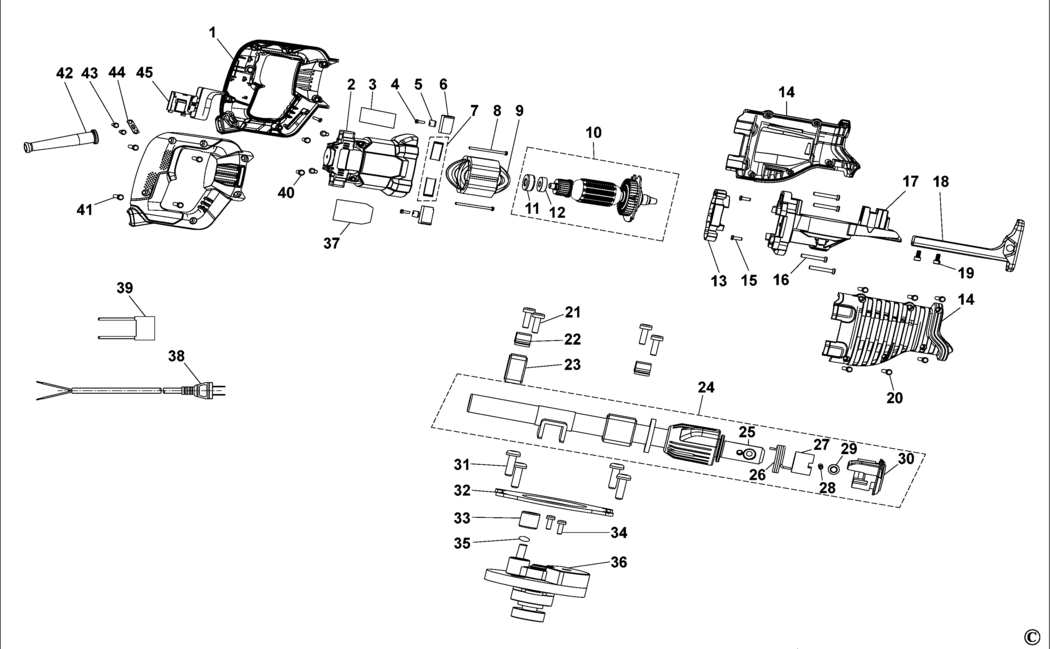

An exploded drawing and spare parts listing for the Stanley STEL365 Type 1 Reciprocating Saw

	Ex VAT	Inc VAT
1 - HANDLE SA BDE-90576909 90576909	-
2 - FIELD CASE BDE-90576906 90576906	-
3 - LABEL BDE-90575018.A2 90575018	-
4 - SCREW BDE-330019-28.A17 330019-28	£1.50	£1.80
5 - BRUSH HOLDER BDE-90561435.A2 90561435	£1.50	£1.80
6 - BOX BDE-90562316.A0 90562316	£1.50	£1.80
8 - SCREW BDE-330019-64.A4 330019-64	£1.50	£1.80
11 - CAP BDE-90565402.A1 90565402	£1.50	£1.80
12 - BEARING BDE-574853-08.A36 574853-08	£1.50	£1.80
13 - BAFFLE FAN BDE-90562519.A1 90562519	£1.50	£1.80
14 - HOUSING BDE-90566153.A3 90566153	£14.57	£17.48
15 - SCREW BDE-90568551.A1 90568551	£1.50	£1.80
16 - SCREW BDE-330019-13.A445 330019-13	£1.50	£1.80
17 - GEARCASE BDE-90563648.A0 90563648	£24.39	£29.27
18 - SHOE SA BDE-90564578.A3 90564578	£9.41	£11.29
19 - SCREW BDE-90569120.A3 90569120	£1.50	£1.80
20 - SCREW BDE-330019-03.A362 330019-03	£1.50	£1.80
21 - SCREW BDE-330045-45.A67 330045-45	£1.50	£1.80
22 - BEARING PLATE BDE-90563826.A0 90563826	£1.50	£1.80
23 - BEARING HOLDER BDE-90563824.A3 90563824	£1.50	£1.80
24 - SHAFT SA BDE-90564572.A3 90564572	£30.08	£36.10
25 - SHAFT BDE-90570989.A0 90570989	£18.91	£22.69
26 - SPRING BDE-90562333.A3 90562333	£1.50	£1.80
27 - SLEEVE BDE-90562334.A2 90562334	£1.50	£1.80
28 - PIN BDE-90570102.A0 90570102	£1.50	£1.80
29 - PIN BDE-90562314.A1 90562314	£2.26	£2.71
30 - COLLAR BDE-90562332.A2 90562332	£9.41	£11.29
31 - SCREW BDE-616037-00.A1 616037-00	£1.50	£1.80
32 - THRUST PLATE BDE-90563820.A3 90563820	£5.88	£7.06
33 - BEARING NEEDLE BDE-385238-00.A13 385238-00	£3.30	£3.96
34 - SCREW BDE-622484-00.A10 622484-00	£1.50	£1.80
35 - WASHER BDE-582717-00.A19 582717-00	£1.50	£1.80
36 - GEAR SA BDE-90564577.A0 90564577	£34.00	£40.80
39 - CAPACITOR BDE-90568607.A0 90568607	£1.50	£1.80
40 - SCREW BDE-330019-12.A17 330019-12	£1.50	£1.80
41 - SCREW BDE-330019-13.A444 330019-13	£1.50	£1.80
42 - CORD PROTECTOR BDE-330005-01.A39 330005-01	£1.50	£1.80
43 - SCREW.TEMP BDE-330019-01.A121 330019-01	£1.50	£1.80
44 - CORD CLAMP BDE-329301-00.A61 329301-00	£1.50	£1.80

Attribute Name	Value
Brand	Stanley
