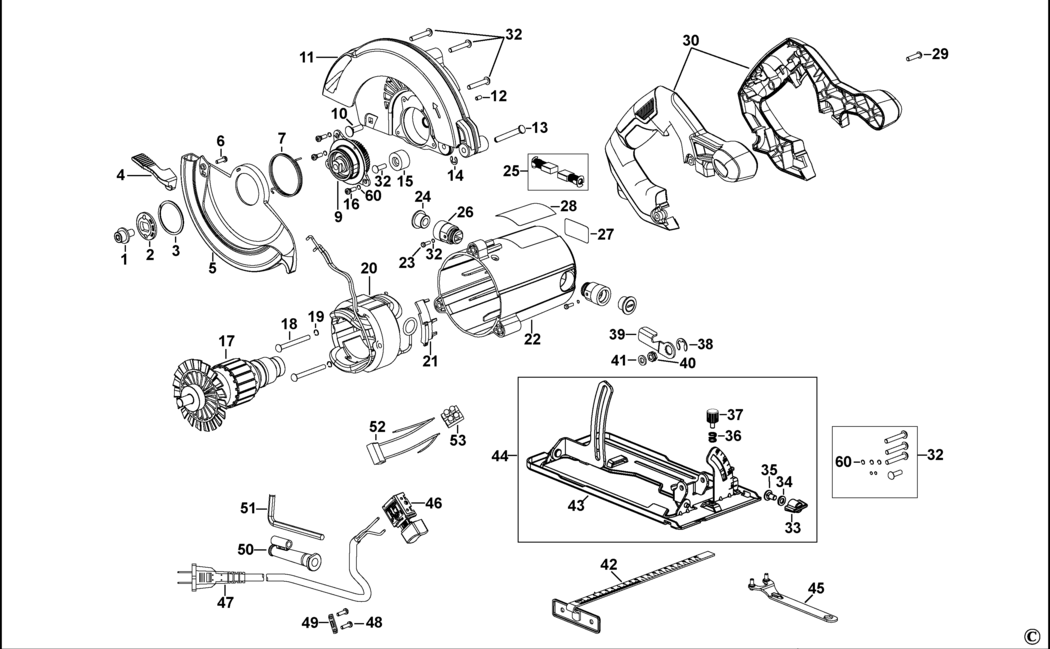

1 - SCREW M8 X 16
BDE-90578338.A3
90578338
|
£1.50
|
£1.80
|
|
|
2 - OUTER FLANGE
BDE-90568901
90568901
|
£3.80
|
£4.56
|
|
|
3 - RETAINER
BDE-90568898.A4
90568898
|
£1.50
|
£1.80
|
|
|
4 - LEVER
BDE-90580523.A1
90580523
|
£1.50
|
£1.80
|
|
|
5 - GUARD LOWER
BDE-90568775.A6
90568775
|
£18.91
|
£22.69
|
|
|
6 - SCREW
BDE-370748.A86
370748
|
£1.50
|
£1.80
|
|
|
7 - SPRING
BDE-90568897.A9
90568897
|
£1.50
|
£1.80
|
|
|
9 - SPINDLE & GEAR SA
BDE-90568798
90568798
|
£17.48
|
£20.97
|
|
|
10 - BOLT
BDE-90569114.A7
90569114
|
£1.50
|
£1.80
|
|
|
11 - GEARCASE SA
BDE-90616744
90616744
|
£30.08
|
£36.10
|
|
|
12 - PLUG
BDE-90574987.A4
90574987
|
£1.50
|
£1.80
|
|
|
13 - PIN
BDE-90578341.A0
90578341
|
£1.50
|
£1.80
|
|
|
14 - RETAINER
BDE-90578384.A7
90578384
|
£1.50
|
£1.80
|
|
|
15 - BUMPER
BDE-90569118.A0
90569118
|
£1.50
|
£1.80
|
|
|
16 - SERVICE KIT
BDE-495681-00.A0
495681-00
|
-
|
|
|
|
17 - ARMATURE 230V
BDE-90586786.A0
90586786
|
£55.30
|
£66.36
|
|
|
18 - SCREW
BDE-330019-17.A41
330019-17
|
£1.50
|
£1.80
|
|
|
19 - WASHER LOCK
BDE-488808-00.A2
488808-00
|
£1.50
|
£1.80
|
|
|
20 - FIELD SA 230V
BDE-90586788.A2
90586788
|
£37.35
|
£44.82
|
|
|
21 - RETAINER
BDE-90573393.A6
90573393
|
£1.50
|
£1.80
|
|
|
22 - FIELDCASE
BDE-90580006-01.A0
90580006-01
|
£14.57
|
£17.48
|
|
|
23 - SCREW
BDE-330019-41.A5
330019-41
|
£1.50
|
£1.80
|
|
|
24 - BRUSH CAP
BDE-90568789.A0
90568789
|
£1.50
|
£1.80
|
|
|
25 - BRUSH PAIR 230V
BDE-90586485.A2
90586485
|
£7.18
|
£8.62
|
|
|
26 - BRUSH HOLDER
BDE-90568788.A9
90568788
|
£2.78
|
£3.34
|
|
|
27 - BRAND LABEL
BDE-90607003.A2
90607003
|
£1.50
|
£1.80
|
|
|
29 - SCREW
BDE-90579269.A3
90579269
|
£1.50
|
£1.80
|
|
|
30 - HANDLE SA
BDE-90580010-01.A0
90580010-01
|
£16.03
|
£19.24
|
|
|
32 - PARTS PACK
BDE-90586677.A7
90586677
|
£1.50
|
£1.80
|
|
|
33 - WING NUT
BDE-90568910.A0
90568910
|
£1.50
|
£1.80
|
|
|
34 - WASHER
BDE-90580384.A16
90580384
|
£1.50
|
£1.80
|
|
|
35 - BOLT
BDE-90568912.A8
90568912
|
£1.50
|
£1.80
|
|
|
36 - SPRING
BDE-90568918.A13
90568918
|
£1.50
|
£1.80
|
|
|
37 - SCREW
BDE-90568917.A0
90568917
|
£1.50
|
£1.80
|
|
|
38 - RETAINER
BDE-90578352.A7
90578352
|
£1.50
|
£1.80
|
|
|
39 - LEVER
BDE-90569116.A7
90569116
|
£1.50
|
£1.80
|
|
|
40 - LOCK NUT
BDE-90569115.A0
90569115
|
£1.50
|
£1.80
|
|
|
41 - WASHER
BDE-90580384.A15
90580384
|
£1.50
|
£1.80
|
|
|
43 - SHOE
BDE-90586676.A0
90586676
|
£16.03
|
£19.24
|
|
|
44 - SHOE SA
BDE-90586484.A1
90586484
|
£17.48
|
£20.97
|
|
|
45 - WRENCH PIN
BDE-90585849.A6
90585849
|
£1.50
|
£1.80
|
|
|
46 - SWITCH SA
BDE-90595774.A0
90595774
|
£7.18
|
£8.62
|
|
|
48 - SCREW
BDE-370748.A87
370748
|
£1.50
|
£1.80
|
|
|
49 - CORD CLAMP
BDE-329301-00.A180
329301-00
|
£1.50
|
£1.80
|
|
|
50 - CORD PROTECTOR
BDE-90568797.A6
90568797
|
£1.50
|
£1.80
|
|
|
51 - HEX KEY
BDE-90579371.A4
90579371
|
£1.50
|
£1.80
|
|
|
52 - CAPACITOR
BDE-90581356.A2
90581356
|
£2.78
|
£3.34
|
|
|
53 - TERMINAL BLOCK
BDE-320078-00.A27
320078-00
|
£2.26
|
£2.71
|
|
|
60 - WASHER SPRING
BDE-569639-00.A17
569639-00
|
£1.50
|
£1.80
|
|
