Stanley FME360 Type 1 Reciprocating Saw Spare Parts

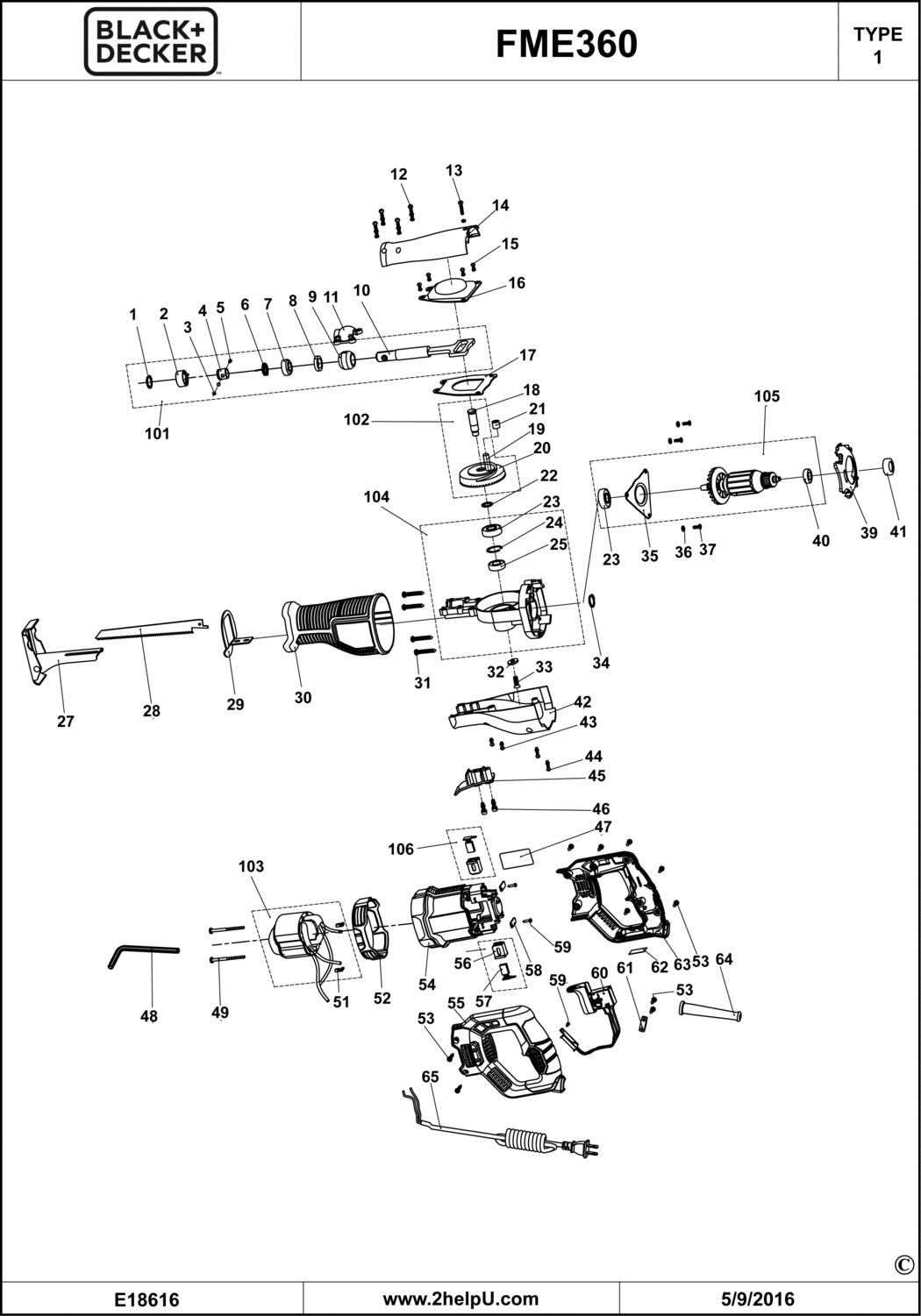

An exploded drawing and spare parts listing for the Stanley FME360 Type 1 Reciprocating Saw

	Ex VAT	Inc VAT
1 - CIRCLIP BDE-1004715-08.A1 1004715-08	£1.50	£1.80
2 - COLLAR BDE-1004715-09.A0 1004715-09	£2.26	£2.71
3 - PIN BDE-1004715-10.A1 1004715-10	£1.50	£1.80
4 - RING BDE-1004715-11.A0 1004715-11	£1.50	£1.80
5 - BALL BDE-1004715-12.A1 1004715-12	£1.50	£1.80
6 - SPRING BDE-1004715-13.A0 1004715-13	£1.50	£1.80
7 - RING BDE-1004715-14.A1 1004715-14	£1.50	£1.80
8 - RING BDE-1004715-15.A0 1004715-15	£1.50	£1.80
9 - BEARING BDE-1004715-16.A1 1004715-16	£1.50	£1.80
10 - LEVER BDE-1004715-17.A0 1004715-17	£12.17	£14.60
11 - COVER BDE-5140182-91.A0 5140182-91	£1.50	£1.80
12 - SCREW BDE-5140182-92.A1 5140182-92	£1.50	£1.80
13 - SCREW BDE-5140182-93.A0 5140182-93	£1.50	£1.80
14 - COVER BDE-5140182-94.A1 5140182-94	£1.50	£1.80
15 - SCREW BDE-5140182-95.A0 5140182-95	£1.50	£1.80
16 - PLATE BDE-5140182-96.A1 5140182-96	£3.30	£3.96
17 - PLATE BDE-5140182-97.A0 5140182-97	£3.30	£3.96
18 - SHAFT BDE-1004715-18.A1 1004715-18	£2.78	£3.34
19 - PIN BDE-1004715-19.A0 1004715-19	£1.50	£1.80
20 - GEAR BDE-1004715-20.A1 1004715-20	£12.17	£14.60
21 - NEEDLE BDE-5140182-99.A0 5140182-99	£4.69	£5.63
22 - WASHER BDE-5140183-00.A1 5140183-00	£1.50	£1.80
23 - BEARING BDE-5140183-01.A0 5140183-01	£7.18	£8.62
24 - CIRCLIP BDE-5140183-02.A1 5140183-02	£1.50	£1.80
25 - BEARING BDE-5140183-03.A0 5140183-03	£2.78	£3.34
26 - GEARBOX BDE-5140183-04 5140183-04	-
27 - SHOE BDE-5140183-05.A0 5140183-05	£4.69	£5.63
28 - BLADE BDE-1004715-21.A0 1004715-21	£1.50	£1.80
29 - BAFFLE BDE-5140183-07.A1 5140183-07	£1.50	£1.80
30 - BOOT BDE-5140183-08.A0 5140183-08	£7.18	£8.62
31 - SCREW BDE-5140183-09.A1 5140183-09	£1.50	£1.80
32 - WASHER BDE-5140183-10.A0 5140183-10	£1.50	£1.80
33 - SCREW BDE-5140183-11.A1 5140183-11	£1.50	£1.80
34 - CIRCLIP BDE-5140183-12.A0 5140183-12	£1.50	£1.80
35 - PLATE BDE-5140183-13.A1 5140183-13	£1.50	£1.80
36 - WASHER BDE-5140183-14.A0 5140183-14	£1.50	£1.80
37 - SCREW BDE-5140183-15.A1 5140183-15	£1.50	£1.80
39 - DEFLECTOR BDE-5140183-16.A0 5140183-16	£1.50	£1.80
40 - BEARING BDE-5140183-17.A1 5140183-17	£1.50	£1.80
41 - SLEEVE BDE-5140183-18.A0 5140183-18	£1.50	£1.80
42 - SLEEVE BDE-5140183-19.A1 5140183-19	£1.50	£1.80
43 - SCREW BDE-5140183-20.A0 5140183-20	£1.50	£1.80
44 - SCREW BDE-5140183-21.A1 5140183-21	£1.50	£1.80
45 - SUPPORT BDE-5140183-22.A0 5140183-22	£1.50	£1.80
46 - SCREW BDE-5140183-23.A1 5140183-23	£1.50	£1.80
47 - NAMEPLATE GB BDE-1004715-24 1004715-24	£1.50	£1.80
48 - KEY BDE-5140183-25.A0 5140183-25	£1.50	£1.80
49 - SCREW BDE-5140183-26.A1 5140183-26	£1.50	£1.80
51 - TERMINAL BDE-1004715-28.A1 1004715-28	£1.50	£1.80
52 - RING BDE-5140183-27.A0 5140183-27	£1.50	£1.80
53 - SCREW BDE-5140183-28.A1 5140183-28	£1.50	£1.80
54 - HOUSING BDE-5140183-29 5140183-29	£10.85	£13.02
55 - HANDLE LH BDE-5140183-30 5140183-30	£7.85	£9.42
56 - BRUSH HOLDER BDE-5140183-31.A0 5140183-31	£2.78	£3.34
57 - BRUSH GB BDE-1004715-29.A0 1004715-29	£4.69	£5.63
58 - COVER BDE-5140183-33.A1 5140183-33	£1.50	£1.80
59 - SCREW BDE-5140183-34.A0 5140183-34	£1.50	£1.80
60 - SWITCH GB BDE-1004715-30.A1 1004715-30	£19.90	£23.88
61 - CORD CLAMP BDE-5140183-36.A1 5140183-36	£1.50	£1.80
63 - HANDLE RH BDE-5140183-38 5140183-38	£1.50	£1.80
64 - SLEEVE BDE-5140183-39.A0 5140183-39	£1.50	£1.80
65 - CORDSET GB BDE-1004719-96 1004719-96	£17.48	£20.97
101 - LEVER BDE-5140182-90.A1 5140182-90	£17.48	£20.97
102 - GEAR SA BDE-5140182-98.A1 5140182-98	£16.03	£19.24
103 - STATOR SA BDE-1004715-25.A0 1004715-25	£25.70	£30.84
104 - GEARBOX SA BDE-1004719-97.A0 1004719-97	£18.91	£22.69
105 - ARMATURE SA BDE-1004719-98.A1 1004719-98	£44.14	£52.97
106 - BRUSH SA BDE-1004719-99.A0 1004719-99	£7.85	£9.42

Attribute Name	Value
Brand	Stanley
