Stanley STHR323K Type 1 Rotary Hammer Spare Parts

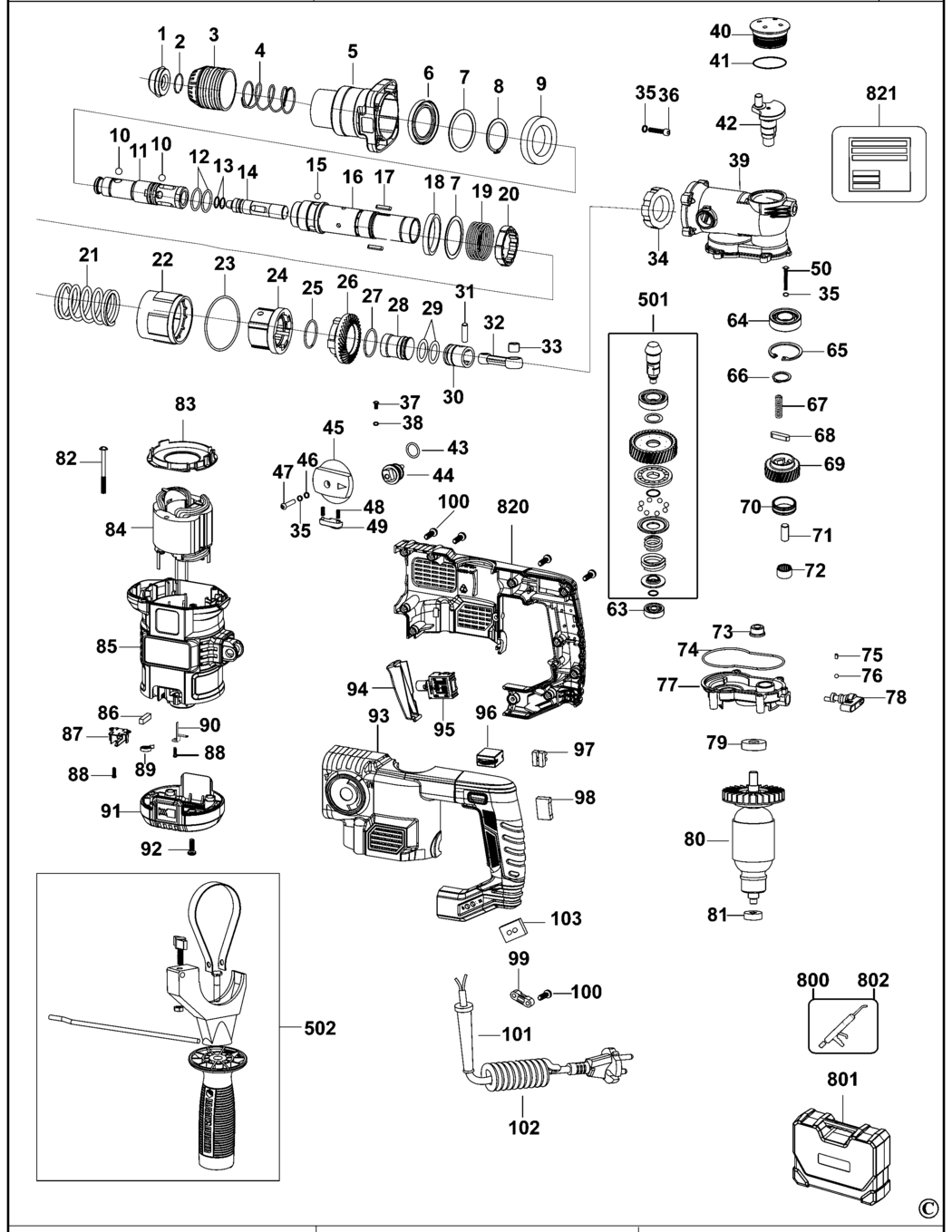

An exploded drawing and spare parts listing for the Stanley STHR323K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - COVER BDE-5140144-58.A1 5140144-58	£1.50	£1.80
2 - CIRCLIP BDE-5140144-59.A0 5140144-59	£1.50	£1.80
3 - HOLDER BIT BDE-5140144-60.A1 5140144-60	£4.69	£5.63
4 - SPRING BDE-5140144-61.A0 5140144-61	£1.50	£1.80
5 - SLEEVE BDE-5140144-62.A1 5140144-62	£9.41	£11.29
6 - SEAL BDE-5140144-63.A0 5140144-63	£5.88	£7.06
7 - WASHER BDE-5140144-64.A1 5140144-64	£1.50	£1.80
8 - CIRCLIP BDE-5140144-65.A0 5140144-65	£1.50	£1.80
9 - BEARING BDE-5140144-66.A1 5140144-66	£9.41	£11.29
10 - BALL STEEL BDE-5140144-67.A0 5140144-67	£1.50	£1.80
11 - SPINDLE BDE-5140144-68.A1 5140144-68	£12.17	£14.60
12 - O RING BDE-5140144-69.A0 5140144-69	£1.50	£1.80
13 - O RING BDE-5140144-70.A1 5140144-70	£1.50	£1.80
14 - HAMMER BDE-5140144-71.A0 5140144-71	£5.88	£7.06
15 - BALL STEEL BDE-5140144-72.A1 5140144-72	£1.50	£1.80
16 - CYLINDER BDE-5140144-73.A0 5140144-73	£25.70	£30.84
17 - KEY BDE-5140144-74.A1 5140144-74	£1.50	£1.80
18 - COVER BDE-5140144-75.A0 5140144-75	£1.50	£1.80
19 - CLUTCH BDE-5140144-76.A1 5140144-76	£12.17	£14.60
20 - RING BDE-5140144-77.A0 5140144-77	£2.78	£3.34
21 - SPRING BDE-5140144-78.A1 5140144-78	£1.50	£1.80
22 - COVER BDE-5140144-79.A0 5140144-79	£1.50	£1.80
23 - O RING BDE-5140144-80.A1 5140144-80	£1.50	£1.80
24 - CLUTCH BDE-5140144-81.A0 5140144-81	£1.50	£1.80
25 - CLIP BDE-5140144-82.A1 5140144-82	£1.50	£1.80
26 - GEAR BDE-5140144-83.A0 5140144-83	£18.91	£22.69
27 - CLIP BDE-5140144-84.A1 5140144-84	£1.50	£1.80
28 - HAMMER BDE-5140144-85.A0 5140144-85	£3.80	£4.56
29 - O RING BDE-5140147-39.A0 5140147-39	£1.50	£1.80
30 - PISTON BDE-5140147-40.A1 5140147-40	£2.78	£3.34
31 - PIN BDE-5140147-41.A0 5140147-41	£1.50	£1.80
32 - SHAFT BDE-5140147-42.A1 5140147-42	£5.88	£7.06
33 - BEARING BDE-5140147-43.A0 5140147-43	£1.50	£1.80
34 - BEARING BDE-5140144-86.A1 5140144-86	£1.50	£1.80
35 - WASHER SPRING BDE-5140144-87.A0 5140144-87	£1.50	£1.80
36 - SCREW BDE-5140144-88.A1 5140144-88	£1.50	£1.80
37 - SCREW BDE-5140144-89.A0 5140144-89	£1.50	£1.80
38 - WASHER SPRING BDE-5140144-90.A1 5140144-90	£1.50	£1.80
39 - GEARBOX BDE-5140144-91.A0 5140144-91	£14.57	£17.48
40 - COVER BDE-5140144-92.A1 5140144-92	£1.50	£1.80
41 - O RING BDE-5140144-93.A0 5140144-93	£1.50	£1.80
42 - CRANKSHAFT BDE-5140144-94.A1 5140144-94	£7.18	£8.62
43 - O RING BDE-5140147-44.A1 5140147-44	£1.50	£1.80
44 - SHAFT BDE-5140147-45.A0 5140147-45	£2.26	£2.71
45 - KNOB BDE-5140147-46.A1 5140147-46	£1.50	£1.80
46 - WASHER BDE-5140147-47.A0 5140147-47	£1.50	£1.80
47 - SCREW BDE-5140147-48.A1 5140147-48	£1.50	£1.80
48 - SPRING BDE-5140147-49.A0 5140147-49	£1.50	£1.80
49 - BUTTON BDE-5140147-50.A1 5140147-50	£1.50	£1.80
50 - SCREW BDE-5140144-95.A0 5140144-95	£1.50	£1.80
63 - BEARING BDE-5140144-97.A0 5140144-97	£1.82	£2.19
64 - BEARING BDE-5140144-98.A1 5140144-98	£3.80	£4.56
65 - CIRCLIP BDE-5140144-99.A0 5140144-99	£1.50	£1.80
66 - CIRCLIP BDE-5140145-00.A1 5140145-00	£1.50	£1.80
67 - SPRING BDE-5140145-01.A0 5140145-01	£1.50	£1.80
68 - KEY BDE-5140145-02.A1 5140145-02	£1.50	£1.80
69 - GEAR BDE-5140145-03.A0 5140145-03	£7.18	£8.62
70 - SHEATH BDE-5140145-04.A1 5140145-04	£1.50	£1.80
71 - HAMMER BDE-5140145-05.A0 5140145-05	£1.50	£1.80
72 - BEARING NEEDLE BDE-5140145-06.A1 5140145-06	£1.50	£1.80
73 - RETAINING PLATE BDE-5140145-07.A0 5140145-07	£1.50	£1.80
74 - SEAL BDE-5140145-08.A1 5140145-08	£1.50	£1.80
75 - RUBBER BDE-5140145-09.A0 5140145-09	£1.50	£1.80
76 - BALL STEEL BDE-5140145-10.A1 5140145-10	£1.50	£1.80
77 - COVER BDE-5140145-11.A0 5140145-11	£5.88	£7.06
78 - BUTTON BDE-5140145-12.A1 5140145-12	£3.30	£3.96
79 - BEARING BDE-5140145-13.A0 5140145-13	£7.85	£9.42
80 - ARMATURE SA BDE-5140145-40.A1 5140145-40	£47.08	£56.49
81 - BEARING BDE-5140145-15.A1 5140145-15	£4.69	£5.63
82 - SCREW BDE-5140145-16.A0 5140145-16	£1.50	£1.80
83 - COVER BDE-5140145-17.A1 5140145-17	£1.50	£1.80
84 - FIELD SA BDE-5140145-39.A0 5140145-39	£25.70	£30.84
85 - HOUSING BDE-6010389-69 6010389-69	£18.91	£22.69
86 - BRUSH PAIR BDE-5140145-21.A0 5140145-21	£2.26	£2.71
87 - BRUSH HOLDER PAIR BDE-5140145-20.A1 5140145-20	£3.30	£3.96
88 - SCREW BDE-5140145-22.A1 5140145-22	£1.50	£1.80
89 - SPRING BDE-5140145-23.A0 5140145-23	£1.50	£1.80
90 - CONTACT BDE-5140145-24.A1 5140145-24	£1.50	£1.80
91 - COVER BDE-5140145-25.A0 5140145-25	£7.18	£8.62
92 - SCREW BDE-5140145-26.A1 5140145-26	£1.50	£1.80
93 - HANDLE SA BDE-6010389-70 6010389-70	£30.08	£36.10
94 - TRIGGER BDE-5140145-28.A1 5140145-28	£1.50	£1.80
95 - SWITCH BDE-5140145-29.A0 5140145-29	£18.91	£22.69
96 - SPEED REGULATOR BDE-5140145-30.A1 5140145-30	£17.48	£20.97
97 - POST BDE-5140145-31.A0 5140145-31	£1.50	£1.80
99 - CORD CLAMP BDE-5140145-32.A1 5140145-32	£1.50	£1.80
100 - SCREW BDE-5140145-33.A0 5140145-33	£1.50	£1.80
101 - CORD PROTECTOR BDE-5140145-34.A1 5140145-34	£1.50	£1.80
102 - CORDSET (EURO) BDE-1004692-18.A1 1004692-18	£19.90	£23.88
103 - INDICATOR BDE-5140145-36.A0 5140145-36	£3.80	£4.56
501 - CLUTCH SA BDE-5140144-96.A1 5140144-96	£17.48	£20.97
502 - SIDE HANDLE BDE-5140145-37.A1 5140145-37	£25.70	£30.84
800 - GREASE BDE-1004692-23.A3 1004692-23	£3.80	£4.56
801 - KIT BOX BDE-6010389-73 6010389-73	£19.90	£23.88
802 - GREASE BDE-1004692-24.A0 1004692-24	£1.50	£1.80
820 - IDENTITY LABEL BDE-6010389-71 6010389-71	£1.50	£1.80

Attribute Name	Value
Brand	Stanley
