Stanley STHR223K Type 1 Hammer Drill Spare Parts

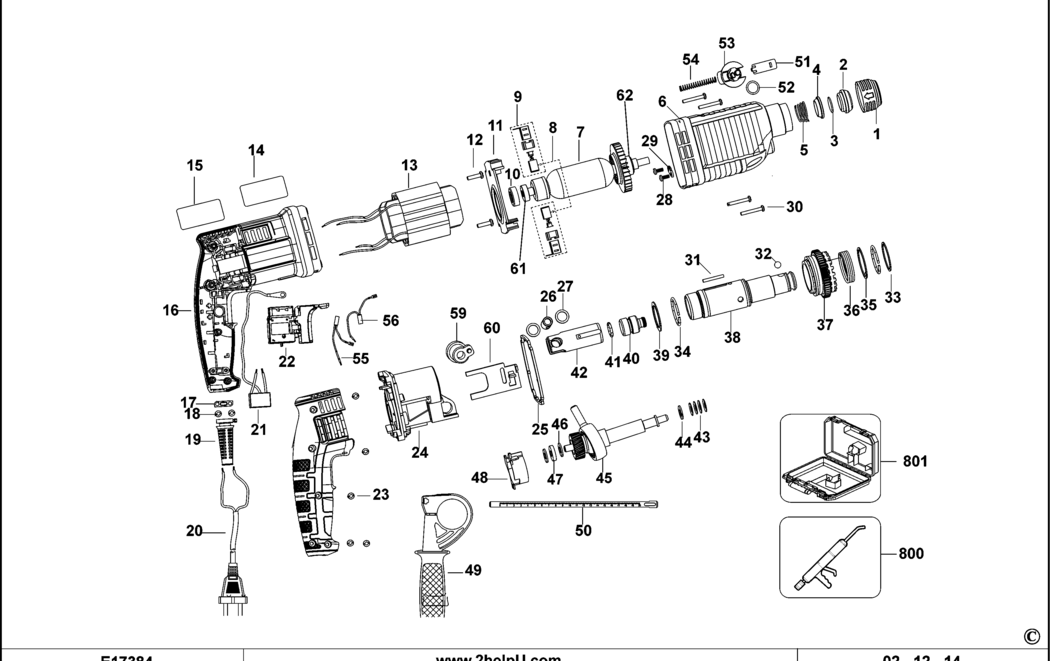

An exploded drawing and spare parts listing for the Stanley STHR223K Type 1 Hammer Drill

	Ex VAT	Inc VAT
1 - COLLAR BDE-90524565.A0 90524565	£1.50	£1.80
2 - TIP BDE-90524563.A26 90524563	£1.50	£1.80
3 - CIRCLIP BDE-90558298.A3 90558298	£1.50	£1.80
4 - HOLDER BDE-90594643.A5 90594643	£1.50	£1.80
5 - SPRING BDE-90549908.A13 90549908	£1.50	£1.80
6 - GEARCASE SA BDE-90592418.A2 90592418	£30.08	£36.10
7 - ARMATURE SA BDE-90592489.A3 90592489	£45.14	£54.17
8 - BRUSH SA BDE-90592455.A3 90592455	£9.41	£11.29
9 - BRUSH HOLDER SA BDE-90587066.A3 90587066	£9.41	£11.29
10 - SLEEVE BEARING BDE-90549817.A5 90549817	£1.50	£1.80
11 - BOARD BDE-90584579.A10 90584579	£2.78	£3.34
12 - SCREW BDE-330065-05.A37 330065-05	£1.50	£1.80
13 - FIELD SA BDE-90592490.A3 90592490	£37.35	£44.82
15 - BRAND LABEL BDE-90607102 90607102	£1.50	£1.80
16 - HOUSING SA BDE-90592861-02.A1 90592861-02	£34.00	£40.80
17 - CORD CLAMP BDE-329301-00.A75 329301-00	£1.50	£1.80
18 - SCREW BDE-330065-05.A36 330065-05	£1.50	£1.80
19 - CORD PROTECTOR BDE-629648-00.A15 629648-00	£1.50	£1.80
21 - CAPACITOR BDE-90586987.A1 90586987	£1.50	£1.80
22 - SWITCH BDE-90590899.A3 90590899	£16.03	£19.24
23 - SCREW BDE-330065-07.A31 330065-07	£1.50	£1.80
24 - SUPPORT PLATE BDE-90567050.A14 90567050	£16.03	£19.24
25 - GASKET BDE-90550379.A6 90550379	£1.50	£1.80
26 - PIN BDE-90549488.A7 90549488	£1.50	£1.80
27 - WASHER BDE-90549884.A13 90549884	£1.50	£1.80
28 - SCREW BDE-90550523.A9 90550523	£1.50	£1.80
29 - BRAKE BDE-90549588.A10 90549588	£1.50	£1.80
30 - SCREW BDE-330065-14.A10 330065-14	£1.50	£1.80
31 - PIN BDE-90550377.A11 90550377	£1.50	£1.80
32 - BALL STEEL BDE-90550363.A24 90550363	£1.50	£1.80
33 - GASKET BDE-90558481.A10 90558481	£1.50	£1.80
34 - CIRCLIP BDE-90558296.A13 90558296	£1.50	£1.80
35 - WASHER BDE-90549885.A13 90549885	£1.50	£1.80
36 - SPRING BDE-90550375.A6 90550375	£1.50	£1.80
37 - CLUTCH SA BDE-90567045.A13 90567045	£16.03	£19.24
38 - SHAFT BDE-90592404.A10 90592404	£45.14	£54.17
39 - WASHER BDE-90549888.A4 90549888	£1.50	£1.80
40 - RAM BDE-90549635.A4 90549635	£2.78	£3.34
41 - O RING BDE-90558558.A9 90558558	£1.50	£1.80
42 - CYLINDER BDE-90549489.A10 90549489	£7.85	£9.42
43 - SPRING BDE-90549946.A14 90549946	£1.50	£1.80
44 - GASKET BDE-90558300.A13 90558300	£1.50	£1.80
45 - INTERSHAFT SA BDE-90595118.A6 90595118	£51.90	£62.28
46 - GASKET BDE-90558664.A8 90558664	£1.50	£1.80
47 - BEARING AXIAL BDE-90550384.A5 90550384	£1.50	£1.80
48 - BAFFLE BDE-90585594.A10 90585594	£1.50	£1.80
49 - HANDLE SA BDE-376556-11.A8 376556-11	£3.30	£3.96
50 - DEPTH STOP BDE-372814-00.A45 372814-00	£1.50	£1.80
51 - LOCK BUTTON BDE-90584578.A2 90584578	£1.50	£1.80
52 - RUBBER SEAL BDE-90558562.A2 90558562	£1.50	£1.80
53 - KNOB BDE-90584577.A1 90584577	£2.78	£3.34
54 - SPRING BDE-90550392.A3 90550392	£1.50	£1.80
55 - CHOKE LEAD SA BDE-90587067.A1 90587067	£1.50	£1.80
56 - CHOKE LEAD SA BDE-90587068.A1 90587068	£1.50	£1.80
59 - KNOB BDE-90549812.A9 90549812	£1.50	£1.80
60 - SELECTOR BDE-90549820.A9 90549820	£1.50	£1.80
61 - BEARING BDE-90530454.A6 90530454	£1.50	£1.80
62 - BEARING BDE-90532404.A0 90532404	£1.50	£1.80
800 - GREASE 90 GMS BDE-870889-02.A724 870889-02	£7.85	£9.42
801 - KITBOX BDE-90584590-02 90584590-02	£24.39	£29.27
