Stanley SBD20S2K Type 1 Hammer Spare Parts

Stanley SBD20S2K Type 1 Hammer Spare Parts

Home Details Reviews Delivery

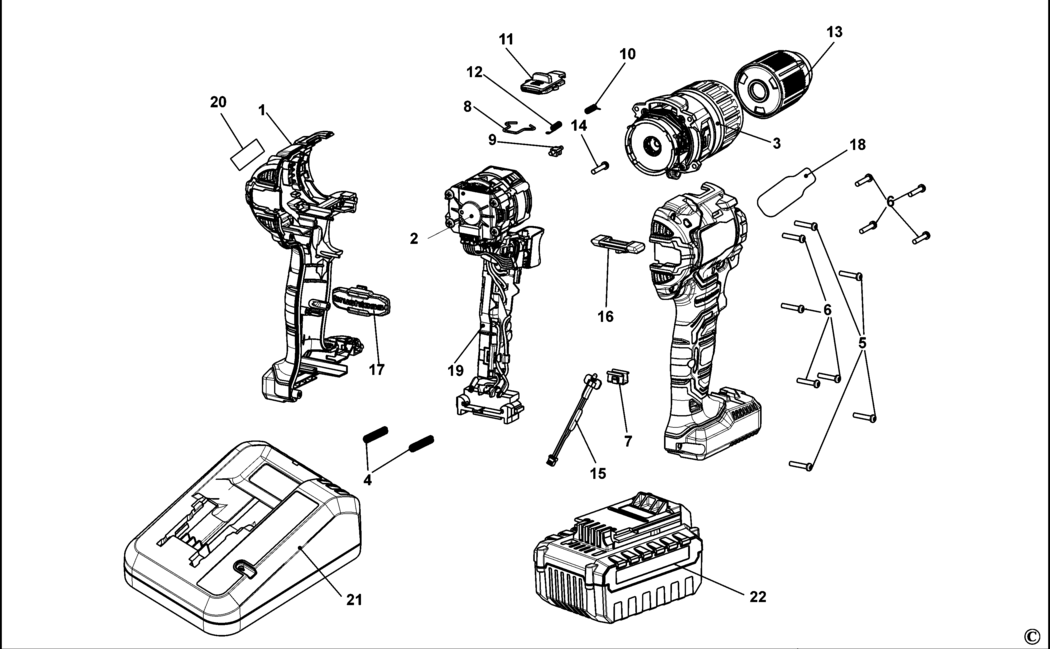

An exploded drawing and spare parts listing for the Stanley SBD20S2K Type 1 Hammer

	Ex VAT	Inc VAT
1 - HOUSING SA BDE-N500311.A1 N500311	£12.17	£14.60
2 - MOTOR SA BDE-90635030.A2 90635030	£65.52	£78.62
3 - GEARBOX BDE-90635180 90635180	£93.62	£112.35
4 - SPRING BDE-5100035-03.A137 5100035-03	£1.50	£1.80
5 - SCREW BDE-90637196.A0 90637196	£1.50	£1.80
6 - SCREW BDE-90637197.A11 90637197	£1.50	£1.80
7 - HOLDER BDE-148354-03.A160 148354-03	£1.50	£1.80
8 - SPRING LH BDE-90591282.A6 90591282	£1.50	£1.80
9 - HOLDER BDE-90569691-03.A22 90569691-03	£1.50	£1.80
10 - SPRING RH BDE-90600347.A8 90600347	£1.50	£1.80
11 - ACTUATOR BDE-90593143-03.A2 90593143-03	£1.50	£1.80
12 - LEAF SPRING BDE-90556568.A10 90556568	£1.50	£1.80
13 - CHUCK BDE-90635167.A0 90635167	£16.03	£19.24
14 - SCREW BDE-5103096-01.A18 5103096-01	£1.50	£1.80
15 - LED BDE-90635315.A3 90635315	£3.80	£4.56
16 - ACTUATOR FWD/REV BDE-90629054-01.A12 90629054-01	£1.50	£1.80
17 - BACKPLATE BDE-90628279.A10 90628279	£1.50	£1.80
19 - MODULE BDE-90632774-03.A3 90632774-03	£110.62	£132.74
20 - LABEL BDE-N508446.A1 N508446	£1.50	£1.80
