Stanley SPT-270-720 Type 1 Snow Thrower Spare Parts

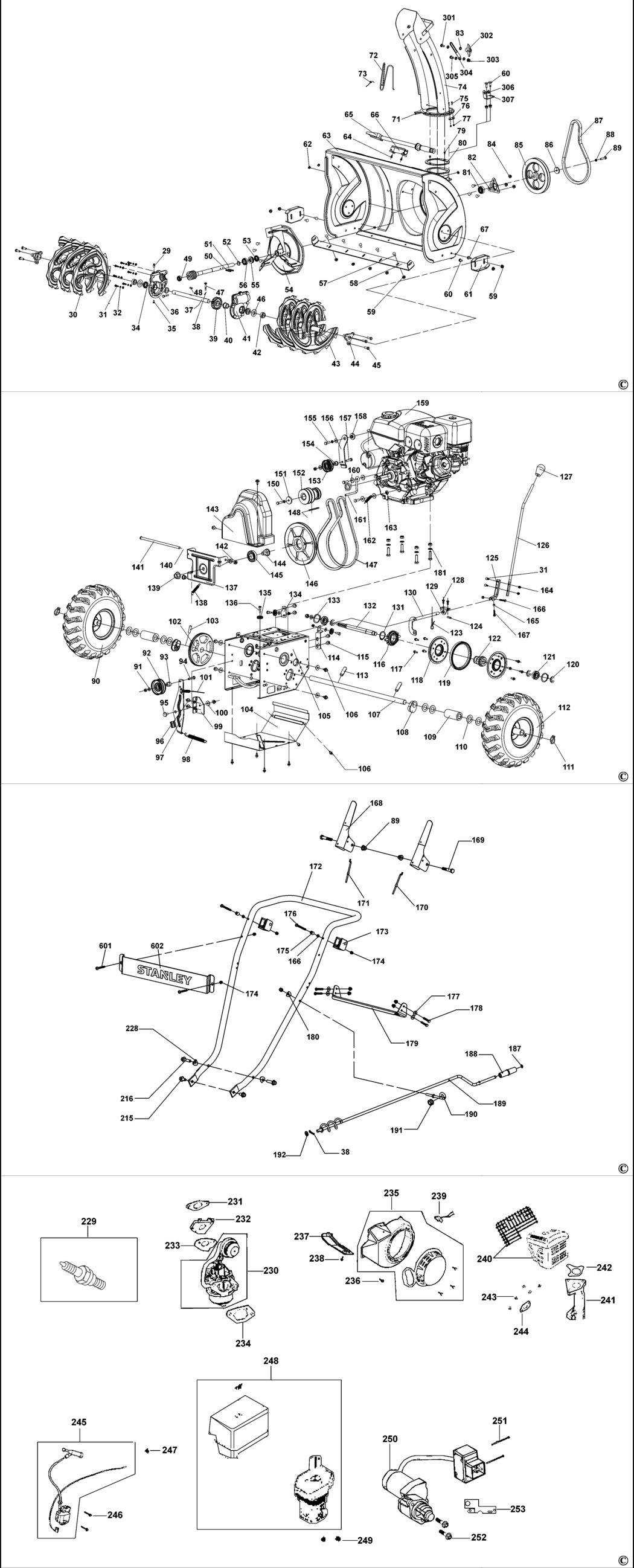

An exploded drawing and spare parts listing for the Stanley SPT-270-720 Type 1 Snow Thrower

	Ex VAT	Inc VAT
29 - SEAL BDE-E60450003029 E60450003029	£1.50	£1.80
30 - BLADE SA BDE-E60450003030 E60450003030	£37.35	£44.82
31 - BOLT BDE-E60450003031 E60450003031	£1.42	£1.70
32 - WASHER SPRING BDE-E60450003032 E60450003032	£1.42	£1.70
34 - SEAL BDE-E60450003034 E60450003034	£1.50	£1.80
35 - SCREW BDE-E60450003035 E60450003035	£1.50	£1.80
36 - GEARCASE COVER RH BDE-E60450003036 E60450003036	£12.17	£14.60
37 - SHAFT BDE-E60450003037 E60450003037	£7.85	£9.42
38 - PIN BDE-E60450003038 E60450003038	£1.42	£1.70
39 - GEAR BDE-E60450003039 E60450003039	£51.90	£62.28
40 - SLEEVE BDE-E60450003040 E60450003040	£1.50	£1.80
41 - GEARCASE COVER LH BDE-E60450003041 E60450003041	£12.17	£14.60
42 - WASHER BDE-E60450003042 E60450003042	£1.50	£1.80
43 - BLADE SA BDE-E60450003043 E60450003043	£37.35	£44.82
44 - BEARING HOUSING BDE-E60450003044 E60450003044	£3.80	£4.56
45 - SCREW BDE-E60450003045 E60450003045	£1.42	£1.70
46 - WASHER BDE-E60450003046 E60450003046	£1.50	£1.80
47 - PIN BDE-E60450003047 E60450003047	£1.78	£2.13
48 - KEY BDE-E60450003048 E60450003048	£1.42	£1.70
49 - BEARING BDE-E60450003049 E60450003049	£1.50	£1.80
50 - ROLLPIN BDE-E60450003050 E60450003050	£1.50	£1.80
51 - SHAFT BDE-E60450003051 E60450003051	£51.90	£62.28
52 - WASHER BDE-E60450003052 E60450003052	£1.50	£1.80
53 - SEAL BDE-E60450003053 E60450003053	£1.50	£1.80
54 - FAN SA BDE-E60450003054 E60450003054	£16.03	£19.24
55 - THRUST BEARING BDE-E60450003055 E60450003055	£3.30	£3.96
56 - BEARING BDE-E60450003056 E60450003056	£3.30	£3.96
57 - BOLT BDE-E60450003057 E60450003057	£1.42	£1.70
58 - PLATE BDE-E60450003058 E60450003058	£7.85	£9.42
59 - LOCK NUT BDE-E60450003059 E60450003059	£1.42	£1.70
60 - BOLT BDE-E60450003060 E60450003060	£1.42	£1.70
61 - PLASTIC SKID BDE-E60450003061 E60450003061	£4.69	£5.63
62 - PLUG BDE-E60450003062 E60450003062	£1.42	£1.70
63 - HOUSING SA BDE-E60450003063 E60450003063	£87.82	£105.39
64 - SCREW BDE-E60450003064 E60450003064	£1.42	£1.70
65 - TOOL BDE-E60450003065 E60450003065	£1.50	£1.80
66 - BRACKET BDE-E60450003066 E60450003066	£1.42	£1.70
67 - BOLT BDE-E60450003067 E60450003067	£1.42	£1.70
71 - RING BDE-E60450003071 E60450003071	£2.78	£3.34
72 - BLOCK BDE-E60450003072 E60450003072	£3.70	£4.44
73 - SPRING TORSION BDE-E60450003073 E60450003073	£1.42	£1.70
74 - CHUTE BDE-E60450003074 E60450003074	£24.39	£29.27
75 - BOLT BDE-E60450003075 E60450003075	£1.42	£1.70
76 - RETAINER BDE-E60450003076 E60450003076	£1.42	£1.70
77 - LOCK NUT BDE-E60450003077 E60450003077	£1.42	£1.70
79 - SCREW BDE-E60450003079 E60450003079	£1.42	£1.70
80 - WASHER BDE-E60450003080 E60450003080	£1.78	£2.13
81 - BEARING BDE-E60450003081 E60450003081	£2.26	£2.71
82 - HOUSING BEARING BDE-E60450003082 E60450003082	£4.58	£5.49
83 - WASHER LOCK BDE-E60450003083 E60450003083	£1.42	£1.70
84 - NUT M8 BDE-E60450003084 E60450003084	£1.42	£1.70
85 - PULLEY BDE-E60450003085 E60450003085	£24.39	£29.27
86 - WASHER BDE-E60450003086 E60450003086	£1.42	£1.70
87 - BELT BDE-E60450003087 E60450003087	£34.00	£40.80
88 - WASHER SPRING BDE-E60450003088 E60450003088	£1.42	£1.70
89 - BOLT BDE-E60450003089 E60450003089	£1.42	£1.70
90 - WHEEL BDE-E60450003090 E60450003090	£30.08	£36.10
91 - WASHER BDE-E60450003091 E60450003091	£1.42	£1.70
92 - PULLEY BDE-E60450003092 E60450003092	£3.80	£4.56
93 - SPACER BDE-E60450003093 E60450003093	£3.70	£4.44
94 - BOLT BDE-E60450003094 E60450003094	£1.42	£1.70
95 - BOLT BDE-E60450003095 E60450003095	£3.22	£3.86
96 - BOLT BDE-E60450003096 E60450003096	£1.42	£1.70
97 - BRACKET BDE-E60450003097 E60450003097	£2.78	£3.34
98 - SPRING BDE-E60450003098 E60450003098	£2.21	£2.65
99 - BRACKET BDE-E60450003099 E60450003099	£4.58	£5.49
100 - WASHER BDE-E604500030100 E604500030100	£1.42	£1.70
101 - CABLE BDE-E604500030101 E604500030101	£7.18	£8.62
102 - GEAR BDE-E604500030102 E604500030102	£14.57	£17.48
103 - PIN BDE-E604500030103 E604500030103	£1.42	£1.70
104 - COVER BDE-E604500030104 E604500030104	£4.69	£5.63
105 - FRAME SA BDE-E604500030105 E604500030105	£30.08	£36.10
106 - SCREW BDE-E604500030106 E604500030106	£1.42	£1.70
107 - SHAFT BDE-E604500030107 E604500030107	£7.18	£8.62
108 - BUSHING BDE-E604500030108 E604500030108	£2.26	£2.71
109 - SPACER BDE-E604500030109 E604500030109	£1.42	£1.70
110 - WASHER BDE-E604500030110 E604500030110	£1.42	£1.70
111 - LOCK PIN BDE-E604500030111 E604500030111	£1.50	£1.80
112 - WHEEL BDE-E604500030112 E604500030112	£47.08	£56.49
113 - PIN BDE-E604500030113 E604500030113	£1.42	£1.70
114 - BRACKET BDE-E604500030114 E604500030114	£3.70	£4.44
115 - SCREW BDE-E604500030115 E604500030115	£1.42	£1.70
116 - ARM BDE-E604500030116 E604500030116	£7.85	£9.42
117 - BOLT BDE-E604500030117 E604500030117	£1.42	£1.70
118 - WHEEL FRICTION BDE-E604500030118 E604500030118	£1.42	£1.70
119 - RING BDE-E604500030119 E604500030119	£10.85	£13.02
120 - CIRCLIP BDE-E604500030120 E604500030120	£1.42	£1.70
121 - BEARING BDE-E604500030121 E604500030121	£2.26	£2.71
122 - HUB BDE-E604500030122 E604500030122	£9.41	£11.29
123 - PIN BDE-E604500030123 E604500030123	£1.42	£1.70
124 - PIN BDE-E604500030124 E604500030124	£1.42	£1.70
125 - SPRING CLIP BDE-E604500030125 E604500030125	£1.50	£1.80
126 - HANDLE BDE-E604500030126 E604500030126	£3.30	£3.96
127 - KNOB BDE-E604500030127 E604500030127	£2.71	£3.25
128 - SCREW BDE-E604500030128 E604500030128	£1.42	£1.70
129 - BRACKET BDE-E604500030129 E604500030129	£3.22	£3.86
130 - FORK BDE-E604500030130 E604500030130	£3.30	£3.96
131 - CIRCLIP BDE-E604500030131 E604500030131	£1.42	£1.70
132 - SHAFT BDE-E604500030132 E604500030132	£9.41	£11.29
133 - CIRCLIP BDE-E604500030133 E604500030133	£1.42	£1.70
134 - HOLDER BDE-E604500030134 E604500030134	£3.22	£3.86
135 - ROLLER BDE-E604500030135 E604500030135	£1.42	£1.70
136 - BOLT BDE-E604500030136 E604500030136	£1.42	£1.70
137 - BRACKET BDE-E604500030137 E604500030137	£5.88	£7.06
138 - SPRING BDE-E604500030138 E604500030138	£1.42	£1.70
139 - LOCK-NUT BDE-E604500030139 E604500030139	£1.42	£1.70
140 - TIE BDE-E604500030140 E604500030140	£1.42	£1.70
141 - SHAFT BDE-E604500030141 E604500030141	£2.26	£2.71
142 - LOCK-NUT BDE-E604500030142 E604500030142	£1.42	£1.70
143 - COVER SA BDE-E604500030143 E604500030143	£5.88	£7.06
144 - HUB BDE-E604500030144 E604500030144	£3.30	£3.96
145 - BEARING BDE-E604500030145 E604500030145	£3.80	£4.56
146 - PULLEY BDE-E604500030146 E604500030146	£14.57	£17.48
147 - BELT DRIVE BDE-E604500030147 E604500030147	£34.00	£40.80
148 - KEY BDE-E604500030148 E604500030148	£1.42	£1.70
150 - WASHER SPRING BDE-E604500030150 E604500030150	£1.42	£1.70
151 - WASHER BDE-E604500030151 E604500030151	£1.42	£1.70
152 - PULLEY BDE-E604500030152 E604500030152	£14.57	£17.48
153 - PULLEY BDE-E604500030153 E604500030153	£2.78	£3.34
154 - BUSHING BDE-E604500030154 E604500030154	£3.70	£4.44
155 - BOLT BDE-E604500030155 E604500030155	£1.42	£1.70
156 - BRACKET BDE-E604500030156 E604500030156	£4.58	£5.49
157 - BOLT BDE-E604500030157 E604500030157	£1.42	£1.70
158 - SPACER BDE-E604500030158 E604500030158	£3.22	£3.86
160 - WASHER BDE-E604500030160 E604500030160	£1.42	£1.70
161 - WIRE BDE-E604500030161 E604500030161	£4.58	£5.49
162 - SPRING BDE-E604500030162 E604500030162	£1.42	£1.70
163 - NUT BDE-E604500030163 E604500030163	£1.42	£1.70
164 - LOCK-NUT BDE-E604500030164 E604500030164	£1.42	£1.70
165 - BOLT BDE-E604500030165 E604500030165	£1.42	£1.70
166 - NUT BDE-E604500030166 E604500030166	£1.42	£1.70
167 - BOLT BDE-E604500030167 E604500030167	£1.42	£1.70
168 - HANDLE BDE-E604500030168 E604500030168	£2.78	£3.34
169 - SCREW BDE-E604500030169 E604500030169	£1.42	£1.70
170 - CABLE BDE-E604500030170 E604500030170	£2.78	£3.34
171 - CABLE BDE-E604500030171 E604500030171	£7.18	£8.62
172 - RAIL BDE-E604500030172 E604500030172	£25.70	£30.84
173 - LOWER HANDLE BDE-E604500030173 E604500030173	£1.42	£1.70
174 - LOCK-NUT BDE-E604500030174 E604500030174	£1.42	£1.70
175 - SPACER BDE-E604500030175 E604500030175	£1.42	£1.70
176 - SCREW BDE-E604500030176 E604500030176	£1.42	£1.70
177 - WASHER BDE-E604500030177 E604500030177	£1.42	£1.70
178 - SCREW BDE-E604500030178 E604500030178	£1.42	£1.70
179 - BEZEL BDE-E604500030179 E604500030179	£4.69	£5.63
180 - WASHER BDE-E604500030180 E604500030180	£1.42	£1.70
181 - WASHER BDE-E604500030181 E604500030181	£1.42	£1.70
187 - CIRCLIP BDE-E604500030187 E604500030187	£1.42	£1.70
188 - HANDLE BDE-E604500030188 E604500030188	£1.42	£1.70
189 - LEVER BDE-E604500030189 E604500030189	£5.88	£7.06
190 - BRACKET BDE-E604500030190 E604500030190	£1.82	£2.19
191 - SPACER BDE-E604500030191 E604500030191	£1.42	£1.70
192 - WASHER BDE-E604500030192 E604500030192	£1.42	£1.70
215 - BOLT BDE-E604500030215 E604500030215	£1.42	£1.70
216 - BOLT BDE-E604500030216 E604500030216	£1.42	£1.70
228 - WASHER BDE-E604500030228 E604500030228	£1.42	£1.70
229 - SPARK PLUG BDE-1004738-28 1004738-28	£9.41	£11.29
230 - CARBURETTOR SA BDE-1004738-29 1004738-29	£78.12	£93.74
231 - GASKET BDE-1004738-30 1004738-30	£1.50	£1.80
232 - PAD BDE-1004738-31 1004738-31	£1.50	£1.80
233 - GASKET BDE-1004738-32 1004738-32	£1.50	£1.80
234 - GASKET BDE-1004738-33 1004738-33	£1.50	£1.80
235 - STARTER SA BDE-1004738-34 1004738-34	£84.42	£101.30
236 - BOLT BDE-1004738-35 1004738-35	£1.50	£1.80
237 - DEFLECTOR BDE-1004738-36 1004738-36	£2.78	£3.34
238 - BOLT BDE-1004738-37 1004738-37	£1.50	£1.80
239 - SWITCH BDE-1004738-38 1004738-38	£4.69	£5.63
240 - MUFFLER BDE-1004738-39 1004738-39	£87.82	£105.39
241 - PIPE BDE-1004738-40 1004738-40	£19.90	£23.88
242 - GASKET BDE-1004738-41 1004738-41	£2.78	£3.34
243 - NUT BDE-1004738-42 1004738-42	£1.50	£1.80
244 - GASKET BDE-1004738-43 1004738-43	£1.50	£1.80
245 - COIL SA BDE-1004738-44 1004738-44	£30.08	£36.10
246 - BOLT BDE-1004738-45 1004738-45	£1.50	£1.80
247 - CLIP BDE-1004738-46 1004738-46	£1.50	£1.80
248 - FILTER BDE-1004738-47 1004738-47	£34.00	£40.80
249 - NUT BDE-1004738-48 1004738-48	£1.50	£1.80
250 - STARTER SA BDE-1004738-49 1004738-49	£319.22	£383.07
251 - SCREW BDE-1004738-50 1004738-50	£1.50	£1.80
252 - BOLT BDE-1004738-51 1004738-51	£1.50	£1.80
253 - BRACKET BDE-1004738-52 1004738-52	£7.18	£8.62
301 - BOLT BDE-E604500030301 E604500030301	£1.42	£1.70
302 - KNOB BDE-E604500030302 E604500030302	£1.42	£1.70
303 - NUT BDE-E604500030303 E604500030303	£1.42	£1.70
304 - PLATE BDE-E604500030304 E604500030304	£2.71	£3.25
305 - BOLT BDE-E604500030305 E604500030305	£1.42	£1.70
306 - BUSHING BDE-E604500030306 E604500030306	£1.50	£1.80
307 - BRACKET BDE-E604500030307 E604500030307	£1.50	£1.80
601 - SCREW BDE-E604500030601 E604500030601	£1.42	£1.70
602 - PLATE BDE-E604500030602 E604500030602	£7.18	£8.62

Attribute Name	Value
Brand	Stanley

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Stanley SPT-270-720 Type 1 Snow Thrower Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Stanley SPT-270-720 Type 1 Snow Thrower Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
