Stanley SCS-46 JET Type 1 Chainsaw Spare Parts

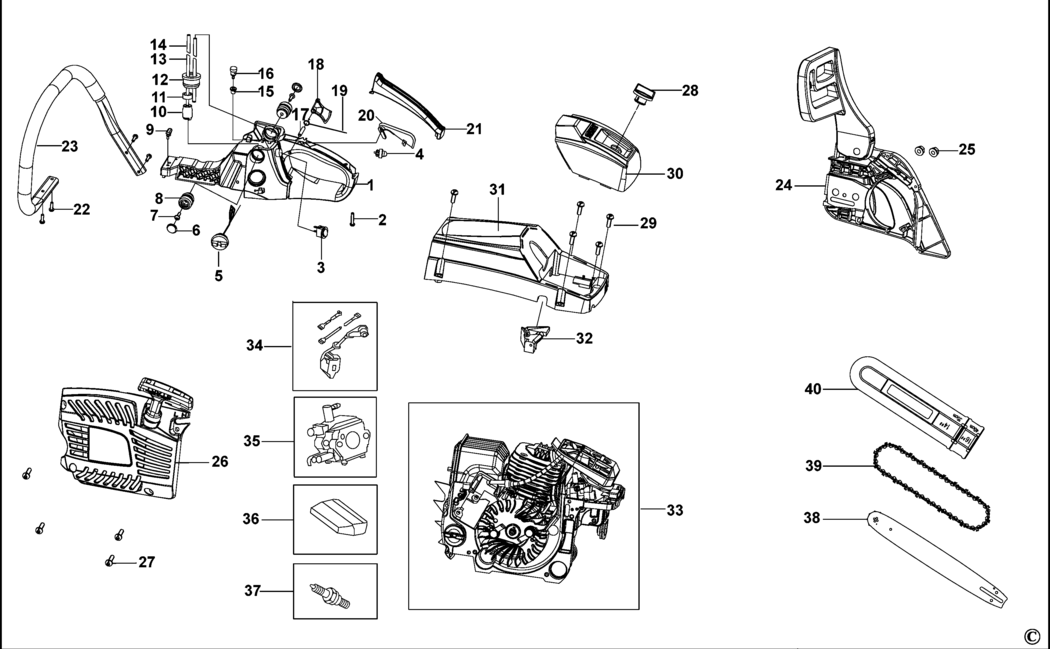

An exploded drawing and spare parts listing for the Stanley SCS-46 JET Type 1 Chainsaw

	Ex VAT	Inc VAT
1 - FUEL TANK BDE-E604100020A1 E604100020A1	-
2 - SCREW BDE-E604100020A2 E604100020A2	£1.50	£1.80
4 - LEVEL BDE-E604100020A4 E604100020A4	£3.80	£4.56
5 - CAP SA BDE-E604100020A5 E604100020A5	-
6 - COVER BDE-E604100020A6 E604100020A6	£1.50	£1.80
7 - SCREW BDE-E604100020A7 E604100020A7	£1.50	£1.80
8 - SEAT BDE-E604100020A8 E604100020A8	£1.50	£1.80
9 - DAMPER BDE-E604100020A9 E604100020A9	£1.50	£1.80
10 - FILTER BDE-E604100020A10 E604100020A10	-
11 - WEIGHT BDE-E604100020A11 E604100020A11	£1.50	£1.80
12 - HOSE SA BDE-E604100020A12 E604100020A12	£1.50	£1.80
13 - HOSE BDE-E604100020A13 E604100020A13	-
14 - TUBE BDE-E604100020A14 E604100020A14	-
15 - HOLDER BDE-E604100020A15 E604100020A15	£1.50	£1.80
16 - BALANCE WEIGHT BDE-E604100020A16 E604100020A16	£1.50	£1.80
17 - PIN BDE-E604100020A17 E604100020A17	£1.50	£1.80
18 - TRIGGER BDE-E604100020A18 E604100020A18	£1.50	£1.80
19 - SPRING BDE-E604100020A19 E604100020A19	£1.50	£1.80
20 - TRIGGER LOCK-ON BDE-E604100020A20 E604100020A20	£1.50	£1.80
21 - COVER BDE-E604100020A21 E604100020A21	£3.30	£3.96
22 - SCREW BDE-E604100020A22 E604100020A22	£1.50	£1.80
23 - HANDLE SA BDE-E604100020A23 E604100020A23	£16.03	£19.24
24 - PLATE BDE-E604100020B2 E604100020B2	-
25 - NUT M8 BDE-E604100020B3 E604100020B3	£1.50	£1.80
26 - STARTER SA BDE-E604100020C0 E604100020C0	-
27 - SCREW BDE-E604100020C1 E604100020C1	£1.50	£1.80
28 - NUT BDE-E604100020-D1 E604100020-D1	£1.50	£1.80
29 - SCREW BDE-E604100020-D4 E604100020-D4	£5.88	£7.06
30 - COVER BDE-E604100020-D3 E604100020-D3	£1.50	£1.80
31 - COVER BDE-E604100020-D5 E604100020-D5	£9.41	£11.29
32 - COVER BDE-E604100020-D7 E604100020-D7	£1.50	£1.80
34 - COIL SA BDE-E604100020-E2 E604100020-E2	-
35 - CARBURETTOR SA BDE-E604100020-E3 E604100020-E3	-
36 - FILTER BDE-E604100020-E4 E604100020-E4	-
37 - SPARK PLUG BDE-E604100020-E5 E604100020-E5	£7.85	£9.42
38 - BAR CHAIN BDE-E604100020-F2 E604100020-F2	-
39 - CHAIN BDE-E604100020-F1 E604100020-F1	£47.08	£56.49
40 - SHEATH BDE-E604100020-F3 E604100020-F3	£3.30	£3.96

Attribute Name	Value
Brand	Stanley
