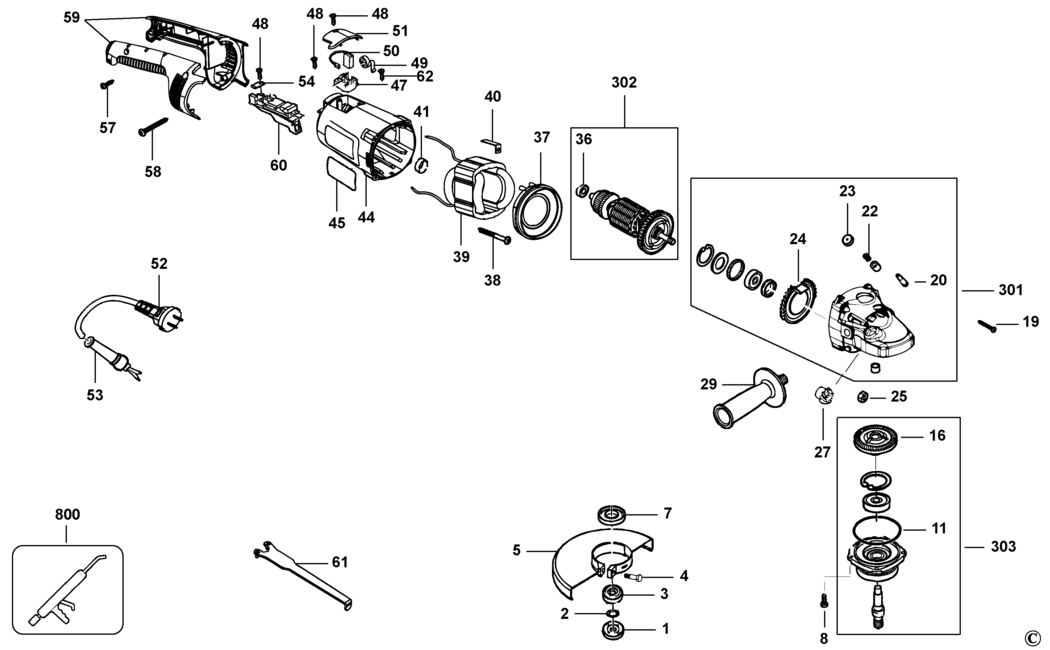

1 - OUTER FLANGE
BDE-4145104008.A6
4145104008
|
£1.66
|
£1.99
|
|
|
2 - O RING
BDE-4240203001.A3
4240203001
|
£1.66
|
£1.99
|
|
|
3 - INNER FLANGE
BDE-4145104002.A14
4145104002
|
£1.66
|
£1.99
|
|
|
4 - SCREW
BDE-49202029.A1
49202029
|
£1.66
|
£1.99
|
|
|
5 - GUARD
BDE-4149104001.A3
4149104001
|
£11.18
|
£13.41
|
|
|
6 - SPINDLE
BDE-4149104606.A0
4149104606
|
£6.06
|
£7.27
|
|
|
7 - SEAL
BDE-4149101605.A2
4149101605
|
£1.66
|
£1.99
|
|
|
8 - SCREW
BDE-49203009.A4
49203009
|
£1.66
|
£1.99
|
|
|
11 - O RING
BDE-4148003001.A1
4148003001
|
£1.66
|
£1.99
|
|
|
16 - GEAR
BDE-4149110005.A2
4149110005
|
£18.00
|
£21.60
|
|
|
19 - SCREW
BDE-49206048.A5
49206048
|
£1.66
|
£1.99
|
|
|
20 - LOCKING PIN
BDE-4148004007.A1
4148004007
|
£1.66
|
£1.99
|
|
|
22 - SPRING
BDE-4148008003.A5
4148008003
|
£1.66
|
£1.99
|
|
|
23 - CAP
BDE-4149101606.A4
4149101606
|
£1.66
|
£1.99
|
|
|
24 - DEFLECTOR
BDE-4149101607.A2
4149101607
|
£1.66
|
£1.99
|
|
|
25 - NUT
BDE-49205025.A1
49205025
|
£1.66
|
£1.99
|
|
|
27 - BEVEL GEAR
BDE-4149110006.A1
4149110006
|
£9.69
|
£11.63
|
|
|
29 - SIDE HANDLE
BDE-4148001001.A3
4148001001
|
£2.87
|
£3.44
|
|
|
36 - BEARING
BDE-49111013.A14
49111013
|
£1.66
|
£1.99
|
|
|
37 - DEFLECTOR
BDE-4149101604.A4
4149101604
|
£1.66
|
£1.99
|
|
|
38 - SCREW
BDE-49206039.A9
49206039
|
£1.66
|
£1.99
|
|
|
39 - FIELD SA
BDE-60314068.A0
60314068
|
£73.58
|
£88.30
|
|
|
40 - BRACKET
BDE-4148004003.A5
4148004003
|
£1.66
|
£1.99
|
|
|
41 - COVER BEARING
BDE-4149103601.A2
4149103601
|
£1.66
|
£1.99
|
|
|
44 - HOUSING MOTOR
BDE-4148001601.A0
4148001601
|
£25.12
|
£30.15
|
|
|
47 - BRUSH HOLDER PAIR
BDE-4148007001.A3
4148007001
|
£1.88
|
£2.26
|
|
|
48 - SCREW
BDE-49206019.A1
49206019
|
£1.66
|
£1.99
|
|
|
49 - BRUSH SPRING
BDE-4148008002.A1
4148008002
|
£1.66
|
£1.99
|
|
|
50 - BRUSH PAIR
BDE-4148006603.A0
4148006603
|
£7.40
|
£8.88
|
|
|
50 - BRUSH PAIR
BDE-4149150011.A1
4149150011
|
£9.69
|
£11.63
|
|
|
51 - BRUSH COVER
BDE-4149101603.A2
4149101603
|
£1.66
|
£1.99
|
|
|
51 - BRUSH COVER
BDE-N512367.A1
N512367
|
£1.66
|
£1.99
|
|
|
53 - CORD PROTECTOR
BDE-49303012.A2
49303012
|
£1.66
|
£1.99
|
|
|
54 - CORD CLAMP
BDE-4148004011.A5
4148004011
|
£1.66
|
£1.99
|
|
|
57 - SCREW
BDE-49206018.A38
49206018
|
£1.66
|
£1.99
|
|
|
57 - SCREW
BDE-49206020.A20
49206020
|
£1.66
|
£1.99
|
|
|
58 - SCREW
BDE-49206004.A1
49206004
|
£1.66
|
£1.99
|
|
|
59 - HOUSING PAIR
BDE-4149101602.A3
4149101602
|
£8.08
|
£9.70
|
|
|
60 - SWITCH
BDE-4148005601
4148005601
|
-
|
|
|
|
61 - WRENCH SET
BDE-4148004004.A1
4148004004
|
£2.87
|
£3.44
|
|
|
62 - SCREW
BDE-49203006.A16
49203006
|
£1.66
|
£1.99
|
|
|
300 - GEARCASE COVER SA
BDE-4149150007.A2
4149150007
|
-
|
|
|
|
301 - GEARCASE SA
BDE-4149150008.A6
4149150008
|
£26.47
|
£31.76
|
|
|
302 - ARMATURE SA
BDE-4148050001.A1
4148050001
|
£93.62
|
£112.35
|
|
|
303 - SPINDLE & GEAR SA
BDE-4149150009.A10
4149150009
|
£30.98
|
£37.18
|
|
|
800 - GREASE 50 GMS
BDE-583534-00.A158
583534-00
|
£148.42
|
£178.11
|
|
|
800 - GREASE 50 GMS 45G
BDE-583534-00.A159
583534-00
|
£148.42
|
£178.11
|
|
