Stanley STGS6100 Type 1 Small Angle Grinder Spare Parts

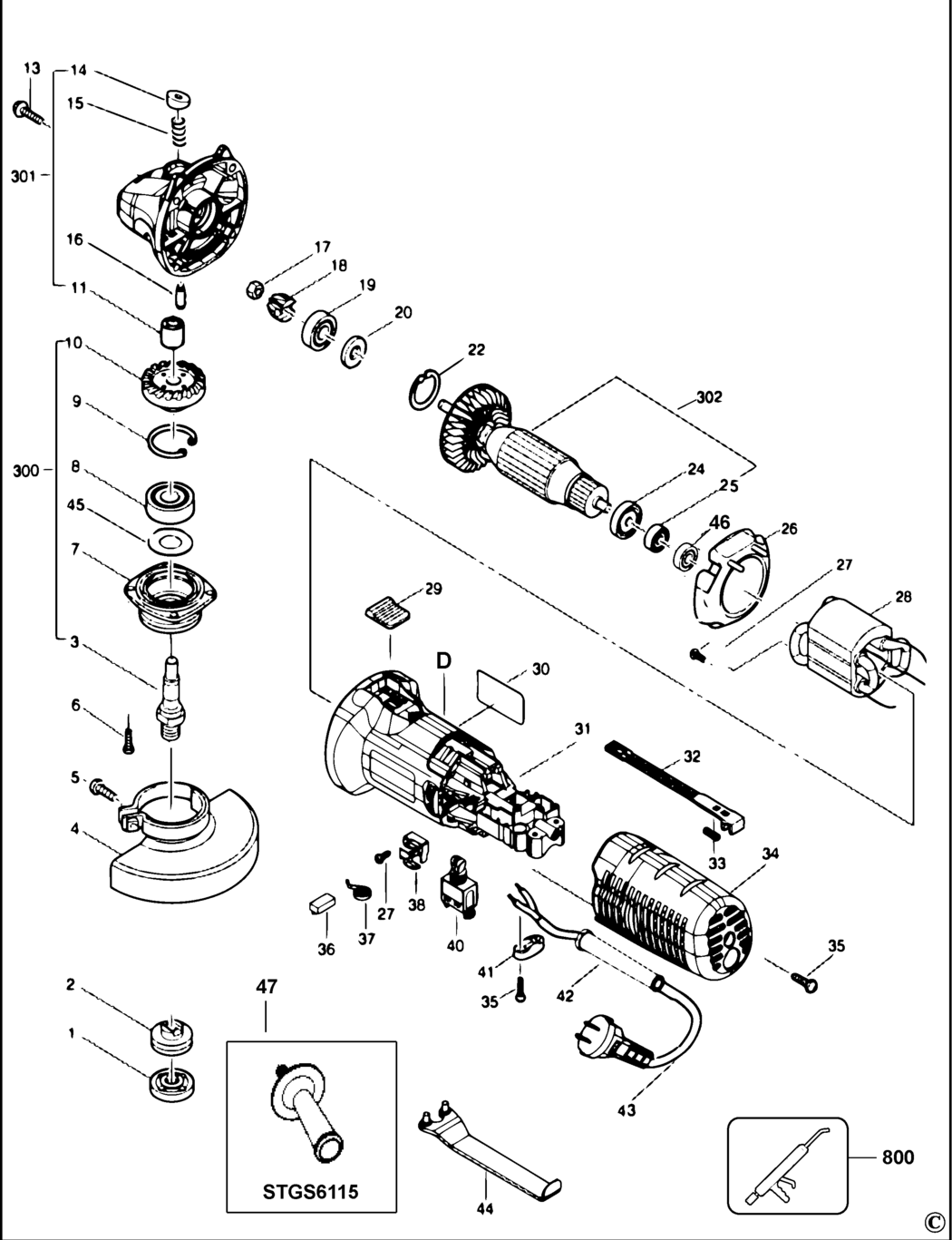

An exploded drawing and spare parts listing for the Stanley STGS6100 Type 1 Small Angle Grinder

	Ex VAT	Inc VAT
1 - OUTER FLANGE BDE-4140304011.A16 4140304011	£1.50	£1.80
2 - INNER FLANGE BDE-4140304006.A0 4140304006	£1.50	£1.80
3 - SPINDLE BDE-4140304009.A4 4140304009	£2.78	£3.34
3 - SPINDLE BDE-4149204002.A4 4149204002	£2.26	£2.71
4 - GUARD SA BDE-4140304008.A0 4140304008	£2.26	£2.71
5 - SCREW BDE-49203052.A17 49203052	£1.50	£1.80
6 - SCREW BDE-49209042.A10 49209042	£1.50	£1.80
7 - GEARCASE COVER BDE-4140302602.A4 4140302602	£1.82	£2.19
7 - GEARCASE COVER BDE-4149202001.A0 4149202001	£1.82	£2.19
8 - BEARING BDE-49111017.A9 49111017	£2.78	£3.34
9 - WASHER BDE-4140704002.A15 4140704002	£1.50	£1.80
9 - CIRCLIP BDE-49207020.A10 49207020	£1.50	£1.80
10 - GEAR BDE-4149210001.A3 4149210001	£3.80	£4.56
11 - BEARING BDE-49111017.A8 49111017	£2.78	£3.34
11 - BEARING NEEDLE BDE-49101022.A9 49101022	£1.50	£1.80
12 - WASHER BDE-4140304001.A1 4140304001	£1.50	£1.80
13 - SCREW BDE-49206033.A0 49206033	£1.50	£1.80
13 - CIRCLIP BDE-49207020.A9 49207020	£1.50	£1.80
14 - GEAR BDE-4140310003.A2 4140310003	£4.69	£5.63
14 - LOCK BUTTON BDE-4149201001.A3 4149201001	£1.50	£1.80
15 - BEARING NEEDLE BDE-49101022.A8 49101022	£1.50	£1.80
15 - SPRING BDE-4140308003.A23 4140308003	£1.50	£1.80
16 - LOCK PIN BDE-4140304010.A0 4140304010	£1.50	£1.80
17 - NUT BDE-49205005.A21 49205005	£1.50	£1.80
18 - PINION BDE-4149210002.A3 4149210002	£3.30	£3.96
18 - SCREW BDE-49206022.A12 49206022	£1.50	£1.80
19 - BEARING BDE-49111033.A0 49111033	£1.50	£1.80
19 - SPRING BDE-4140308003.A22 4140308003	£1.50	£1.80
20 - LOCK BUTTON BDE-4140301012.A12 4140301012	£1.50	£1.80
20 - RUBBER SEAL BDE-4149203001.A7 4149203001	£1.50	£1.80
22 - HANDLE SIDE SA BDE-4140301001.A0 4140301001	£1.50	£1.80
22 - CIRCLIP BDE-49207016.A3 49207016	£1.50	£1.80
23 - NUT BDE-49205005.A22 49205005	£1.50	£1.80
24 - WASHER INSULATING BDE-4149201009.A6 4149201009	£1.50	£1.80
24 - PINION BDE-4140310004.A6 4140310004	£3.80	£4.56
25 - BEARING BDE-49111035.A6 49111035	£1.50	£1.80
25 - WASHER BDE-4140304012.A0 4140304012	£1.50	£1.80
26 - BEARING BDE-49106229.A4 49106229	£1.82	£2.19
26 - BAFFLE BDE-4149201002.A3 4149201002	£1.50	£1.80
27 - RUBBER SEAL BDE-4140303001.A4 4140303001	£1.50	£1.80
27 - SCREW BDE-49206609.A0 49206609	£3.80	£4.56
28 - WASHER BDE-4140304005.A6 4140304005	£1.50	£1.80
28 - FIELD SA BDE-60314069.A2 60314069	£14.57	£17.48
29 - BUTTON BDE-4149201003.A2 4149201003	£1.50	£1.80
31 - WASHER INSULATING BDE-4140301009.A1 4140301009	£1.50	£1.80
31 - FIELDCASE BDE-4149201004.A2 4149201004	£5.88	£7.06
32 - LINK BDE-4149201005.A2 4149201005	£1.50	£1.80
32 - BEARING BDE-49111011.A9 49111011	£1.50	£1.80
33 - SLEEVE BEARING BDE-4140303002.A5 4140303002	£1.50	£1.80
33 - SPRING BDE-4140108001.A4 4140108001	£1.50	£1.80
34 - BAFFLE BDE-4140301002.A7 4140301002	£1.50	£1.80
34 - END CAP BDE-4149201006.A2 4149201006	£1.82	£2.19
35 - SCREW BDE-49206018.A1 49206018	£1.50	£1.80
36 - BUTTON BDE-4140301011.A0 4140301011	£1.50	£1.80
36 - BRUSH PAIR BDE-4140306001.A5 4140306001	£1.50	£1.80
37 - BRUSH SPRING BDE-4149208001.A4 4149208001	£1.50	£1.80
38 - SWITCH SA BDE-4140305605.A2 4140305605	£4.69	£5.63
38 - BRUSH HOLDER BDE-4141707001.A0 4141707001	£1.50	£1.80
39 - CAPACITOR BDE-494006.A0 494006	£1.50	£1.80
39 - SPRING BDE-4140308001.A7 4140308001	£1.50	£1.80
40 - LINK BDE-4140301010.A6 4140301010	£1.50	£1.80
40 - SWITCH SA BDE-4141705001.A6 4141705001	£1.50	£1.80
41 - CORD CLAMP BDE-4240201013.A8 4240201013	£1.50	£1.80
42 - CORD PROTECTOR BDE-49303005.A15 49303005	£1.50	£1.80
42 - CORD PROTECTOR BDE-49303007.A3 49303007	£1.50	£1.80
43 - SCREW BDE-49206020.A9 49206020	£1.50	£1.80
44 - WRENCH SET BDE-4140304007.A16 4140304007	£1.50	£1.80
45 - FIELDCASE BDE-4140301605.A3 4140301605	£7.18	£8.62
45 - WASHER BDE-4140704002.A16 4140704002	£1.50	£1.80
46 - SLEEVE BEARING BDE-4149203002.A0 4149203002	£1.50	£1.80
47 - CORD CLAMP BDE-4140301013.A0 4140301013	£1.50	£1.80
48 - SCREW BDE-49206016.A12 49206016	£1.50	£1.80
51 - BRUSH SPRING BDE-4140308002.A2 4140308002	£1.50	£1.80
52 - BRUSH PAIR BDE-4140306001.A4 4140306001	£1.50	£1.80
54 - SCREW BDE-49206001.A14 49206001	£1.50	£1.80
55 - BRUSH HOLDER BDE-4141707001.A1 4141707001	£1.50	£1.80
56 - WRENCH SET BDE-4140304007.A17 4140304007	£1.50	£1.80
57 - WASHER BDE-4090104003.A13 4090104003	£1.50	£1.80
58 - END CAP BDE-4140301603.A1 4140301603	£3.30	£3.96
300 - SPINDLE & GEAR SA BDE-4140350001.A1 4140350001	£14.19	£17.03
300 - SPINDLE & GEAR SA BDE-4149250001.A3 4149250001	£12.17	£14.60
301 - GEARCASE SA BDE-4149250007.A1 4149250007	£7.18	£8.62
301 - GEARCASE SA BDE-4140350002.A4 4140350002	£9.41	£11.29
302 - ARMATURE SA BDE-4140350003.A4 4140350003	£19.90	£23.88
302 - ARMATURE SA BDE-4149250003.A2 4149250003	£18.91	£22.69
800 - GREASE BDE-901186.A28 901186	£44.14	£52.97
