Stanley SGS105 Type 1 Angle Grinder Spare Parts

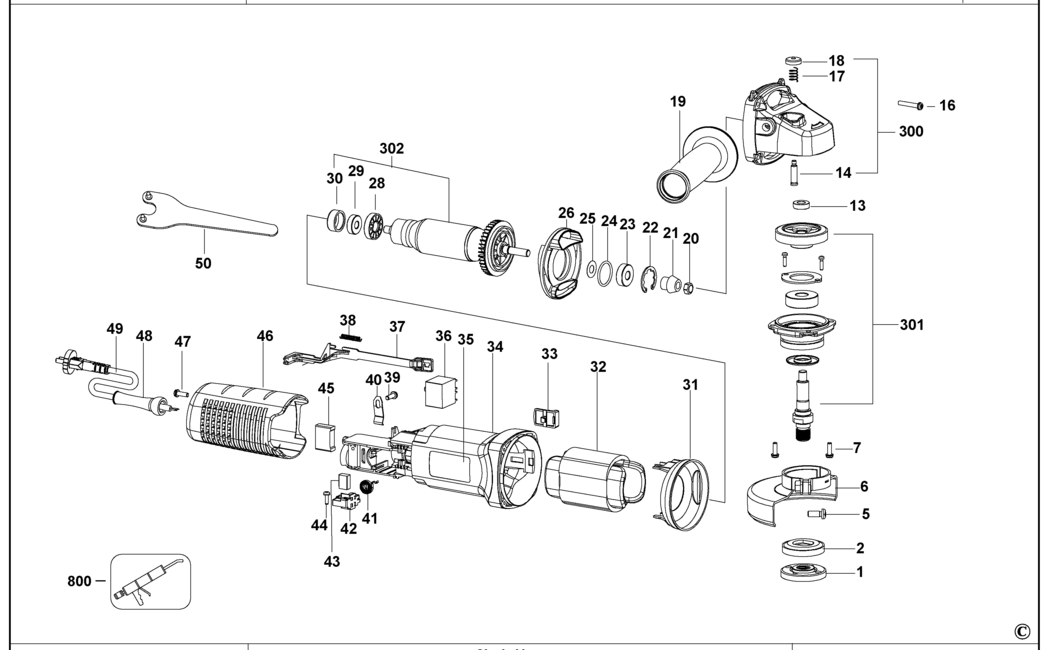

An exploded drawing and spare parts listing for the Stanley SGS105 Type 1 Angle Grinder

	Ex VAT	Inc VAT
1 - OUTER FLANGE BDE-4145104008.A2 4145104008	£1.50	£1.80
2 - INNER FLANGE BDE-4145104002.A18 4145104002	£1.50	£1.80
5 - SCREW BDE-49203052.A30 49203052	£1.50	£1.80
6 - GUARD SA BDE-4142104001.A1 4142104001	£2.78	£3.34
7 - SCREW BDE-49209042.A29 49209042	£1.50	£1.80
13 - BEARING BDE-N494778.A3 N494778	£2.26	£2.71
14 - LOCK PIN BDE-N514297.A1 N514297	£1.50	£1.80
16 - SCREW BDE-49206022.A14 49206022	£1.50	£1.80
17 - SPRING BDE-4140308003.A13 4140308003	£1.50	£1.80
18 - LOCK BUTTON BDE-4140301012.A0 4140301012	£1.50	£1.80
19 - HANDLE SIDE SA BDE-4140401001.A12 4140401001	£1.50	£1.80
20 - NUT BDE-49205017.A4 49205017	£1.50	£1.80
21 - PINION BDE-N494780.A1 N494780	£5.88	£7.06
22 - WASHER BDE-4141404607.A3 4141404607	£1.50	£1.80
23 - BEARING BDE-N175104.A56 N175104	£3.30	£3.96
24 - O RING BDE-4030203005.A14 4030203005	£1.50	£1.80
25 - WASHER BDE-4090104003.A26 4090104003	£1.50	£1.80
26 - RETAINING PLATE BDE-N494788.A3 N494788	£1.50	£1.80
28 - WASHER INSULATING BDE-N494794.A0 N494794	£1.50	£1.80
29 - BEARING BDE-N494797.A3 N494797	£2.26	£2.71
30 - SLEEVE BEARING BDE-4140303002.A15 4140303002	£1.50	£1.80
31 - BAFFLE BDE-N494795.A3 N494795	£1.50	£1.80
32 - FIELD SA BDE-N512904.A0 N512904	£24.39	£29.27
33 - BUTTON BDE-4140301011.A10 4140301011	£1.50	£1.80
34 - HOUSING BDE-N494791.A2 N494791	£7.85	£9.42
37 - LINK BDE-N494790.A1 N494790	£1.50	£1.80
38 - SPRING BDE-4140308001.A4 4140308001	£1.50	£1.80
39 - SCREW BDE-49206016.A6 49206016	£1.50	£1.80
40 - CLAMP BDE-N514718.A1 N514718	£1.50	£1.80
41 - SPRING BDE-N514753.A4 N514753	£1.50	£1.80
42 - BRUSH HOLDER PAIR BDE-N494796.A1 N494796	£1.50	£1.80
43 - BRUSH PAIR BDE-N542174.A1 N542174	£4.69	£5.63
44 - SCREW BDE-N507174.A4 N507174	£1.50	£1.80
45 - CAPACITOR BDE-494014.A3 494014	£1.50	£1.80
46 - HOUSING REAR BDE-N494793.A2 N494793	£3.80	£4.56
47 - SCREW BDE-49206018.A21 49206018	£1.50	£1.80
48 - CORD PROTECTOR BDE-49303605.A1 49303605	£1.50	£1.80
50 - WRENCH SET BDE-4140304608.A7 4140304608	£1.50	£1.80
300 - GEAR CASE SA BDE-N534105.A1 N534105	£12.17	£14.60
301 - SPINDLE & GEAR SA BDE-N534106.A1 N534106	£24.39	£29.27
302 - ARMATURE SA BDE-N534107.A0 N534107	£37.35	£44.82
800 - GREASE 15g BDE-N544392.A1 N544392	£3.30	£3.96

Attribute Name	Value
Brand	Stanley
