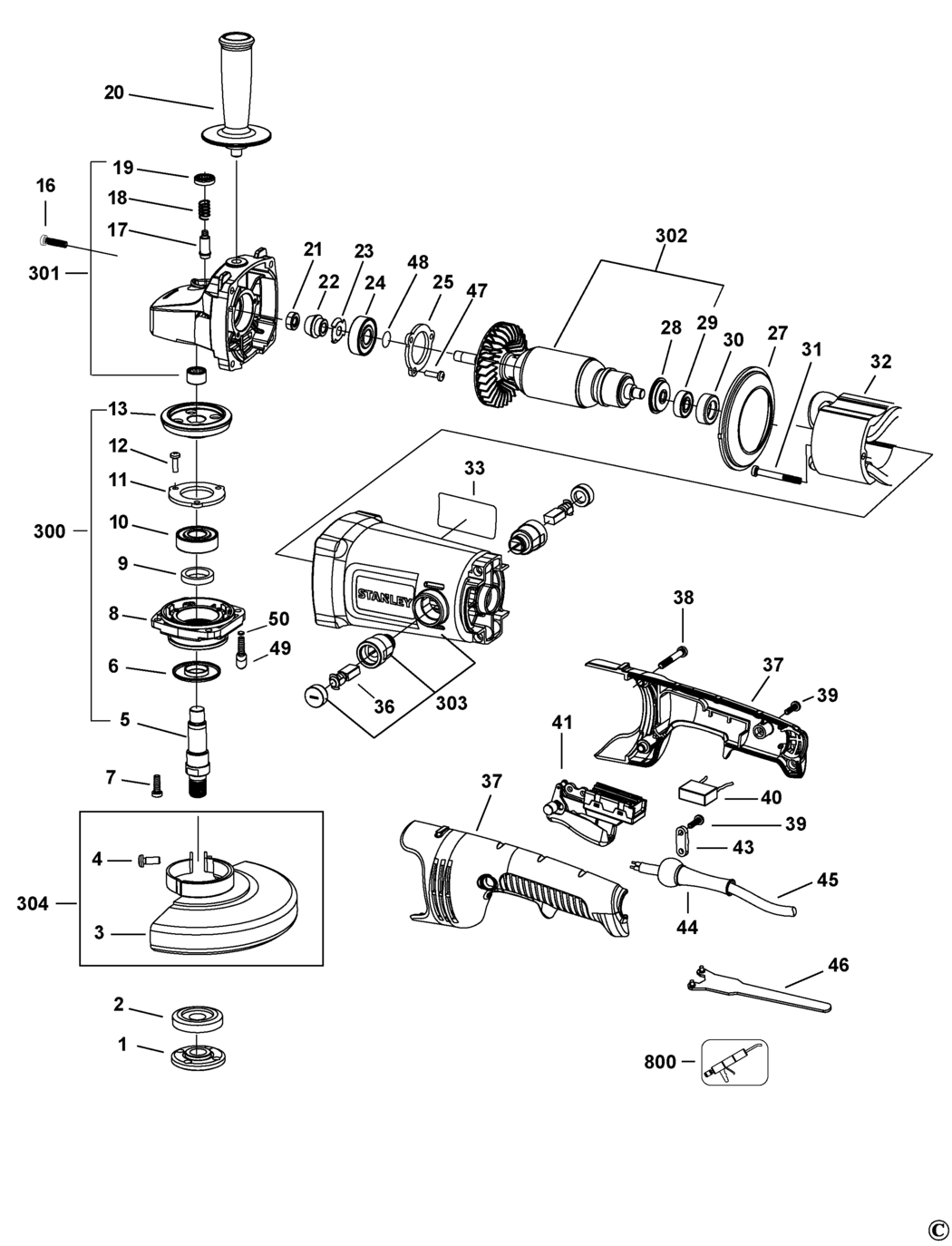

1 - OUTER FLANGE
BDE-4145104008.A20
4145104008
|
£1.66
|
£1.99
|
|
|
2 - INNER FLANGE
BDE-4145104002.A0
4145104002
|
£1.66
|
£1.99
|
|
|
3 - GUARD
BDE-N480752
N480752
|
£6.06
|
£7.27
|
|
|
4 - SCREW
BDE-49203052.A3
49203052
|
£1.66
|
£1.99
|
|
|
5 - SPINDLE
BDE-N480754.A0
N480754
|
£4.83
|
£5.80
|
|
|
6 - CAP
BDE-4145504003.A1
4145504003
|
£1.66
|
£1.99
|
|
|
7 - SCREW
BDE-49203009.A0
49203009
|
£1.66
|
£1.99
|
|
|
8 - GEARCASE COVER
BDE-N480758.A1
N480758
|
£4.83
|
£5.80
|
|
|
9 - FELT SEAL
BDE-4145201009.A1
4145201009
|
£1.66
|
£1.99
|
|
|
10 - BEARING
BDE-49111036.A1
49111036
|
£2.87
|
£3.44
|
|
|
11 - BEARING PLATE
BDE-4145104009.A0
4145104009
|
£1.66
|
£1.99
|
|
|
12 - SCREW
BDE-49203006.A7
49203006
|
£1.66
|
£1.99
|
|
|
13 - GEAR
BDE-N480763.A0
N480763
|
£9.69
|
£11.63
|
|
|
16 - SCREW
BDE-N480766.A1
N480766
|
£1.66
|
£1.99
|
|
|
17 - LOCK PIN
BDE-4145204006.A1
4145204006
|
£1.66
|
£1.99
|
|
|
18 - SPRING
BDE-4145208001.A0
4145208001
|
£1.66
|
£1.99
|
|
|
19 - CAP
BDE-4145201012.A0
4145201012
|
£1.66
|
£1.99
|
|
|
20 - SIDE HANDLE
BDE-4145101001.A1
4145101001
|
£1.66
|
£1.99
|
|
|
21 - NUT
BDE-49205014.A1
49205014
|
£1.66
|
£1.99
|
|
|
22 - PINION
BDE-N480772.A0
N480772
|
£6.06
|
£7.27
|
|
|
23 - WASHER
BDE-4145204005.A0
4145204005
|
£1.66
|
£1.99
|
|
|
24 - BEARING
BDE-N480774.A1
N480774
|
£3.39
|
£4.07
|
|
|
25 - BEARING PLATE
BDE-N480776.A1
N480776
|
£1.66
|
£1.99
|
|
|
27 - BAFFLE
BDE-N480777.A0
N480777
|
£1.66
|
£1.99
|
|
|
28 - WASHER
BDE-N480779.A1
N480779
|
£1.66
|
£1.99
|
|
|
29 - BEARING
BDE-49111013.A4
49111013
|
£1.66
|
£1.99
|
|
|
30 - SLEEVE
BDE-4145203004.A1
4145203004
|
£1.66
|
£1.99
|
|
|
31 - SCREW
BDE-49206039.A0
49206039
|
£1.66
|
£1.99
|
|
|
32 - FIELD SA
BDE-N480783.A0
N480783
|
£25.12
|
£30.15
|
|
|
36 - BRUSH PAIR
BDE-N480786.A1
N480786
|
£3.92
|
£4.70
|
|
|
37 - HANDLE
BDE-N480787.A0
N480787
|
£7.40
|
£8.88
|
|
|
38 - SCREW
BDE-49206037.A1
49206037
|
£1.66
|
£1.99
|
|
|
39 - SCREW
BDE-49206018.A9
49206018
|
£1.66
|
£1.99
|
|
|
40 - CAPACITOR
BDE-N495735.A1
N495735
|
£1.66
|
£1.99
|
|
|
43 - CORD CLAMP
BDE-4100301008.A4
4100301008
|
£1.66
|
£1.99
|
|
|
44 - CORD PROTECTOR
BDE-N480227.A0
N480227
|
£1.66
|
£1.99
|
|
|
46 - WRENCH SET
BDE-4140304608.A4
4140304608
|
£1.66
|
£1.99
|
|
|
47 - SCREW
BDE-49209042.A6
49209042
|
£1.66
|
£1.99
|
|
|
48 - O RING
BDE-N480230.A1
N480230
|
£1.66
|
£1.99
|
|
|
49 - SCREW
BDE-N480775.A0
N480775
|
£1.66
|
£1.99
|
|
|
50 - WASHER
BDE-49209046.A1
49209046
|
£1.66
|
£1.99
|
|
|
300 - SHAFT SA
BDE-N521295.A0
N521295
|
£25.12
|
£30.15
|
|
|
301 - GEARCASE SA
BDE-N521296.A1
N521296
|
£15.01
|
£18.01
|
|
|
302 - ARMATURE SA
BDE-N521297.A0
N521297
|
£38.48
|
£46.17
|
|
|
303 - BRUSH & HOLDER SA
BDE-N521298.A1
N521298
|
£16.52
|
£19.82
|
|
|
304 - GUARD SA
BDE-N521615
N521615
|
£7.40
|
£8.88
|
|
|
800 - GREASE
BDE-N521294.A1
N521294
|
-
|
|
|
|
800 - GREASE 25g
BDE-N544389
N544389
|
£8.08
|
£9.70
|
|
