Stanley SDR1400 Type 1 Mixer Spare Parts

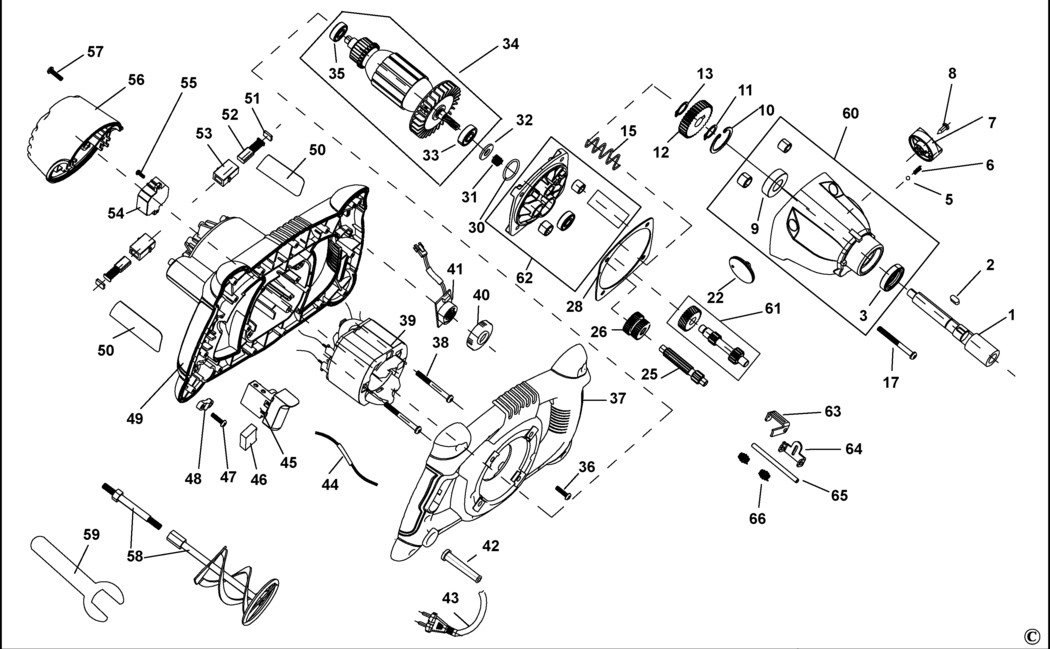

An exploded drawing and spare parts listing for the Stanley SDR1400 Type 1 Mixer

	Ex VAT	Inc VAT
1 - OUTPUT SHAFT BDE-5170018-37 5170018-37	£9.41	£11.29
2 - KEY BDE-5170018-38 5170018-38	£1.50	£1.80
3 - SEAL BDE-5170018-40 5170018-40	£1.50	£1.80
5 - BALL BDE-5170018-42 5170018-42	£1.50	£1.80
6 - SPRING BDE-5170018-43 5170018-43	£1.50	£1.80
7 - KNOB BDE-5170018-44 5170018-44	£1.50	£1.80
8 - SCREW BDE-5170018-45.A0 5170018-45	£1.50	£1.80
9 - BEARING BDE-5170018-41 5170018-41	£3.80	£4.56
10 - CLIP BDE-5170018-46 5170018-46	£1.50	£1.80
11 - CLIP BDE-5170018-47 5170018-47	£1.50	£1.80
12 - GEAR BDE-5170018-48 5170018-48	£7.18	£8.62
13 - CLIP BDE-5170018-49 5170018-49	£1.50	£1.80
15 - SPRING BDE-5170018-50 5170018-50	£1.50	£1.80
17 - SCREW BDE-5170018-51 5170018-51	£1.50	£1.80
22 - PLATE BDE-5170018-57 5170018-57	£1.50	£1.80
25 - SHAFT SA BDE-5170018-59 5170018-59	£5.88	£7.06
26 - GEAR BDE-5170018-60 5170018-60	£10.85	£13.02
28 - WASHER BDE-5170018-61 5170018-61	£1.50	£1.80
30 - O RING BDE-5170018-62 5170018-62	£1.50	£1.80
31 - SPRING BDE-5170018-63 5170018-63	£1.50	£1.80
32 - SEAL BDE-5170018-64 5170018-64	£1.50	£1.80
33 - BEARING BDE-5170018-65 5170018-65	£4.69	£5.63
35 - BEARING BDE-5170018-68 5170018-68	£3.30	£3.96
36 - SCREW BDE-5170018-69.A0 5170018-69	£1.50	£1.80
37 - COVER HOUSING BDE-5170018-70 5170018-70	£7.18	£8.62
38 - SCREW BDE-5170018-71 5170018-71	£1.50	£1.80
40 - KNOB BDE-5170018-74 5170018-74	£1.50	£1.80
41 - POTENTIOMETER SA BDE-5170018-75 5170018-75	£4.69	£5.63
42 - CORD PROTECTOR BDE-5170018-76 5170018-76	£1.50	£1.80
44 - WIRE BDE-5170018-82 5170018-82	£1.50	£1.80
45 - SWITCH BDE-5170018-83 5170018-83	£7.85	£9.42
46 - CAPACITOR BDE-5170018-84 5170018-84	£1.50	£1.80
47 - SCREW BDE-5170018-69.A2 5170018-69	£1.50	£1.80
48 - CABLE CLAMP BDE-5170018-86 5170018-86	£1.50	£1.80
49 - HOUSING LOWER BDE-5170018-87 5170018-87	£12.17	£14.60
51 - BRUSH COVER BDE-5170018-93.A0 5170018-93	£1.50	£1.80
51 - BRUSH COVER PAIR BDE-5170018-93.A1 5170018-93	£1.50	£1.80
52 - BRUSH PAIR BDE-5170018-94 5170018-94	£5.88	£7.06
53 - BRUSH HOLDER BDE-5170018-95.A0 5170018-95	£1.50	£1.80
53 - BRUSH HOLDER PAIR BDE-5170018-95.A1 5170018-95	£1.50	£1.80
54 - CONTROL BDE-5170018-96 5170018-96	£12.17	£14.60
55 - SCREW BDE-5170018-45.A1 5170018-45	£1.50	£1.80
56 - COVER BDE-5170018-98 5170018-98	£3.30	£3.96
57 - SCREW BDE-5170018-69.A1 5170018-69	£1.50	£1.80
58 - PADDLE BDE-5170019-00 5170019-00	£24.39	£29.27
59 - SPANNER BDE-5170019-01 5170019-01	£1.50	£1.80
60 - GEARBOX BDE-5170018-39 5170018-39	£30.08	£36.10
61 - GEAR SA BDE-5170018-52 5170018-52	£12.17	£14.60
62 - BEARING PLATE BDE-5170018-58 5170018-58	£18.91	£22.69
63 - FORK BDE-5170018-53 5170018-53	£1.50	£1.80
64 - FORK BDE-5170018-54 5170018-54	£1.50	£1.80
65 - RAIL BDE-5170018-55 5170018-55	£1.50	£1.80
66 - SPRING BDE-5170018-56 5170018-56	£1.50	£1.80

Attribute Name	Value
Brand	Stanley
