Metabo BKS 400 Plus / 0100400000 10 / - Spare Parts

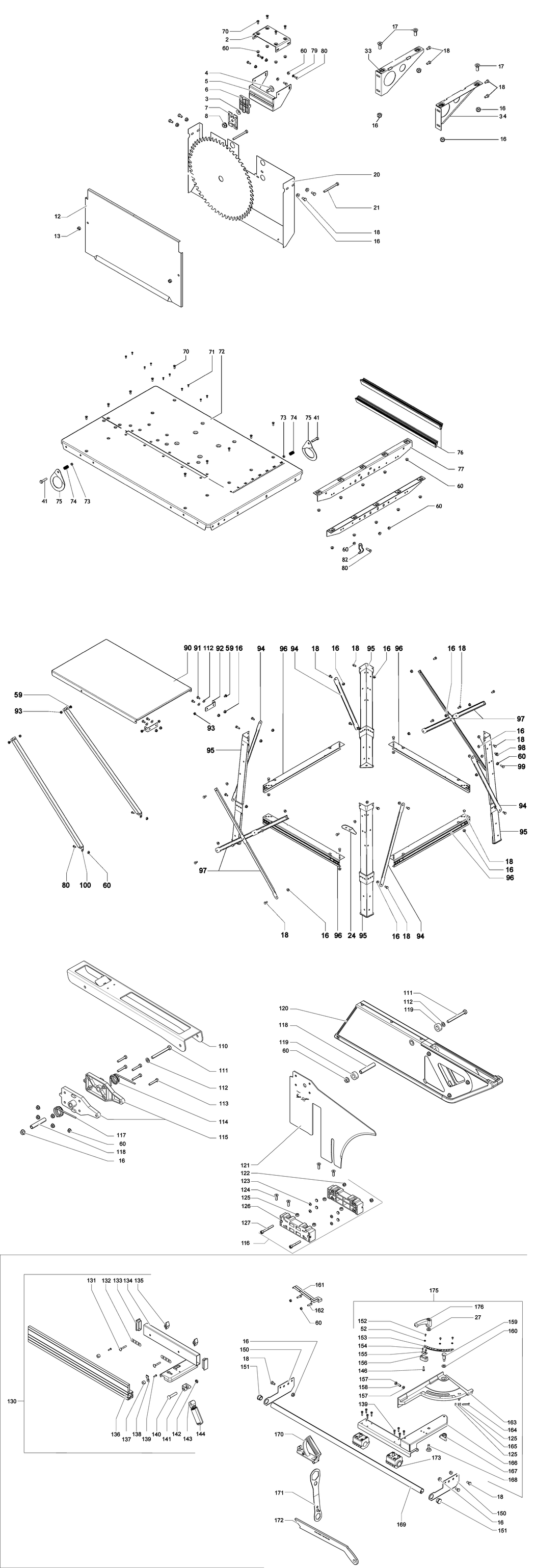

An exploded diagram and spare parts listing for the Metabo BKS 400 Plus / 0100400000 10 / -

	Ex VAT	Inc VAT
2 - BRACKET BL 2 5X195X100 MET-1382206289.A14 1382206289	-
2 - BRACKET BL 2 5X195X100 MET-1382206289.A15 1382206289	-
3 - CUP SPRING MET-7053063343.A0 7053063343	£1.50	£1.80
3 - CUP SPRING MET-7053063343.A1 7053063343	£1.50	£1.80
4 - CUP SQUARE NECK SCREW M 12X40 VERZ. MET-6110149253.A8 6110149253	-
4 - CUP SQUARE NECK SCREW M 12X40 VERZ. MET-6110149253.A9 6110149253	-
5 - TABLE PANEL BL 2 50X736X1071 MET-1382731987.A12 1382731987	-
5 - TABLE PANEL BL 2 50X736X1071 MET-1382731987.A13 1382731987	-
6 - RIVING KNIFE CARRIER MET-2380075353.A47 2380075353	£13.63	£16.36
6 - RIVING KNIFE CARRIER MET-2380075353.A48 2380075353	£13.63	£16.36
7 - PRESSURE PLATE BL 2 99X80X60 MET-1382213749.A53 1382213749	£3.20	£3.84
7 - PRESSURE PLATE BL 2 99X80X60 MET-1382213749.A54 1382213749	£3.20	£3.84
8 - FLANGE NUT MET-6209002432.A74 6209002432	£3.82	£4.59
8 - FLANGE NUT MET-6209002432.A75 6209002432	£3.82	£4.59
12 - CHIP CASE COVER BL 1 5X684X391 MET-1382206327.A42 1382206327	£42.65	£51.18
12 - CHIP CASE COVER BL 1 5X684X391 MET-1382206327.A43 1382206327	£42.65	£51.18
13 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A186 6202002305	£1.50	£1.80
13 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A187 6202002305	£1.50	£1.80
16 - FLANGE NUT MET-6209110995.A117 6209110995	£1.50	£1.80
16 - FLANGE NUT MET-6209110995.A118 6209110995	£1.50	£1.80
17 - CROSS RECESSED FLAT HEAD SCREW MET-6131009460.A49 6131009460	-
17 - CROSS RECESSED FLAT HEAD SCREW MET-6131009460.A50 6131009460	-
18 - HEX HEAD SCREW MET-6103001178.A108 6103001178	£1.50	£1.80
18 - HEX HEAD SCREW MET-6103001178.A109 6103001178	£1.50	£1.80
20 - CHIP CASE BL 1 5X812X410 MET-1382206319.A12 1382206319	-
20 - CHIP CASE BL 1 5X812X410 MET-1382206319.A13 1382206319	-
21 - HEXAGON HEAD SCREW M 8X90 VERZ. MET-6101022046.A46 6101022046	£3.20	£3.84
21 - HEXAGON HEAD SCREW M 8X90 VERZ. MET-6101022046.A47 6101022046	£3.20	£3.84
24 - SAFETY LEVER BL 2 50X30X100 MET-1392205418.A7 1392205418	-
24 - SAFETY LEVER BL 2 50X30X100 MET-1392205418.A8 1392205418	-
27 - WASHER MET-141150050.A107 141150050	£1.50	£1.80
27 - WASHER MET-141150050.A108 141150050	£1.50	£1.80
33 - SUPPORT PLATE BL 2X321X168 VORNE MET-1382206300.A26 1382206300	£15.41	£18.49
33 - SUPPORT PLATE BL 2X321X168 VORNE MET-1382206300.A27 1382206300	£15.41	£18.49
34 - SUPPORT PLATE BL 2X321X168 HINTEN MET-1382206335.A8 1382206335	£15.41	£18.49
34 - SUPPORT PLATE BL 2X321X168 HINTEN MET-1382206335.A9 1382206335	£15.41	£18.49
41 - HEXAGON HEAD SCREW MET-141113330.A72 141113330	£3.20	£3.84
41 - HEXAGON HEAD SCREW MET-141113330.A73 141113330	£3.20	£3.84
52 - WASHER MET-141150010.A89 141150010	£1.50	£1.80
52 - WASHER MET-141150010.A90 141150010	£1.50	£1.80
59 - HEXAGON HEAD SCREW M 10X20 VERZ. MET-6103005270.A70 6103005270	-
59 - HEXAGON HEAD SCREW M 10X20 VERZ. MET-6103005270.A71 6103005270	-
60 - FLANGE NUT MET-6209114230.A135 6209114230	£1.50	£1.80
60 - FLANGE NUT MET-6209114230.A136 6209114230	£1.50	£1.80
70 - CROSS RECESSED FLAT HEAD SCREW M 6X16 VE MET-6131047582.A10 6131047582	£1.50	£1.80
70 - CROSS RECESSED FLAT HEAD SCREW M 6X16 VE MET-6131047582.A11 6131047582	£1.50	£1.80
71 - SELF-TAPP. COUNTERS. SCREW MET-141123420.A6 141123420	£1.50	£1.80
71 - SELF-TAPP. COUNTERS. SCREW MET-141123420.A7 141123420	£1.50	£1.80
72 - TABLE PANEL BL 2 50X736X1071 MET-1382731405.A44 1382731405	-
72 - TABLE PANEL BL 2 50X736X1071 MET-1382731405.A45 1382731405	-
73 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A184 6202002305	£1.50	£1.80
73 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A185 6202002305	£1.50	£1.80
74 - PRESSURE SPRING MET-7051207240.A9 7051207240	£1.50	£1.80
74 - PRESSURE SPRING MET-7051207240.A10 7051207240	£1.50	£1.80
75 - LIFTING EYE 2 99X90X112 MET-1492103230.A15 1492103230	-
75 - LIFTING EYE 2 99X90X112 MET-1492103230.A16 1492103230	-
76 - TABLE INSERT EXTRUSION 549 MET-1393205551.A0 1393205551	£22.61	£27.13
76 - TABLE INSERT EXTRUSION 549 MET-1393205551.A1 1393205551	£22.61	£27.13
77 - CROSSHEAD BL 2 50X86X656 MET-1392205035.A8 1392205035	-
77 - CROSSHEAD BL 2 50X86X656 MET-1392205035.A9 1392205035	-
79 - WASHER MET-141150130.A82 141150130	£1.50	£1.80
79 - WASHER MET-141150130.A83 141150130	£1.50	£1.80
80 - HEXAGON HEAD SCREW MET-141113290.A31 141113290	£1.50	£1.80
80 - HEXAGON HEAD SCREW MET-141113290.A32 141113290	£1.50	£1.80
82 - CABLE CLIP MET-8242051328.A69 8242051328	£3.82	£4.59
82 - CABLE CLIP MET-8242051328.A70 8242051328	£3.82	£4.59
90 - EXTENSION PLATE BL 2 00X572X832 TKHS315M MET-1382693309.A71 1382693309	£60.03	£72.04
90 - EXTENSION PLATE BL 2 00X572X832 TKHS315M MET-1382693309.A72 1382693309	£60.03	£72.04
91 - HEXAGON HEAD SCREW MET-141114860.A28 141114860	£3.20	£3.84
91 - HEXAGON HEAD SCREW MET-141114860.A29 141114860	£3.20	£3.84
92 - ANGLE BRACKET BL 2 50X30X116 MET-1382693856.A15 1382693856	£17.55	£21.06
92 - ANGLE BRACKET BL 2 50X30X116 MET-1382693856.A16 1382693856	£17.55	£21.06
93 - HEX NUT MET-141132030.A157 141132030	£2.94	£3.53
93 - HEX NUT MET-141132030.A158 141132030	£2.94	£3.53
94 - DIAGONAL STRUT BL 2 5X30X591 MET-1382641074.A49 1382641074	-
94 - DIAGONAL STRUT BL 2 5X30X591 MET-1382641074.A50 1382641074	-
95 - BEIN BKH/BKS MET-1010730674.A49 1010730674	-
95 - BEIN BKH/BKS MET-1010730674.A50 1010730674	-
96 - STANCHION BL 1 5X118X703 MET-1382641031.A49 1382641031	£22.61	£27.13
96 - STANCHION BL 1 5X118X703 MET-1382641031.A50 1382641031	£22.61	£27.13
97 - DIAGONAL STRUT BL 2 5X30X830 MET-1382641058.A8 1382641058	£22.96	£27.55
97 - DIAGONAL STRUT BL 2 5X30X830 MET-1382641058.A9 1382641058	£22.96	£27.55
98 - SCREW 6KT 17X30 M 8 MET-1395205516.A49 1395205516	-
98 - SCREW 6KT 17X30 M 8 MET-1395205516.A50 1395205516	-
99 - CAP SCREW MET-6127059207.A66 6127059207	£1.50	£1.80
99 - CAP SCREW MET-6127059207.A67 6127059207	£1.50	£1.80
100 - SUPPORT BL 1 00X70X885 TVL-BKH/BKS MET-1382706559.A41 1382706559	-
100 - SUPPORT BL 1 00X70X885 TVL-BKH/BKS MET-1382706559.A42 1382706559	-
110 - TABLE PANEL CPL. MET-1382731340.A47 1382731340	£42.65	£51.18
110 - TABLE PANEL CPL. MET-1382731340.A48 1382731340	£42.65	£51.18
111 - HEXAGON HEAD SCREW M 8X80 VERZ. MET-6103030259.A41 6103030259	£1.50	£1.80
111 - HEXAGON HEAD SCREW M 8X80 VERZ. MET-6103030259.A42 6103030259	£1.50	£1.80
112 - WASHER MET-141151340.A158 141151340	£1.50	£1.80
112 - WASHER MET-141151340.A159 141151340	£1.50	£1.80
113 - HEXAGON HEAD SCREW M 6X35 VERZ. MET-6103004916.A14 6103004916	£1.50	£1.80
113 - HEXAGON HEAD SCREW M 6X35 VERZ. MET-6103004916.A15 6103004916	£1.50	£1.80
114 - LEG SPRING D=1 5 X 180 MET-7051731284.A6 7051731284	£11.78	£14.13
114 - LEG SPRING D=1 5 X 180 MET-7051731284.A7 7051731284	£11.78	£14.13
115 - BEARING BLOCK KPL. BKH/BKS-PLUS MET-1010731972.A6 1010731972	£22.61	£27.13
115 - BEARING BLOCK KPL. BKH/BKS-PLUS MET-1010731972.A7 1010731972	£22.61	£27.13
116 - RIP FENCE MET-1010731964.A51 1010731964	£73.52	£88.23
116 - RIP FENCE MET-1010731964.A52 1010731964	£73.52	£88.23
117 - LEG SPRING D=1 5 X 180 MET-7051731292.A51 7051731292	£11.78	£14.13
117 - LEG SPRING D=1 5 X 180 MET-7051731292.A52 7051731292	£11.78	£14.13
118 - BUSHING RD 18X5 MET-1485731306.A47 1485731306	£6.38	£7.65
118 - BUSHING RD 18X5 MET-1485731306.A48 1485731306	£6.38	£7.65
119 - BUSHING RD 18X5 MET-1381731312.A14 1381731312	£2.94	£3.53
119 - BUSHING RD 18X5 MET-1381731312.A15 1381731312	£2.94	£3.53
120 - WHEEL GUARD KPL BKH/BKS PLUS MET-1010731956.A6 1010731956	£86.42	£103.71
120 - WHEEL GUARD KPL BKH/BKS PLUS MET-1010731956.A7 1010731956	£86.42	£103.71
121 - SPLITTING BLADE BL 3 00X214X304 BKH/BKS4 MET-1482731367.A34 1482731367	-
121 - SPLITTING BLADE BL 3 00X214X304 BKH/BKS4 MET-1482731367.A35 1482731367	-
122 - HEXAGONAL LOCK NUT MET-141130650.A177 141130650	£3.20	£3.84
122 - HEXAGONAL LOCK NUT MET-141130650.A178 141130650	£3.20	£3.84
123 - GLIDE PIECE MET-2391202772.A75 2391202772	£1.50	£1.80
123 - GLIDE PIECE MET-2391202772.A76 2391202772	£1.50	£1.80
124 - SLOTTED FLAT HEAD SCREW M 6X20 VERZ. MET-6130019585.A82 6130019585	£1.50	£1.80
124 - SLOTTED FLAT HEAD SCREW M 6X20 VERZ. MET-6130019585.A83 6130019585	£1.50	£1.80
125 - HEXAGONAL NUT MET-141130100.A195 141130100	£1.50	£1.80
125 - HEXAGONAL NUT MET-141130100.A196 141130100	£1.50	£1.80
126 - SUPPORTBLOCK 140X30X53 MET-1381730669.A14 1381730669	-
126 - SUPPORTBLOCK 140X30X53 MET-1381730669.A15 1381730669	-
127 - CAP SCREW MET-141113940.A16 141113940	£1.50	£1.80
127 - CAP SCREW MET-141113940.A17 141113940	£1.50	£1.80
130 - RIP FENCE MET-1010731743.A51 1010731743	£100.42	£120.50
130 - RIP FENCE MET-1010731743.A52 1010731743	£100.42	£120.50
131 - CUP SQUARE NECK SCREW M 6X40 VERZ. MET-6110000616.A12 6110000616	£1.50	£1.80
131 - CUP SQUARE NECK SCREW M 6X40 VERZ. MET-6110000616.A13 6110000616	£1.50	£1.80
132 - GUIDE PLATE FLIPSTOP MET-1392201587.A11 1392201587	£1.50	£1.80
132 - GUIDE PLATE FLIPSTOP MET-1392201587.A12 1392201587	£1.50	£1.80
133 - LAMELLAR PLUG 60X25 VL SCHWARZ MET-1391019971.A12 1391019971	£3.20	£3.84
133 - LAMELLAR PLUG 60X25 VL SCHWARZ MET-1391019971.A13 1391019971	£3.20	£3.84
134 - RIP FENCE MET-1010731450.A6 1010731450	-
134 - RIP FENCE MET-1010731450.A7 1010731450	-
135 - WING NUT MET-7005658068.A2 7005658068	£3.20	£3.84
135 - WING NUT MET-7005658068.A3 7005658068	£3.20	£3.84
136 - AUXILIARY FENCE EXTRUSION MET-1383730720.A10 1383730720	-
136 - AUXILIARY FENCE EXTRUSION MET-1383730720.A11 1383730720	-
137 - SPACER SLEEVE RD 15/6X12 MET-6442100576.A16 6442100576	-
137 - SPACER SLEEVE RD 15/6X12 MET-6442100576.A17 6442100576	-
138 - CABLE CLIP MET-7052078118.A19 7052078118	£1.50	£1.80
138 - CABLE CLIP MET-7052078118.A20 7052078118	£1.50	£1.80
139 - SELF-TAP. FILL. H. SCREW MET-141122870.A9 141122870	-
139 - SELF-TAP. FILL. H. SCREW MET-141122870.A10 141122870	-
140 - BOLT WITH HEAD MET-6632111175.A75 6632111175	£3.82	£4.59
140 - BOLT WITH HEAD MET-6632111175.A76 6632111175	£3.82	£4.59
141 - CLAMPING PLATE BL 1X26X91 MET-1392205620.A67 1392205620	£3.20	£3.84
141 - CLAMPING PLATE BL 1X26X91 MET-1392205620.A68 1392205620	£3.20	£3.84
142 - STARLOCK MET-7016050711.A23 7016050711	£1.50	£1.80
142 - STARLOCK MET-7016050711.A24 7016050711	£1.50	£1.80
143 - CAM-LOCK LEVER MET-1380731386.A6 1380731386	-
143 - CAM-LOCK LEVER MET-1380731386.A7 1380731386	-
144 - HANDLE WITH RED INSERT MET-1381731843.A43 1381731843	-
144 - HANDLE WITH RED INSERT MET-1381731843.A44 1381731843	-
145 - CUP SQUARE NECK SCREW M 8X25 VERZ. MET-6110000640.A44 6110000640	£1.50	£1.80
145 - CUP SQUARE NECK SCREW M 8X25 VERZ. MET-6110000640.A45 6110000640	£1.50	£1.80
146 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A8 6172015687	£1.50	£1.80
146 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A9 6172015687	£1.50	£1.80
147 - END PIECE BL 2X26X35 MET-1492091649.A49 1492091649	£1.50	£1.80
147 - END PIECE BL 2X26X35 MET-1492091649.A50 1492091649	£1.50	£1.80
148 - FENCE GUIDE EXTRUSION 543 5 MM MET-1383731590.A47 1383731590	£42.65	£51.18
148 - FENCE GUIDE EXTRUSION 543 5 MM MET-1383731590.A48 1383731590	£42.65	£51.18
150 - HALTER BL 2 99X79X207 MET-1482730767.A6 1482730767	-
150 - HALTER BL 2 99X79X207 MET-1482730767.A7 1482730767	-
151 - LAMELLENSTOPFEN RD 25 1-3 MET-1381730715.A43 1381730715	-
151 - LAMELLENSTOPFEN RD 25 1-3 MET-1381730715.A44 1381730715	-
152 - FILLISTER HEAD SCREW MET-6172028215.A15 6172028215	£1.50	£1.80
152 - FILLISTER HEAD SCREW MET-6172028215.A16 6172028215	£1.50	£1.80
153 - ANGLE SCALE MET-1110205593.A49 1110205593	-
153 - ANGLE SCALE MET-1110205593.A50 1110205593	-
154 - FILLISTER HEAD SCREW MET-6172091014.A60 6172091014	£1.50	£1.80
154 - FILLISTER HEAD SCREW MET-6172091014.A61 6172091014	£1.50	£1.80
155 - VERNIER SCALE 1 MET-1110205607.A10 1110205607	-
155 - VERNIER SCALE 1 MET-1110205607.A11 1110205607	-
156 - CARRIER VERNIER SCALE MET-2391205615.A8 2391205615	-
156 - CARRIER VERNIER SCALE MET-2391205615.A9 2391205615	-
157 - HEXAGON THIN NUT MET-6205029131.A70 6205029131	£1.50	£1.80
157 - HEXAGON THIN NUT MET-6205029131.A71 6205029131	£1.50	£1.80
158 - GRUB SCREW MET-6161029309.A20 6161029309	£1.50	£1.80
158 - GRUB SCREW MET-6161029309.A21 6161029309	£1.50	£1.80
159 - HEXAGON FIT BOLT SW 19X42 MET-1395205400.A10 1395205400	£7.36	£8.83
159 - HEXAGON FIT BOLT SW 19X42 MET-1395205400.A11 1395205400	£7.36	£8.83
160 - WAVE SPRING WASHER B 12 VERZ. MET-6302085941.A55 6302085941	£1.50	£1.80
160 - WAVE SPRING WASHER B 12 VERZ. MET-6302085941.A56 6302085941	£1.50	£1.80
161 - EXTENTION MITRE FENCE MET-2380730793.A14 2380730793	-
161 - EXTENTION MITRE FENCE MET-2380730793.A15 2380730793	-
162 - HEXAGON HEAD SCREW MET-6103121416.A10 6103121416	£1.54	£1.85
162 - HEXAGON HEAD SCREW MET-6103121416.A11 6103121416	£1.54	£1.85
163 - MITRE FENCE MET-1390205739.A47 1390205739	-
163 - MITRE FENCE MET-1390205739.A48 1390205739	-
164 - HEXAGON HEAD SCREW MET-141110290.A68 141110290	£3.20	£3.84
164 - HEXAGON HEAD SCREW MET-141110290.A69 141110290	£3.20	£3.84
165 - WASHER MET-141151940.A236 141151940	£1.50	£1.80
165 - WASHER MET-141151940.A237 141151940	£1.50	£1.80
166 - MITRE FENCE MET-2010200922.A51 2010200922	-
166 - MITRE FENCE MET-2010200922.A52 2010200922	-
167 - GLIDE PIEC MET-2391205470.A49 2391205470	-
167 - GLIDE PIEC MET-2391205470.A50 2391205470	-
168 - CUP SQUARE NECK SCREW M 10X30 VERZ. MET-6110091603.A49 6110091603	£1.50	£1.80
168 - CUP SQUARE NECK SCREW M 10X30 VERZ. MET-6110091603.A50 6110091603	£1.50	£1.80
169 - FUEHRUNG QUERANSCHLAG RD 25X2 0X1040 MET-1485730741.A14 1485730741	-
169 - FUEHRUNG QUERANSCHLAG RD 25X2 0X1040 MET-1485730741.A15 1485730741	-
170 - SLIDING HANDLE RED MET-1388680470.A94 1388680470	£42.65	£51.18
170 - SLIDING HANDLE RED MET-1388680470.A95 1388680470	£42.65	£51.18
171 - KEY MET-1492102829.A80 1492102829	£11.78	£14.13
171 - KEY MET-1492102829.A81 1492102829	£11.78	£14.13
172 - PUSH STICK MET-1394201630.A14 1394201630	£9.62	£11.54
172 - PUSH STICK MET-1394201630.A15 1394201630	£9.62	£11.54
173 - GUIDE PIECE MET-2391205283.A51 2391205283	£9.62	£11.54
173 - GUIDE PIECE MET-2391205283.A52 2391205283	£9.62	£11.54
175 - MITRE FENC MET-1010014146.A2 1010014146	£79.10	£94.92
175 - MITRE FENC MET-1010014146.A3 1010014146	£79.10	£94.92
176 - RATCHET LOCK LEVER FEMALE M 10 IG 18 MM MET-7006073730.A14 7006073730	£13.63	£16.36
176 - RATCHET LOCK LEVER FEMALE M 10 IG 18 MM MET-7006073730.A15 7006073730	£13.63	£16.36

Attribute Name	Value
Brand	Metabo

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Metabo BKS 400 Plus / 0100400000 10 / - Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Metabo BKS 400 Plus / 0100400000 10 / - Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
