1 - ARMATURE COMPL.
MET-310011270.A1
310011270
|
£30.06
|
£36.07
|
|
|
2 - FIELD COIL COMPL. 2 POL.
MET-311011880.A24
311011880
|
£61.08
|
£73.30
|
|
|
3 - BRUSH HOLDER COMPL. 18 V
MET-316053210.A22
316053210
|
£17.55
|
£21.06
|
|
|
4 - ELECTRONIC UNIT 18V
MET-343082750.A20
343082750
|
£67.04
|
£80.45
|
|
|
5 - MOTOR HOUSING
MET-343398580.A24
343398580
|
£26.35
|
£31.62
|
|
|
6 - RUBBER BUSHING
MET-344098740.A9
344098740
|
£1.50
|
£1.80
|
|
|
7 - BALL BEARING 8X22X7
MET-143114880.A4
143114880
|
£9.62
|
£11.54
|
|
|
8 - HOUSING
MET-343430690.A20
343430690
|
£11.78
|
£14.13
|
|
|
9 - SELF-TAP. FILL. H. SCREW
MET-141113180.A74
141113180
|
£1.50
|
£1.80
|
|
|
10 - BRUSH COVER
MET-343398600.A22
343398600
|
£2.94
|
£3.53
|
|
|
11 - SELF-TAPP. FILL. H. SCREW
MET-141119900.A38
141119900
|
£1.50
|
£1.80
|
|
|
12 - SWITCH SLIDE H/L
MET-343397810.A55
343397810
|
£1.50
|
£1.80
|
|
|
13 - SWITCH ROD
MET-339136560.A24
339136560
|
£4.76
|
£5.71
|
|
|
14 - INDEX BOLT
MET-343398620.A30
343398620
|
£2.94
|
£3.53
|
|
|
15 - PRESSURE SPRING
MET-342003030.A15
342003030
|
£1.50
|
£1.80
|
|
|
16 - LOCKING PIECE
MET-343430520.A16
343430520
|
£2.94
|
£3.53
|
|
|
17 - SWITCH SLIDE
MET-343430530.A34
343430530
|
£3.20
|
£3.84
|
|
|
18 - SELF-TAP. FILL. H. SCREW
MET-141117060.A210
141117060
|
£3.20
|
£3.84
|
|
|
19 - WASHER
MET-141152720.A24
141152720
|
£3.20
|
£3.84
|
|
|
20 - CARRIER
MET-341071110.A1
341071110
|
£19.18
|
£23.02
|
|
|
21 - BUFFER
MET-344099140.A35
344099140
|
£3.82
|
£4.59
|
|
|
22 - BEARING FLANGE
MET-315202620.A27
315202620
|
£22.61
|
£27.13
|
|
|
25 - PIN SPANNER
MET-344163920.A186
344163920
|
£4.76
|
£5.71
|
|
|
40 - FILTER
MET-343398890.A28
343398890
|
£8.37
|
£10.04
|
|
|
46 - RATING PLATE
MET-338059510.A0
338059510
|
-
|
|
|
|
47 - WARNING LABEL 52X22
MET-338122090.A160
338122090
|
-
|
|
|
|
50 - BEARING COVER
MET-315418240.A11
315418240
|
£3.20
|
£3.84
|
|
|
51 - FILLISTER HEAD SCREW
MET-141124260.A4
141124260
|
£2.94
|
£3.53
|
|
|
52 - RI.KU.LA. 6X 19X 6
MET-143114790.A13
143114790
|
£5.62
|
£6.75
|
|
|
53 - BALL BEARING 8X22X7
MET-143115700.A483
143115700
|
£4.76
|
£5.71
|
|
|
54 - COMPENSATING WASHER
MET-339012160.A45
339012160
|
£2.94
|
£3.53
|
|
|
55 - RETAINING RING
MET-141156860.A13
141156860
|
-
|
|
|
|
56 - GEAR HOUSING COMPL.
MET-316055700.A5
316055700
|
£32.88
|
£39.45
|
|
|
59 - COUNTERSUNK SCREW
MET-141122320.A51
141122320
|
£2.94
|
£3.53
|
|
|
60 - BEVEL GEAR AND BEVEL GEAR
MET-316055740.A4
316055740
|
£22.61
|
£27.13
|
|
|
61 - DRIVE SHAFT
MET-341604480.A5
341604480
|
£7.36
|
£8.83
|
|
|
62 - SPACER BUSH
MET-341006140.A9
341006140
|
£7.36
|
£8.83
|
|
|
63 - CARRIER
MET-341071350.A4
341071350
|
£9.62
|
£11.54
|
|
|
64 - BALL BEARING 8X22X7
MET-143115560.A4
143115560
|
£8.37
|
£10.04
|
|
|
65 - FLANGE
MET-315202970.A14
315202970
|
£11.78
|
£14.13
|
|
|
71 - WHEEL GUARD COMPL.
MET-316055590.A15
316055590
|
£48.88
|
£58.66
|
|
|
72 - CLAMPING FLANGE
MET-341031290.A96
341031290
|
£9.62
|
£11.54
|
|
|
73 - FLANGE NUT
MET-341101480.A44
341101480
|
£11.78
|
£14.13
|
|
|
74 - SIDE SUPPORT HANDLE COMPL.
MET-316046590.A15
316046590
|
£11.78
|
£14.13
|
|
|
75 - EXTENSION
MET-341210700.A56
341210700
|
£7.36
|
£8.83
|
|
|
77 - SPRING CLIP
MET-342022040.A52
342022040
|
£1.50
|
£1.80
|
|
|
78 - TIGHT-FIT SCREW
MET-341701490.A63
341701490
|
£1.50
|
£1.80
|
|
|
80 - WASHER
MET-339006390.A237
339006390
|
£1.50
|
£1.80
|
|
|
81 - SPINDLE COMPL.
MET-316069030.A9
316069030
|
-
|
|
|
|
95 - COVER CAP
MET-343439680.A74
343439680
|
£2.94
|
£3.53
|
|
|
880 - GREASE 100G
MET-344130920.A427
344130920
|
£19.18
|
£23.02
|
|
|

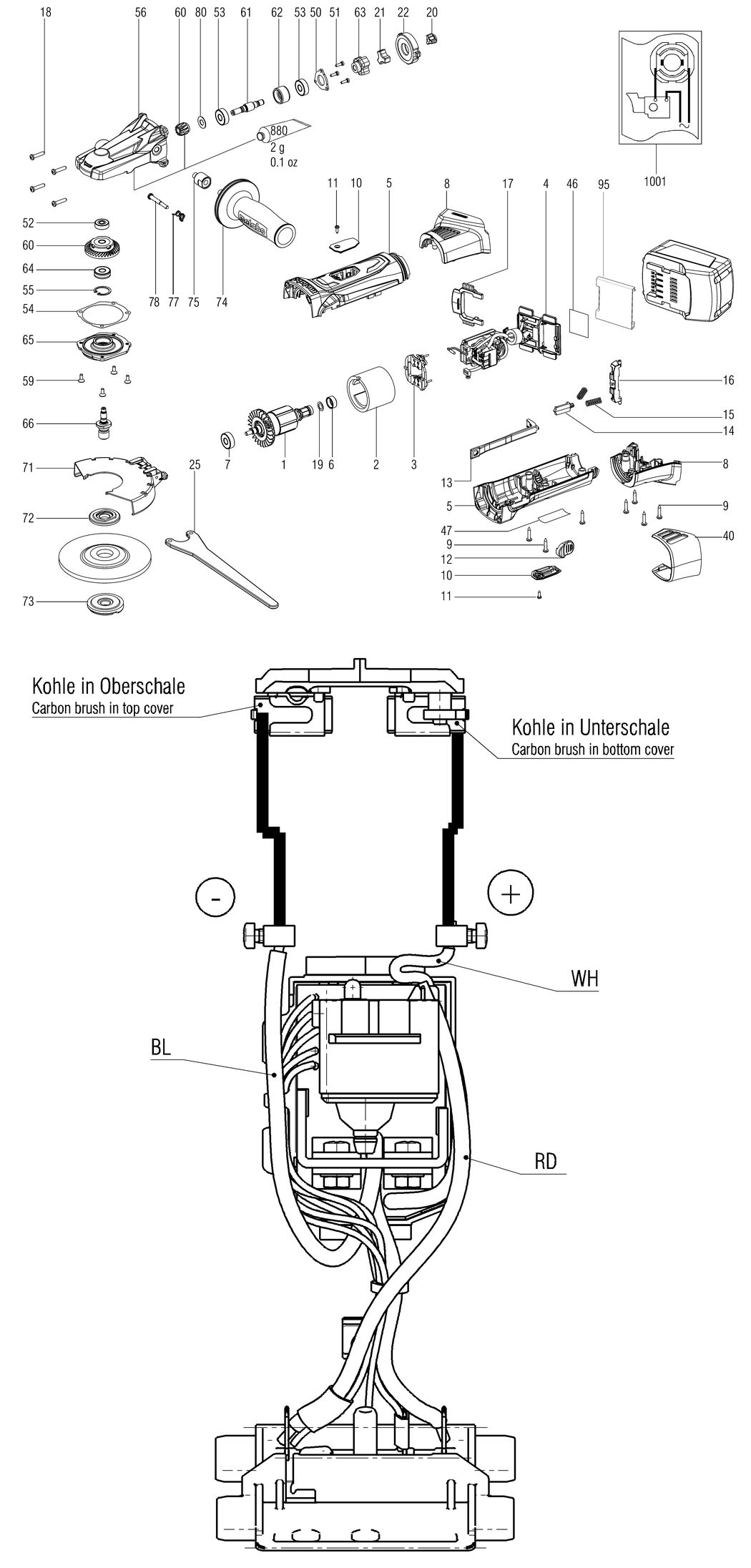

1001 - DIAGRAM
MET-338505280.A9
338505280
|
-
|
|
|
