Metabo CC 18 LTX BL / 00349000 / - Spare Parts

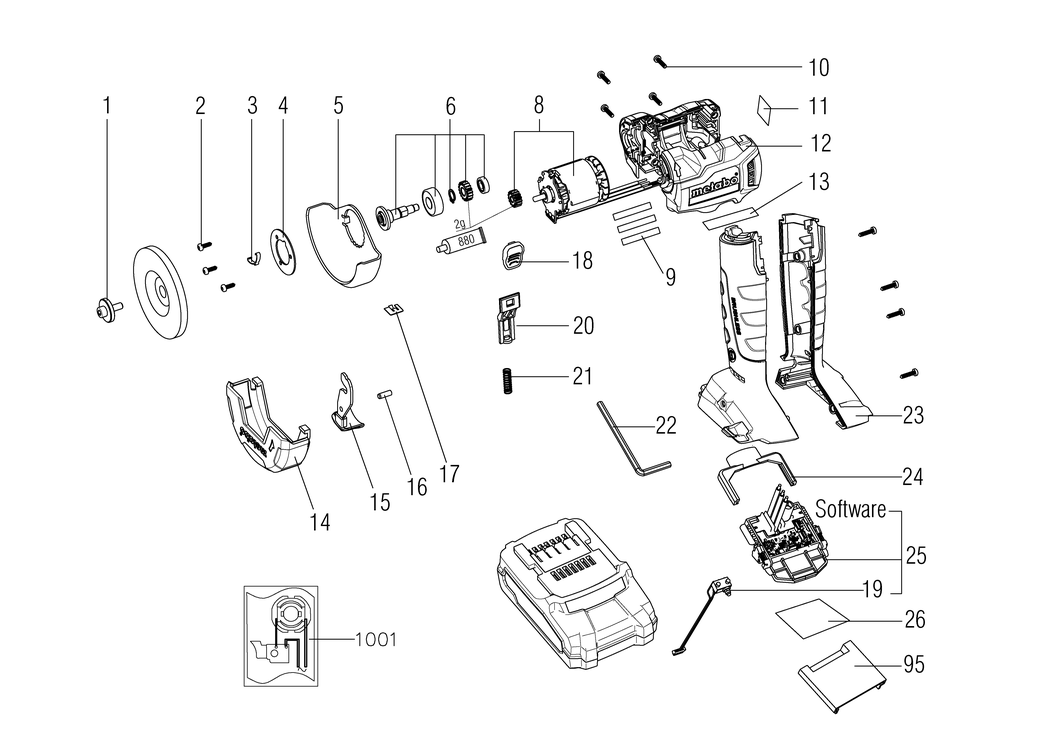

An exploded diagram and spare parts listing for the Metabo CC 18 LTX BL / 00349000 / -

	Ex VAT	Inc VAT
1 - LOCK BOLT MET-341109140.A0 341109140	-
2 - SELF-TAPP. FILL. H. SCREW MET-141119900.A18 141119900	£1.50	£1.80
3 - FLAT SPRING MET-342010990.A1 342010990	-
4 - COVER SHEET MET-339149330.A0 339149330	-
5 - WHEEL GUARD D76MM MET-339209590.A0 339209590	-
6 - DRIVE SHAFT CPL. MET-316098650.A0 316098650	-
8 - MOTOR COMPL. MET-316098640.A0 316098640	-
9 - HEAT SHRINK TUBE MET-341213440.A0 341213440	-
10 - SCREW ST2 MET-341704710.A33 341704710	£2.94	£3.53
11 - INDICATION LABEL CAS MET-338129960.A3 338129960	£3.20	£3.84
12 - MOTOR HOUSING MET-343385030.A1 343385030	-
13 - TYPE LABEL MET-338131210.A0 338131210	-
14 - CUTTING WHEEL GUARD D76MM MET-339209580.A1 339209580	-
15 - SPINDLE LOCK MET-339149320.A1 339149320	-
16 - CYLINDRICAL PIN MET-141163980.A9 141163980	£1.50	£1.80
17 - FLAT SPRING MET-342010980.A0 342010980	-
18 - SWITCH SLIDE RED MET-343412110.A20 343412110	£2.94	£3.53
19 - MICRO SWITCH MET-343087290.A1 343087290	-
20 - SWITCH ROD MET-343449090.A1 343449090	-
21 - PRESSURE SPRING MET-342002440.A28 342002440	£1.50	£1.80
22 - HEXAGONAL KEY MET-344161530.A7 344161530	£3.20	£3.84
23 - HANDLE MET-343449900.A0 343449900	-
24 - LOCKING SLIDE MET-343447510.A28 343447510	£2.94	£3.53
25 - ELECTRONIC UNIT CUTTER18BL MET-343087750.A0 343087750	-
26 - RATING PLATE MET-338072230.A0 338072230	-
95 - PART NOT NEEDED MET-399999990.A2048 399999990	-
880 - SPECIAL GREASE MET-145011110.A1 145011110	£54.94	£65.93
1001 - WIRING DIAGRAM MET-338510540.A0 338510540	-

Attribute Name	Value
Brand	Metabo
