Metabo KPA 10.8 600 / 02117000 / - Spare Parts

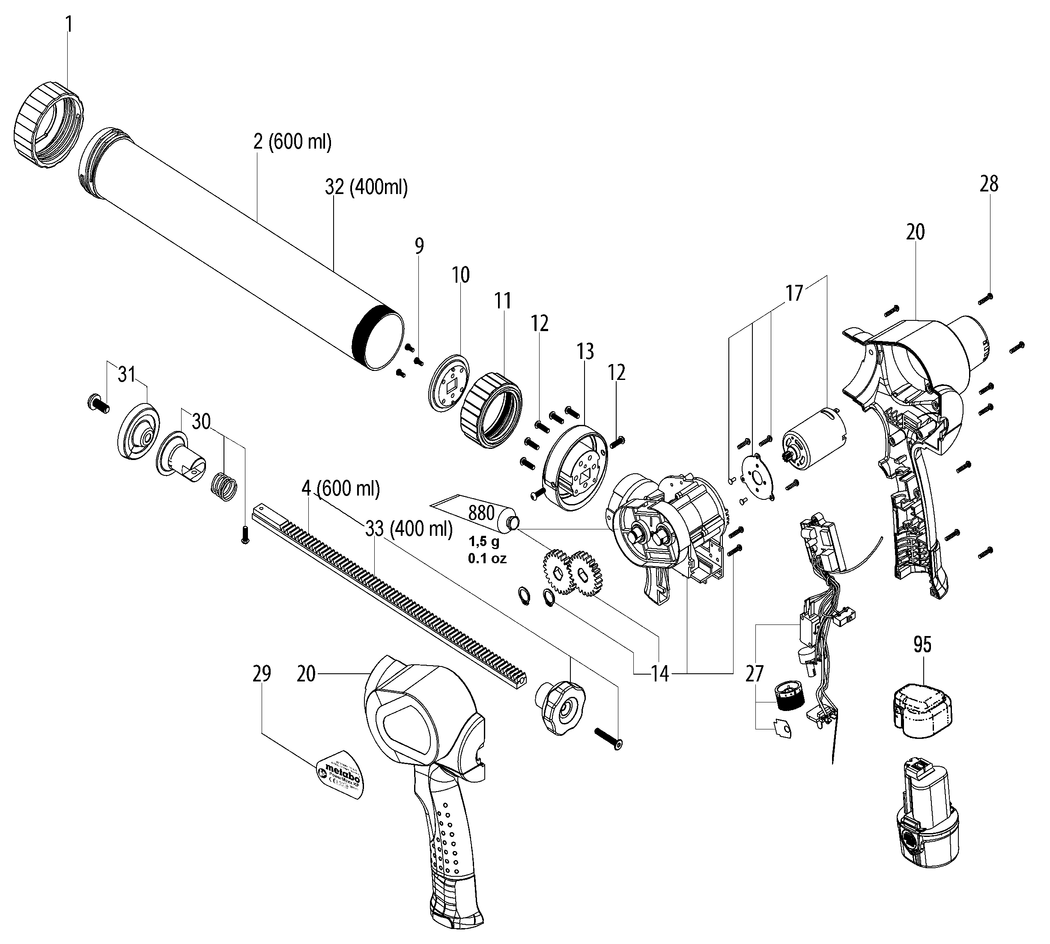

An exploded diagram and spare parts listing for the Metabo KPA 10.8 600 / 02117000 / -

	Ex VAT	Inc VAT
1 - COVER FRONT MET-344099240.A0 344099240	£26.35	£31.62
2 - HEAT SHRINK TUBE 600 ML. MET-315418070.A2 315418070	£61.08	£73.30
4 - RACK COMPL. MET-341148470.A0 341148470	£63.36	£76.03
9 - FILLISTER HEAD SCREW M 3 MET-341704730.A2 341704730	£2.94	£3.53
10 - ADAPTOR RING MET-315418080.A0 315418080	£15.41	£18.49
11 - CONNECTION PIECE MET-315418090.A4 315418090	£19.18	£23.02
12 - SCREW TP 4X14 TX15 MET-341704760.A2 341704760	£2.94	£3.53
13 - COVER MET-343432050.A2 343432050	£26.35	£31.62
14 - GEAR-BOX COMPL. MET-316051060.A0 316051060	£67.04	£80.45
17 - MOTOR W.FLANGE MET-317004180.A2 317004180	£22.96	£27.55
20 - HOUSING MET-343432060.A0 343432060	£36.59	£43.91
24 - OPERATING DEVICE (KNOB REAR) MET-343409770.A0 343409770	£5.62	£6.75
27 - SWITCH COMPL. MET-343409780.A0 343409780	£68.35	£82.02
28 - SCREW TP 3X14 TX10 MET-341704750.A1 341704750	£2.94	£3.53
29 - RATING PLATE MET-338057340.A0 338057340	£2.94	£3.53
30 - PLUNGER DISC MET-341210500.A0 341210500	£22.61	£27.13
31 - PLUNGER DISC MET-343433240.A0 343433240	£11.78	£14.13
32 - HEAT SHRINK TUBE 400 ML. MET-315418210.A1 315418210	£63.36	£76.03
33 - RACK COMPL. MET-341161440.A0 341161440	£48.88	£58.66

Attribute Name	Value
Brand	Metabo
