Metabo SSD 18 LTX 200 / 18202000 / - Spare Parts

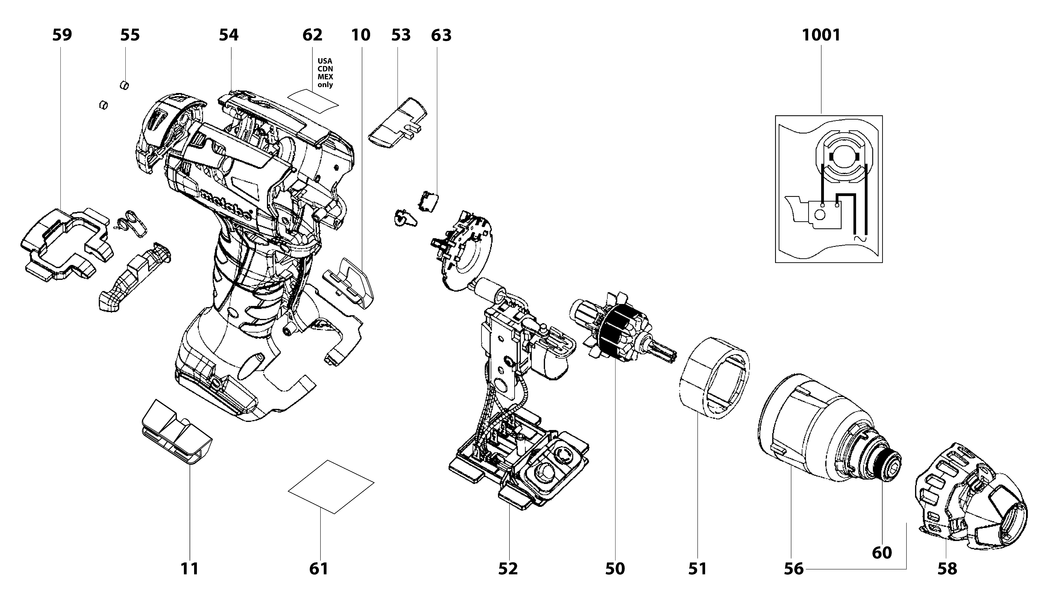

An exploded diagram and spare parts listing for the Metabo SSD 18 LTX 200 / 18202000 / -

	Ex VAT	Inc VAT
10 - HOOK MET-339137270.A13 339137270	£3.82	£4.59
11 - BIT-DEPOT 18 V MET-343448690.A36 343448690	£3.82	£4.59
12 - INDICATION LABEL MET-338129940.A59 338129940	£3.20	£3.84
50 - ARMATURE COMPL. 18 V MET-310010860.A0 310010860	£73.52	£88.23
51 - FIELD COIL MET-311011870.A4 311011870	£73.52	£88.23
52 - SWITCH COMPL. MET-343410030.A2 343410030	£94.04	£112.85
53 - SWITCH SLIDE MET-343433420.A6 343433420	£3.20	£3.84
54 - HOUSING W.COVER MET-343433400.A6 343433400	£36.59	£43.91
55 - RUBBER PLUG MET-344099500.A4 344099500	£1.50	£1.80
56 - GEAR-BOX COMPL. MET-316053170.A3 316053170	£100.42	£120.50
58 - COVER COMPL. MET-316053190.A4 316053190	£22.61	£27.13
59 - PRESSURE PLATE MET-343433410.A1 343433410	£4.76	£5.71
60 - BIT HOLDING SLEEVES COMPL. MET-316053230.A1 316053230	£4.76	£5.71
61 - RATING PLATE MET-338058940.A3 338058940	£2.94	£3.53
63 - CARBON BRUSH SET MET-316054100.A4 316054100	£7.36	£8.83
