Metabo BE 18 LTX 6 / 00261000 / - Spare Parts

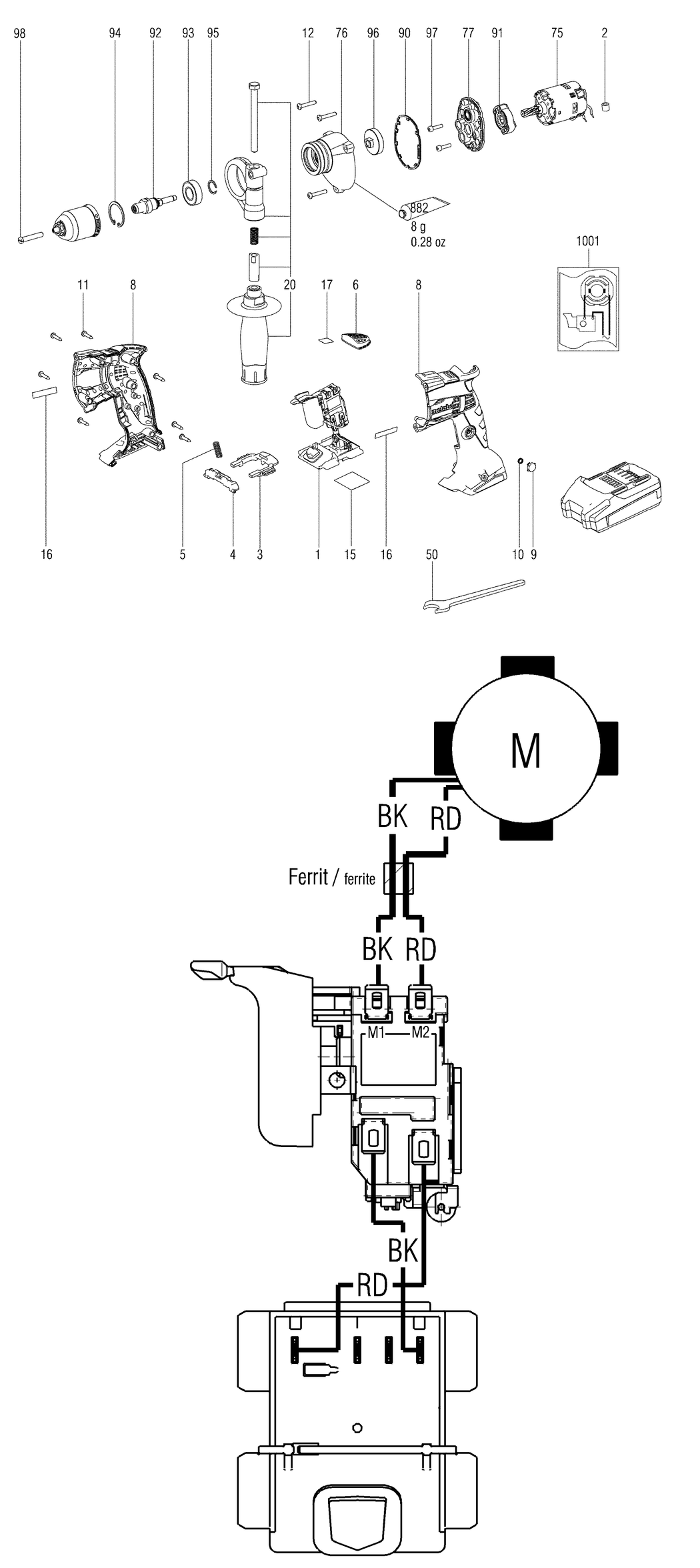

An exploded diagram and spare parts listing for the Metabo BE 18 LTX 6 / 00261000 / -

	Ex VAT	Inc VAT
1 - ELECTRONIC SWITCH 18V MET-343410220.A1 343410220	£73.52	£88.23
2 - TOROIDAL FERRITE OD11.5ID59 MET-143160080.A1 143160080	-
3 - LOCKING SLIDE MET-343433300.A9 343433300	£3.20	£3.84
4 - LOCKING PIECE MET-343430520.A21 343430520	£2.94	£3.53
5 - PRESSURE SPRING MET-342003030.A36 342003030	£1.50	£1.80
6 - INSERT MET-343435420.A0 343435420	-
8 - HOUSING W.COVER MET-343434390.A4 343434390	£26.35	£31.62
9 - LOCKING CATCH MET-343434440.A4 343434440	-
10 - PRESSURE SPRING MET-342003950.A3 342003950	-
11 - SELF-TAP. FILL. H. SCREW MET-141113180.A10 141113180	£1.50	£1.80
12 - SELF-TAP. FILL. H. SCREW MET-141117060.A53 141117060	£3.20	£3.84
15 - RATING PLATE MET-338063180.A1 338063180	-
16 - TYPE LABEL BE 18 LTX 6 MET-338125850.A1 338125850	-
17 - INDICATION LABEL MET-338129940.A76 338129940	£3.20	£3.84
20 - SUPPORTING HANDLE CPL. MET-314000630.A13 314000630	£22.61	£27.13
50 - OPEN-END SPANNER MET-344164080.A1 344164080	-
75 - MOTOR COMPL. MET-316058100.A1 316058100	£64.30	£77.16
76 - GEAR HOUSING COMPL. MET-316056990.A1 316056990	-
77 - GEAR FLANGE COMPL. MET-316059440.A0 316059440	-
90 - SEAL MET-344099610.A6 344099610	-
91 - ADAPTOR MET-343434400.A0 343434400	-
92 - SPINDLE MET-341604620.A1 341604620	-
93 - BALL BEARING 15X32X9 MET-143115790.A35 143115790	£5.62	£6.75
94 - RETAINING RING MET-141181680.A93 141181680	£1.50	£1.80
95 - CIRCLIP MET-141156010.A2 141156010	£1.50	£1.80
96 - SPUR GEAR MET-340013010.A1 340013010	-
97 - CAP SCREW MET-141113600.A0 141113600	£3.20	£3.84
98 - CHEESE-HEAD SCREW MET-341701940.A152 341701940	£3.20	£3.84
882 - GREASE FG 126 MET-344130800.A39 344130800	£17.55	£21.06
1001 - WIRING DIAGRAM MET-338505930.A3 338505930	-
1 - ELECTRONIC SWITCH 18V MET-343410220.A0 343410220	£73.52	£88.23
2 - TOROIDAL FERRITE OD11.5ID59 MET-143160080.A2 143160080	-
3 - LOCKING SLIDE MET-343433300.A10 343433300	£3.20	£3.84
4 - LOCKING PIECE MET-343430520.A20 343430520	£2.94	£3.53
5 - PRESSURE SPRING MET-342003030.A35 342003030	£1.50	£1.80
6 - INSERT MET-343435420.A1 343435420	-
8 - HOUSING W.COVER MET-343434390.A3 343434390	£26.35	£31.62
9 - LOCKING CATCH MET-343434440.A3 343434440	-
10 - PRESSURE SPRING MET-342003950.A4 342003950	-
11 - SELF-TAP. FILL. H. SCREW MET-141113180.A11 141113180	£1.50	£1.80
12 - SELF-TAP. FILL. H. SCREW MET-141117060.A52 141117060	£3.20	£3.84
15 - RATING PLATE MET-338063180.A0 338063180	-
16 - TYPE LABEL BE 18 LTX 6 MET-338125850.A0 338125850	-
17 - INDICATION LABEL MET-338129940.A77 338129940	£3.20	£3.84
20 - SUPPORTING HANDLE CPL. MET-314000630.A12 314000630	£22.61	£27.13
50 - OPEN-END SPANNER MET-344164080.A0 344164080	-
75 - MOTOR COMPL. MET-316058100.A0 316058100	£64.30	£77.16
76 - GEAR HOUSING COMPL. MET-316056990.A2 316056990	-
77 - GEAR FLANGE COMPL. MET-316059440.A1 316059440	-
90 - SEAL MET-344099610.A7 344099610	-
91 - ADAPTOR MET-343434400.A1 343434400	-
92 - SPINDLE MET-341604620.A2 341604620	-
93 - BALL BEARING 15X32X9 MET-143115790.A34 143115790	£5.62	£6.75
94 - RETAINING RING MET-141181680.A92 141181680	£1.50	£1.80
95 - CIRCLIP MET-141156010.A1 141156010	£1.50	£1.80
96 - SPUR GEAR MET-340013010.A0 340013010	-
97 - CAP SCREW MET-141113600.A1 141113600	£3.20	£3.84
98 - CHEESE-HEAD SCREW MET-341701940.A151 341701940	£3.20	£3.84
882 - GREASE FG 126 MET-344130800.A38 344130800	£17.55	£21.06
1001 - WIRING DIAGRAM MET-338505930.A4 338505930	-

Attribute Name	Value
Brand	Metabo
