Metabo BS 18 LTX Quick / 02109420 / - Spare Parts

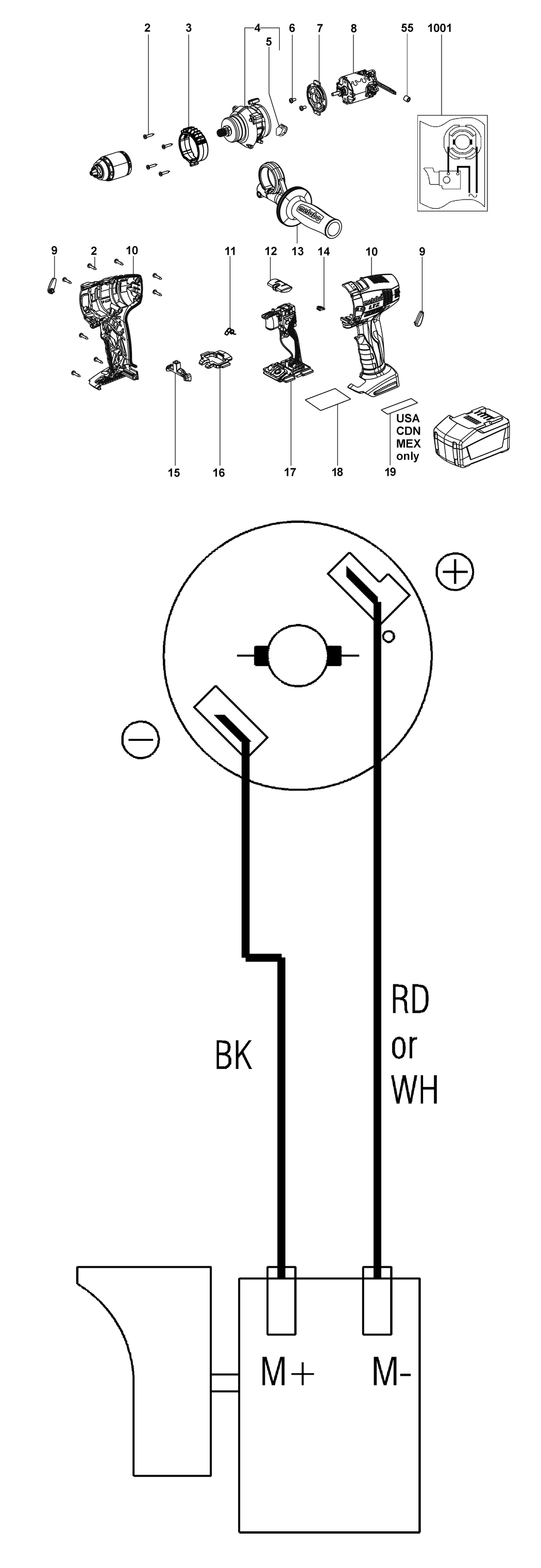

An exploded diagram and spare parts listing for the Metabo BS 18 LTX Quick / 02109420 / -

	Ex VAT	Inc VAT
2 - SELF-TAP. FILL. H. SCREW MET-141113180.A218 141113180	£1.50	£1.80
3 - SCREWDRIBER-BIT DEPOT MET-343396590.A25 343396590	£3.20	£3.84
4 - GEAR-BOX COMPL. MET-316049780.A1 316049780	£55.90	£67.08
5 - ELECTRONIC UNIT 6-20V MET-343081780.A12 343081780	£26.35	£31.62
6 - FILLISTER HEAD SCREW MET-141119850.A241 141119850	£1.50	£1.80
7 - MOTOR FLANGE MET-343393960.A11 343393960	£2.94	£3.53
8 - DC-MOTOR 18 V MET-317003690.A5 317003690	£67.04	£80.45
9 - SHIFT ELEMENT MET-343394150.A13 343394150	£1.50	£1.80
10 - HOUSING W.COVER MET-343394810.A5 343394810	£36.59	£43.91
11 - SPRING CLIP MET-342021670.A62 342021670	£1.50	£1.80
12 - SWITCH SLIDE MET-343394800.A23 343394800	£1.50	£1.80
13 - SIDE SUPPORT HANDLE COMPL. MET-314001140.A14 314001140	£17.55	£21.06
14 - FLAT SPRING MET-342050860.A4 342050860	£1.50	£1.80
15 - PRESSURE PLATE MET-343394770.A37 343394770	£1.50	£1.80
16 - SWITCH SLIDE MET-343394790.A16 343394790	£1.50	£1.80
17 - ELECTRONIC SWITCH 18 V IMPULS MET-343408680.A10 343408680	£55.90	£67.08
18 - RATING PLATE MET-338054370.A1 338054370	£1.50	£1.80
19 - WARNING LABEL SERIAL 40X14 MET-338121750.A8 338121750	-
55 - FERRITE BEAD MET-143160070.A10 143160070	£3.82	£4.59
1001 - WIRING DIAGRAM MET-338504870.A47 338504870	-

Attribute Name	Value
Brand	Metabo
