Metabo Sliding CARRIAGE TF 100 / 0914015600 10 / - Spare Parts

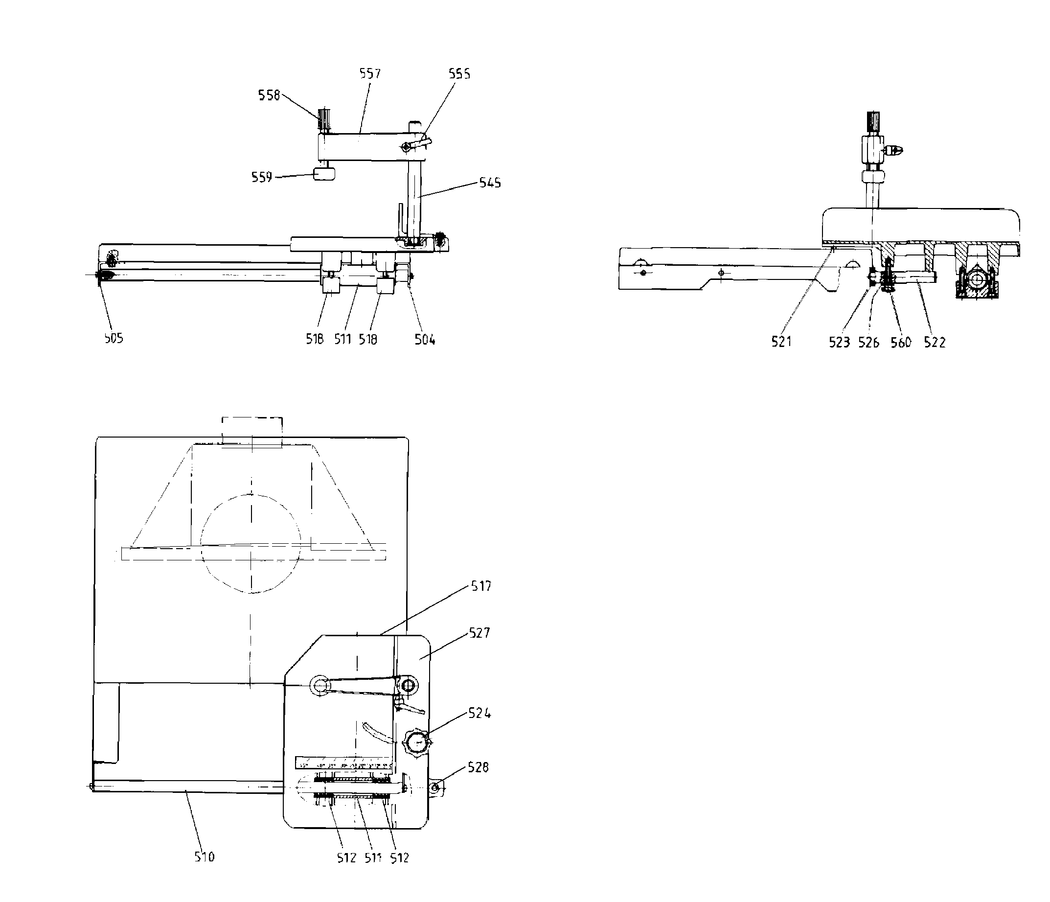

An exploded diagram and spare parts listing for the Metabo Sliding CARRIAGE TF 100 / 0914015600 10 / -

	Ex VAT	Inc VAT
504 - BRACKET BL 2 99X81X610 RECHTS MET-1392019053.A0 1392019053	-
505 - BRACKET BL 2 99X81X610 LINKS MET-1392019061.A0 1392019061	-
510 - GUIDE SHAFT RD 20X517 MET-7122028962.A0 7122028962	-
511 - COLLAR RDA 33 7X3 MET-1395028975.A0 1395028975	-
512 - LINEAR BALL BEARING RD 20/28X30 TYP KH 2 MET-7121028950.A0 7121028950	-
517 - CLAMPING TABLE MIT GLEITSTÜCK MET-1390029043.A0 1390029043	-
518 - BRACKET RS 5-1/GRÖßE 5 MET-1391029055.A0 1391029055	-
521 - GLIDE PIECE 6X15X46 MET-1391029063.A0 1391029063	-
522 - BEARING SHAFT RD 20X135 MET-1495101416.A0 1495101416	-
523 - DEEP GROOVE BALL BEARING MET-7100136915.A24 7100136915	£9.62	£11.54
524 - KNOB RED M8 EINSPRITZBUCHSE SCHWARZ MET-7006018305.A0 7006018305	-
526 - PRESSURE SPRING RDA 2 5 RDI 8 MET-7052029117.A0 7052029117	-
527 - FENCE LS 60X5X335 MET-1392029075.A0 1392029075	-
528 - CAM PLATE BL 2 99XRD25/RDI 6 MET-1482408962.A11 1482408962	£1.50	£1.80
545 - CLAMPING ARM SUPPORT RD 20X210 MET-1495024624.A0 1495024624	-
555 - STRAIGHT PIN PRE-ASSEMBLED MET-1010131339.A0 1010131339	-
557 - CLAMPING ARM MET-1380220322.A0 1380220322	£22.96	£27.55
558 - THREADED BOLT RD 20X126/M 12/M 6 MET-1485220336.A1 1485220336	-
559 - CLAMPING ARM CAP RD 35X19 SPANNVORRICHTU MET-1381216434.A1 1381216434	£3.20	£3.84
560 - STARKNOB NUT MET-7000017730.A2 7000017730	£3.20	£3.84

Attribute Name	Value
Brand	Metabo
