Makita HS6601 Circular Saw Spare Parts

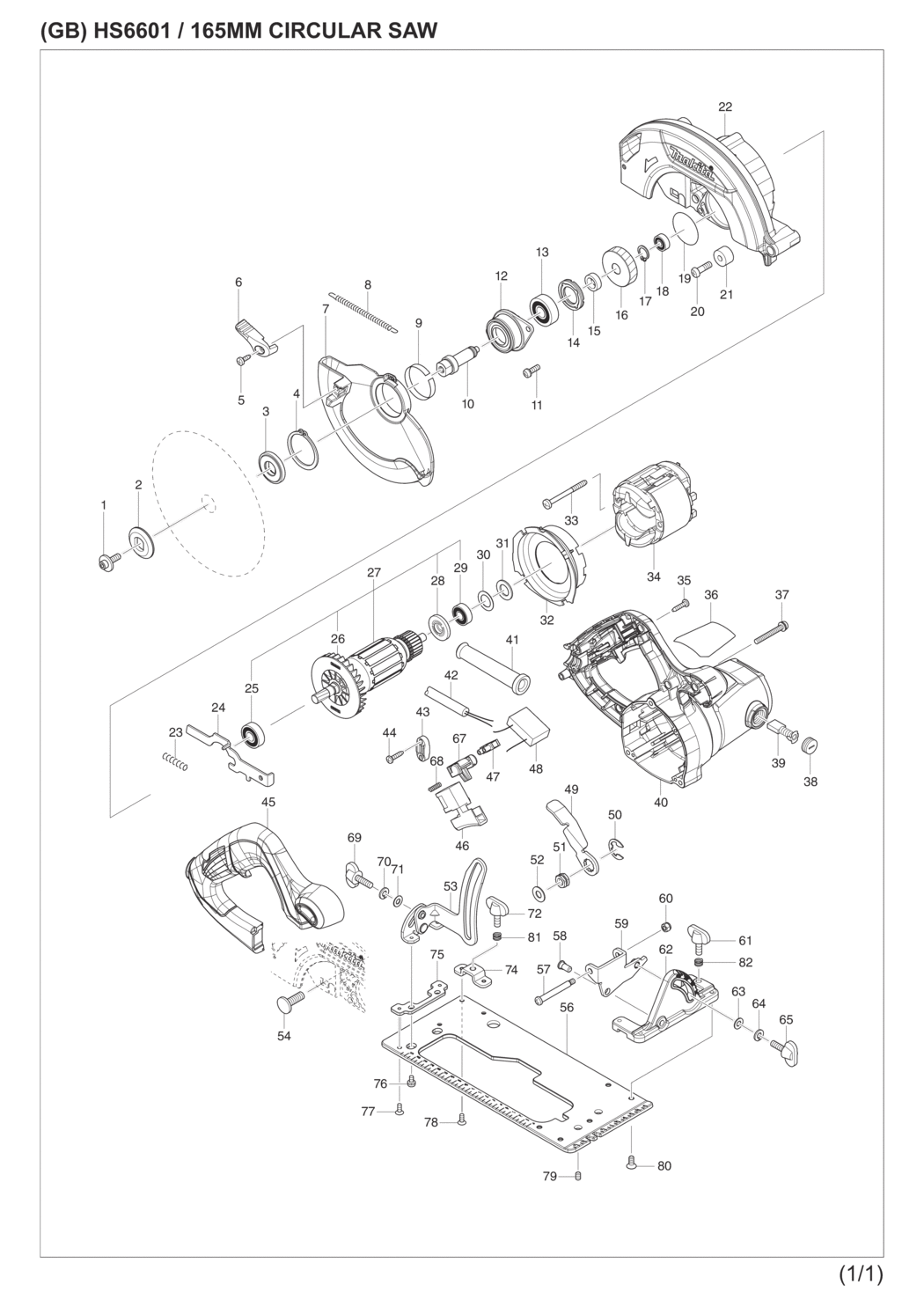

An exploded drawing and spare parts listing for the Makita HS6601 Circular Saw

	Ex VAT	Inc VAT
1 - CAP HD SCREW M6X20 5621R MSP-266024-8.A3 266024-8	£1.66	£1.99
2 - OUTER FLANGE 35 HS6100/7100 MSP-224409-4.A12 224409-4	£2.77	£3.32
3-1 - INNER FLANGE 35 5008MG/DSS611 MSP-224593-5.A0 224593-5	£2.56	£3.07
4 - RETAINING RING S-38 MT582 MSP-961155-5.A4 961155-5	£1.44	£1.73
5 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A39 266034-5	£1.44	£1.73
6 - LEVER 37 5008MB/HS0600 MSP-272258-3.A4 272258-3	£1.44	£1.73
7 - SAFETY COVER HS6601 MSP-319307-6 319307-6	£12.17	£14.60
8 - TENSION SPRING 4 HS6601 MSP-231893-6 231893-6	£1.44	£1.73
9 - THICKNESS RING MT852/M5802 MSP-345391-5.A1 345391-5	£1.44	£1.73
10 - SPINDLE HS7601 HS7611 MSP-326444-9.A0 326444-9	£4.06	£4.87
11 - PAN HD SCREW 5X18 W/SP HS7611 MSP-911226-8.A13 911226-8	£1.44	£1.73
12 - BEARING BOX DHS710DJ MSP-319088-2.A1 319088-2	£4.21	£5.05
13 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A46 211129-9	£10.14	£12.17
14 - BEARING RETAINER 19-33 DHS710 MSP-285852-2.A2 285852-2	£1.44	£1.73
15 - RING 12 MT814/MT815//MT852 MSP-257173-2.A2 257173-2	£1.44	£1.73
16 - HELICAL GEAR 38 HS6601 MSP-227793-6.A0 227793-6	£7.80	£9.36
17 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A27 961052-5	£1.44	£1.73
18 - BALL BEARING 606ZZ MT431/CC30 MSP-210028-2.A63 210028-2	£3.23	£3.88
19 - O RING 39 HK1800/CA5000 MSP-213512-6.A1 213512-6	£2.34	£2.81
20 - SPARE PART MSP-265117-8.A2 265117-8	£1.44	£1.73
21 - RUBBER SLEEVE 6 56NB/59BR MSP-262502-6 262502-6	£1.44	£1.73
22 - BASE CASE HS6601 MSP-143224-6 143224-6	£33.55	£40.26
22 - O RING HS7601 MSP-213821-3.A0 213821-3	£1.44	£1.73
23 - COMPRESSION SPRING 6 BHS630/P MSP-233117-6.A11 233117-6	£1.44	£1.73
24 - SHAFT LOCK MT852/M5802 MSP-345317-7.A2 345317-7	£1.44	£1.73
25 - BALL BEARING 6000DDW 2RDCM MSP-210059-1.A24 210059-1	£3.74	£4.49
26 - FAN 70 MT582/M5802 MSP-240064-4.A2 240064-4	£1.44	£1.73
27 - ARMATURE ASSY 240V HS6601 MSP-513459-7 513459-7	£34.99	£41.99
27 - ARMATURE ASSY 110V HS6601 MSP-513456-3 513456-3	£36.43	£43.72
28 - INSULATED WASHER GA5020/GA501 MSP-681644-1.A14 681644-1	£1.44	£1.73
29 - BALL BEARING 608DDW GA5020 MSP-210005-4.A45 210005-4	£8.42	£10.11
30 - THIN WASHER 14 6013B/4101RH MSP-253192-6.A8 253192-6	£1.44	£1.73
31 - RUBBER WASHER 13 HS6601 HS7611 MSP-261109-5.A1 261109-5	£1.44	£1.73
32 - BAFFLE PLATE HS6601 MSP-455354-4.A1 455354-4	£1.44	£1.73
33 - TAPPING SCREW 5X55 M6600 MSP-266418-7.A4 266418-7	£1.44	£1.73
34 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A71 654501-6	£1.44	£1.73
34 - FIELD ASSY 240V HS6601 MSP-593894-5 593894-5	£24.62	£29.55
34 - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A40 654020-2	£1.44	£1.73
34 - FIELD ASSY 110V HS6601 MSP-593891-1 593891-1	£22.03	£26.44
35 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A393 266326-2	£1.44	£1.73
36 - NAME PLATE HS6601 MSP-851N51-8 851N51-8	£1.44	£1.73
37 - PAN HEAD SCREW M4X40/M5802 MSP-265104-7.A11 265104-7	£1.44	£1.73
38 - BRUSH HOLDER CAP 4100KB HS7611 MSP-643750-0.A5 643750-0	£1.44	£1.73
39 - CARBON BRUSH CB-303 MT582 MSP-191963-2.A6 191963-2	-
40 - MOTOR HOUSING HS7601 MSP-142798-4.A1 142798-4	£24.91	£29.89
40 - BRUSH HOLDER 5X11 GA5020/ MSP-643708-9.A11 643708-9	£2.34	£2.81
41 - CORD GUARD HS6100/7100/MT852 MSP-682540-6.A22 682540-6	£1.44	£1.73
42 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A24 692527-0	£29.38	£35.25
42 - POWER SUPPLY CORD 1.0-2-2.5 MSP-665918-8.A39 665918-8	£12.01	£14.41
43 - STRAIN RELIEF M9001/DVC/RP0900 MSP-687124-5.A46 687124-5	£1.44	£1.73
44 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A392 266326-2	£1.44	£1.73
45 - HANDLE COVER HS7601 MSP-455362-5.A0 455362-5	£6.08	£7.30
46 - SWITCH SGE115CDY-10 HS6100/71 MSP-650245-6.A1 650245-6	£6.40	£7.68
47 - TERMINAL BLOCK HS7100/KP0800 MSP-654532-5.A49 654532-5	£3.74	£4.49
48 - NOISE SUPPRESSOR HS7601 MSP-645192-4.A0 645192-4	£1.44	£1.73
49 - LEVER PLATE MT582/M5802 HS7611 MSP-346311-2.A1 346311-2	£2.02	£2.43
50 - BOW STROP RING E-12 MT582/500 MSP-257953-6.A0 257953-6	£1.44	£1.73
51 - HEX NUT M8-13 MT582/M5802 MSP-252199-9.A9 252199-9	£1.44	£1.73
52 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A47 941201-0	£1.44	£1.73
53 - DEPTH GUIDE HS6601 MSP-161337-1 161337-1	£4.52	£5.43
54 - FLAT HD-SQ NECK BOLT M8X24 MSP-266396-1.A1 266396-1	£1.44	£1.73
56 - BASE HS6601 MSP-346894-2 346894-2	£13.26	£15.91
57 - +PAN HEAD SCREW ? MT852/M5802 MSP-265118-6.A1 265118-6	£1.44	£1.73
58 - SHOUDER PIN 6-7 BHS630/BSS611 MSP-256480-0.A13 256480-0	£1.58	£1.89
59 - ANGULAR GUIDE HS7601 HS7611 MSP-346827-7.A2 346827-7	£1.44	£1.73
60 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A18 252103-8	£1.58	£1.89
61 - WING SCREW M6X14 HS7611 MSP-265701-9.A19 265701-9	£2.18	£2.62
62 - ANGULAR PLATE HS6601 MSP-319308-4 319308-4	£9.67	£11.61
63 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A101 941151-9	£1.44	£1.73
64 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A26 253428-3	£1.44	£1.73
65 - WING SCREW M6X20 DHS630DJS160 MSP-265708-5.A3 265708-5	£2.50	£3.00
67 - LOCK OFF BUTTON HS6100/7100 MSP-453284-3.A1 453284-3	£1.44	£1.73
68 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A52 231469-9	£1.44	£1.73
69 - WING SCREW M6X20 DHS630DJS160 MSP-265708-5.A4 265708-5	£2.50	£3.00
70 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A27 253428-3	£1.44	£1.73
71 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A100 941151-9	£1.44	£1.73
72 - WING SCREW M6X14 HS7611 MSP-265701-9.A18 265701-9	£2.18	£2.62
74 - BRACKET HS7601 HS7611 MSP-346847-1.A2 346847-1	£1.44	£1.73
75 - PLATE HS7601 HS7611 MSP-346846-3.A0 346846-3	£1.44	£1.73
76 - PAN HD SCREW M4X8 HS7611 MSP-911106-8.A10 911106-8	£1.44	£1.73
77 - COUNTERSUNK SCREW M4X8/JV101D MSP-912107-9.A27 912107-9	£1.44	£1.73
77-1 - COUNTERSUNK SCREW M4X8 ADHISI MSP-265085-5.A13 265085-5	£1.44	£1.73
78-1 - COUNTERSUNK SCREW M4X8 ADHISI MSP-265085-5.A14 265085-5	£1.44	£1.73
78 - COUNTERSUNK SCREW M4X8/JV101D MSP-912107-9.A28 912107-9	£1.44	£1.73
79 - HS SET SCREW/FLAT POINT M5X8 MSP-266436-5.A6 266436-5	£1.44	£1.73
80 - COUNTERSUNK SCREW M5X12 HS0600 MSP-912212-2.A8 912212-2	£1.44	£1.73
81 - COMPRESSION SPRING 8 SMA900 MSP-233376-2.A22 233376-2	£1.44	£1.73
82 - COMPRESSION SPRING 8 SMA900 MSP-233376-2.A23 233376-2	£1.44	£1.73
A01 - GUIDE RULE BHS630/BSS500/BSS50 MSP-164095-8.A22 164095-8	£4.20	£5.04
A03 - HEX WRENCH 5 EBH341U/EBH253L MSP-783217-7.A4 783217-7	£1.20	£1.44
A04 - DUST NOZZLE SET DHS710DJ MSP-196520-1.A0 196520-1	£5.00	£6.00
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A150 654091-9	£1.44	£1.73
