Makita DSS611RFE3 Cordless Circular Saw Spare Parts

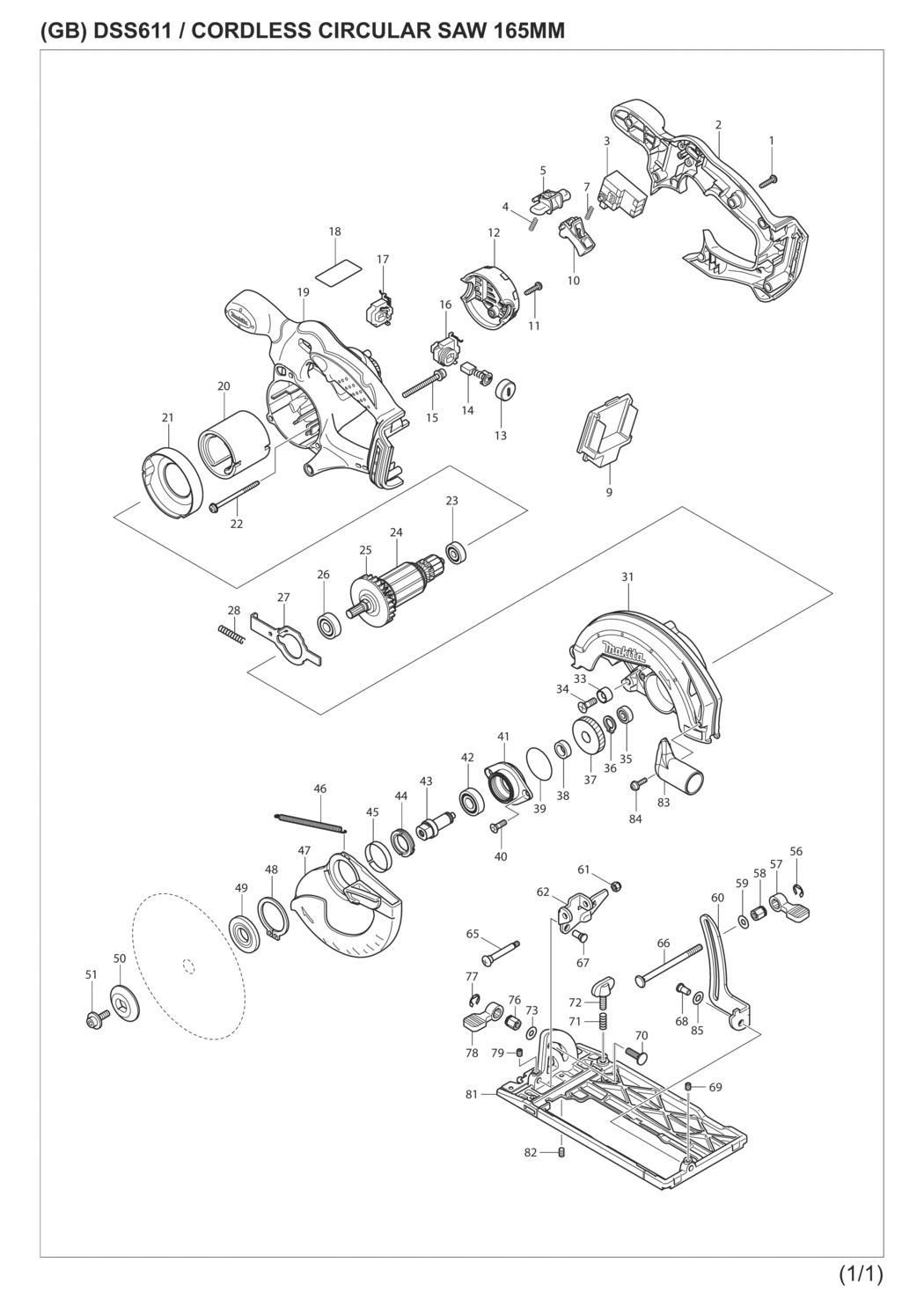

An exploded drawing and spare parts listing for the Makita DSS611RFE3 Cordless Circular Saw

	Ex VAT	Inc VAT
1 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A162 265995-6	£1.44	£1.73
2 - HANDLE COVER BSS611 MSP-141472-1.A1 141472-1	£13.10	£15.72
3 - SWITCH TG73BD 4331D/4333D/433 MSP-651976-0.A3 651976-0	£13.58	£16.29
4 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A24 231469-9	£1.44	£1.73
5 - LOCK OFF LEVER BCS550/DKP180 MSP-419664-3.A11 419664-3	£1.44	£1.73
7 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A25 231469-9	£1.44	£1.73
9 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A11 644808-8	£4.28	£5.14
10 - SWITCH LEVER BHS630/DCS550/DK MSP-419665-1.A17 419665-1	£1.44	£1.73
11 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A161 265995-6	£1.44	£1.73
12 - REAR COVER DKP180/BSS611 MSP-419281-9.A0 419281-9	£3.74	£4.49
13 - HOLDER CAP BJR182/BSS611/BHR2 MSP-643829-7.A27 643829-7	£1.44	£1.73
14 - CARBON BRUSH CB-441 MSP-194435-6.A6 194435-6	£6.40	£7.68
15 - PAN HD SCREW M5X40 W/CP WASHE MSP-911263-2.A39 911263-2	£1.44	£1.73
16 - BRUSH HOLDER BSS611 MSP-643884-9.A1 643884-9	£2.97	£3.56
17 - TERMINAL BSS611 MSP-643885-7.A2 643885-7	£2.81	£3.37
18 - NAME PLATE DSS611 MSP-815L51-0.A1 815L51-0	£1.44	£1.73
19 - MOTOR HOUSING BSS611 MSP-141473-9.A2 141473-9	£19.58	£23.50
20-1 - YOKE UNIT DJR182/DHS710 MSP-632H52-7.A0 632H52-7	£15.13	£18.16
20 - YOKE UNIT BHS630/BJR182/BSS61 MSP-638571-3.A9 638571-3	£10.77	£12.92
21 - BAFFLE PLATE BSS610/BSS611 MSP-419285-1.A5 419285-1	£1.44	£1.73
22 - PT SCREW 4X65 BHS630/BJR240 MSP-266292-3.A15 266292-3	£1.44	£1.73
23 - BALL BEARING 627DDW BSS611 MSP-210045-2.A2 210045-2	£3.87	£4.64
24 - ARMATURE ASSY 18V BSS611 MSP-510095-0.A2 510095-0	£30.96	£37.15
25 - FAN 55 BHS630/MT814/815/HP163 MSP-241869-5.A17 241869-5	£4.52	£5.43
26 - BALL BEARING 6000LLB BTW200 MSP-211061-7.A6 211061-7	£8.73	£10.48
27 - SHAFT LOCK BSS610/BSS611 MSP-346059-6.A0 346059-6	£1.44	£1.73
28 - COMPRESSION SPRING 5 LS800DWB MSP-233092-6.A2 233092-6	£1.44	£1.73
31 - BLADE CASE BSS611 MSP-158603-5.A1 158603-5	£21.89	£26.27
31 - O RING 26 5621RD/HR3540X41 MSP-213434-0.A9 213434-0	£1.44	£1.73
33 - RUBBER RING 6 HM1303B/500 MSP-262049-0.A1 262049-0	£1.44	£1.73
34-1 - COUNTERSUNK SCREW M6 500 MSP-265694-0.A6 265694-0	£1.44	£1.73
35 - BALL BEARING 606ZZ MT431/CC30 MSP-210028-2.A24 210028-2	£3.23	£3.88
36 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A163 961052-5	£1.44	£1.73
37 - SPUR GEAR 52 BSS610 MSP-227156-6.A4 227156-6	£9.36	£11.23
38 - RING 12 MT814/MT815//MT852 MSP-257173-2.A17 257173-2	£1.44	£1.73
39 - O RING 39 HK1800/CA5000 MSP-213512-6.A18 213512-6	£2.34	£2.81
40 - COUNTERSUNK HD SCREW M5X16 MSP-265034-2.A27 265034-2	£1.44	£1.73
41 - BEARING BOX BSS610 MSP-318009-1.A6 318009-1	£2.50	£3.00
42-1 - BALL BEARING 6001DDW/DUC252 MSP-210163-6.A2 210163-6	£5.73	£6.88
43 - SPINDLE BSS610 MSP-327A37-1.A4 327A37-1	£12.48	£14.98
44 - BEARING RETAINER 19-29 BSS610 MSP-285845-9.A11 285845-9	£2.50	£3.00
45 - THICKNESS RING BSS610 MSP-345469-4.A1 345469-4	£1.44	£1.73
46 - TENSION SPRING 3 BSS610 MSP-231821-1.A0 231821-1	£2.50	£3.00
47 - SAFETY COVER BSS610/BSS611 MSP-419286-9.A1 419286-9	£7.64	£9.17
48 - RETAINING RING S-3 DHS680/BS MSP-961152-1.A1 961152-1	£1.44	£1.73
49-2 - INNER FLANGE 35 5008MG/DSS611 MSP-224593-5.A23 224593-5	£2.56	£3.07
50 - OUTER FLANGE 35 HS6100/7100 MSP-224409-4.A23 224409-4	£2.77	£3.32
51 - HEX BOLT M6X20 4101RH MSP-266133-3.A8 266133-3	£2.72	£3.27
56 - EXT E-RING JIS JE-8 BPJ140/18 MSP-961014-3.A10 961014-3	£1.44	£1.73
57 - LEVER 40 BSS500/BSS501/3901/ MSP-272229-0.A11 272229-0	£4.52	£5.43
58 - HEX NUT M6 BSS610 MSP-252158-3.A5 252158-3	£2.65	£3.18
59 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A131 941151-9	£1.44	£1.73
60 - DEPTH GUIDE BSS610/BSS611 MSP-345658-1.A6 345658-1	£3.42	£4.11
61 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A56 252103-8	£1.58	£1.89
62 - ANGULAR GUIDE BSS610/BSS611 MSP-345657-3.A1 345657-3	£3.25	£3.90
65 - SHOULDER SCREW M5 CC300D/BSS5 MSP-265056-2.A3 265056-2	£1.44	£1.73
66 - FLAT HD SCREW M6X90 DHS680/BS MSP-266194-3.A12 266194-3	£3.28	£3.93
67 - SHOUDER PIN 6-7 BHS630/BSS611 MSP-256480-0.A24 256480-0	£1.58	£1.89
68 - SHOUDER PIN 6-7 BHS630/BSS611 MSP-256480-0.A37 256480-0	£1.58	£1.89
69 - GRUB SCREW M5X6 BPJ140/BPJ180 MSP-266264-8.A16 266264-8	£1.44	£1.73
70 - SQ NECK SETSCREW M6X20 BCS550 MSP-251919-8.A17 251919-8	£1.66	£1.99
71 - COMPRESSION SPRING 6 BCS500 MSP-231007-7.A26 231007-7	£1.44	£1.73
72 - WING SCREW M5X20 BSS500/8406C MSP-251896-4.A10 251896-4	£2.34	£2.81
73 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A130 941151-9	£1.44	£1.73
76 - SPECIAL HEX NUT M6-10 3901 MSP-252133-9.A12 252133-9	£4.06	£4.87
77 - EXT E-RING JIS JE-8 BPJ140/18 MSP-961014-3.A11 961014-3	£1.44	£1.73
78 - LEVER 30 BSS500/BSS501/BSS61 MSP-272251-7.A12 272251-7	£1.97	£2.36
79 - GRUB SCREW M5X6 BPJ140/BPJ180 MSP-266264-8.A15 266264-8	£1.44	£1.73
81 - BASE BSS610/BSS611 MSP-154832-8.A4 154832-8	£57.55	£69.06
82 - HEX SOCKET SET SCREW M5X8 KP MSP-266229-0.A1 266229-0	£1.44	£1.73
83 - DUST NOZZLE BSS610/BSS611 MSP-419283-5.A6 419283-5	£3.33	£4.00
84 - PAN HEAD SCREW M4X12 VC3211M MSP-911118-1.A10 911118-1	£1.44	£1.73
85 - THIN WASHER 7 HR160D/LF1000 MSP-253186-1.A3 253186-1	£1.44	£1.73
A01 - GUIDE RULE BHS630/BSS500/BSS50 MSP-164095-8.A9 164095-8	£4.20	£5.04
A02 - DC18RC COMPACT CHARGER MSP-*DC18RC.A68 *DC18RC	-
A03 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A51 194204-5	£42.91	£51.49
A04 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A27 450128-8	£1.20	£1.44
A03-1 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A52 194204-5	£42.91	£51.49
A05 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A40 783203-8	£1.20	£1.44
A06 - LATCH AN510/BDF453/BUC121/2 MSP-163455-1.A19 163455-1	£1.20	£1.44
A06 - PLASTIC CASE BSS610/611 MSP-141353-9.A2 141353-9	£18.69	£22.43
A06 - HANDLE AN510/DDF453/501 MSP-419360-3.A22 419360-3	£1.44	£1.73
A07 - LABEL/PLASTIC CASE DSS611RFE MSP-803K43-5 803K43-5	£1.44	£1.73
E01 - CONTROLLER BSS611 MSP-620259-9.A2 620259-9	£34.42	£41.30
E02 - LINE FILTER BHS630/DFS441/451 MSP-688163-8.A21 688163-8	£1.44	£1.73
