Makita DJV182RMJ Cordless Jig Saw Spare Parts

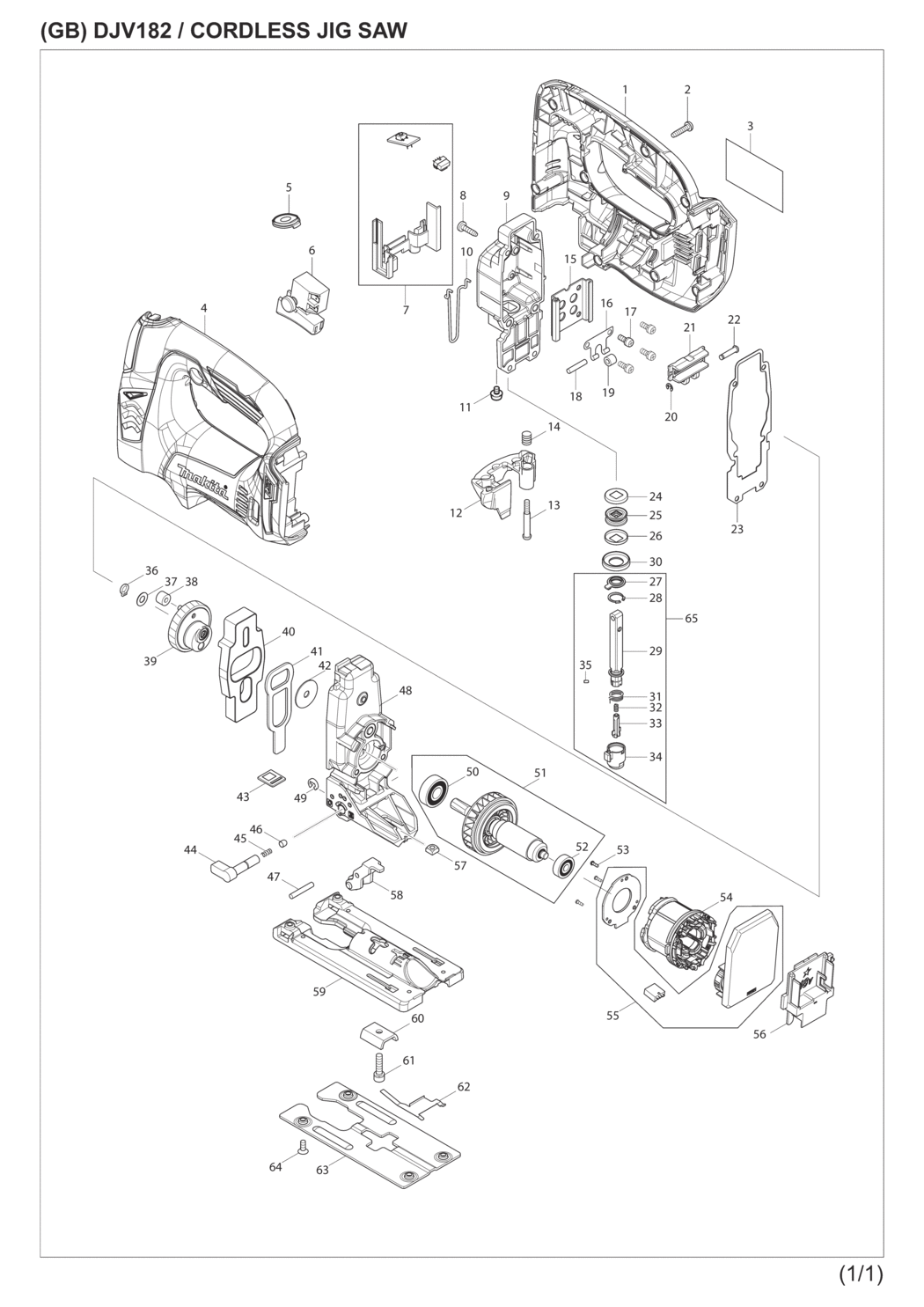

An exploded drawing and spare parts listing for the Makita DJV182RMJ Cordless Jig Saw

	Ex VAT	Inc VAT
1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A742 263005-3	£1.44	£1.73
1 - HOUSING SET DJV142/DJV182 MSP-187706-8.A4 187706-8	£29.09	£34.91
2 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A943 265995-6	£1.44	£1.73
3 - NAME PLATE DJV182 MSP-814V65-6.A1 814V65-6	£1.44	£1.73
4 - HOUSING SET DJV142/DJV182 MSP-187706-8.A5 187706-8	£29.09	£34.91
4 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A741 263005-3	£1.44	£1.73
5 - SWITCH PLATE DJV142 MSP-142303-7.A1 142303-7	£5.92	£7.11
6 - SWITCH SGEL106C-4 DJV142 MSP-650251-1.A1 650251-1	£10.30	£12.36
7 - SWITCH UNIT DJV142 MSP-632B56-3.A2 632B56-3	£28.08	£33.70
8 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A35 266034-5	£1.44	£1.73
9 - GEAR HOUSING COVER DJV MSP-142112-4.A2 142112-4	£15.91	£19.09
10 - SAFETY WIRE DJV MODELS MSP-326302-9.A3 326302-9	£1.44	£1.73
11 - PAN HEAD SCREW M4X6 DJV MODEL MSP-911104-2.A5 911104-2	£1.44	£1.73
12 - TOOL OPENER DJV MODELS MSP-454483-0.A3 454483-0	£3.27	£3.92
13 - SHOULDER SCREW M4 3901/SMA400 MSP-265026-1.A21 265026-1	£1.75	£2.10
14 - TORSION SPRING 6 4340/4350 SE MSP-231659-4.A2 231659-4	£1.44	£1.73
15 - LINEAR GUIDE DJV MODELS MSP-346687-7.A1 346687-7	£6.55	£7.86
16 - LEAF SPRING 4340/SMA400 MSP-232207-2.A5 232207-2	£1.71	£2.05
17 - PAN HEAD SCREW M4X10 BO3710/1 MSP-911111-5.A23 911111-5	£1.46	£1.75
18 - PIN 2 4340/4323/SMA400/JV101D MSP-256117-9.A26 256117-9	£1.44	£1.73
19 - PLANE BEARING 4 6913DW/4340CT MSP-214031-5.A12 214031-5	£1.44	£1.73
20 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A99 961017-7	£1.44	£1.73
21 - *SLIDER DJV MODELS MSP-310837-0.A9 310837-0	£16.77	£20.12
22 - PIN 4 4340/SMA400 MSP-268090-1.A10 268090-1	£1.44	£1.73
23 - GASKET DJV MODELS MSP-442195-7.A1 442195-7	£2.18	£2.62
24 - CAP WASHER 8 DJV MODELS MSP-267854-0.A2 267854-0	£1.44	£1.73
25 - DUST SEAL 8 BJV140/180/SMA400 MSP-421815-6.A3 421815-6	£1.62	£1.95
26 - CAP WASHER 8 DJV MODELS MSP-267854-0.A3 267854-0	£1.44	£1.73
27 - DUST COVER DJV MODELS MSP-424569-4.A2 424569-4	£1.44	£1.73
28 - RETAINING RING R-13 JV0600K/DJ MSP-962063-3.A4 962063-3	£1.44	£1.73
29 - ROD DJV MODELS MSP-165724-6.A4 165724-6	£23.90	£28.68
30 - RING 21 DJV MODELS MSP-257347-5.A4 257347-5	£2.02	£2.43
31 - TORSION SPRING 10G JV0600K MSP-233591-8.A1 233591-8	£1.44	£1.73
32 - COMPRESSION SPRING 4 6827 MSP-233314-4.A11 233314-4	£1.44	£1.73
33 - LOCKPIN JV0600K/BUH550RD MSP-310485-5.A10 310485-5	£6.24	£7.49
34 - BLADE HOLDER DJV MODELS MSP-310547-9.A2 310547-9	£10.14	£12.17
35 - PIN 2 JV0600K MSP-256528-8.A7 256528-8	£1.44	£1.73
36 - RETAINING RING S-6 M9502R MSP-961002-0.A25 961002-0	£1.44	£1.73
37 - HARD WASHER 6 EA3500/3501 MSP-253715-0.A7 253715-0	£1.44	£1.73
38-1 - NEEDLE BEARING 407 DJV180/434 MSP-212092-9.A6 212092-9	£1.44	£1.73
39 - GEAR DJV MODELS MSP-142109-3.A2 142109-3	£38.88	£46.66
40 - BALANCE PLATE DJV MODELS MSP-313260-8.A2 313260-8	£9.67	£11.61
41 - PUSH PLATE DJV MODELS MSP-346688-5.A5 346688-5	£1.44	£1.73
42 - LARGE WASHER 6 9741 MSP-253196-8.A1 253196-8	£1.44	£1.73
43 - SEAL PLATE DJV MODELS MSP-454484-8.A3 454484-8	£1.44	£1.73
44-1 - LEVER 17 4340/SMA400 MSP-272280-0.A11 272280-0	£1.44	£1.73
45 - COMPRESSION SPRING 3 4340 MSP-233139-6.A5 233139-6	£1.44	£1.73
46 - CAP 5 4340/SMA400 MSP-286032-3.A6 286032-3	£1.44	£1.73
47 - PIN 4 4340/SMA400 MSP-268063-4.A3 268063-4	£1.44	£1.73
48 - GEAR HOUSING DJV MODELS MSP-142111-6.A2 142111-6	£33.27	£39.92
49 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A34 961018-5	£1.64	£1.97
50 - BALL BEARING 6000DDW 2RDCM MSP-210059-1.A21 210059-1	£3.74	£4.49
51 - ROTOR ASSY DJV MODELS MSP-519329-8.A0 519329-8	£69.55	£83.46
52 - BALL BEARING 626DDW 9911/BHR MSP-210022-4.A30 210022-4	£3.59	£4.31
53 - TAPPING SCREW PT 2X6 DJV MSP-266490-9.A21 266490-9	£1.44	£1.73
54 - STATOR DJV182 MSP-629998-8.A0 629998-8	£38.59	£46.31
55 - CONTROLLER DJV182 MSP-620248-4.A1 620248-4	£125.12	£150.14
56 - TERMINAL BCV01/02 DGA454/504 MSP-643899-6.A12 643899-6	£4.37	£5.24
57 - SQUARE NUT 4340/SMA400 MSP-252171-1.A17 252171-1	£1.54	£1.85
58 - RETAINER DJV MODELS MSP-142110-8.A3 142110-8	£23.18	£27.82
59 - BASE DJV MODELS MSP-319016-7.A2 319016-7	£11.70	£14.04
60 - CRANK PLATE 4340/SMA400 MSP-345237-5.A3 345237-5	£1.66	£1.99
61 - CAP HD SCREW M5X20 EBH341U MSP-922231-0.A19 922231-0	£1.44	£1.73
62 - LEAF SPRING 4340CT/SMA400 MSP-232208-0.A10 232208-0	£1.66	£1.99
63 - BASE PLATE DJV MODELS MSP-346685-1.A4 346685-1	£2.81	£3.37
64 - COUNTERSUNK SCREW M4X8 ADHISI MSP-265085-5.A8 265085-5	£1.44	£1.73
65 - ROD ASSY DJV MODELS MSP-135602-4.A4 135602-4	£34.85	£41.82
A01 - DUST NOZZLE ASS DJV MODELS MSP-126331-0.A2 126331-0	£3.24	£3.89
A02 - ANTI-SPLINTERING DEVICE 4304/4 MSP-415524-7.A12 415524-7	£1.50	£1.80
A03 - COVER PLATE 4340T/SMA400 MSP-417852-6.A10 417852-6	£1.98	£2.37
A04 - JIGSAW BLADE B22 (5PK) 4301BV MSP-A-85737.A20 A-85737	£3.71	£4.45
A05 - JIGSAW BLADE B10 (5PK) 4301BV MSP-A-85628.A4 A-85628	£3.71	£4.45
A06 - JIGSAW BLADE BR13 4301BV PK5 MSP-A-85793.A4 A-85793	£2.62	£3.15
A07 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A68 783202-0	£1.20	£1.44
A08 - LATCH FOR STACKING CASE MACPA MSP-453974-8.A98 453974-8	£1.71	£2.05
A08 - STACKING CASE TYPE 2 157MM MSP-821550-0.A5 821550-0	£33.99	£40.79
A09 - MAKPAC TRAY TYPE 2 DJV140/180 MSP-837639-4.A0 837639-4	£7.34	£8.81
A10 - LABEL/DJV182RMJ MSP-802D99-3 802D99-3	£5.62	£6.74
A11 - DC18RC COMPACT CHARGER MSP-*DC18RC.A201 *DC18RC	-
A12-2 - BATTERY BL1840B/DGA508/DTW285 MSP-197265-4.A47 197265-4	£173.82	£208.58
A13 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A186 450128-8	£1.20	£1.44
A14 - LABEL/INDICATION DJV182RMJ MSP-802D98-5 802D98-5	£1.44	£1.73

Attribute Name	Value
Brand	Makita
