Makita DJV180RFE Cordless Jig Saw Spare Parts

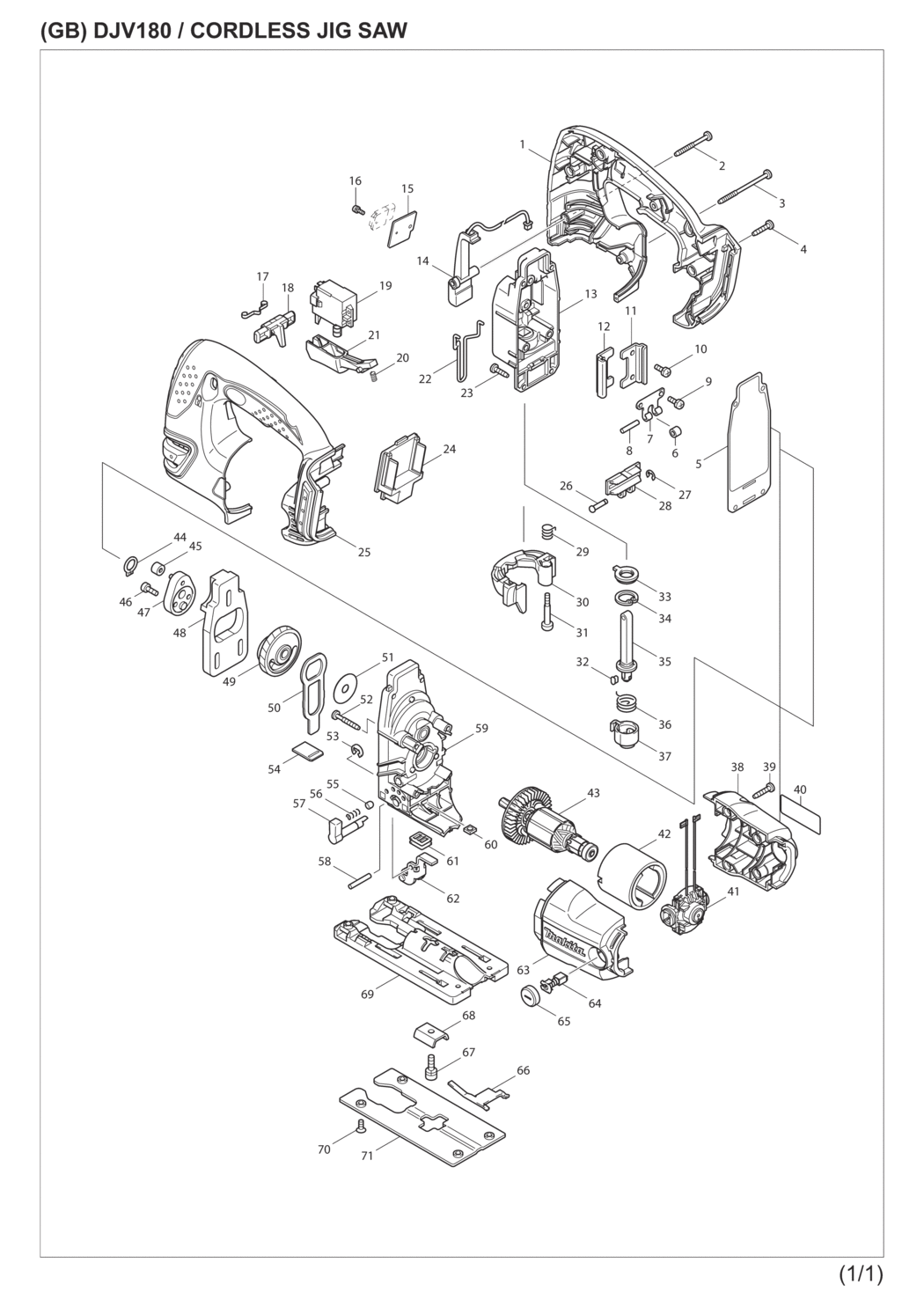

An exploded drawing and spare parts listing for the Makita DJV180RFE Cordless Jig Saw

	Ex VAT	Inc VAT
1 - HANDLE SET DJV180/BJV180/140 MSP-187725-4.A6 187725-4	£22.61	£27.13
2 - PT SCREW 4X40 BO3710/711/4334 MSP-266048-4.A40 266048-4	£1.44	£1.73
3 - PT SCREW M4X50 HR1830/SMA400 MSP-266091-3.A3 266091-3	£1.44	£1.73
4 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A755 265995-6	£1.44	£1.73
5 - PACKING 4340CT/4341CT/SMA400 MSP-442138-9.A6 442138-9	£1.44	£1.73
6 - PLANE BEARING 4 6913DW/4340CT MSP-214031-5.A18 214031-5	£1.44	£1.73
7 - LEAF SPRING 4340/SMA400 MSP-232207-2.A0 232207-2	£1.71	£2.05
8 - PIN 2 4340/4323/SMA400/JV101D MSP-256117-9.A22 256117-9	£1.44	£1.73
9 - PAN HEAD SCREW M4X10 BO3710/1 MSP-911111-5.A28 911111-5	£1.46	£1.75
10 - PAN HEAD SCREW M4X10 BO3710/1 MSP-911111-5.A41 911111-5	£1.46	£1.75
11 - LINEAR GUIDE 4340/SMA400 MSP-345240-6.A5 345240-6	£2.50	£3.00
12 - LINEAR GUIDE 4340/SMA400 MSP-345240-6.A22 345240-6	£2.50	£3.00
13 - DUST SEAL 8 BJV140/180/SMA400 MSP-421815-6.A11 421815-6	£1.62	£1.95
13 - THIN WASHER BJV140/180/SMA400 MSP-253313-0.A10 253313-0	£1.44	£1.73
13 - RING 20 BJV140/180/SMA400 MSP-257250-0.A3 257250-0	£4.52	£5.43
13 - GEAR HOUSING COVER 4340 MSP-153338-3.A3 153338-3	£40.03	£48.04
14 - LIGHT CIRCUIT BJV140/180 MSP-631744-7.A4 631744-7	£9.36	£11.23
15 - HEAT SINK BTW200/6960DZ/6908D MSP-689070-8.A14 689070-8	£1.44	£1.73
16 - PAN HD SCREW M3X8 6313DW MSP-911006-2.A21 911006-2	£1.44	£1.73
17 - LEAF SPRING BJR181/6832 MSP-232152-1.A15 232152-1	£2.18	£2.62
18 - LOCK OFF BUTTON BJV140/180 MSP-419613-0.A1 419613-0	£3.28	£3.93
19 - SWITCH C3LA-2A-PLSRS DJV180 MSP-650650-7.A0 650650-7	£34.99	£41.99
20 - COMPRESSION SPRING 4 BJV140/1 MSP-233118-4.A4 233118-4	£1.44	£1.73
21 - SWITCH LEVER BJV180/140 MSP-419754-2.A2 419754-2	£1.44	£1.73
22 - SAFETY WIRE 4340/SMA400 MSP-324233-6.A4 324233-6	£2.49	£2.99
23 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A92 266034-5	£1.44	£1.73
24 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A112 644808-8	£4.28	£5.14
25 - HANDLE SET DJV180/BJV180/140 MSP-187725-4.A7 187725-4	£22.61	£27.13
26 - PIN 4 4340/SMA400 MSP-268090-1.A9 268090-1	£1.44	£1.73
27 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A100 961017-7	£1.44	£1.73
28 - SLIDER 4340/SMA400 MSP-310134-4.A7 310134-4	£15.70	£18.84
29 - TORSION SPRING 6 4340/4350 SE MSP-231659-4.A3 231659-4	£1.44	£1.73
30 - TOOL OPENER BJV140/180/4350 MSP-419820-5.A7 419820-5	£3.28	£3.93
31 - SHOULDER SCREW M4 3901/SMA400 MSP-265026-1.A23 265026-1	£1.75	£2.10
32 - PUSH PIN 4340/SMA400 MSP-310135-2.A6 310135-2	£4.68	£5.62
33 - DUST COVER 4340/SMA400 MSP-421817-2.A3 421817-2	£1.44	£1.73
34 - RETAINING RING-18/SMA400 MSP-962068-3.A2 962068-3	£1.44	£1.73
35 - ROD 4340/SMA400 MSP-165326-8.A6 165326-8	£23.62	£28.34
36 - TORSION SPRING 15 4340/SMA400 MSP-231660-9.A12 231660-9	£1.94	£2.33
37 - BLADE HOLDER 4340/SMA400 MSP-310136-0.A6 310136-0	£12.63	£15.16
38 - MOTOR HOUSING SET BJV140/180 MSP-188208-7.A3 188208-7	£6.71	£8.05
39 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A945 265995-6	£1.44	£1.73
41 - ENDBELL BJV140/180 MSP-638504-8.A2 638504-8	£4.06	£4.87
42 - YOKE UNIT BJV140/180 MSP-638373-7.A5 638373-7	£1.44	£1.73
43 - ARMATURE BJV180 MSP-619206-5.A0 619206-5	£43.30	£51.96
44 - EXT DIN CIRCLIP-8 HM1317C/CB MSP-961004-6.A41 961004-6	£1.44	£1.73
45 - NEEDLE BEARING 407 DJV180/434 MSP-212092-9.A10 212092-9	£1.44	£1.73
46 - HEX BOLT M4X12 4340/SMA400 MSP-265353-6.A28 265353-6	£1.44	£1.73
47 - CRANK 4340/SMA400 MSP-153336-7.A8 153336-7	£4.83	£5.80
48 - BALANCE PLATE 4340/SMA400 MSP-313108-4.A2 313108-4	£5.92	£7.11
49 - GEAR BJV140/180 MSP-158168-7.A3 158168-7	£34.28	£41.13
50 - PUSH PLATE 4340/SMA400 MSP-345235-9.A11 345235-9	£2.18	£2.62
51 - LARGE THIN BLUE WSHER 4301BV MSP-253877-4.A7 253877-4	£1.44	£1.73
52 - PT SCREW 4X30 BUC121/122 MSP-266050-7.A31 266050-7	£1.44	£1.73
53 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A32 961018-5	£1.64	£1.97
54 - SEAL PLATE 4340/50/SMA400 MSP-417839-8.A12 417839-8	£1.44	£1.73
55 - CAP 5 4340/SMA400 MSP-286032-3.A11 286032-3	£1.44	£1.73
56 - COMPRESSION SPRING 3 4340 MSP-233139-6.A1 233139-6	£1.44	£1.73
57 - LEVER 17 4340/SMA400 MSP-272280-0.A6 272280-0	£1.44	£1.73
58 - PIN 4 4340/SMA400 MSP-268063-4.A4 268063-4	£1.44	£1.73
59 - GEAR HOUSINGCOMP BJV140/180 MSP-158169-5.A3 158169-5	£27.65	£33.18
60 - SQUARE NUT 4340/SMA400 MSP-252171-1.A15 252171-1	£1.54	£1.85
61 - DUST SEAL 4340/SMA400 MSP-421816-4.A9 421816-4	£1.44	£1.73
62 - RETAINER 4340/SMA400 MSP-153334-1.A4 153334-1	£13.88	£16.66
63 - MOTOR HOUSING SET BJV140/180 MSP-188208-7.A2 188208-7	£6.71	£8.05
64 - CARBON BRUSH SET CB-430 MSP-191971-3.A49 191971-3	£5.78	£6.93
65 - HOLDER CAP 6347D/BSS500/BSS50 MSP-643807-7.A6 643807-7	£1.54	£1.85
66 - LEAF SPRING 4340CT/SMA400 MSP-232208-0.A7 232208-0	£1.66	£1.99
67 - HEX SOCKET HD BOLT M5X18 EBH2 MSP-922226-3.A22 922226-3	£1.44	£1.73
68 - CRANK PLATE 4340/SMA400 MSP-345237-5.A5 345237-5	£1.66	£1.99
69 - BASE 4340/SMA400 MSP-317565-8.A4 317565-8	£21.89	£26.27
70 - COUNTERSUNK SCREW M4X8/JV101D MSP-912107-9.A16 912107-9	£1.44	£1.73
71 - BASE PLATE 4340/SMA400 MSP-345238-3.A11 345238-3	£2.68	£3.22
A01 - ANTI-SPLINTERING DEVICE 4304/4 MSP-415524-7.A17 415524-7	£1.50	£1.80
A02 - COVER PLATE 4340T/SMA400 MSP-417852-6.A12 417852-6	£1.98	£2.37
A03 - DUST NOZZLE 4340CT/SMA400 MSP-417853-4.A5 417853-4	£1.20	£1.44
A04 - JIGSAW BLADE B22 (5PK) 4301BV MSP-A-85737.A24 A-85737	£3.71	£4.45
A05 - JIGSAW BLADE B10 (5PK) 4301BV MSP-A-85628.A0 A-85628	£3.71	£4.45
A06 - JIGSAW BLADE BR13 4301BV PK5 MSP-A-85793.A0 A-85793	£2.62	£3.15
A07 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A69 783202-0	£1.20	£1.44
A08 - DC18RC COMPACT CHARGER MSP-*DC18RC.A198 *DC18RC	-
A09 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A19 194204-5	£42.91	£51.49
A10 - PLASTIC CASE BJV140/180 MSP-141486-0.A1 141486-0	£22.40	£26.88
A09-1 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A18 194204-5	£42.91	£51.49
A11 - LABEL/TOOL DJV180RFE MSP-803H17-8 803H17-8	£1.44	£1.73
A12 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A193 450128-8	£1.20	£1.44
E01 - LINE FILTER VC3211M/TD0101F MSP-688131-1.A55 688131-1	£1.44	£1.73
