Makita 5704RK Circular Saw Spare Parts

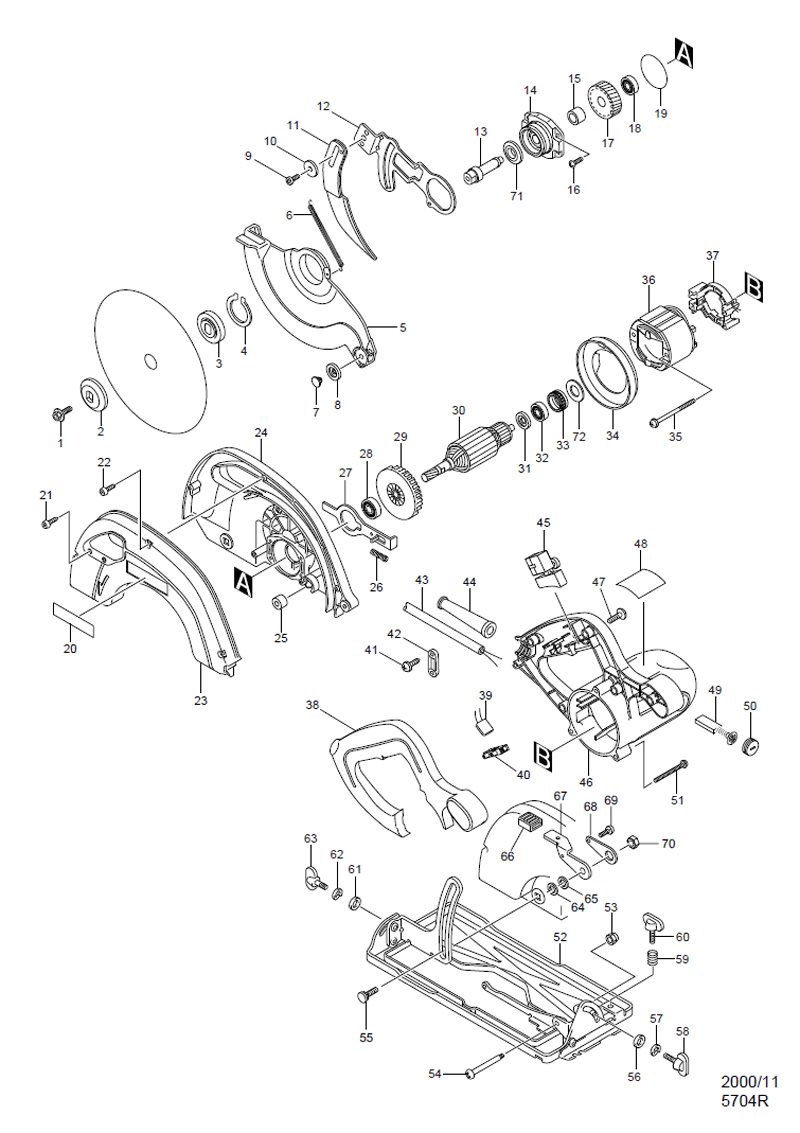

An exploded drawing and spare parts listing for the Makita 5704RK Circular Saw

	Ex VAT	Inc VAT
1 - CAP HD SCREW M6X20 5621R MSP-266024-8.A5 266024-8	£1.66	£1.99
2 - OUTER FLANGE 40 MT582/5704R MSP-224275-9.A5 224275-9	£11.08	£13.29
3 - INNER FLANGE 40 MT582/5704R MSP-224370-5.A6 224370-5	£5.46	£6.55
4 - RETAINING RING S-40 5703R/560 MSP-961156-3.A4 961156-3	£1.44	£1.73
5 - SAFETY COVER 5704R MSP-317461-0 317461-0	£10.77	£12.92
6 - *TENSION SPRING 4 BSR730S MSP-232468-4 232468-4	£2.52	£3.03
7 - ROLLER PIN 6 5903R/5603R/5604 MSP-415437-2.A8 415437-2	£1.44	£1.73
8 - ROLLER 20 5903R/5603R/5604R MSP-415438-0.A3 415438-0	£1.66	£1.99
9 - CAP HD SCREW M6X12 PC5000/500 MSP-922312-0.A26 922312-0	£1.44	£1.73
10 - LARGE HARD WASHER 6 MSP-253783-3.A3 253783-3	£1.44	£1.73
11 - RIVING KNIFE BSR730/5704R MSP-165094-3.A2 165094-3	£10.61	£12.73
12-1 - RIVING KNIFE HOLDER 5704R MSP-345734-1 345734-1	£4.37	£5.24
13 - SPINDLE 5704R MSP-324110-2 324110-2	£5.92	£7.11
14 - BEARING BOX 5704R MSP-162220-5 162220-5	£9.20	£11.04
15 - SLEEVE 12 6400NB MSP-257513-4 257513-4	£1.44	£1.73
16 - PAN HD SCREW M4X16 HR2410 MSP-911526-6.A3 911526-6	£1.44	£1.73
17 - HELICAL GEAR 5704R MSP-226540-2 226540-2	£9.36	£11.23
18 - BALL BEARING 608ZZCNM/2A BUR1 MSP-211032-4.A36 211032-4	£9.05	£10.86
19 - O RING 46 BSR730S/6980FD MSP-213620-3 213620-3	£1.44	£1.73
20 - LABEL/MAKITA LS10305603R241 MSP-819064-1.A16 819064-1	£1.44	£1.73
21 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A191 266034-5	£1.44	£1.73
22 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A196 266034-5	£1.44	£1.73
23-1 - BLADE CASE COVER 5704R MSP-317460-2 317460-2	£21.89	£26.27
24 - BLADE CASE 5704R MSP-152810-2 152810-2	£23.62	£28.34
24 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A195 263002-9	£1.44	£1.73
25 - RUBBER SLEEVE 6 M241 BHS630/ MSP-262511-5.A8 262511-5	£1.44	£1.73
26 - COMPRESSION SPRING 5 LS800DWB MSP-233092-6.A21 233092-6	£1.44	£1.73
27 - SHAFT LOCK 5704R MSP-344990-0 344990-0	£1.44	£1.73
28 - BALL BEARING 6000LLB BTW200 MSP-211061-7.A35 211061-7	£8.73	£10.48
29 - FAN UH5580/6580 MSP-241858-0 241858-0	£1.44	£1.73
30 - ARMATURE ASSY 240V 5704R MSP-516489-7 516489-7	£50.02	£60.03
30A - ARMATURE ASSY 110V 5704R MSP-516466-9 516466-9	£50.02	£60.03
31 - INSULATION WASHER HS6100/7100 MSP-681654-8.A2 681654-8	£1.44	£1.73
32 - BALL BEARING 608ZZCNM/2A BUR1 MSP-211032-4.A37 211032-4	£9.05	£10.86
33 - RUBBER RING PC5000/01C/5604R MSP-421720-7.A0 421720-7	£9.82	£11.79
34 - BAFFLE PLATE 5704R MSP-417580-3 417580-3	£1.44	£1.73
35 - PT SCREW 5X60 HS7100/HM1317C MSP-266044-2.A6 266044-2	£2.34	£2.81
36 - FIELD 240V 5704R MSP-634449-8 634449-8	£16.28	£19.53
36A - FIELD 110V 5704R MSP-634426-0 634426-0	£16.28	£19.53
37 - SUPPORT 5704R MSP-638070-5 638070-5	£4.99	£5.99
38 - HANDLE COVER 5704R MSP-417579-8 417579-8	£8.42	£10.11
39 - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A61 645141-1	£3.21	£3.85
39-1 - NOISE SUPPRESSOR 110V UH4570 MSP-645190-8.A15 645190-8	£1.44	£1.73
40A1 - TERMINAL BLOCK PC5000/5001C MSP-654575-7.A2 654575-7	£2.50	£3.00
40A - TERMINAL BLOCK 5704R LS1040F MSP-654578-1.A1 654578-1	£2.34	£2.81
40 - TERMINAL BLOCK PC5000/5001C MSP-654575-7.A3 654575-7	£2.50	£3.00
41 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1007 265995-6	£1.44	£1.73
42A2 - STRAIN RELIEF M9001/DVC/RP0900 MSP-687124-5.A2 687124-5	£1.44	£1.73
42A - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A116 687063-9	£1.44	£1.73
42B1 - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A119 687063-9	£1.44	£1.73
42B - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A88 687053-2	£1.44	£1.73
42B2 - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A91 687053-2	£1.44	£1.73
42A1 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A118 687052-4	£1.44	£1.73
43D1 - POWER SUPPLY CORD 1.5-2-2.5 MSP-663839-8.A10 663839-8	£12.01	£14.41
43D2 - POWER SUPPLY CORD HS6100/7100 MSP-695217-4.A54 695217-4	£12.48	£14.98
43C1 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A73 692527-0	£29.38	£35.25
44A1 - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A3 682505-8	£1.44	£1.73
44A - CORD GUARD UH45570/5570/5580 MSP-682505-8.A63 682505-8	£1.44	£1.73
45 - SWITCH SGES115C-5 5604R MSP-651291-2.A1 651291-2	£11.08	£13.29
46 - MOTOR HOUSING CO 5704R MSP-152811-0 152811-0	£23.62	£28.34
46 - BRUSH HOLDER 5X11 GA5020/ MSP-643708-9.A30 643708-9	£2.34	£2.81
47 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1006 265995-6	£1.44	£1.73
48 - NAME PLATE 5704R MSP-853170-2 853170-2	£1.44	£1.73
49 - CARBON BRUSH CB-303 MT582 MSP-191963-2.A23 191963-2	£8.58	£10.30
50 - BRUSH HOLDER CAP 4100KB HS7611 MSP-643750-0.A27 643750-0	£1.44	£1.73
51 - PAN HD SCREW M 5X45 W/CP WASH MSP-911268-2.A8 911268-2	£1.44	£1.73
52 - BASE 5704R MSP-168353-4 168353-4	£25.20	£30.24
53 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A0 252103-8	£1.58	£1.89
54 - +PAN HD SCREW M5 5704R MSP-265075-8.A0 265075-8	£2.34	£2.81
55 - CAP SQ HD SCREW M8X24 4157KB MSP-265965-5.A0 265965-5	£1.44	£1.73
56 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A39 941151-9	£1.44	£1.73
57 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A56 253428-3	£1.44	£1.73
58 - WING SCREW M6X14 HS7611 MSP-265701-9.A27 265701-9	£2.18	£2.62
59 - COMPRESSION SPRING 7/DLS714 MSP-231316-4.A0 231316-4	£1.44	£1.73
60 - WING SCREW M6X14 HS7611 MSP-265701-9.A26 265701-9	£2.18	£2.62
61 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A38 941151-9	£1.44	£1.73
62 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A57 253428-3	£1.44	£1.73
63 - WING SCREW M6X14 HS7611 MSP-265701-9.A28 265701-9	£2.18	£2.62
64 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A54 941201-0	£1.44	£1.73
65 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A55 941201-0	£1.44	£1.73
66 - RUBBER CAP 5704R MSP-421746-9 421746-9	£1.44	£1.73
67 - LEVER PLATE 5704R MSP-344989-5 344989-5	£1.44	£1.73
68 - LOCK PLATE SR2100 MSP-341415-5.A0 341415-5	£1.44	£1.73
69 - PAN HEAD SCREW M4X8 BDF453 MSP-911108-4.A5 911108-4	£1.44	£1.73
70 - HEX FULLNUT M8 LS1013/HR1840 MSP-931402-8.A17 931402-8	£1.44	£1.73
71 - RING 12 5704R MSP-257243-7 257243-7	£1.44	£1.73
72 - RUBBER WASHER 13 5604R MSP-261115-0.A1 261115-0	£1.44	£1.73
A02 - GUIDE RULE BHS630/BSS500/BSS50 MSP-164095-8.A35 164095-8	£4.20	£5.04
A01-1 - TCT SAW BLADE CSCX19012G 2.0 MSP-B-07967.A2 B-07967	£13.91	£16.69
A03 - JOINT SET 5603R/5703R MSP-192420-3.A1 192420-3	£1.32	£1.58
A03 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A94 266026-4	£1.44	£1.73
A04 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A30 783203-8	£1.20	£1.44
E01-1 - PLASTIC CASE 5704RK MSP-824651-3 824651-3	£23.95	£28.74
E01-1 - LATCH FOR 824575-3/824544-4 MSP-417059-4.A5 417059-4	£1.20	£1.44
E03 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A59 654091-9	£1.44	£1.73
