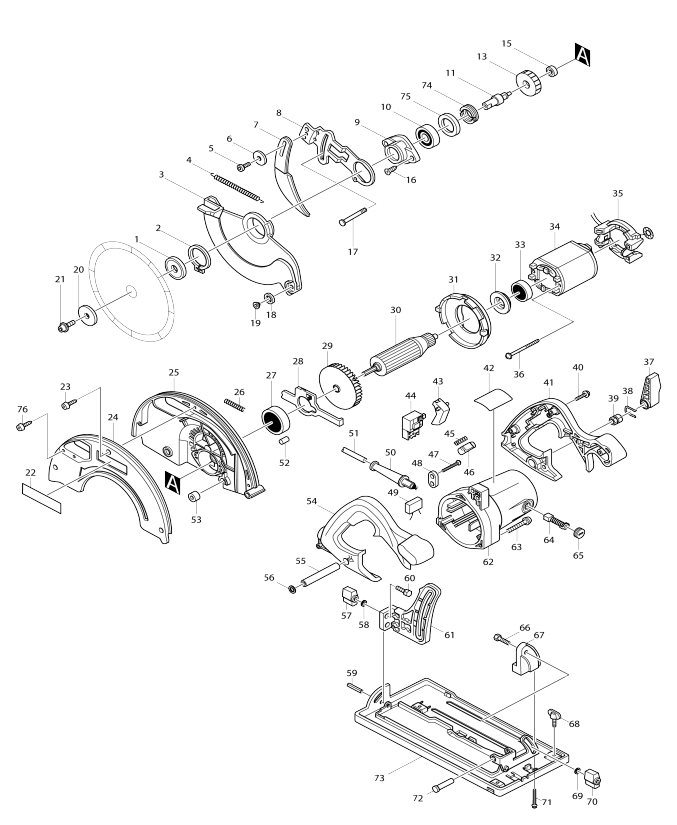

An exploded drawing and spare parts listing for the Makita 5703R Circular Saw
Ex VAT Inc VAT
1-1 - INNER FLANGE 40 5703R/5017RKB MSP-224339-9.A0 224339-9 £5.98 £7.18
2 - RETAINING RING S-40 5703R/560 MSP-961156-3.A1 961156-3 £2.49 £2.99
3-2 - SAFETY COVER 5703R MSP-317439-3.A0 317439-3 £23.65 £28.38
3-1 - SAFETY COVER 5703R MSP-317439-3.A3 317439-3 £23.65 £28.38
4-1 - TENSION SPRING 4 5703R/5603R MSP-231827-9.A1 231827-9 £2.49 £2.99
5 - CAP HD SCREW M6X12 PC5000/500 MSP-922312-0.A21 922312-0 £1.66 £1.99
6 - LARGE HARD WASHER 6 MSP-253783-3.A2 253783-3 £1.66 £1.99
7-1 - RIVING KNIFE 5703R/5017RKB MSP-165623-2.A2 165623-2 £8.32 £9.98
7 - RIVING KNIFE BSR730/5704R MSP-165094-3.A0 165094-3 £8.84 £10.61
8-1 - RIVING KNIFE HOLDER 5703R MSP-345733-3.A1 345733-3 £3.77 £4.52
9-2 - BEARING BOX 5603R/5017RKB MSP-317469-4.A2 317469-4 £9.36 £11.23
10-2 - BALL BEARING 6002DDW GA5020/2 MSP-211236-8.A35 211236-8 £7.02 £8.42
10 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A60 211129-9 £8.45 £10.14
11-1 - SPINDLE 5603R/5703R/5017RKB MSP-322922-7.A2 322922-7 £21.12 £25.34
12 - WOODRUFF KEY 4-8 BGA450/5603R MSP-254011-9.A9 254011-9 £1.66 £1.99
13-1 - HELICAL GEAR 41 5703R/5017RKB MSP-226473-1.A0 226473-1 £15.51 £18.61
13 - HELICAL GEAR 41 5703R MSP-226447-2.A0 226447-2 £19.25 £23.10
15-1 - BALL BEARING 608 BFS440/BFR5 MSP-211034-0.A6 211034-0 £2.49 £2.99
16 - COUNTERSUNK HD SCREW M5X16 MSP-265034-2.A7 265034-2 £1.66 £1.99
17 - CAP SQUARE NECK BOLT M8X98 59 MSP-266019-1.A7 266019-1 £2.49 £2.99
18 - ROLLER 20 5903R/5603R/5604R MSP-415438-0.A2 415438-0 £1.66 £1.99
19 - ROLLER PIN 6 5903R/5603R/5604 MSP-415437-2.A10 415437-2 £1.66 £1.99
20-1 - OUTER FLANGE 40 5603R/5703R MSP-224338-1.A2 224338-1 £5.59 £6.71
21-1 - CAP HD SCREW M6X20 W.CAPTIVE MSP-266139-1.A1 266139-1 £2.49 £2.99
21 - CAP HD SCREW M6X20 5621R MSP-266024-8.A0 266024-8 £2.49 £2.99
22 - LABEL/MAKITA LS10305603R241 MSP-819064-1.A2 819064-1 £2.49 £2.99
23 - CT SCREW M4X20 BHS630/5703R MSP-266042-6.A25 266042-6 £1.66 £1.99
24 - BLADE CASE COVER 5703R MSP-316576-0.A1 316576-0 £26.18 £31.42
24-1 - BLADE CASE COVER 5703R MSP-316576-0.A2 316576-0 £26.18 £31.42
24-2 - BLADE CASE COVER 5703R MSP-316576-0.A5 316576-0 £26.18 £31.42
25-2 - BLADE CASE COMLETE 5703R MSP-152545-5.A0 152545-5 £41.69 £50.03
25-1 - BLADE CASE COMLETE 5703R MSP-152545-5.A3 152545-5 £41.69 £50.03
26 - COMPRESSION SPRING 5 LS800DWB MSP-233092-6.A13 233092-6 £1.66 £1.99
27 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A61 211129-9 £8.45 £10.14
28 - SHAFT LOCK 5703R/5603R/5017RK MSP-344114-8.A3 344114-8 £3.64 £4.37
29 - FAN 76 HR4000C/5017RKB/4131 MSP-241876-8.A10 241876-8 £3.25 £3.90
30A - ARMATURE ASSY 110V 5703R/5017 MSP-516201-5.A0 516201-5 £86.94 £104.33
30D - ARMATURE ASSY 240V 5703R MSP-516204-9.A1 516204-9 £86.94 £104.33
31 - BAFFLE PLATE 5703R/5017RKB MSP-415460-7.A1 415460-7 £2.49 £2.99
32 - INSULATION WASHER 4157KB MSP-681625-5.A12 681625-5 £1.66 £1.99
33-1 - BALL BEARING 608DDW GA5020 MSP-210005-4.A24 210005-4 £7.02 £8.42
33 - BALL BEARING 608LLB(/608VV) 6 MSP-211031-6.A31 211031-6 £3.25 £3.90
34D - FIELD 240V 5703R MSP-634214-5.A0 634214-5 £30.58 £36.70
34A - FIELD 110V 5703R/5017RKB MSP-634211-1.A2 634211-1 £30.58 £36.70
35-1 - SUPPORT 5603R/5703R/5705 MSP-135793-1.A2 135793-1 £7.67 £9.20
35-1 - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A48 654020-2 £1.66 £1.99
35-1 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A79 654501-6 £1.66 £1.99
36A1 - PT SCREW 5X65 5703R MSP-266029-8.A6 266029-8 £1.66 £1.99
36A - *PT SCREW 5X65 5703R MSP-266109-0.A3 266109-0 £2.49 £2.99
37 - LEVER 54 5903R/5603R/BSR730S MSP-272230-5.A10 272230-5 £2.49 £2.99
38 - RING SPRING 12 5903R/5603R/BS MSP-231955-0.A12 231955-0 £1.66 £1.99
39 - HEX NUT M8 MSP-252141-0.A0 252141-0 £2.49 £2.99
40A1 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A25 266041-8 £1.66 £1.99
41 - HANDLE SET 5703R/5603R MSP-182675-8.A3 182675-8 £30.58 £36.70
42A - NAME PLATE 5703R MSP-858232-1.A0 858232-1 £1.66 £1.99
43 - SWITCH LEVER 5903R/5603R/5143 MSP-415439-8.A6 415439-8 £2.49 £2.99
44 - SWITCH TG71B PC5000/5001C/KP0 MSP-651922-3.A12 651922-3 £11.44 £13.73
45 - COMPRESSION SPRING 4 5903R MSP-231230-4.A8 231230-4 £1.66 £1.99
46 - LOCK-OFF BUTTON 5903R/5603R/5 MSP-415440-3.A1 415440-3 £1.66 £1.99
47A1 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A598 265995-6 £1.66 £1.99
48B1 - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A74 687053-2 £1.66 £1.99
48B - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A21 687063-9 £1.66 £1.99
48B1 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A106 687052-4 £1.66 £1.99
49A1 - NOISE SUPPRESSOR 5017RKB/5903 MSP-645141-1.A5 645141-1 £1.66 £1.99
49A - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A105 645141-1 £1.66 £1.99
49B1 - NOISE SUPPRESOR 8450/HP2030-3 MSP-645142-9.A4 645142-9 £1.66 £1.99
50B - CORD GUARD UH45570/5570/5580 MSP-682505-8.A89 682505-8 £1.66 £1.99
50B1 - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A23 682505-8 £1.66 £1.99
51D1 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A3 692527-0 £22.44 £26.93
51O1 - POWER SUPPLY CORD HS6100/7100 MSP-695217-4.A36 695217-4 £10.40 £12.48
52 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A421 263005-3 £1.66 £1.99
53 - RUBBER SLEEVE 6 M241 BHS630/ MSP-262511-5.A10 262511-5 £1.66 £1.99
54 - HANDLE SET 5703R/5603R MSP-182675-8.A0 182675-8 £30.58 £36.70
55 - PIPE 9 5903R/5603R/BSR730S MSP-331432-3.A2 331432-3 £2.49 £2.99
56 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A35 941201-0 £1.66 £1.99
57 - WING NUT M6 5603R MSP-252624-0.A1 252624-0 £2.49 £2.99
58 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A37 941151-9 £1.66 £1.99
59 - TENSION PIN 6-16 DIN1481 5603 MSP-951204-6.A1 951204-6 £1.66 £1.99
60 - HEX HD SCREW M6X20 5703R MSP-921332-1.A2 921332-1 £1.66 £1.99
61 - DEPTH GUIDE 5703R/5017RKB MSP-316578-6.A0 316578-6 £18.04 £21.65
62 - BRUSH HOLDER HM1100C/HR3000C MSP-643754-2.A5 643754-2 £4.16 £4.99
62 - BRUSH HOLDER 5X11 GA5020/ MSP-643708-9.A29 643708-9 £2.49 £2.99
62 - MOTOR HOUSING 5703R/ MSP-159714-9.A1 159714-9 £44.22 £53.06
63 - PAN HD SCREW M5X55 5703R/560 MSP-911278-9.A6 911278-9 £1.66 £1.99
64 - CARBON BRUSH CB-303 MT582 MSP-194996-6.A21 194996-6 £5.18 £6.22
65 - BRUSH HOLDER CAP 4100KB HS7611 MSP-643750-0.A28 643750-0 £1.66 £1.99
66 - HEX HD SCREW M6X20 5703R MSP-921332-1.A3 921332-1 £1.66 £1.99
67 - ANGULAR PLATE GUIDE 5703R/560 MSP-415443-7.A2 415443-7 £3.90 £4.68
68-1 - WING SCREW M6X15 MSP-265725-5.A1 265725-5 £1.66 £1.99
68 - WING SCREW M6X10 LS800D/LS121 MSP-251887-5.A1 251887-5 £2.49 £2.99
69 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A36 941151-9 £1.66 £1.99
70 - WING NUT M6 5603R MSP-252624-0.A0 252624-0 £2.49 £2.99
71A1 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1010 265995-6 £1.66 £1.99
72 - PIN 10 5703R/5603R MSP-256690-9.A2 256690-9 £1.66 £1.99
73 - BASE 5703R MSP-168267-7.A0 168267-7 £44.22 £53.06
73-1 - BASE 5703R MSP-168267-7.A3 168267-7 £44.22 £53.06
74 - BEARING RETAINER 19-34 5703R/ MSP-285831-0.A1 285831-0 £2.49 £2.99
75 - BLUE WASHER 22 5603R MSP-267126-3.A5 267126-3 £1.66 £1.99
76 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A95 266026-4 £1.66 £1.99
77 - O RING 44 HS6100/7100/BSS500 MSP-213560-5.A0 213560-5 £1.66 £1.99
A01 - GUIDE RULE 5703R/5603R/5017RKB MSP-165108-8.A2 165108-8 £10.80 £12.96
A02 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A32 783203-8 £1.20 £1.44
A03-1 - TCT SAW BLADE CSCX19012G 2.0 MSP-B-07967.A0 B-07967 £13.91 £16.69
E03 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A96 266026-4 £1.66 £1.99
E03 - JOINT SET 5603R/5703R MSP-192420-3.A3 192420-3 £4.03 £4.84
E05 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A57 654091-9 £1.66 £1.99
