Makita DBN500ZJ Cordless Brad Nailer Spare Parts

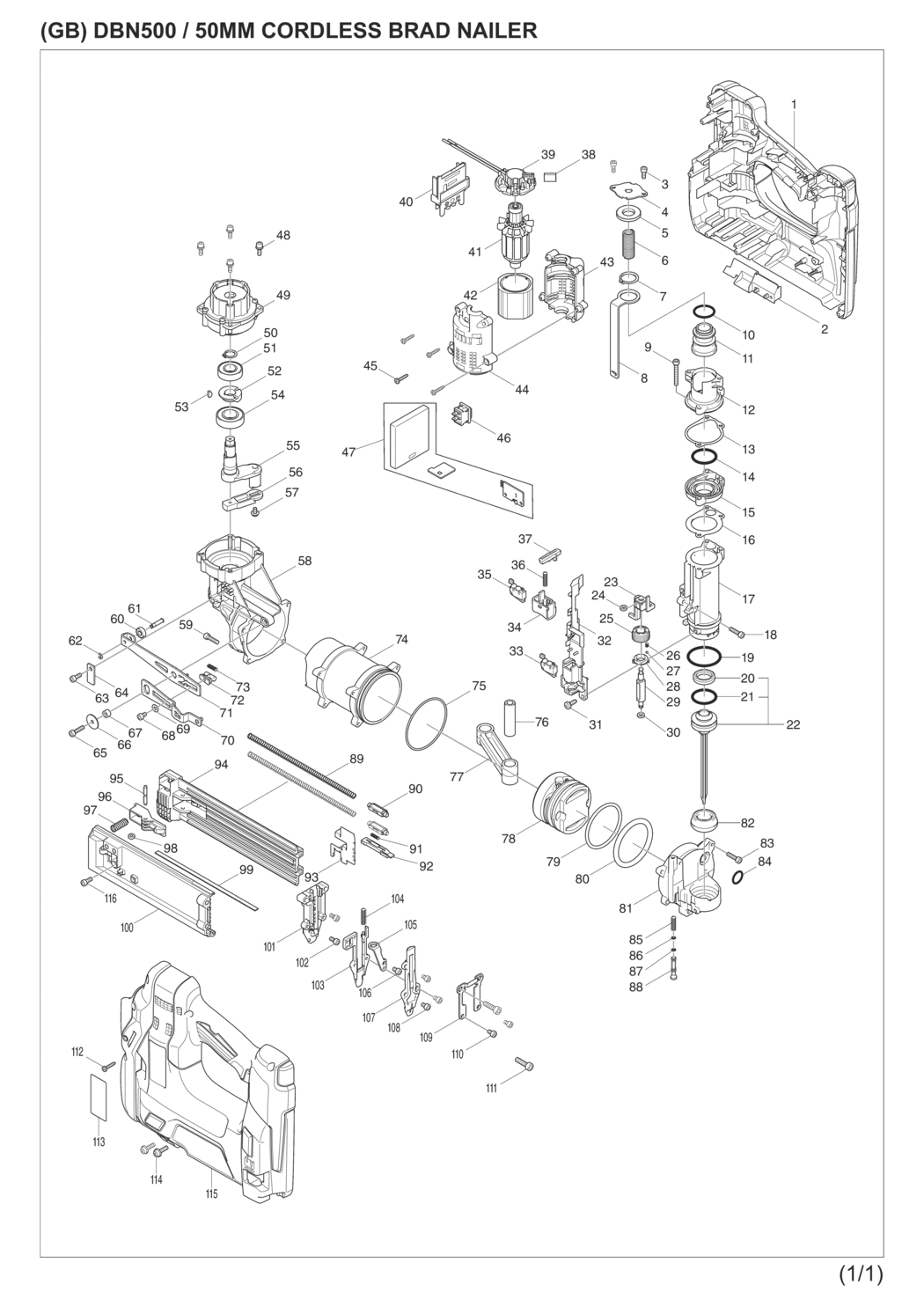

An exploded drawing and spare parts listing for the Makita DBN500ZJ Cordless Brad Nailer

	Ex VAT	Inc VAT
1 - HEX LOCKING NUT M4-7 MT/TD126 MSP-252126-6.A81 252126-6	£1.44	£1.73
1 - LABEL/CAUTION DBN500 MSP-803N94-6.A1 803N94-6	£1.44	£1.73
1 - HOUSING SET DBN500 MSP-187864-0.A0 187864-0	£67.28	£80.74
2 - LED COVER DBN500 MSP-454946-6 454946-6	£2.34	£2.81
3 - CAP HD SCREW M4X10 BHX2501/43 MSP-922112-8.A16 922112-8	£1.44	£1.73
4 - TOP CAP DBN500 MSP-346773-4 346773-4	£1.44	£1.73
5 - REAR CUSHION DBN500 MSP-424625-0 424625-0	£1.44	£1.73
6 - *COMPRESSION SPRING 11 DBN500 MSP-234327-8 234327-8	£1.44	£1.73
7 - RETAINING RING EXT S-19 DBN50 MSP-961059-1 961059-1	£1.44	£1.73
8 - LINK ARM B DBN500 MSP-346776-8 346776-8	£7.18	£8.61
10 - O RING 21 HR3511 MSP-213381-5.A20 213381-5	£3.74	£4.49
11 - VALVE DBN500 MSP-326398-0 326398-0	£14.51	£17.41
12 - CYLINDER HEAD DBN500 MSP-319114-7 319114-7	£9.82	£11.79
13 - GASKET A DBN500 MSP-423472-6 423472-6	£3.74	£4.49
14 - O RING 24 DBN500 MSP-213364-5.A0 213364-5	£1.44	£1.73
16 - GASKET B DBN500 MSP-423473-4 423473-4	£3.74	£4.49
17 - DRIVER CYLINDER DBN500 MSP-319113-9 319113-9	£17.86	£21.43
18 - HEX SOCKET HD BOLT M4X16 MSP-922127-5.A9 922127-5	£1.44	£1.73
19 - O RING 34 AN620 MSP-213475-6.A3 213475-6	£1.44	£1.73
20 - CUSHION 'P' DBN500 MSP-421551-4 421551-4	£7.02	£8.42
21 - O RING 24 DBN500 MSP-213364-5.A1 213364-5	£1.44	£1.73
22 - DRIVER ASSY DBN500 MSP-135644-8 135644-8	£63.25	£75.90
23 - ADJUSTER BLOCK DBN500 MSP-310585-1 310585-1	£32.83	£39.40
24 - URETHANE RING 4 AN711/AR411HR MSP-262130-7.A4 262130-7	£1.44	£1.73
25 - ADJUSTER DBN500 MSP-454949-0 454949-0	£4.52	£5.43
26 - COMPRESSION SPRING 2 GN420C MSP-234254-9.A1 234254-9	£2.34	£2.81
27 - STEEL BALL 2.3 AN610H/DUP361 MSP-216031-1.A3 216031-1	£1.44	£1.73
28 - ADJUSTER GUIDE GN420C MSP-453807-7.A1 453807-7	£6.08	£7.30
29 - ADJUSTER ROD DBN500 MSP-326399-8 326399-8	£3.59	£4.31
30 - URETHANE RING 4 AN711/AR411HR MSP-262130-7.A3 262130-7	£1.44	£1.73
31 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A13 266026-4	£1.44	£1.73
32 - SWITCH BASE DBN500 MSP-454938-5 454938-5	£4.83	£5.80
33 - SWITCH UNIT DBN500 MSP-632C01-4.A1 632C01-4	£15.58	£18.70
34 - TRIGGER DBN500 MSP-454939-3 454939-3	£2.65	£3.18
35 - SWITCH UNIT DBN500 MSP-632C01-4.A0 632C01-4	£15.58	£18.70
36 - COMPRESSION SPRING 5 BST110 MSP-234037-7.A1 234037-7	£1.44	£1.73
37 - TRIGGER LOCK DBN500 MSP-454952-1 454952-1	£2.18	£2.62
38 - CARBON BRUSH CB-440 BTD043/06 MSP-194427-5.A55 194427-5	£5.83	£7.00
39 - BRUSH HOLDER DBN500 MSP-632B92-9 632B92-9	£33.70	£40.44
40 - TERMINAL DHP480/DDF480/DFL650 MSP-643860-3.A6 643860-3	£5.78	£6.94
41 - ARMATURE DBN500 MSP-619339-6 619339-6	£36.29	£43.55
42 - YOKE UNIT BHP448/458/BDF448/4 MSP-638989-8.A3 638989-8	£22.90	£27.48
43 - MOTOR HOUSING SET DBN500 MSP-187809-8.A0 187809-8	£8.11	£9.73
44 - MOTOR HOUSING SET DBN500 MSP-187809-8.A1 187809-8	£8.11	£9.73
45 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A23 266130-9	£1.44	£1.73
46 - SWITCH SLE6A2-33 BBC231U/300L MSP-651533-4.A7 651533-4	£5.15	£6.18
47 - CONTROLLER DBN500 MSP-620291-3 620291-3	£151.08	£181.30
48 - HEX S H BOLT M4X12 HR2020/244 MSP-266273-7.A42 266273-7	£1.44	£1.73
49 - GEAR ASSEMBLY DBN500 MSP-126398-8 126398-8	£56.37	£67.64
50 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A170 961052-5	£1.44	£1.73
51 - BALL BEARING 6001ZZ MSP-210107-6.A1 210107-6	£3.75	£4.50
52 - EDGE CAM DBN500 MSP-313276-3 313276-3	£6.24	£7.49
53 - WOODRUFF KEY 3-7 5093D/DJS160 MSP-254031-3.A23 254031-3	£1.44	£1.73
54 - BALL BEARING 6002ZZ EH1060 MSP-211243-1 211243-1	£3.75	£4.50
55 - CRANK DBN500 MSP-332100-1 332100-1	£19.72	£23.67
56 - MAGNET BASE DBN500 MSP-142440-7 142440-7	£7.64	£9.17
57 - PAN HEAD SCREW M4 X 8 BHS630 MSP-911109-2.A6 911109-2	£1.44	£1.73
59 - HEX SOCKET HD BOLT M4X16 MSP-922127-5.A11 922127-5	£1.44	£1.73
60 - BALL BEARING 604ZZ CC300D/BCS MSP-210036-3.A3 210036-3	£3.74	£4.49
62 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A35 961017-7	£1.44	£1.73
63 - CAP HD SCREW M4X10 BHX2501/43 MSP-922112-8.A15 922112-8	£1.44	£1.73
65 - HEX SOCKET HD BOLT M4X16 MSP-922127-5.A10 922127-5	£1.44	£1.73
66 - BLUE WASHER 4 DUR181/141/UR14 MSP-267071-2.A6 267071-2	£1.44	£1.73
67 - SLEEVE 8 DBN500 MSP-257822-1 257822-1	£2.18	£2.62
68 - HEX SOCKET HD BOLT M4X6 SC161 MSP-922102-1.A5 922102-1	£1.44	£1.73
69 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A50 941051-3	£1.44	£1.73
70 - SUB ARM DBN500 MSP-142442-3 142442-3	£11.23	£13.48
71 - LINK ARM A DBN500 MSP-346775-0 346775-0	£13.26	£15.91
72 - SLIDER DBN500 MSP-310587-7 310587-7	£9.05	£10.86
73 - COMPRESSION SPRING 3 DBN500 MSP-234119-5 234119-5	£1.44	£1.73
74 - MAIN CYLINDER DBN500 MSP-332099-0 332099-0	£70.18	£84.22
75 - O RING 63 DA4031 MSP-213709-7.A2 213709-7	£2.34	£2.81
76 - PIPE 12 DBN500 MSP-332101-9 332101-9	£4.52	£5.43
77 - CONECTING ROD DBN500 MSP-454937-7 454937-7	£3.59	£4.31
78 - PISTON A DBN500 MSP-454944-0 454944-0	£7.18	£8.61
79 - O RING 50 AN901 CC300D/CC301 MSP-213605-9.A3 213605-9	£1.44	£1.73
80 - O RING 50 DBN500 MSP-213609-1 213609-1	£5.62	£6.74
81 - CYLINDER END DBN500 MSP-319115-5 319115-5	£18.29	£21.95
82 - CUSHION DBN500 MSP-424624-2 424624-2	£8.89	£10.67
83 - HEX SOCKET HD BOLT M4X16 MSP-922127-5.A8 922127-5	£1.44	£1.73
84 - O RING 14 2414B/HP2030/31/32 MSP-213162-7.A2 213162-7	£1.44	£1.73
85 - COMPRESSION SPRING 4 DBN500 MSP-234329-4 234329-4	£1.44	£1.73
86 - O RING 3 AN942/AN635H MSP-213044-3.A10 213044-3	£1.44	£1.73
87 - O RING 3 AN942/AN635H MSP-213044-3.A11 213044-3	£1.44	£1.73
88 - VALVE STEM DBN500 MSP-326401-7 326401-7	£5.92	£7.11
89 - COMPRESSION SPRING 6 DBN500 MSP-234325-2 234325-2	£2.97	£3.56
90 - SLEEVE DBN500 MSP-454940-8 454940-8	£1.44	£1.73
91 - COMPRESSION SPRING 3 DBN500 MSP-234326-0 234326-0	£1.44	£1.73
92 - STOPPER DBN500 MSP-310584-3 310584-3	£9.05	£10.86
93 - PUSHER DBN500 MSP-346782-3 346782-3	£6.71	£8.05
94 - SLIDE DOOR DBN500 MSP-454942-4 454942-4	£14.20	£17.04
95 - PIN 3 DBN500 MSP-256793-9.A1 256793-9	£1.44	£1.73
96 - LOCK LEVER DBN500 MSP-454945-8 454945-8	£3.59	£4.31
97 - COMPRESSION SPRING 7 LC1230 MSP-233197-2.A1 233197-2	£2.34	£2.81
98 - URETHANE RING 3 AN942/6837 MSP-262054-7.A31 262054-7	£1.44	£1.73
99 - NAIL PLATE DBN500 MSP-346774-2 346774-2	£1.66	£1.99
100 - HEX FULL NUT M4 DUR181/ML123 MSP-931102-0.A29 931102-0	£1.44	£1.73
100 - MAGAZINE DBN500 MSP-454943-2 454943-2	£17.57	£21.08
101 - SET PLATE DBN500 MSP-310588-5 310588-5	£68.17	£81.80
102 - HEX SOCKET HD BOLT M4X8 AN711 MSP-265911-8.A2 265911-8	£1.44	£1.73
103 - CENTER PLATE DBN500 MSP-142443-1 142443-1	£36.43	£43.72
104 - COMPRESSION SPRING 4 DBN500 MSP-234328-6 234328-6	£1.44	£1.73
105 - ARM DBN500 MSP-346779-2 346779-2	£1.44	£1.73
106 - HEX SOCKET HD BOLT M4X6 SC161 MSP-922102-1.A4 922102-1	£1.44	£1.73
107 - DRIVER GUIDE DBN500 MSP-310586-9 310586-9	£44.05	£52.86
108 - HEX SOCKET HD BOLT M4X6 SC161 MSP-922102-1.A3 922102-1	£1.44	£1.73
109 - PLATE A DBN500 MSP-346777-6 346777-6	£1.44	£1.73
110 - HEX SOCKET HD BOLT M4X6 SC161 MSP-922102-1.A2 922102-1	£1.44	£1.73
111 - HEX SOCKET HD BOLT M5X20 AN51 MSP-266369-4.A2 266369-4	£1.44	£1.73
112 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A24 266130-9	£1.44	£1.73
113 - NAME PLATE DBN500 MSP-815P33-6 815P33-6	£1.44	£1.73
114 - PAN HEAD SCREW M4X12 VC3211M MSP-911118-1.A4 911118-1	£1.44	£1.73
115 - HEX LOCKING NUT M4-7 MT/TD126 MSP-252126-6.A80 252126-6	£1.44	£1.73
115 - HOUSING SET DBN500 MSP-187864-0.A1 187864-0	£67.28	£80.74
115 - LABEL/CAUTION DBN500 MSP-803N94-6.A0 803N94-6	£1.44	£1.73
116 - CAP HD SCREW M4X10 BHX2501/43 MSP-922112-8.A17 922112-8	£1.44	£1.73
A01 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A13 195246-2	£2.55	£3.06
A02 - SPECIAL PAN HD SCREW M4X12 MSP-251314-2.A134 251314-2	£1.44	£1.73
A03 - HOOK BTD136/147/BFS441/451/ MSP-346317-0.A104 346317-0	£1.93	£2.32
A04 - NOSE ADAPTER DBN500 MSP-424121-8.A0 424121-8	£2.40	£2.88
A05 - HEX WRENCH 3 JS1602/43BA/BV/ MSP-783201-2.A47 783201-2	£1.20	£1.44
A04-1 - NOSE ADAPTER DBN500 MSP-424121-8.A1 424121-8	£2.40	£2.88
A06 - STACKING CASE TYPE 3 210MM MSP-821551-8.A18 821551-8	£39.40	£47.28
A06 - LATCH FOR STACKING CASE MACPA MSP-453974-8.A52 453974-8	£1.71	£2.05
A07 - INNER TRAY DBN500 MSP-838023-6 838023-6	£7.34	£8.81
