Makita AN942 Pneumatic Framing Nailer Spare Parts

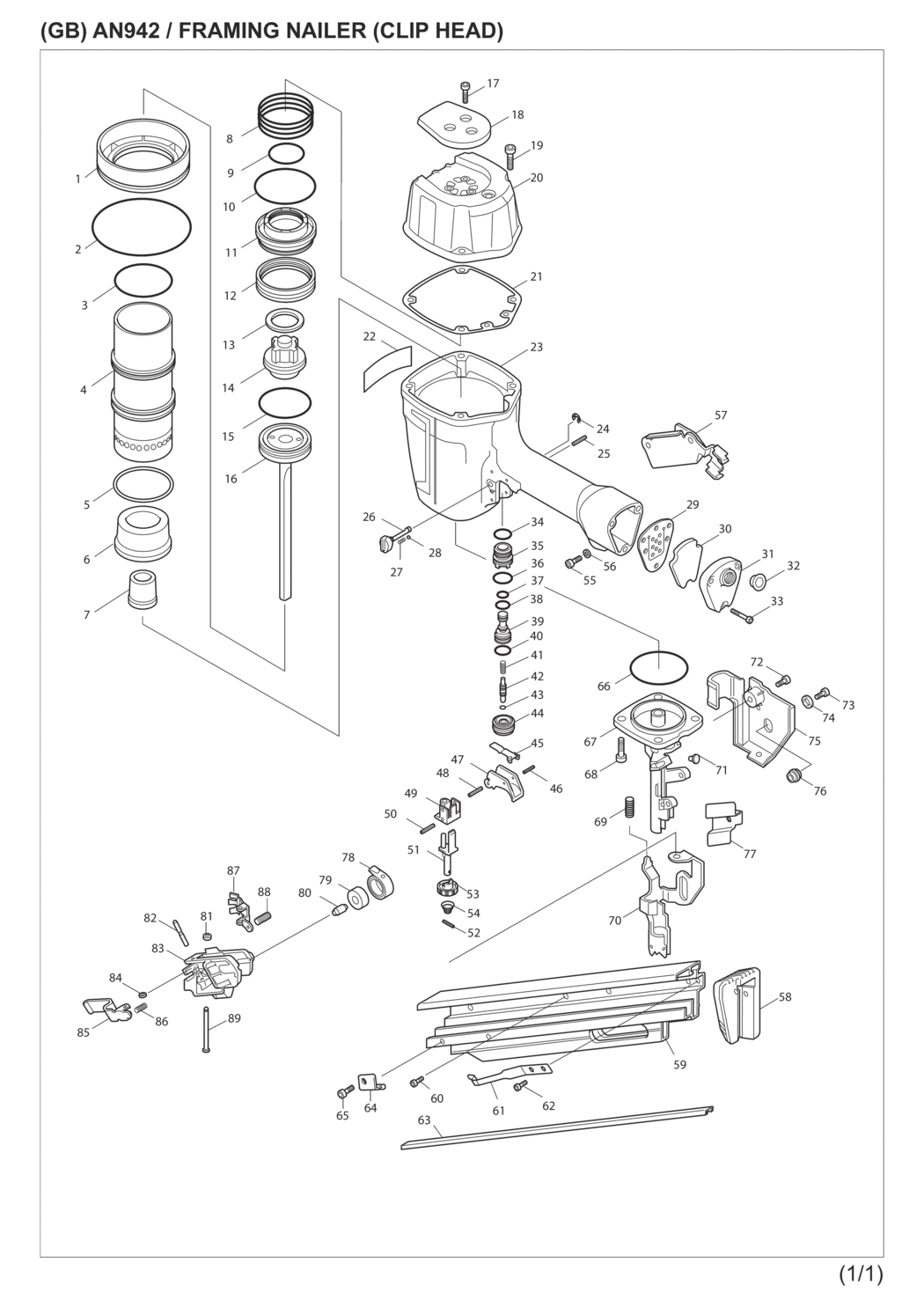

An exploded drawing and spare parts listing for the Makita AN942 Pneumatic Framing Nailer

	Ex VAT	Inc VAT
1 - CYLINDER SEPARATOR AN942 MSP-416892-1 416892-1	£5.62	£6.74
2 - O RING 87 HM1317C-CB/AN942/94 MSP-213809-3.A3 213809-3	£2.65	£3.18
3 - O RING 60 AN711 MSP-213668-5.A2 213668-5	£1.44	£1.73
4 - CYLINDER AN942 MSP-331548-4 331548-4	£59.92	£71.91
5 - O RING 60 AN942/HM1800/HM1810 MSP-213667-7.A1 213667-7	£14.82	£17.78
6 - CUSHION F AN942/943 MSP-421680-3.A0 421680-3	£20.30	£24.36
7 - CUSHION GUIDE AN942/943 MSP-421687-9.A1 421687-9	£7.18	£8.61
8 - COMPRESSION SPRING 50 AN942/4 MSP-233243-1.A1 233243-1	£2.34	£2.81
9 - O RING 40 AN942/HM1300 MSP-213504-5.A1 213504-5	£1.44	£1.73
10 - O RING 56 AN942/HR4500C MSP-213669-3.A1 213669-3	£1.44	£1.73
13 - WASHER 34 AN942/943 MSP-267742-1.A1 267742-1	£1.44	£1.73
14 - CUSHION R AN942 MSP-421678-0 421678-0	£11.86	£14.23
15 - O RING 49 AN942/943 MSP-213619-8.A0 213619-8	£1.44	£1.73
17 - CAP HD SCREW M5X10 9027 MSP-265976-0.A0 265976-0	£1.44	£1.73
18 - EXHAUST COVER AN942 MSP-344764-9 344764-9	£2.50	£3.00
19 - CAP HD SCREW M6X25/CS246.4 MSP-922342-1.A14 922342-1	£1.44	£1.73
20 - TOP CAP AN942 MSP-317168-8 317168-8	£44.88	£53.86
21 - TOP CAP GASKET AN942 MSP-162209-3 162209-3	£5.46	£6.55
23 - GRIP AN901/AN942 MSP-421527-1.A3 421527-1	£4.37	£5.24
23 - HOUSING BAMPER AN901/942 MSP-421643-9.A2 421643-9	£4.83	£5.80
23 - LABEL/CAUTION AN942943 MSP-817592-0.A1 817592-0	£4.06	£4.87
23 - HOUSING BAMPER L AN901/942 MSP-421644-7.A3 421644-7	£4.83	£5.80
23 - LABEL/INDICATION AN942 MSP-812498-7.A1 812498-7	£1.44	£1.73
24 - EXT E-RING JIS E-4 EA3201 MSP-961011-9.A85 961011-9	£1.44	£1.73
25 - TENSION PIN 3-28 DIN1481 AN94 MSP-951075-1.A8 951075-1	£1.44	£1.73
26 - LOCK PIN 6 AN901/942 MSP-162208-5.A1 162208-5	£13.58	£16.29
27 - *COMPRESSION SPRING 3/AN635H MSP-231236-2.A2 231236-2	£1.44	£1.73
28 - STEEL BALL 4 5008MB/JV101D MSP-216008-6.A2 216008-6	£1.44	£1.73
29 - INLET CAP GASKET AN942 MSP-162210-8 162210-8	£4.37	£5.24
30 - INLET FILTER AN942 MSP-416890-5 416890-5	£4.06	£4.87
31-1 - INLET CAP AN942 MSP-317269-2 317269-2	£15.91	£19.09
32-1 - ADAPTOR R3/8 AN942 MSP-243100-5.A1 243100-5	£3.55	£4.26
33 - HEX SOCKET HD BOLT M5X30 AN94 MSP-922252-2.A2 922252-2	£1.44	£1.73
34 - O RING 14 VC3211M/AN942/HR321 MSP-213176-6.A6 213176-6	£1.44	£1.73
35-1 - TRIGGER VALVE GUIDE AN942 MSP-417695-6.A1 417695-6	£2.50	£3.00
36 - O RING 16 BFS440/AN942/BFR540 MSP-213262-3.A0 213262-3	£1.44	£1.73
37 - O RING 6 AN942/UC3520A/UC3530 MSP-213039-6.A4 213039-6	£1.44	£1.73
38 - O RING 8 AN942 MSP-213040-1.A0 213040-1	£1.44	£1.73
39-2 - PILOT VALVE AN942 MSP-317520-0.A1 317520-0	£8.58	£10.30
40 - O RING 12 AN942/HP2070 MSP-213122-9.A0 213122-9	£1.44	£1.73
41 - COMPRESSION SPRING 3 AN942 MSP-233239-2.A0 233239-2	£1.44	£1.73
42 - TRIGGER VALVE STEM AN942 MSP-323852-5.A1 323852-5	£2.81	£3.37
43 - O RING 3 AN942/AN635H MSP-213044-3.A6 213044-3	£1.44	£1.73
44-1 - TRIGGER VALVE CASE AN942 MSP-317521-8.A0 317521-8	£6.08	£7.30
45 - IDLER AN901/942 MSP-344265-7.A2 344265-7	£1.44	£1.73
46 - SPRING PIN 2.5-16 AN942/943 MSP-258004-8.A2 258004-8	£1.44	£1.73
47 - TRIGGER AN901/942 MSP-415790-6.A3 415790-6	£1.44	£1.73
48 - TENSION PIN 3-28 DIN1481 AN94 MSP-951075-1.A6 951075-1	£1.44	£1.73
49 - HOLDER AN942 MSP-310084-3 310084-3	£14.20	£17.04
50 - TENSION PIN 3-28 DIN1481 AN94 MSP-951075-1.A7 951075-1	£1.44	£1.73
51 - STOPPER AN942 MSP-310085-1 310085-1	£23.62	£28.34
52 - SPRING PIN 3-14 3707F/3708F/A MSP-951060-4.A1 951060-4	£1.58	£1.89
53 - ADJUSTER AN901/942 MSP-310056-8.A2 310056-8	£14.67	£17.60
54 - CONICAL SPRING 9-16 MSP-231978-8.A1 231978-8	£1.44	£1.73
55 - HSS BOLT M5X20 AN942/AG125 MSP-265973-6.A2 265973-6	£1.44	£1.73
56 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A7 941101-4	£1.44	£1.73
57 - JOINT AN942 MSP-165252-1 165252-1	£12.63	£15.16
58 - MAGAZINE CAP AN942 MSP-416897-1 416897-1	£8.42	£10.11
59 - LABEL/CAUTION AN942(LINE 59) MSP-810798-9 810798-9	£1.44	£1.73
59-1 - LABEL/CAUTION AG125AN943 MSP-810022-0.A1 810022-0	£1.44	£1.73
60 - HSS BOLT M6X10 AN942 MSP-266218-5.A0 266218-5	£1.44	£1.73
62 - HEX SOCKET HD BOLT M5X14 BHX2 MSP-922217-4.A7 922217-4	£1.44	£1.73
64 - HOLDER AN942/943 MSP-344765-7.A0 344765-7	£1.44	£1.73
65 - HSS BOLT M6X10 AN942 MSP-266218-5.A1 266218-5	£1.44	£1.73
66 - O RING 60 HM1110/1110/AN942 MSP-213654-6.A3 213654-6	£2.18	£2.62
67 - DRIVER GUIDE AN942 MSP-310070-4 310070-4	£208.08	£249.70
69 - COMPRESSION SPRING 8 AN942 MSP-233080-3 233080-3	£1.44	£1.73
70 - *CONTACT ARM AN942 MSP-344773-8 344773-8	£32.69	£39.23
71 - RUBBER PIN 9.5 AN510/620/711 MSP-421418-6.A7 421418-6	£1.44	£1.73
72 - HSS BOLT M6X10 AN942 MSP-266218-5.A2 266218-5	£1.44	£1.73
73 - HSS BOLT M6X20 AN942 MSP-265962-1 265962-1	£1.44	£1.73
74 - WASHER 7 AN942/9030 MSP-253058-0.A6 253058-0	£1.44	£1.73
75-2 - COVER AN942 MSP-417614-2.A0 417614-2	£4.37	£5.24
75-1 - COVER AN942 MSP-417614-2.A1 417614-2	£4.37	£5.24
76 - SHOULDER WASHER AN942/943 MSP-267743-9.A0 267743-9	£2.18	£2.62
77 - HOLDER AN942/943 (LINE 77) MSP-344766-5.A1 344766-5	£2.81	£3.37
78 - SPIRAL SPRING AN942 MSP-163410-3 163410-3	£20.30	£24.36
79 - SPRING GUIDE AN942 MSP-414639-7 414639-7	£1.44	£1.73
80 - PIN 5-8 AN942 MSP-256428-2.A0 256428-2	£1.44	£1.73
81 - URETHANE RING 3 AN942/6837 MSP-262054-7.A11 262054-7	£1.44	£1.73
82 - PIN 4 AN942 MSP-256760-4 256760-4	£1.44	£1.73
83 - PUSHER LEVER AN942 MSP-416895-5 416895-5	£6.08	£7.30
84 - URETHANE RING 3 AN942/6837 MSP-262054-7.A12 262054-7	£1.44	£1.73
85 - LOCK PLATE AN942 MSP-344770-4 344770-4	£3.59	£4.31
86 - COMPRESSION SPRING 5 MSP-231309-1.A1 231309-1	£1.44	£1.73
87 - PUSHER AN942 MSP-344771-2 344771-2	£5.78	£6.93
88 - COMPRESSION SPRING 5 AN942/94 MSP-233038-2.A1 233038-2	£1.44	£1.73
89 - PIN 4 AN942/AR411HR MSP-268027-8.A1 268027-8	£2.34	£2.81
A02 - OIL SUPPLY 30CC AG125 AN451/AN MSP-181434-7.A3 181434-7	£1.20	£1.44
A01-1 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A38 195246-2	£2.55	£3.06
A03 - NOSE ADAPTER AN942 MSP-421677-2.A0 421677-2	£1.23	£1.48
B01 - FIRST AID KIT AN942 MSP-193006-6 193006-6	£17.46	£20.95
