Makita AN901 Construction Coil Nailer Spare Parts

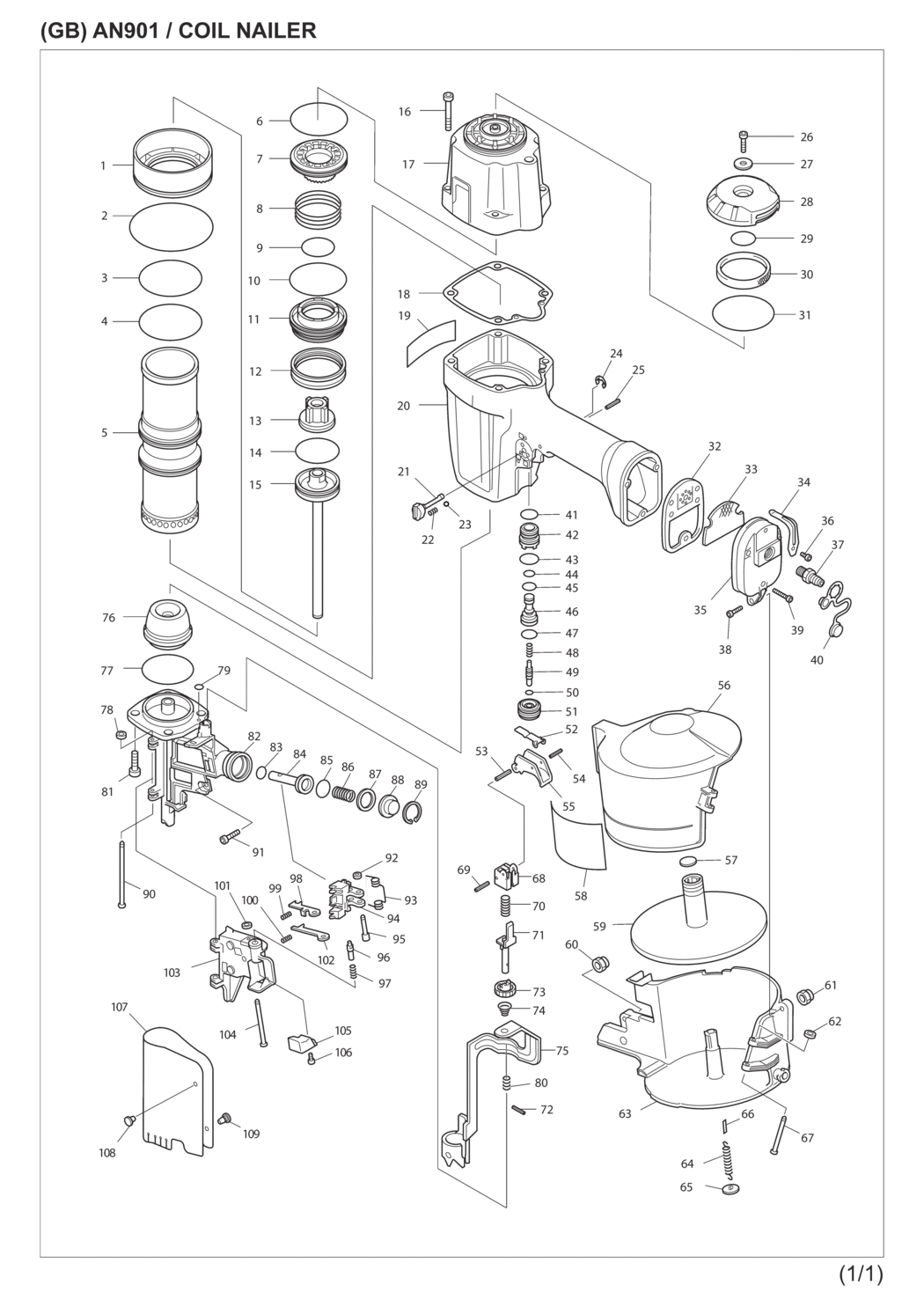

An exploded drawing and spare parts listing for the Makita AN901 Construction Coil Nailer

	Ex VAT	Inc VAT
1 - CYLINDER SEPARATOR AN901 MSP-416808-6 416808-6	£11.86	£14.23
2 - O RING 76 AN901 MSP-213761-5 213761-5	£1.44	£1.73
3 - O RING 53 AN711 MSP-213657-0.A4 213657-0	£1.44	£1.73
4 - O RING 50 AN901 CC300D/CC301 MSP-213605-9.A0 213605-9	£1.44	£1.73
5 - CYLINDER AN901 MSP-331545-0 331545-0	£78.50	£94.20
6 - O RING 53 AN711 MSP-213657-0.A2 213657-0	£1.44	£1.73
7 - SEPARATOR AN901 MSP-416807-8 416807-8	£8.58	£10.30
8 - COMPRESSION SPRING 44 AN901 MSP-233241-5 233241-5	£4.52	£5.43
9 - O RING 33 AN510/AN635H MSP-213462-5.A4 213462-5	£1.44	£1.73
10 - O RING 53 AN711 MSP-213657-0.A3 213657-0	£1.44	£1.73
11 - HEAD VALVE AN901 MSP-416803-6 416803-6	£17.86	£21.43
12 - VALVE SHEET AN901 MSP-421661-7 421661-7	£5.62	£6.74
13 - CUSHION R AN901 MSP-421660-9 421660-9	£6.55	£7.86
14 - O RING 40 AN942/HM1300 MSP-213504-5.A3 213504-5	£1.44	£1.73
15-2 - DRIVER AN901 MSP-158606-9 158606-9	£64.89	£77.87
16 - CAP HD SCREW M6X35 MSP-922356-0.A2 922356-0	£1.44	£1.73
17 - TOP CAP AN901 MSP-317817-7 317817-7	£72.82	£87.39
18 - TOP CAP GASKET AN901 MSP-162207-7 162207-7	£8.42	£10.11
19 - NAME PLATE AN901 MSP-852034-7 852034-7	£1.44	£1.73
20 - LABEL/CAUTION AN942943 MSP-817592-0.A0 817592-0	£4.06	£4.87
20 - GRIP AN901/AN942 MSP-421527-1.A0 421527-1	£4.37	£5.24
20 - HOUSING BAMPER AN901/942 MSP-421643-9.A0 421643-9	£4.83	£5.80
20 - HOUSING BAMPER L AN901/942 MSP-421644-7.A2 421644-7	£4.83	£5.80
20 - HOUSING AN901 MSP-153927-4 153927-4	£171.48	£205.78
20 - LABEL/INDICATION AN942 MSP-812498-7.A0 812498-7	£1.44	£1.73
21 - LOCK PIN 6 AN901/942 MSP-162208-5.A0 162208-5	£13.58	£16.29
22 - *COMPRESSION SPRING 3/AN635H MSP-231236-2.A6 231236-2	£1.44	£1.73
23 - STEEL BALL 4 5008MB/JV101D MSP-216008-6.A49 216008-6	£1.44	£1.73
24 - EXT E-RING JIS E-4 EA3201 MSP-961011-9.A1 961011-9	£1.44	£1.73
25 - TENSION PIN 3-28 DIN1481 AN94 MSP-951075-1.A0 951075-1	£1.44	£1.73
26 - HEX SOCKET HD BOLT M5X18 AN9 MSP-265853-6 265853-6	£1.44	£1.73
27 - FLAT WASHER 6 AN901 MSP-267171-8.A1 267171-8	£1.44	£1.73
28 - EXHAUST COVER AN901 MSP-317128-0 317128-0	£22.90	£27.48
29 - O RING 20 AN901 MSP-213320-5 213320-5	£1.44	£1.73
30 - FILTER AN901 MSP-323853-3 323853-3	£7.02	£8.42
31 - O RING 60 HM1110/1110/AN942 MSP-213654-6.A0 213654-6	£2.18	£2.62
32 - INLET CAP GASKET AN901 MSP-162198-2.A1 162198-2	£7.18	£8.61
33 - INLET FILTER AN901 MSP-415784-1.A0 415784-1	£3.28	£3.93
34 - HOOK AN901 MSP-344720-9.A0 344720-9	£7.18	£8.61
35-1 - INLET CAP AN621/AN901 MSP-317129-8.A0 317129-8	£34.28	£41.13
36 - CAP HD SCREW M5X12 AN620/CC30 MSP-922212-4.A11 922212-4	£1.44	£1.73
37 - AIR PLUG AN902/AG125 MSP-153936-3.A0 153936-3	£7.64	£9.17
38 - CAP HD SCREW M5X20 JS3200/CA MSP-922232-8.A2 922232-8	£1.44	£1.73
39 - HEX SOCKET BOLT M5X35 AG125 MSP-922256-4.A3 922256-4	£1.44	£1.73
40 - CAP 8 AG125/AN901 MSP-286267-6.A1 286267-6	£1.44	£1.73
41 - O RING 14 VC3211M/AN942/HR321 MSP-213176-6.A14 213176-6	£1.44	£1.73
42-1 - TRIGGER VALVE GUIDE AN942 MSP-417695-6.A2 417695-6	£2.50	£3.00
43 - O RING 16 BFS440/AN942/BFR540 MSP-213262-3.A21 213262-3	£1.44	£1.73
44 - O RING 6 AN942/UC3520A/UC3530 MSP-213039-6.A9 213039-6	£1.44	£1.73
45 - O RING 8 AN942 MSP-213040-1.A2 213040-1	£1.44	£1.73
46-2 - PILOT VALVE AN942 MSP-317520-0.A0 317520-0	£8.58	£10.30
47 - O RING 12 AN942/HP2070 MSP-213122-9.A2 213122-9	£1.44	£1.73
48 - COMPRESSION SPRING 3 AN942 MSP-233239-2.A2 233239-2	£1.44	£1.73
49 - TRIGGER VALVE STEM AN942 MSP-323852-5.A0 323852-5	£2.81	£3.37
50 - O RING 3 AN942/AN635H MSP-213044-3.A0 213044-3	£1.44	£1.73
51-1 - TRIGGER VALVE CASE AN942 MSP-317521-8.A1 317521-8	£6.08	£7.30
52 - IDLER AN901/942 MSP-344265-7.A0 344265-7	£1.44	£1.73
53 - TENSION PIN 3-28 DIN1481 AN94 MSP-951075-1.A1 951075-1	£1.44	£1.73
54 - SPRING PIN 2.5-16 AN942/943 MSP-258004-8.A4 258004-8	£1.44	£1.73
55 - TRIGGER AN901/942 MSP-415790-6.A1 415790-6	£1.44	£1.73
56 - MAGAZINE CAP AN901 MSP-416811-7 416811-7	£27.65	£33.18
57 - HOLDER CAP AN901 MSP-414934-5.A5 414934-5	£1.44	£1.73
58 - LABEL/INDICATION AN901 MSP-818599-9.A1 818599-9	£1.44	£1.73
59 - CHANGE PLATE AN901 MSP-416810-9 416810-9	£15.26	£18.31
60 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A83 252103-8	£1.58	£1.89
61 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A84 252103-8	£1.58	£1.89
62 - URETHANE RING 3 AN942/6837 MSP-262054-7.A18 262054-7	£1.44	£1.73
63 - MAGAZINE AN901 MSP-153928-2 153928-2	£40.39	£48.47
63 - LABEL/CAUTION AG125AN943 MSP-810022-0.A3 810022-0	£1.44	£1.73
64 - TENTION SPRING 5 AN901 MSP-231820-3 231820-3	£1.44	£1.73
65 - HOLDER CAP AN901 MSP-414934-5.A4 414934-5	£1.44	£1.73
66 - RUBBER PLATE 6-20 AN901 MSP-423232-6.A2 423232-6	£1.44	£1.73
67 - PIN 4 AN901/AN635H MSP-268026-0.A1 268026-0	£2.65	£3.18
68-1 - HOLDER AN901 MSP-344895-4.A0 344895-4	£1.44	£1.73
69 - TENSION PIN 3-28 DIN1481 AN94 MSP-951075-1.A2 951075-1	£1.44	£1.73
70-1 - COMPRESSION SPRING 7 AN901 MSP-233409-3 233409-3	£7.02	£8.42
70 - COMPRESSION SPRING 7 LC1230 MSP-233197-2.A4 233197-2	£2.34	£2.81
71 - STOPPER AN901 MSP-310055-0.A1 310055-0	£20.30	£24.36
72 - SPRING PIN 2 14 AG125 MSP-951010-9.A9 951010-9	£1.44	£1.73
73 - ADJUSTER AN901/942 MSP-310056-8.A0 310056-8	£14.67	£17.60
74 - CONICAL SPRING 9-16 MSP-231978-8.A3 231978-8	£1.44	£1.73
75 - CONTACT ARM AN901 MSP-344721-7 344721-7	£46.33	£55.60
76 - CUSHION F AN901 MSP-421659-4 421659-4	£23.62	£28.34
77 - O RING 50 HR2210/6915DW/HR451 MSP-213604-1.A7 213604-1	£2.18	£2.62
78 - URETHANE RING 3 AN942/6837 MSP-262054-7.A22 262054-7	£1.44	£1.73
79 - O RING 6 GA7050/AN611/M9001 MSP-213017-6.A16 213017-6	£1.44	£1.73
80 - COMPRESSION SPRING 7 9526PB MSP-233127-3.A16 233127-3	£1.44	£1.73
81 - HEX SOCKET HD BOLT M8X25 AN9 MSP-265386-1 265386-1	£1.44	£1.73
82-1 - DRIVER GUIDE AN901 MSP-310063-1 310063-1	£289.80	£347.76
82-1 - DRIVER GUIDE ASSY AN901 MSP-134960-5 134960-5	£462.72	£555.26
83 - O RING 9 VC3211/HR2210/AN635H MSP-213054-0.A9 213054-0	£1.44	£1.73
84-1 - PISTON AN901 MSP-324876-4 324876-4	£15.13	£18.16
85 - O RING 20 VC3211M/HR3000C/690 MSP-213304-3.A7 213304-3	£1.44	£1.73
86 - COMPRESSION SPRING 11 AN901 MSP-233240-7 233240-7	£2.34	£2.81
87 - RIBBER ROMG 16 AN901 MSP-262080-6 262080-6	£1.44	£1.73
88 - CUP WASHER 5 AN901 MSP-344717-8 344717-8	£2.18	£2.62
89 - INTERNAL RETAINING RING-28 MSP-962106-1.A22 962106-1	£1.44	£1.73
90 - PIN 5 AN901 MSP-268039-1 268039-1	£7.49	£8.99
91 - CAP HD SCREW M5X12 AN620/CC30 MSP-922212-4.A10 922212-4	£1.44	£1.73
92 - URETHANE RING 3 AN942/6837 MSP-262054-7.A24 262054-7	£1.44	£1.73
93 - TORSION SPRING 6 AN901 MSP-231642-1 231642-1	£7.49	£8.99
94 - FEEDING CLAW AN901 MSP-310074-6 310074-6	£37.44	£44.93
95 - PIN 5 AN901 MSP-268038-3 268038-3	£2.65	£3.18
96 - LOCK PIN AN901 MSP-323850-9 323850-9	£4.06	£4.87
97 - COMPRESSION SPRING 6 AN901 MSP-233201-7.A0 233201-7	£1.44	£1.73
98 - CHECK CLAW R AN901 MSP-344719-4 344719-4	£3.59	£4.31
99 - COMPRESSON SPRING 4 4304/DUX60 MSP-233101-1.A8 233101-1	£1.44	£1.73
100 - COMPRESSON SPRING 4 4304/DUX60 MSP-233101-1.A9 233101-1	£1.44	£1.73
101 - URETHANE RING 3 AN942/6837 MSP-262054-7.A23 262054-7	£1.44	£1.73
102 - CHECK CLAW AN901 MSP-344718-6 344718-6	£2.34	£2.81
103 - DOOR AN901 MSP-310072-0 310072-0	£80.01	£96.01
104 - PIN 4 AN901 MSP-268037-5 268037-5	£4.83	£5.80
105 - LOCK LEVER AN901 MSP-310050-0.A2 310050-0	£14.67	£17.60
106 - HEX SOCKET HD BOLT M4X10 AN9 MSP-266167-6.A3 266167-6	£1.44	£1.73
107 - COVER AN901 MSP-416809-4 416809-4	£1.44	£1.73
108 - RUBBER PIN 9.5 AN510/620/711 MSP-421418-6.A8 421418-6	£1.44	£1.73
109 - RUBBER PIN 9.5 AN510/620/711 MSP-421418-6.A9 421418-6	£1.44	£1.73
A01-1 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A6 195246-2	£2.55	£3.06
A02 - OIL SUPPLY 30CC AG125 AN451/AN MSP-181434-7.A6 181434-7	£1.20	£1.44
A03 - NOSE ADAPTER AN901 MSP-421658-6 421658-6	£4.40	£5.28
A04 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A38 783202-0	£1.20	£1.44

Attribute Name	Value
Brand	Makita
