Makita KP0810CK Power Planer Spare Parts

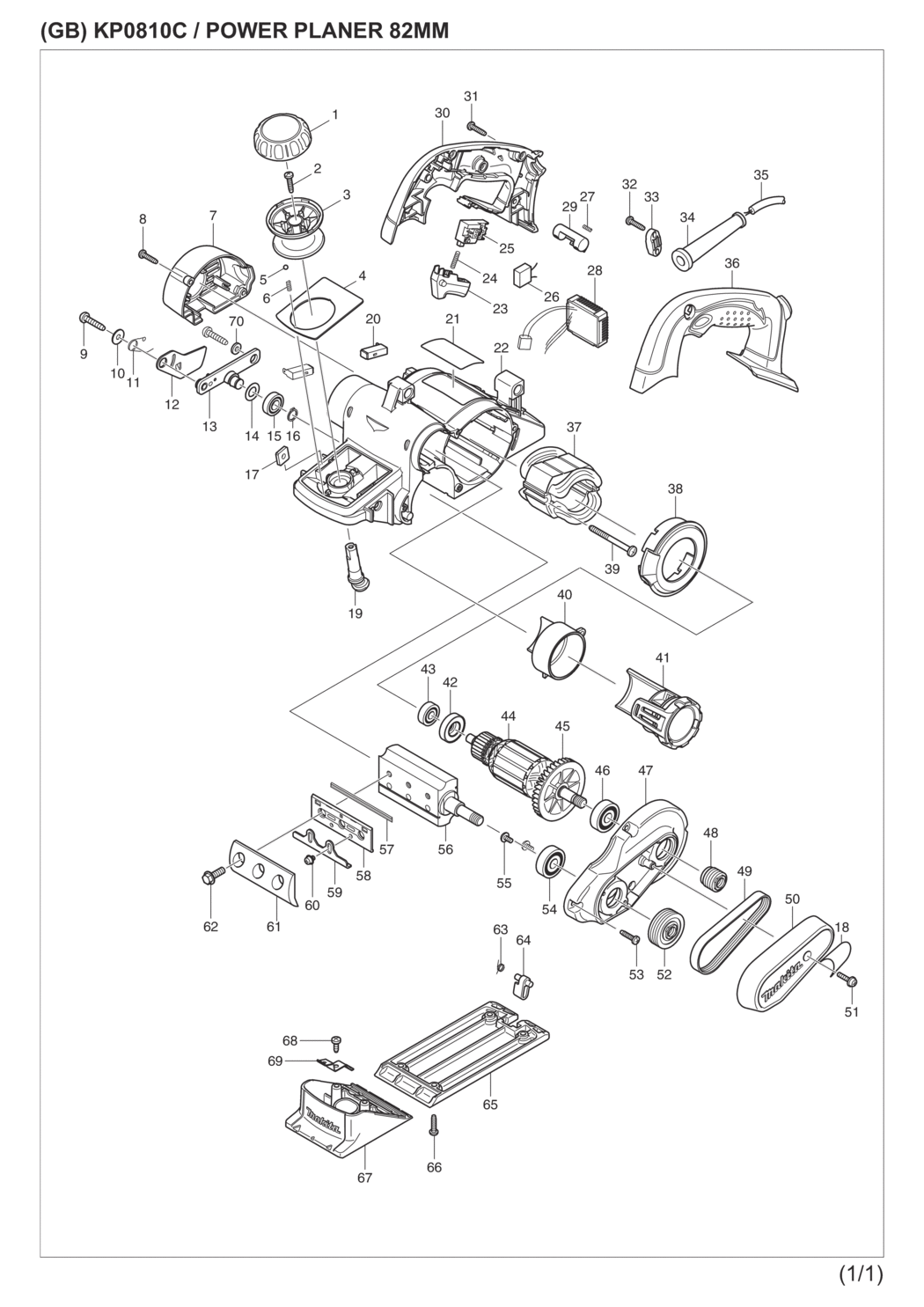

An exploded drawing and spare parts listing for the Makita KP0810CK Power Planer

	Ex VAT	Inc VAT
1 - KNOB COVER KP0810 MSP-419700-5.A1 419700-5	£6.55	£7.86
2 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1129 265995-6	£1.44	£1.73
3 - KNOB KP0810 MSP-419699-4.A1 419699-4	£2.50	£3.00
4 - FRONT PANEL KP0810 MSP-345766-8.A2 345766-8	£4.68	£5.62
5 - STEEL BALL 4 5008MB/JV101D MSP-216008-6.A14 216008-6	£1.44	£1.73
6 - COMPRESSION SPRING KP0810C MSP-233325-9.A0 233325-9	£1.44	£1.73
7 - REAR COVER KP0810 MSP-419697-8.A1 419697-8	£4.06	£4.87
8 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1130 265995-6	£1.44	£1.73
9 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A39 266041-8	£1.44	£1.73
10 - WASHER 5 HM1317C/CB/KP0810C/K MSP-253194-2.A9 253194-2	£1.44	£1.73
11 - TORSION SPRING 10 KP0810 MSP-233521-9.A1 233521-9	£1.44	£1.73
12 - DRUM COVER KP0810 MSP-345765-0.A2 345765-0	£2.50	£3.00
13 - DRUM HOLDER KP0810 MSP-158184-9.A1 158184-9	£26.92	£32.31
14 - THIN HARD WASHER 10 BST220/KP MSP-253758-2.A2 253758-2	£1.44	£1.73
15 - BALL BEARING 6900LLB KP0810C MSP-210057-5.A27 210057-5	£7.64	£9.17
16 - EXT DIN 471 CIRCLIP-10 KP0810 MSP-961006-2.A60 961006-2	£1.44	£1.73
17 - SQUARE NUT M5 KP0810C MSP-264002-2.A7 264002-2	£1.44	£1.73
18 - LABEL/ELECTRIC SPEED CONTROL MSP-805594-8 805594-8	£1.44	£1.73
19 - CAM A KP0810 MSP-419702-1.A1 419702-1	£1.44	£1.73
20 - CARBON BRUSH CB-132 KP0810C MSP-191972-1.A3 191972-1	£7.80	£9.36
21 - NAME PLATE KP0810C MSP-863215-8 863215-8	£1.44	£1.73
22 - HOUSING KP0810 MSP-419694-4.A1 419694-4	£29.38	£35.25
23 - SWITCH LEVER KP0810 MSP-419703-9.A1 419703-9	£1.44	£1.73
24 - COMPRESSION SPRING 3 KP0810 MSP-233408-5.A2 233408-5	£1.44	£1.73
26-1 - NOISE SUPPRESSOR/CONDENSOR MSP-645185-1.A2 645185-1	£1.44	£1.73
26 - NOISE SUPPRESSOR/CONDENSOR 64 MSP-645105-5.A20 645105-5	£2.34	£2.81
27 - COMPRESSION SPRING 4 MSP-231433-0.A55 231433-0	£1.44	£1.73
28 - CONTROLLER 110V KP0810C MSP-631736-6 631736-6	£46.33	£55.60
28 - CONTROLLER 240V KP0810C MSP-631737-4 631737-4	£46.33	£55.60
30 - HANDLE SET KP0810 MSP-188215-0.A3 188215-0	£20.30	£24.36
31 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1188 265995-6	£1.44	£1.73
32 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1261 265995-6	£1.44	£1.73
33 - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A81 687053-2	£1.44	£1.73
33 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A82 687052-4	£1.44	£1.73
34 - CORD GUARD HP1641/BO5031/HP16 MSP-682504-0.A23 682504-0	£2.50	£3.00
35 - POWER SUPPLY CORD HS6100/7100 MSP-695217-4.A28 695217-4	£12.48	£14.98
35 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A20 692527-0	£29.38	£35.25
36 - HANDLE SET KP0810 MSP-188215-0.A2 188215-0	£20.30	£24.36
37 - FIELD ASSY 110V KP0810C MSP-525751-9 525751-9	£32.69	£39.23
37 - FIELD ASSY 240V KP0810C MSP-525753-5 525753-5	£32.69	£39.23
37 - RECEPTACLE KP0810C/KP0810/UM1 MSP-654069-2.A16 654069-2	£1.44	£1.73
38 - BAFFLE PLATE KP0810 MSP-419701-3.A1 419701-3	£1.44	£1.73
39 - PT SCREW 5X55 UC3530A/KP0810 MSP-266095-5.A6 266095-5	£1.44	£1.73
40 - NOZZLE KP0810 MSP-419710-2.A1 419710-2	£2.65	£3.18
41 - AIR DUCT KP0810 MSP-125353-7.A2 125353-7	£5.46	£6.55
42 - INSULATION WASHER PC5000/01C MSP-681660-3.A0 681660-3	£5.78	£6.93
43 - BALL BEARING 608LLB(/608VV) 6 MSP-211031-6.A45 211031-6	£3.90	£4.68
44 - ARMATURE ASSY 110V KP0810C MSP-513686-6 513686-6	£59.92	£71.91
44 - ARMATURE ASSY 240V MSP-513688-2 513688-2	£59.92	£71.91
45 - FAN 62 KP0810 MSP-240079-1.A0 240079-1	£2.18	£2.62
46 - BALL BEARING VC3211M/KP0810/C MSP-211087-9.A7 211087-9	£9.67	£11.61
47 - BRACKET KP0810 MSP-158149-1.A1 158149-1	£13.58	£16.29
48 - V-PULLEY 4-20L KP0810C/KP0810 MSP-222125-2.A0 222125-2	£6.08	£7.30
49 - POLY V-BELT 4-24 DKP180 MSP-225007-7.A7 225007-7	£9.98	£11.98
51 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A33 911133-5	£1.44	£1.73
52 - V-PULLEY 4-37 KP0810C/KP0810 MSP-222126-0.A2 222126-0	£8.73	£10.48
53 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A885 265995-6	£1.44	£1.73
54 - BALL BEARING VC3211M/KP0810/C MSP-211087-9.A6 211087-9	£9.67	£11.61
55 - + SCREW M4X8 KP0810C/KP0810/ MSP-251291-8.A3 251291-8	£1.44	£1.73
56 - DRUM KP0810 MSP-158156-4.A1 158156-4	£42.48	£50.98
57-1 - *TCT PLANER BLADE MINI MT191/K MSP-D-07945.A7 D-07945	£13.65	£16.38
59 - ADJUST PLATE DKP180/KP0810/1 MSP-347027-2.A2 347027-2	£2.88	£3.46
60-1 - PAN HD SREW M4X5 DKP180 MSP-265132-2.A5 265132-2	£1.44	£1.73
60 - PAN HEAD SCREW W. WASHER M4X5 MSP-251246-3.A4 251246-3	£1.44	£1.73
61-1 - DRUM PLATE SET1923B(2PC/SET)N MSP-187676-1.A3 187676-1	£15.91	£19.09
62 - HEX HEAD M6X17 N1923BD MSP-251609-3.A14 251609-3	£1.44	£1.73
63 - TORSION SPRING 7 MT191/DKP180 MSP-231698-4.A10 231698-4	£1.44	£1.73
64 - FOOT KP0810 MSP-419706-3.A1 419706-3	£2.40	£2.88
65 - BASE KP0810 MSP-318098-6.A1 318098-6	£20.30	£24.36
66 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A886 265995-6	£1.44	£1.73
67 - FRONT BASE KP0810 MSP-158360-5.A1 158360-5	£21.89	£26.27
68 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A131 266026-4	£1.44	£1.73
69 - LEAF SPRING KP0810 MSP-232232-3.A1 232232-3	£1.44	£1.73
70 - FLAT WASHER KP0810C/KP0810 MSP-267012-8.A3 267012-8	£1.44	£1.73
A01 - *THIN BLUE WASHER 5 BO3710/11 MSP-267066-5.A10 267066-5	£1.44	£1.73
A01 - GUIDE HOLDER KP0810 MSP-345768-4.A0 345768-4	£1.20	£1.44
A01 - WING SCREW M5X10 KP0810C MSP-251871-0.A2 251871-0	£1.44	£1.73
A01 - WING SCREW M5X20 MT361/RP09/K MSP-251878-6.A4 251878-6	£1.44	£1.73
A01 - GUIDE RULE ASSY KP0810 MSP-122785-9.A1 122785-9	£5.10	£6.12
A01 - O RING 4 DGA463-DGA517/KP0810 MSP-213009-5.A5 213009-5	£1.44	£1.73
A01 - O RING 3 MT361/RBL25/RP1801 MSP-213022-3.A9 213022-3	£1.44	£1.73
A02 - BLADE GAUGE ASSY KP0810C MSP-123062-2.A6 123062-2	£5.72	£6.86
A02 - BLADE GAUGE PLATE BKP180Z MSP-411086-3.A0 411086-3	£1.20	£1.44
A03 - SOCKET WRENCH 9 KP0810C/KP0810 MSP-782209-3.A8 782209-3	£3.16	£3.79
A04 - WING SCREW M5X20 MT361/RP09/K MSP-251878-6.A5 251878-6	£1.44	£1.73
A05 - *THIN BLUE WASHER 5 BO3710/11 MSP-267066-5.A31 267066-5	£1.44	£1.73
A06 - DEPTH GUIDE KP0810C KP0810 MSP-342390-8.A1 342390-8	£2.34	£2.81
A07 - FASTENER PJ7000/KP0810C/KP0810 MSP-410602-8.A23 410602-8	£1.66	£1.99
A07 - DUST BAG ASSY KP0810 MSP-122793-0.A1 122793-0	£14.16	£16.99
A08 - PLASTIC CASE KP0810 MSP-824786-0.A0 824786-0	£28.97	£34.76
A09 - NAME PLATE KP0810CK MSP-805082-5 805082-5	£1.44	£1.73
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A146 654091-9	£1.44	£1.73
