Makita UX360DZ Cordless Multi Function Power Head Spare Parts

Home Details Reviews Delivery

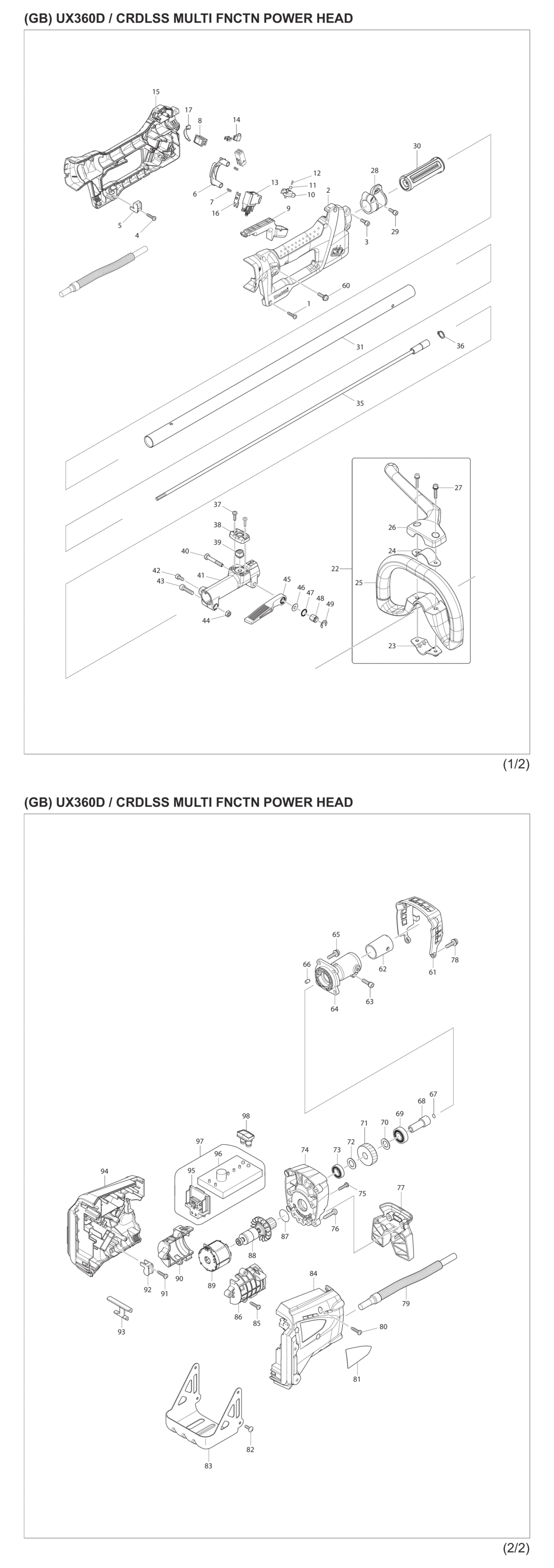

An exploded drawing and spare parts listing for the Makita UX360DZ Cordless Multi Function Power Head

	Ex VAT	Inc VAT
1 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A907 265995-6	£1.66	£1.99
2 - GRIP SET BC300LD/BUX360 MSP-188841-5.A16 188841-5	£97.96	£117.55
3 - HEX BOLT M5X18 DUR188L MSP-922228-9.A40 922228-9	£1.66	£1.99
4 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A906 265995-6	£1.66	£1.99
5 - STRAIN RELIEF BBC231URD/BUR36 MSP-687261-5.A30 687261-5	£1.66	£1.99
6 - LOCK OFF BUTTON BC300LD/BUR36 MSP-451983-1.A0 451983-1	£18.04	£21.65
7 - COMPRESSION SPRING 4 GN900SE/ MSP-233054-4.A4 233054-4	£1.66	£1.99
8 - SWITCH SLE6A2-33 BBC231U/300L MSP-651533-4.A13 651533-4	£4.29	£5.15
9 - SWITCH LEVER BC300LD/BUR360/B MSP-451984-9.A12 451984-9	£24.97	£29.96
10 - INDICATOR BC300LD/BUR360/BUX3 MSP-451986-5.A12 451986-5	£14.96	£17.95
11 - STEEL BALL 5.0 HP1641/6796 MSP-216018-3.A85 216018-3	£1.66	£1.99
12 - COMPRESSION SPRING 2 6835 MSP-233211-4.A29 233211-4	£1.66	£1.99
13 - SWITCH TGR3-3 BC300LD/BUR360/ MSP-650630-3.A12 650630-3	£16.72	£20.06
14 - RECEPTACLE SLEEVE BBC231URD MSP-686015-7.A13 686015-7	£1.66	£1.99
15 - GRIP SET BC300LD/BUX360 MSP-188841-5.A17 188841-5	£97.96	£117.55
16 - LINK PLATE BC300LD/BUR360/BUX MSP-451982-3.A12 451982-3	£10.79	£12.95
17 - LEAD COVER BC300LD/BUR360/BUX MSP-451985-7.A0 451985-7	£14.30	£17.16
22 - LOOP HANDLE SET BUX360/CS246 MSP-195515-1.A4 195515-1	£15.07	£18.08
23 - *CLAMP 24 ER2650LH/ER2550/BUR3 MSP-346467-1.A5 346467-1	£1.66	£1.99
23-1 - CLAMP 24 EM2511/EM2654/EM2511 MSP-347094-7.A17 347094-7	£1.66	£1.99
24 - CLAMP 33 ER2650LH/2550/BUR360 MSP-346468-9.A13 346468-9	£1.66	£1.99
25 - LOOP HANDLE ER2650LH/ER2550/B MSP-452841-4.A12 452841-4	£8.06	£9.67
26 - CLAMP COVER A BUX360Z/CS246.4 MSP-452842-2.A3 452842-2	£4.81	£5.77
27 - H.S.H BOLT M5X25 BUX360/CS246 MSP-922244-1.A8 922244-1	£1.66	£1.99
28 - HANGER BBC231U/BBC300L/BUX360 MSP-168478-4.A12 168478-4	£5.20	£6.24
29 - HEX BOLT M5X18 DUR188L MSP-922228-9.A39 922228-9	£1.66	£1.99
30 - SPACER EBH252L/BUX360/CS246.4 MSP-451601-1.A18 451601-1	£2.49	£2.99
31 - LABEL/CAUTION BUX360/DUX60 MSP-898125-0.A3 898125-0	£10.53	£12.64
31 - SHAFT PIPE B BUX360/DUX60 MSP-141499-1.A3 141499-1	£37.40	£44.88
35 - SHAFT B BUX360Z/CS246.4 MSP-141238-9.A8 141238-9	£24.97	£29.96
36 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A31 961052-5	£1.66	£1.99
37 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A71 266034-5	£1.66	£1.99
38 - RELEASE BUTTIN COVER BUX360Z MSP-452840-6.A2 452840-6	£1.66	£1.99
39 - RELEASE BUTTON BUX360Z/CS246.4 MSP-452839-1.A7 452839-1	£1.66	£1.99
40 - HEX BOLT M6X40 BUX360Z/CS246.4 MSP-265596-0.A8 265596-0	£1.66	£1.99
41 - JOINT 24 CS246.4/DUX60/BUX360 MSP-312D49-5.A9 312D49-5	£14.96	£17.95
42 - HS HEAD BOLT M5X12 EM2651LH MSP-922211-6.A17 922211-6	£1.66	£1.99
43 - CAP HD SCREW M6X25/CS246.4 MSP-922342-1.A7 922342-1	£1.66	£1.99
44 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A21 931302-2	£1.66	£1.99
45 - LEVER 94 BUX360Z/CS246.4/DUX60 MSP-272268-0.A3 272268-0	£2.49	£2.99
46 - THIN WASHER 6 6791D/CS246.4 MSP-253332-6.A4 253332-6	£1.66	£1.99
47 - O RING 11 HR2000/6835DWA/6833 MSP-213105-9.A9 213105-9	£1.66	£1.99
48 - HEX NUT M6 BPJ140/180/BSS500/ MSP-252159-1.A16 252159-1	£2.49	£2.99
49 - EXT E-RING JIS JE-8 BPJ140/18 MSP-961014-3.A58 961014-3	£1.66	£1.99
60 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A78 911233-1	£1.66	£1.99
61 - GEAR BOX COVER BC300LD/BUR360 MSP-451981-5.A1 451981-5	£41.69	£50.03
62 - PIPE RUBBER BBC231U/BBC300L/B MSP-424307-4.A6 424307-4	£2.49	£2.99
63 - CAP HD SCREW M5X20 EBH341U MSP-922231-0.A9 922231-0	£1.66	£1.99
64 - PIPE BRACKET BBC231U/BBC300L MSP-318560-1.A14 318560-1	£33.66	£40.39
65 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A79 911233-1	£1.66	£1.99
66 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A52 263002-9	£1.66	£1.99
67 - *O-RING 6 AN711/BO3710/11/BBC2 MSP-213045-1.A20 213045-1	£1.66	£1.99
68 - SPINDLE HUB BBC231U/BBC300L/B MSP-325811-5.A6 325811-5	£14.96	£17.95
69 - BALL BEARING 6001ZZ/EN4951SH MSP-211148-5.A8 211148-5	£4.94	£5.93
70 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A59 253744-3	£1.66	£1.99
71 - HELICAL GEAR 33 BBC231U/300L/ MSP-227720-3.A3 227720-3	£18.04	£21.65
72 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A58 253744-3	£1.66	£1.99
73 - BALL BEARING 6901ZZ/BUR360/BU MSP-211150-8.A14 211150-8	£4.03	£4.84
74 - GEAR BOX BBC231U/BBC300L/BUR3 MSP-318559-6.A3 318559-6	£46.64	£55.97
75 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A897 265995-6	£1.66	£1.99
76 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A22 266041-8	£1.66	£1.99
77 - STAND BBC231U/BBC300L/BUX360 MSP-451572-2.A3 451572-2	£5.18	£6.21
78 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A80 911233-1	£1.66	£1.99
79 - POWER SUPPLY CORD UNIT BUR360 MSP-699047-5.A9 699047-5	£16.17	£19.40
80 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A894 265995-6	£1.66	£1.99
81 - NAME PLATE UX360 MSP-897188-3.A4 897188-3	£1.66	£1.99
82 - SPECIAL PAN HD SCREW M4X12 MSP-251314-2.A32 251314-2	£1.66	£1.99
83 - BATTERY GUARD BBC231U/BBC300L MSP-346194-0.A12 346194-0	£29.26	£35.11
84 - *HOUSING SET DBC231U/DBC300L/ MSP-188836-8.A11 188836-8	£41.69	£50.03
85 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A896 265995-6	£1.66	£1.99
86 - MOTOR HOUSING SET BBC231U/300 MSP-188838-4.A23 188838-4	£14.30	£17.16
87 - O RING 22 BBC231/UX360/DUX60 MSP-213961-7.A10 213961-7	£1.66	£1.99
88 - ROTOR BBC231U/BBC300L/BUR360/ MSP-619254-4.A17 619254-4	£102.92	£123.51
89 - STATOR BBC231U/BBC300L/BUX360 MSP-629880-1.A10 629880-1	£77.11	£92.53
90 - MOTOR HOUSING SET BBC231U/300 MSP-188838-4.A22 188838-4	£14.30	£17.16
91 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A895 265995-6	£1.66	£1.99
92 - STRAIN RELIEF BBC231URD/BUR36 MSP-687261-5.A29 687261-5	£1.66	£1.99
93 - SUPPORT PLATE BUH550RD/BUB360 MSP-346039-2.A31 346039-2	£1.66	£1.99
94 - *HOUSING SET DBC231U/DBC300L/ MSP-188836-8.A10 188836-8	£41.69	£50.03
95 - TERMINAL UK360D/BUB360Z/BBC23 MSP-643849-1.A25 643849-1	£5.07	£6.08
97 - *CONTROLLER BBC231U/300L MSP-631941-5.A2 631941-5	£186.24	£223.49
98 - INDICATION PLATE CO BBC231/30 MSP-140285-7.A2 140285-7	£8.19	£9.83
A01 - BAND ASSY DUR365/AT1827H/MS248 MSP-125516-5.A6 125516-5	£3.48	£4.17
A02 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A79 783202-0	£1.20	£1.44
A03 - ACCESSORY BAG ER2650LH/EBH34 MSP-831304-7.A14 831304-7	£2.32	£2.78
