Makita HTR5600 Petrol Hedge Trimmer Spare Parts

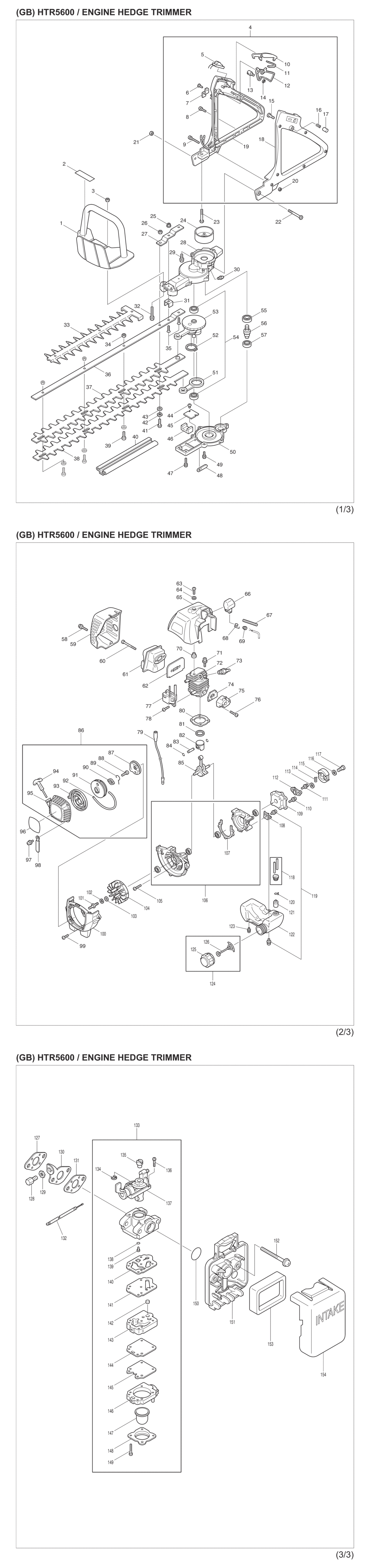

An exploded drawing and spare parts listing for the Makita HTR5600 Petrol Hedge Trimmer

	Ex VAT	Inc VAT
2 - LABEL/CAUTION EH760HTR5600 MSP-0736359980.A1 0736359980	£11.23	£13.48
3 - *NUT M6 HTR5600 MSP-0151060000.A1 0151060000	£1.44	£1.73
4-1 - REAR HANDLE ASSY HTR5600 MSP-126493-4.A1 126493-4	£51.22	£61.46
5 - *SWITCH HTR5600 MSP-0005044004 5044004	£17.13	£20.56
5-1 - SLIDE SWITCH EH561 MSP-005044004A.A0 005044004A	£18.72	£22.46
7 - CABLE HOLDER EH561/HTR5600 MSP-1181210000.A0 1181210000	£1.44	£1.73
8 - SCREW M4X16 (W SW) HTR5600 MSP-017040160K.A999 017040160K	£1.44	£1.73
8-1 - PAN HD SCREW M4X16 EH561 MSP-017040160K.A1 017040160K	£1.44	£1.73
9 - SCREW M4X30 (W SW) HTR5600 MSP-0017040300 17040300	£1.44	£1.73
9-1 - PAN HD SCREW M4X30 EH561 MSP-017040300K.A0 017040300K	£1.44	£1.73
11 - *SPRING HTR5600 MSP-0003010004 3010004	£7.80	£9.36
11-1 - LEAF SPRING EH561 118-162 MSP-1181620000.A1 1181620000	£8.89	£10.67
13 - WIRE END EH561/HTR5600 MSP-1181110000.A1 1181110000	£10.77	£12.92
14-1 - RETAINING RING ETW 2.5 EH561 MSP-280002500K.A1 280002500K	£1.44	£1.73
15 - LEVER PIN EH561/HTR5600 MSP-1181120000 1181120000	£6.71	£8.05
16 - SPRING EH561/HTR5600 MSP-1181140000 1181140000	£2.81	£3.37
17 - PIN CAP EH561/HTR5600 MSP-1181130000 1181130000	£2.81	£3.37
18 - REAR HANDLE EH561/HTR5600 MSP-1181500000.A0 1181500000	£14.51	£17.41
19 - REAR HANDLE (R) EH561/HTR5600 MSP-1181490000.A1 1181490000	£17.13	£20.56
20-1 - HEX NUT M4 EH561 MSP-150040000K.A1 150040000K	£1.44	£1.73
20 - *NUT M5 HTR5600 MSP-0015004000 15004000	£1.44	£1.73
21 - *NUT M6 HTR5600 MSP-0151060000.A0 0151060000	£1.44	£1.73
22-1 - BOLT M6X50 (W SW PW) HTR5600 MSP-266881-4 266881-4	£3.59	£4.31
23 - *BOLT M6X40 HTR5600 MSP-0055060400 55060400	£3.28	£3.93
24 - DRUM EH561/HTR5600/7610 MSP-1361410000.A3 1361410000	£37.44	£44.93
25 - *FLANGE NUT M5 PTR2500/HTR560 MSP-0162050000.A2 0162050000	£1.44	£1.73
25-1 - FLANGE NUT M5 EH561/MH2556/RP MSP-162050000K.A4 162050000K	£1.44	£1.73
26-1 - FLANGE NUT M5 EH561/MH2556/RP MSP-162050000K.A5 162050000K	£1.44	£1.73
26 - *FLANGE NUT M5 PTR2500/HTR560 MSP-0162050000.A3 0162050000	£1.44	£1.73
27 - *PLATE HTR5600/HTR7610 MSP-0325102004.A0 0325102004	£10.30	£12.36
27-1 - REINFORCING PLATE EH561/EH760 MSP-3251020040.A3 3251020040	£6.40	£7.68
28 - UPPER CASE HTR5600 MSP-0325100002.A0 0325100002	£94.25	£113.10
29-1 - (+) HEX BOLT M6X15 EH561 MSP-054060150K.A1 054060150K	£1.44	£1.73
30 - *GREASE NIPPLE M6 PTR2500/HTR MSP-0055000100.A2 0055000100	£6.40	£7.68
30-1 - GREASING NIPPLE MH2556/RPT250 MSP-055000100R.A2 055000100R	£2.81	£3.37
31-1 - SLIGHTLY STOPPER EH561 MSP-3251030040.A0 3251030040	£1.44	£1.73
32-1 - BOLT M6X35 EH760 MSP-054060350K.A1 054060350K	£1.44	£1.73
33-2 - BLADE GUARD HTR5600 MSP-XOC0000030 XOC0000030	£20.02	£24.02
34-1 - HEX U-NUT M6 EH561/MH2556 MSP-164060000K.A0 164060000K	£2.18	£2.62
35 - *SCREW M5X20 HTR5600/HTR7610 MSP-0011050205.A0 0011050205	£2.34	£2.81
36 - BLADE SUPPORT BAR EH561/HTR56 MSP-1181260000.A1 1181260000	£84.29	£101.15
37 - UPPER BLADE EH561/HT2256D/5600 MSP-6018505400.A1 6018505400	£51.14	£61.37
38 - LOWER BLADE EH561/HT2256D/5600 MSP-6018505500.A0 6018505500	£51.14	£61.37
39-1 - BLADE SLIDING SCREW L=19 MH25 MSP-040002009A.A2 040002009A	£5.62	£6.74
40-1 - BLADE COVER EH561 MSP-028002039A.A1 028002039A	£25.20	£30.24
41-1 - SCREW M6X22 HTR5600/7610 MSP-040003009A.A0 040003009A	£2.81	£3.37
42-1 - WAVE WASHER EH561 MSP-229060000K.A2 229060000K	£1.44	£1.73
43 - BLADE SLIDING WASHER EH561/MH MSP-0082500000.A4 0082500000	£1.44	£1.73
45 - ROD SLIDING PLATE EH561/HTR5 MSP-0301100000.A2 0301100000	£6.55	£7.86
46-1 - FELT EH561/EH760/HT2276E MSP-3251040040.A3 3251040040	£15.91	£19.09
46 - *FELT HTR5600/HTR7610 MSP-0325104004.A1 0325104004	£29.38	£35.25
47-1 - (+) HEX BOLT M5X16 EH561 MSP-054050160K.A3 054050160K	£1.44	£1.73
47 - BOLT M5X16 (W SW) HTR5600 MSP-0054050160.A2 0054050160	£1.44	£1.73
48 - CLAMP EH561/HTR5600 MSP-0566079970.A1 0566079970	£1.44	£1.73
49 - BOLT M5X16 (W SW) HTR5600 MSP-0054050160.A3 0054050160	£1.44	£1.73
49-1 - (+) HEX BOLT M5X16 EH561 MSP-054050160K.A4 054050160K	£1.44	£1.73
50 - *LOWER CASE HTR5600/HTR7610 MSP-0325101002.A1 0325101002	£44.88	£53.86
51-3 - ROD EH561/HTR5600/HR7610 MSP-XOC0000018.A0 XOC0000018	£48.58	£58.29
52-1 - RETAINING RING EH561 MSP-283026000K.A2 283026000K	£1.44	£1.73
52 - *SNAP RING HTR5600/HTR7610 MSP-0283026000.A1 0283026000	£2.65	£3.18
53 - GEAR CRANK ASSY EH561/HTR5600 MSP-1360030000.A0 1360030000	£178.20	£213.84
54 - *BALL BEARING ZZ 608 HTR5600 MSP-0353006080.A2 0353006080	£20.30	£24.36
55 - *BALL BEARING UU 6001 HTR5600 MSP-0354060010.A1 0354060010	£32.69	£39.23
56 - PINION GEAR EH561/HTR5600/761 MSP-1361420000.A0 1361420000	£71.44	£85.73
57 - *BALL BEARING ZZ 608 HTR5600 MSP-0353006080.A3 0353006080	£20.30	£24.36
58 - SCREW ASSY HTR5600/HTR7610 MSP-0140059290.A0 0140059290	£1.44	£1.73
59 - MUFFLER COVER EH561/HTR5600 MSP-5253500500.A1 5253500500	£10.30	£12.36
60-1 - SOCKET HEAD BOLT EH7500/HTR56 MSP-266754-1.A3 266754-1	£1.44	£1.73
61 - EXHAUST MUFFLER EH561/HTR5600 MSP-5253071000.A2 5253071000	£53.07	£63.68
62 - MUFFLER GASKET EH561/HTR5600 MSP-5253500102.A1 5253500102	£4.37	£5.24
64 - WASHER EH561/HTR5600 MSP-0200070010.A0 0200070010	£1.44	£1.73
65 - CYLINDER COVER EH561/HTR5600 MSP-5255500301.A3 5255500301	£14.20	£17.04
66 - PLUG CAP RBC221/MH2556/RST250 MSP-5237503301.A1 5237503301	£17.13	£20.56
67 - TUBE EH760/HT22765/HTR5600 MSP-0851049950.A1 0851049950	£1.44	£1.73
68-1 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A14 324891-8	£1.44	£1.73
69 - *GROMMET EPH1000/EH561/EM4251 MSP-5257500300.A7 5257500300	£1.44	£1.73
70 - SPACER EH7500/RBC3101/HTR560 MSP-5503503001.A1 5503503001	£2.34	£2.81
71 - *SOCKET HD BOLT M5X20 DBC260L MSP-0119059730.A13 0119059730	£1.44	£1.73
72-2 - CYLINDER MH2556/RPT250/PB250 MSP-318762-9.A0 318762-9	£125.75	£150.90
73-1 - SPARK PLUG EH561/RBC525E/MH25 MSP-168662-1.A6 168662-1	£29.38	£35.25
74 - INSULATOR GASKET EH561/HTR560 MSP-5253500200.A2 5253500200	£1.44	£1.73
75-1 - FLYWHEEL RBC201/MS20C/RST200 MSP-141056-5.A3 141056-5	£7.18	£8.61
76-1 - SCREW M5X25 RBC221/PB250/HTR5 MSP-266700-4.A9 266700-4	£1.44	£1.73
77 - IGNITION COIL EH561/HTR5600 MSP-5257001021.A3 5257001021	£124.23	£149.08
78 - SCREW ASSY M4X20 EM4251/MH25 MSP-0140049920.A0 0140049920	£1.44	£1.73
79 - WIRE CPL EH561/RBC420/HTR560 MSP-5607005000.A2 5607005000	£4.37	£5.24
80-1 - CYLINDER GASKET RBC221/251/MH MSP-442171-1.A3 442171-1	£2.81	£3.37
81-1 - PISTON RING RBC260/MH2556/PB2 MSP-257979-8.A5 257979-8	£8.73	£10.48
82 - PISTON RBC251/MH2556/PB250 MSP-5232501902.A3 5232501902	£35.86	£43.03
83-1 - PISTON PINT ER2650LH/EM2651LH MSP-257781-9.A14 257781-9	£1.44	£1.73
84-1 - CLIP ER2650LH/EM2651LH/EBH253 MSP-233976-8.A13 233976-8	£1.44	£1.73
85-1 - *CRANKSAHFT EH561/HTR MSP-5252002002.A2 5252002002	£80.01	£96.01
86 - REWIND STARTER HTR5600 MSP-5255052000.A1 5255052000	£42.48	£50.98
87 - PULLEY HTR5600 MSP-5255505900 5255505900	£4.37	£5.24
88-1 - TAPPING SCREW M5X12 ER2650LH MSP-266585-8.A13 266585-8	£1.44	£1.73
89-1 - SWING ARM ER2650/ER2550/CS246 MSP-325923-4.A5 325923-4	£1.44	£1.73
90-1 - COLLAR ER2650LH/ER2550/EY2650 MSP-451938-6.A12 451938-6	£1.44	£1.73
91-1 - REEL RBC201/MS20C/HTR5600 MSP-452972-9.A2 452972-9	£6.40	£7.68
92-1 - STARTER ROPE EM2651/EM2654 MSP-444024-0.A2 444024-0	£1.44	£1.73
93-1 - SPIRAL SPRING RBC201/MS20C MSP-234220-6.A1 234220-6	£11.70	£14.04
94-1 - STARTER KNOB ER2650LH/EM2651L MSP-424319-7.A7 424319-7	£2.34	£2.81
95-1 - DAMPER EM2651/ER2650/EN4951 MSP-424359-5.A0 424359-5	£1.44	£1.73
95 - *DAMPER EH7500/RPT250/HTR5600 MSP-5255001040.A2 5255001040	£3.74	£4.49
97 - SCREW ASSY HTR4900/HTR5600 MSP-0140049760.A1 0140049760	£1.44	£1.73
98 - *CLAMP RBC525/MS20C/EM4251/43 MSP-0566059980.A5 0566059980	£2.34	£2.81
99-1 - SCREW ASSY M5X18(W SW) RBC251 MSP-266699-3.A1 266699-3	£1.44	£1.73
100 - BLOWER HOUSING HTR5600/7610 MSP-5255505700 5255505700	£15.26	£18.31
101 - BOLT HTR5600/HTR7610 MSP-5257501400 5257501400	£4.37	£5.24
102 - SPRING WASHER M6 RBC310/RBC42 MSP-0032006000.A4 0032006000	£1.44	£1.73
103 - WASHER RBC230/525E/EM4251/MH MSP-0031206000.A4 0031206000	£1.44	£1.73
104 - FLYWHEEL HTR5600/7610 MSP-5257041010 5257041010	£69.93	£83.92
105-2 - HEX SOCKET HD BOLT M5X25/365U MSP-922241-7.A18 922241-7	£1.44	£1.73
106 - CRANKCASE EH561/HTR5 MSP-5251003000.A0 5251003000	£129.39	£155.27
107-1 - CRANKCASE GASKET RBC221/MH255 MSP-424447-8.A2 424447-8	£1.44	£1.73
108 - TANK PLATE EH561/HTR5600 MSP-5256002000.A0 5256002000	£4.68	£5.62
109 - *SPACER EH561/HTR5600/7610 MSP-1181240000.A1 1181240000	£21.17	£25.40
109-1 - SPACER EH561/HTR5600/7610 MSP-318892-6.A1 318892-6	£34.28	£41.13
110-1 - SCREW ASSY M5X18(W SW) RBC251 MSP-266699-3.A2 266699-3	£1.44	£1.73
111 - BOLT ASSY RBC230/MS3200/HTR56 MSP-6202006000.A2 6202006000	£1.44	£1.73
111-2 - HEX HD BOLT M6X14 EH450/RBC250 MSP-266703-8.A5 266703-8	£7.18	£8.61
112 - HOLDER EH561/HTR5600/7610 MSP-6202500000.A1 6202500000	£14.51	£17.41
113-1 - WASHER M6 EH561/RBC420E/525E MSP-267429-5.A2 267429-5	£1.44	£1.73
114 - CLUTCH SPRING EH561/RBC255 MSP-5238500500.A1 5238500500	£4.06	£4.87
115 - CLUTCH SHOE RBC225/230/255 MSP-6252500801.A2 6252500801	£18.72	£22.46
116-1 - WASHER 8 ER2650LH/EBH253U/ER2 MSP-267817-6.A8 267817-6	£1.44	£1.73
117-2 - SHOULDER HEX BOLT M6X25EM2651 MSP-266864-4.A10 266864-4	£1.44	£1.73
118 - TUBE EH561/HTR5600/7610 MSP-5256012001.A1 5256012001	£9.98	£11.98
119 - SCREW ASSY HTR5600/HTR7610 MSP-0140059290.A2 0140059290	£1.44	£1.73
120-1 - HOSE CLAMP ER2550/EBH251L/341 MSP-345920-4.A28 345920-4	£1.44	£1.73
121-1 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A13 163447-0	£3.42	£4.10
121-2 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A60 163447-0	£3.42	£4.10
122 - FUEL TANK EH561 MSP-5256025000.A0 5256025000	£40.03	£48.04
123 - TAPPING SCREW M5X18 HTR5600 MSP-0150059800.A2 0150059800	£1.44	£1.73
124-1 - CAP FUEL TANK ASSY RBC350E MSP-168668-9.A5 168668-9	£14.20	£17.04
125-1 - FUEL TANK CAP MS221/PB25 MSP-452920-8.A8 452920-8	£8.58	£10.30
126-1 - STRAP ER2550/EBH341U MSP-140436-2.A23 140436-2	£3.96	£4.75
127-1 - SPACER GASKET RBC230/260/320E MSP-442177-9.A12 442177-9	£1.44	£1.73
128-1 - CABLE ADJUST SCREW MS3200 MSP-326084-3.A3 326084-3	£10.30	£12.36
129 - NUT M6 EPH1000/RBL500/EM4251 MSP-0022706000.A3 0022706000	£1.44	£1.73
130 - CABLE BRACKET EH561/MH2556 MSP-5256501900.A1 5256501900	£4.99	£5.99
131-1 - SPACER GASKET RBC230/260/320E MSP-442177-9.A11 442177-9	£1.44	£1.73
132 - CONTROL CABLE EH561/HTR5600 MSP-0630029830.A0 0630029830	£10.92	£13.10
133 - CARBURETOR HTR5600/7610 MSP-5256085000 5256085000	£123.94	£148.73
134-1 - SROP RING E-3 ER2650LH/BHX250 MSP-257964-1.A13 257964-1	£2.81	£3.37
135-1 - SWIVEL ER2650LH/341U/BHX2501 MSP-325922-6.A22 325922-6	£5.46	£6.55
136-2 - SCREW DCS230T/EN4951SH/CS246.4 MSP-WJ00096364.A8 WJ00096364	£2.34	£2.81
136-1 - PAN HD SCREW M3X8 ER2650LH/E MSP-266581-6.A23 266581-6	£1.44	£1.73
137 - VALVE ASSY THROTTLE RBC3101/H MSP-5196002010.A2 5196002010	£59.92	£71.91
138-1 - O RING 2 ER2650LH/EBH253L/341 MSP-213538-8.A5 213538-8	£3.59	£4.31
139-1 - JET EH561/HT5600/7610 MSP-326085-1.A1 326085-1	£8.11	£9.73
140-1 - PUMP GASKET HTR4900/RBC2110 MSP-442172-9.A12 442172-9	£8.27	£9.92
141-2 - PUMP DIAPHRAGM DCS230T/EB7600T MSP-DA00001144.A30 DA00001144	£14.21	£17.05
142-2 - INLET SCREEN DCS230T/EA3201S MSP-WJ00014070.A23 WJ00014070	£1.44	£1.73
143-1 - PUMP BODY ASSY MS3200/RBC420 MSP-140989-1.A3 140989-1	£43.30	£51.96
144-1 - METERING DIAPHRAGM GASET EBH MSP-442154-1.A28 442154-1	£3.59	£4.31
145-1 - METERING DIAPHRAGM ASSY EH760 MSP-168767-7.A6 168767-7	£26.92	£32.31
146-1 - AIR PURGE BODY ASY DBC260L/U MSP-140988-3.A7 140988-3	£14.20	£17.04
147-1 - PRIMER PUMP ER2650LH/BHX2501 MSP-424314-7.A28 424314-7	£4.83	£5.80
148-1 - PRIMER PUMP COVER ER265/EM2511 MSP-346270-0.A28 346270-0	£4.83	£5.80
149-1 - TAPPING SREW M3X24 ER2550/EBH MSP-266582-4.A4 266582-4	£1.44	£1.73
150 - O RING HTR5600 MSP-5236061000.A2 5236061000	£1.44	£1.73
151 - AIR CLEANER HOUSING EH561 MSP-5253003020.A2 5253003020	£17.86	£21.43
152 - *SCREW ASSY EH561/RBC201/MS20C MSP-0043305650.A1 0043305650	£1.44	£1.73
153 - AIR FILTER EH561/RST200/HTR560 MSP-5203004010.A2 5203004010	£4.23	£5.08
154 - AIR CLEANER COVER EH561/HTR56 MSP-5253020010.A2 5253020010	£12.17	£14.60
157 - NEEDLE ROLLER BEARING RBC230/ MSP-0610089990.A3 0610089990	£7.49	£8.99
A01 - TOOL KIT EH561/LT250/PB250 MSP-5019001000.A2 5019001000	£3.94	£4.73

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita HTR5600 Petrol Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
