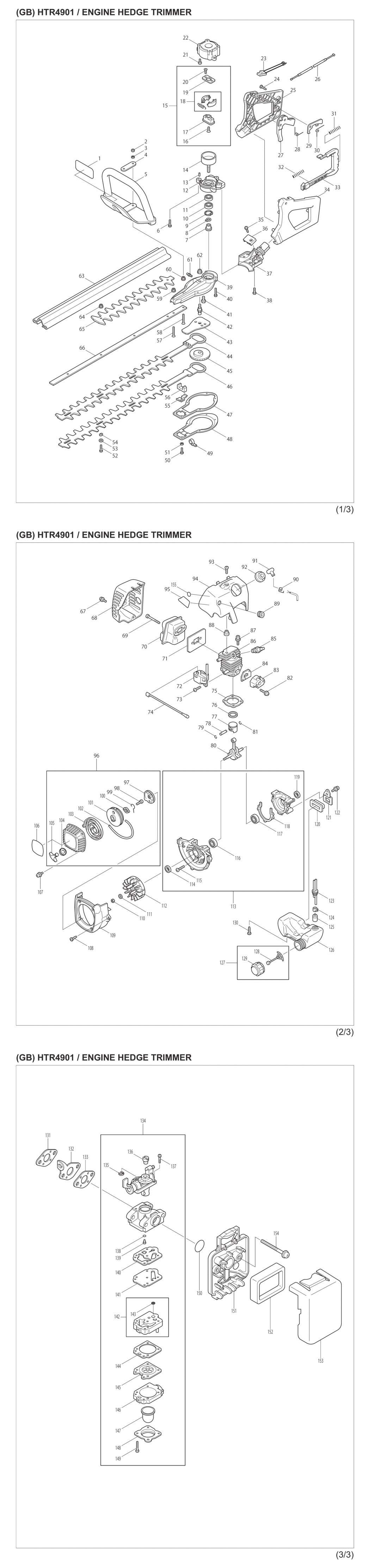

An exploded drawing and spare parts listing for the Makita HTR4901 Petrol Hedge Trimmer
Ex VAT Inc VAT
1 - LABEL/CAUTION EH760HTR5600 MSP-0736359980.A2 0736359980 £9.36 £11.23
2 - NYLON NUT HTR4900/4901 MSP-030051600N.A1 030051600N £2.49 £2.99
3 - SPRING WASHER 5 HTR4900/4901 MSP-032050000N.A1 032050000N £1.66 £1.99
5 - HANDLE FRONT HTR4901 MSP-30333011PK 30333011PK £17.49 £20.99
6-1 - TORX SCREW M5X20 EBH341R/HTR4 MSP-XNR0000098.A0 XNR0000098 £2.49 £2.99
12 - FLANGE HTR4900/4901 MSP-370355100N.A0 370355100N £39.93 £47.92
14 - CLUTCH DRUM HTR4900/4901 MSP-303555200N.A1 303555200N £39.93 £47.92
15 - CLUTCH ASSY HTR4900/4901 MSP-370540000N.A1 370540000N £69.77 £83.72
16 - FLAT HEAD SCREW M6X18 HTR4901 MSP-005061800N.A0 005061800N £1.66 £1.99
18 - CLUTCH SHOE W/SPRING HTR4900/ MSP-305077000N.A0 305077000N £23.10 £27.72
19 - CLUTCH PLATE HTR4900/4901 MSP-305040411N.A1 305040411N £4.29 £5.15
20 - FLAT HEAD SCREW M4X12 HTR4901 MSP-005041200N.A0 005041200N £1.66 £1.99
22 - ENGINE BASE HTR4901 MSP-303350100N.A0 303350100N £39.93 £47.92
23 - SWITCH STOP HTR4901 MSP-099832620N 099832620N £26.18 £31.42
24 - TAPPING HD SCREW 4.5X16 HTR49 MSP-303341300N.A2 303341300N £1.66 £1.99
25 - HANDLE(B) REAR HTR4901 MSP-37094021PK 37094021PK £29.92 £35.90
26 - WIRE THROTTLE HTR4901 MSP-099861011N 099861011N £12.48 £14.98
27 - THROTTLE LEVER HTR4901 MSP-30334033PB 30334033PB £4.03 £4.84
28 - SPRING THROTTLE LEVER HTR490 MSP-303340510N 303340510N £5.33 £6.40
30 - LOCK LEVER SPRING HTR4901 MSP-303340700N.A1 303340700N £1.66 £1.99
31 - SPRING ROTATE LEVER HTR4901 MSP-370941300N.A0 370941300N £6.89 £8.27
32 - SPRING ROTATE LEVER HTR4901 MSP-370941300N.A1 370941300N £6.89 £8.27
33 - ROTATE LEVER HTR4901 MSP-37094081PB 37094081PB £7.15 £8.58
34 - HANDLE(A) REAR HTR4901 MSP-37094010PK 37094010PK £29.92 £35.90
35 - TAPPING HD SCREW 4.5X16 HTR49 MSP-303341300N.A3 303341300N £1.66 £1.99
36 - HOLDER THROTTLE WIRE HTR4901 MSP-37094120PK 37094120PK £2.49 £2.99
37 - HOLDER REAR HANDLE HTR4901 MSP-37114100PK 37114100PK £6.24 £7.49
38-1 - TORX SCREW M6X18 EBH341R/HTR4 MSP-XNR0000113.A1 XNR0000113 £1.66 £1.99
38 - *TORX SCREW M6X18 EBH341R/HTR MSP-065061800N.A0 065061800N £1.66 £1.99
40 - TORX SCREW M5X25 EBH341R/HTR4 MSP-065052500N.A1 065052500N £1.66 £1.99
41 - TORX SCREW M5X15 HTR4900/4901 MSP-065051500N.A0 065051500N £1.66 £1.99
42 - CRANK SHAFT HTR4900/4901 MSP-303510700N.A1 303510700N £14.96 £17.95
43 - CRANK PLATE HTR4900/4901 MSP-303511100N.A1 303511100N £4.81 £5.77
44 - CUTTER BLADE HTR4900/4901 MSP-303522000N.A1 303522000N £55.16 £66.19
45 - CRANK GEAR HTR4900/4901 MSP-303510800N.A0 303510800N £78.41 £94.09
46 - CUTTER BLADE HTR4900/4901 MSP-303522000N.A0 303522000N £55.16 £66.19
47 - GASKET HTR4900/4901 MSP-303513000N.A1 303513000N £9.49 £11.39
48 - CASE COVER HTR4900/HTR4901 MSP-303510200N.A1 303510200N £14.30 £17.16
50 - TORX BOLT M4X12 HTR4900/4901 MSP-065041200N.A1 065041200N £1.66 £1.99
51 - SPRING WASHER 4 HTR4900/4901 MSP-032040000N.A0 032040000N £1.66 £1.99
52-1 - TORX SCREW M5X20 EBH341R/HTR4 MSP-XNR0000098.A1 XNR0000098 £2.49 £2.99
53 - BLADE BOLT WASHER HTR4901 MSP-306020400N.A1 306020400N £2.49 £2.99
54 - GUIDE BLOCK HTR4900/4901 MSP-303520900N.A1 303520900N £2.49 £2.99
55 - PLATE HTR4900/4901 MSP-303511200N.A0 303511200N £4.03 £4.84
56 - GASKET HTR4900/4901 MSP-303510400N.A0 303510400N £2.49 £2.99
57 - BT M5X35 HTR4900/4901 MSP-068053500N.A1 068053500N £2.49 £2.99
58 - BT M5X35 HTR4900/4901 MSP-068053500N.A2 068053500N £2.49 £2.99
59 - FLANGE NUT M5 HTR4900/4901 MSP-030051400N.A1 030051400N £1.66 £1.99
60 - FLANGE NUT M5 HTR4900/4901 MSP-030051400N.A2 030051400N £1.66 £1.99
62 - FLANGE NUT M8 HTR4900/4901 MSP-030081400N.A0 030081400N £1.66 £1.99
63 - CUTTER BLADE COVER HTR4900/0 MSP-303560100N.A0 303560100N £10.66 £12.79
64 - NYLON NUT M5 HTR4901 MSP-030051100N.A0 030051100N £2.49 £2.99
65 - PROTECTOR HTR4900/4901 MSP-303329000N.A0 303329000N £24.20 £29.04
66 - CUTTER GUIDE HTR4900/4901 MSP-303520100N.A0 303520100N £26.18 £31.42
68 - MUFFLER COVER HTR4900/4901 MSP-5193500201.A0 5193500201 £7.54 £9.05
70 - EXHAUST MUFFLER HTR4900/4901 MSP-5193020000.A0 5193020000 £27.39 £32.87
71 - MUFFLER INSULATOR HTR4900/490 MSP-5193500302.A1 5193500302 £2.49 £2.99
72 - COIL HTR4900/4901 MSP-5197003021.A0 5197003021 £91.80 £110.16
74 - *WIRE EPH1000/EM4251/434 MSP-5257018001.A3 5257018001 £2.49 £2.99
75-1 - CYLINDER GASKET RBC201/MS20C MSP-442173-7.A1 442173-7 £2.49 £2.99
76-1 - PISTON RING HTR4900/RBC2110 MSP-257320-5.A1 257320-5 £4.55 £5.46
77-1 - PISTON HTR4900/RBC2110 MSP-318831-6.A1 318831-6 £16.72 £20.06
78-1 - PISTON PIN RBC201/MS20C/RBC21 MSP-268277-5.A2 268277-5 £3.25 £3.90
79-1 - CLIP ER2650LH/EM2651LH/EBH253 MSP-233976-8.A14 233976-8 £1.66 £1.99
80 - CRANKSHAFT HTR4900/4901 MSP-5192003004.A1 5192003004 £127.41 £152.89
81-1 - CLIP ER2650LH/EM2651LH/EBH253 MSP-233976-8.A15 233976-8 £1.66 £1.99
82 - *SCREW ASSY HTR4900/4901 MSP-0140059400.A0 0140059400 £1.66 £1.99
83 - INSULATOR HTR4900/4901 MSP-5213001000.A0 5213001000 £4.16 £4.99
84-1 - INSULATOR GASKET RBC221/MH255 MSP-424448-6.A6 424448-6 £1.66 £1.99
85 - SPARK PLUG HTR4900 MSP-0650149640.A0 0650149640 £21.12 £25.34
86-1 - CYLINDER HTR4900/RBC2110 MSP-318785-7.A2 318785-7 £59.40 £71.28
87 - *SOCKET HD BOLT M5X20 DBC260L MSP-0119059730.A14 0119059730 £1.66 £1.99
88 - SPACER EH7500/RBC3101/HTR560 MSP-5503503001.A0 5503503001 £2.49 £2.99
89 - *GROMMET EPH1000/EH561/EM4251 MSP-5257500300.A6 5257500300 £2.49 £2.99
90-1 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A13 324891-8 £1.66 £1.99
91-1 - PLUG CAP RST200/PTR2500/RBC21 MSP-424337-5.A1 424337-5 £1.66 £1.99
92 - PLUG CAP COVER HTR4900/4901 MSP-5197500002.A0 5197500002 £3.38 £4.06
94 - CYLINDER COVER HTR4900/4901 MSP-5195500701.A0 5195500701 £10.27 £12.32
95 - LABEL/TRADE MARK HTR4901 MSP-6019519500 6019519500 £3.51 £4.21
96 - REWIND STARTER HTR4900/4901 MSP-5195003003.A1 5195003003 £24.97 £29.96
97-1 - PULLEY ER2550/BHX2501/ER2650L MSP-168483-1.A12 168483-1 £1.66 £1.99
98-1 - TAPPING SCREW M5X12 ER2650LH MSP-266585-8.A12 266585-8 £2.49 £2.99
99-1 - SWING ARM ER2650/ER2550/CS246 MSP-325923-4.A4 325923-4 £1.66 £1.99
100-1 - COLLAR ER2650LH/ER2550/EY2650 MSP-451938-6.A13 451938-6 £1.66 £1.99
101-1 - REEL RBC201/MS20C/HTR5600 MSP-452972-9.A1 452972-9 £5.33 £6.40
102-1 - STARTER ROPE EM2651/EM2654 MSP-444024-0.A1 444024-0 £2.49 £2.99
103-1 - SPIRAL SPRING RBC201/MS20C MSP-234220-6.A0 234220-6 £9.75 £11.70
104-1 - DAMPER EM2651/ER2650/EN4951 MSP-424359-5.A7 424359-5 £1.66 £1.99
104 - *DAMPER EH7500/RPT250/HTR5600 MSP-5255001040.A3 5255001040 £2.49 £2.99
105-1 - STARTER KNOB ER2650LH/EM2651L MSP-424319-7.A6 424319-7 £2.49 £2.99
106 - LABEL/MODEL HTR4901 MSP-6019519300 6019519300 £3.64 £4.37
107 - SCREW ASSY HTR4900/HTR5600 MSP-0140049760.A2 0140049760 £1.66 £1.99
109 - BLOWER HOUSING HTR4900/4901 MSP-5195500800.A1 5195500800 £10.66 £12.79
110 - LOCK NUT HTR4900/4901 MSP-0173089990.A0 0173089990 £1.66 £1.99
111 - WASHER G4300IS/G3501R/HTR490 MSP-0031008000.A0 0031008000 £1.66 £1.99
112 - FLYWHEEL HTR4900/4901 MSP-5197003014.A1 5197003014 £56.92 £68.30
113 - *CRANK CASE ASSY HTR4900/4901 MSP-5191006000.A0 5191006000 £100.44 £120.53
114-1 - OIL SEAL RBC201/RBC2110 MSP-213638-4.A1 213638-4 £2.49 £2.99
115-2 - HEX SOCKET HD BOLT M5X25/365U MSP-922241-7.A8 922241-7 £1.66 £1.99
116-1 - *BALL BEARING 6000 EH7500/260 MSP-210086-8.A7 210086-8 £9.75 £11.70
117-1 - *BALL BEARING 6000 EH7500/260 MSP-210086-8.A10 210086-8 £9.75 £11.70
118-1 - GASKET CRANKCASE RBC201/MS20C MSP-442174-5.A2 442174-5 £11.96 £14.35
119-1 - OIL SEAL RBC201/RBC2110 MSP-213638-4.A0 213638-4 £2.49 £2.99
120 - *DAMPER EPH1000/EM4251/4340L MSP-5196500302.A0 5196500302 £2.49 £2.99
120-1 - DAMPER ER2550/EBH253L/EBH341U MSP-424104-8.A5 424104-8 £2.49 £2.99
121 - FUEL TANK PLATE HTR4900/4901 MSP-5196500201.A1 5196500201 £4.94 £5.93
122-1 - PAN HD SCREW M5X10 W/CP WASHE MSP-911208-0.A3 911208-0 £1.66 £1.99
123 - TUBE HTR4900/4901 MSP-0851149950.A1 0851149950 £6.24 £7.49
124-1 - HOSE CLAMP ER2550/EBH251L/341 MSP-345920-4.A14 345920-4 £1.66 £1.99
125-1 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A23 163447-0 £2.49 £2.99
125-2 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A50 163447-0 £2.49 £2.99
126 - FUEL TANK HTR4900/4901 MSP-5196011000.A1 5196011000 £18.04 £21.65
127-1 - CAP FUEL TANK ASSY RBC350E MSP-168668-9.A3 168668-9 £11.83 £14.20
128-1 - STRAP ER2550/EBH341U MSP-140436-2.A13 140436-2 £3.96 £4.75
129-1 - FUEL TANK CAP MS221/PB25 MSP-452920-8.A5 452920-8 £7.15 £8.58
131-1 - SPACER GASKET RBC230/260/320E MSP-442177-9.A5 442177-9 £1.66 £1.99
132 - CABLE BRACKET EH561/MH2556 MSP-5256501900.A4 5256501900 £4.16 £4.99
133-1 - SPACER GASKET RBC230/260/320E MSP-442177-9.A6 442177-9 £1.66 £1.99
134 - CARBURETOR HTR4900/4901 MSP-5196038000.A0 5196038000 £109.28 £131.14
135-1 - SROP RING E-3 ER2650LH/BHX250 MSP-257964-1.A1 257964-1 £2.49 £2.99
136-1 - SWIVEL ER2650LH/341U/BHX2501 MSP-325922-6.A26 325922-6 £4.55 £5.46
137-2 - SCREW DCS230T/EN4951SH/CS246.4 MSP-WJ00096364.A7 WJ00096364 £2.49 £2.99
137-1 - PAN HD SCREW M3X8 ER2650LH/E MSP-266581-6.A15 266581-6 £2.49 £2.99
138-1 - O RING 2 ER2650LH/EBH253L/341 MSP-213538-8.A16 213538-8 £2.49 £2.99
139 - JET MS221/HTR4901 MSP-5256024020.A0 5256024020 £8.32 £9.98
140-1 - PUMP GASKET HTR4900/RBC2110 MSP-442172-9.A6 442172-9 £6.89 £8.27
141-2 - PUMP DIAPHRAGM DCS230T/EB7600T MSP-DA00001144.A29 DA00001144 £11.83 £14.20
142-1 - PUMP BODY ASSY MS3200/RBC420 MSP-140989-1.A5 140989-1 £36.08 £43.30
143-2 - INLET SCREEN DCS230T/EA3201S MSP-WJ00014070.A8 WJ00014070 £2.49 £2.99
144-1 - METERING DIAPHRAGM GASET EBH MSP-442154-1.A21 442154-1 £2.49 £2.99
145-1 - METERING DIAPHRAGM ASSY EH760 MSP-168767-7.A3 168767-7 £20.57 £24.68
146-1 - AIR PURGE BODY ASY DBC260L/U MSP-140988-3.A4 140988-3 £11.83 £14.20
147-1 - PRIMER PUMP ER2650LH/BHX2501 MSP-424314-7.A16 424314-7 £4.03 £4.84
148-1 - PRIMER PUMP COVER ER265/EM2511 MSP-346270-0.A20 346270-0 £4.03 £4.84
149-1 - TAPPING SREW M3X24 ER2550/EBH MSP-266582-4.A12 266582-4 £2.49 £2.99
150 - O RING HTR5600 MSP-5236061000.A5 5236061000 £1.66 £1.99
151 - AIR CLEANER HOUSING EH561 MSP-5253003020.A6 5253003020 £13.64 £16.37
152 - AIR FILTER EH561/RST200/HTR560 MSP-5203004010.A4 5203004010 £4.90 £5.88
153 - AIR CLEANER COVER HTR4900/490 MSP-5253055010.A0 5253055010 £12.43 £14.92
154 - SCREW ASSY M5X60 (W/W) HTR490 MSP-0043305600.A0 0043305600 £1.66 £1.99
A04 - GOGGLE HTR4901 MSP-099890100N 099890100N £6.95 £8.34
