Makita HTR4900 Petrol Hedge Trimmer Spare Parts

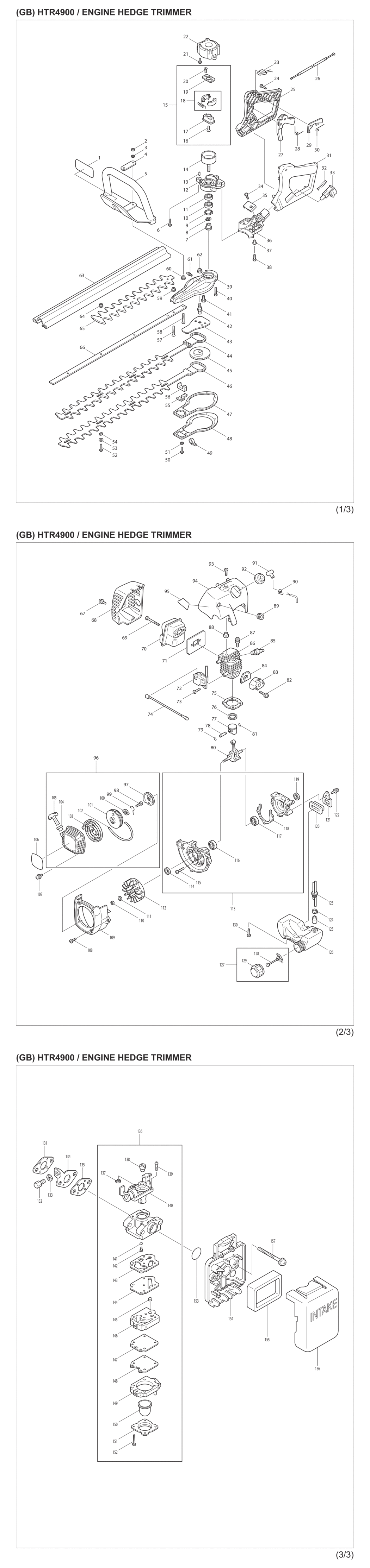

An exploded drawing and spare parts listing for the Makita HTR4900 Petrol Hedge Trimmer

	Ex VAT	Inc VAT
1 - LABEL/CAUTION EH760HTR5600 MSP-0736359980.A3 0736359980	£11.23	£13.48
2-1 - NYLON NUT HTR4900/4901 MSP-030051600N.A0 030051600N	£1.44	£1.73
3-1 - SPRING WASHER 5 HTR4900/4901 MSP-032050000N.A0 032050000N	£1.44	£1.73
5-1 - FRONT HANDLE HTR4900/HT2149D MSP-303330100N 303330100N	£18.72	£22.46
6-2 - TORX SCREW M5X20 EBH341R/HTR4 MSP-XNR0000098.A2 XNR0000098	£2.02	£2.43
12-1 - FLANGE HTR4900/4901 MSP-370355100N.A1 370355100N	£47.92	£57.50
14-1 - CLUTCH DRUM HTR4900/4901 MSP-303555200N.A0 303555200N	£47.92	£57.50
15-1 - CLUTCH ASSY HTR4900/4901 MSP-370540000N.A0 370540000N	£81.40	£97.68
16-1 - FLAT HEAD SCREW M6X18 HTR4901 MSP-005061800N.A1 005061800N	£1.44	£1.73
18-1 - CLUTCH SHOE W/SPRING HTR4900/ MSP-305077000N.A1 305077000N	£30.24	£36.29
19-1 - CLUTCH PLATE HTR4900/4901 MSP-305040411N.A0 305040411N	£5.15	£6.18
20-1 - FLAT HEAD SCREW M4X12 HTR4901 MSP-005041200N.A1 005041200N	£1.44	£1.73
22-1 - ENGINE BASE HTR4901 MSP-303350100N.A1 303350100N	£47.92	£57.50
23-1 - *STOP SWITCH HTR4900/HT2149D MSP-099832600N 099832600N	£25.20	£30.24
24-1 - TAPPING HD SCREW 4.5X16 HTR49 MSP-303341300N.A1 303341300N	£1.44	£1.73
25-1 - REAR HANDLE (B)HTR4900/HT2149 MSP-303340221N 303340221N	£17.86	£21.43
26 - *THROTTLE WIRE HTR4900 MSP-0998610000 998610000	£8.27	£9.92
26-1 - THROTTLE WIRE HTR4900/HT2149D MSP-099861000N 099861000N	£9.20	£11.04
27-2 - THROTTLE LEVER HT2149D MSP-303340320N 303340320N	£4.21	£5.05
27 - THROTTLE LEVER HTR4900 MSP-3033403100 3033403100	£3.74	£4.49
28-1 - THROTTLE LEVER SPRING HT2149D MSP-303340500N 303340500N	£5.15	£6.18
29-1 - LOCK LEVER HTR4900/HT2149D MSP-303340600N 303340600N	£1.44	£1.73
30-1 - LOCK LEVER SPRING HTR4901 MSP-303340700N.A0 303340700N	£1.44	£1.73
31-1 - *REAR HANDLE (A) HTR4900 MSP-303340121N 303340121N	£22.90	£27.48
32-1 - LOCK PIN SPRING HTR4900/HT214 MSP-303340900N 303340900N	£2.18	£2.62
33-1 - LOCK PIN HTR4900/HT2149D MSP-303340811N 303340811N	£5.78	£6.93
34-1 - TAPPING HD SCREW 4.5X16 HTR49 MSP-303341300N.A0 303341300N	£1.44	£1.73
35-1 - THROTTLE WIRE HOLDER HTR4900 MSP-303341200N 303341200N	£2.02	£2.43
36-2 - REAR HANDLE HOLDER HTR4900 MSP-371241000N 371241000N	£13.10	£15.72
38-1 - *TORX SCREW M6X18 EBH341R/HTR MSP-065061800N.A1 065061800N	£1.44	£1.73
38-2 - TORX SCREW M6X18 EBH341R/HTR4 MSP-XNR0000113.A0 XNR0000113	£1.44	£1.73
40-1 - TORX SCREW M5X25 EBH341R/HTR4 MSP-065052500N.A0 065052500N	£1.44	£1.73
41-1 - TORX SCREW M5X15 HTR4900/4901 MSP-065051500N.A1 065051500N	£1.44	£1.73
42-1 - CRANK SHAFT HTR4900/4901 MSP-303510700N.A0 303510700N	£19.58	£23.50
43-1 - CRANK PLATE HTR4900/4901 MSP-303511100N.A0 303511100N	£5.78	£6.93
44-1 - CUTTER BLADE HTR4900/4901 MSP-303522000N.A2 303522000N	£55.16	£66.19
45-1 - CRANK GEAR HTR4900/4901 MSP-303510800N.A1 303510800N	£91.48	£109.77
46-1 - CUTTER BLADE HTR4900/4901 MSP-303522000N.A3 303522000N	£55.16	£66.19
47-1 - GASKET HTR4900/4901 MSP-303513000N.A0 303513000N	£11.39	£13.67
48-1 - CASE COVER HTR4900/HTR4901 MSP-303510200N.A0 303510200N	£18.72	£22.46
49 - *CLAMP HTR4900 MSP-0998615000 998615000	£1.44	£1.73
50-1 - TORX BOLT M4X12 HTR4900/4901 MSP-065041200N.A0 065041200N	£1.44	£1.73
51-1 - SPRING WASHER 4 HTR4900/4901 MSP-032040000N.A1 032040000N	£1.44	£1.73
52-2 - TORX SCREW M5X20 EBH341R/HTR4 MSP-XNR0000098.A3 XNR0000098	£2.02	£2.43
53-1 - BLADE BOLT WASHER HTR4901 MSP-306020400N.A0 306020400N	£2.18	£2.62
54-1 - GUIDE BLOCK HTR4900/4901 MSP-303520900N.A0 303520900N	£2.97	£3.56
55-1 - PLATE HTR4900/4901 MSP-303511200N.A1 303511200N	£4.83	£5.80
56-1 - GASKET HTR4900/4901 MSP-303510400N.A1 303510400N	£3.28	£3.93
57-1 - BT M5X35 HTR4900/4901 MSP-068053500N.A0 068053500N	£1.44	£1.73
58-1 - BT M5X35 HTR4900/4901 MSP-068053500N.A3 068053500N	£1.44	£1.73
59-1 - FLANGE NUT M5 HTR4900/4901 MSP-030051400N.A0 030051400N	£1.44	£1.73
60-1 - FLANGE NUT M5 HTR4900/4901 MSP-030051400N.A3 030051400N	£1.44	£1.73
62-1 - FLANGE NUT M8 HTR4900/4901 MSP-030081400N.A1 030081400N	£1.44	£1.73
63-1 - CUTTER BLADE COVER HTR4900/0 MSP-303560100N.A1 303560100N	£12.79	£15.35
64-1 - NYLON NUT M5 HTR4901 MSP-030051100N.A1 030051100N	£1.44	£1.73
65-1 - PROTECTOR HTR4900/4901 MSP-303329000N.A1 303329000N	£31.68	£38.02
66-1 - CUTTER GUIDE HTR4900/4901 MSP-303520100N.A1 303520100N	£34.28	£41.13
68 - MUFFLER COVER HTR4900/4901 MSP-5193500201.A1 5193500201	£9.05	£10.86
70 - EXHAUST MUFFLER HTR4900/4901 MSP-5193020000.A1 5193020000	£35.86	£43.03
71 - MUFFLER INSULATOR HTR4900/490 MSP-5193500302.A0 5193500302	£2.81	£3.37
72 - COIL HTR4900/4901 MSP-5197003021.A1 5197003021	£107.10	£128.52
74 - *WIRE EPH1000/EM4251/434 MSP-5257018001.A0 5257018001	£2.50	£3.00
75-1 - CYLINDER GASKET RBC201/MS20C MSP-442173-7.A3 442173-7	£2.65	£3.18
76-1 - PISTON RING HTR4900/RBC2110 MSP-257320-5.A2 257320-5	£5.46	£6.55
77-1 - PISTON HTR4900/RBC2110 MSP-318831-6.A2 318831-6	£21.89	£26.27
78-1 - PISTON PIN RBC201/MS20C/RBC21 MSP-268277-5.A0 268277-5	£3.90	£4.68
79-1 - CLIP ER2650LH/EM2651LH/EBH253 MSP-233976-8.A18 233976-8	£1.44	£1.73
80-1 - CRANKSHAFT HTR4900/4901 MSP-5192003004.A0 5192003004	£144.24	£173.09
81-1 - CLIP ER2650LH/EM2651LH/EBH253 MSP-233976-8.A19 233976-8	£1.44	£1.73
82 - *SCREW ASSY HTR4900/4901 MSP-0140059400.A1 0140059400	£1.44	£1.73
83 - INSULATOR HTR4900/4901 MSP-5213001000.A1 5213001000	£4.99	£5.99
84-1 - INSULATOR GASKET RBC221/MH255 MSP-424448-6.A3 424448-6	£1.44	£1.73
85 - SPARK PLUG HTR4900 MSP-0650149640.A1 0650149640	£27.65	£33.18
86-1 - CYLINDER HTR4900/RBC2110 MSP-318785-7.A0 318785-7	£69.30	£83.16
87 - *SOCKET HD BOLT M5X20 DBC260L MSP-0119059730.A5 0119059730	£1.44	£1.73
88 - SPACER EH7500/RBC3101/HTR560 MSP-5503503001.A10 5503503001	£2.34	£2.81
89 - *GROMMET EPH1000/EH561/EM4251 MSP-5257500300.A0 5257500300	£1.44	£1.73
90-1 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A39 324891-8	£1.44	£1.73
91-1 - PLUG CAP RST200/PTR2500/RBC21 MSP-424337-5.A3 424337-5	£1.44	£1.73
92 - PLUG CAP COVER HTR4900/4901 MSP-5197500002.A1 5197500002	£4.06	£4.87
94 - CYLINDER COVER HTR4900/4901 MSP-5195500701.A1 5195500701	£12.32	£14.79
95 - LABEL/TRADE MARK RBC201RBC3 MSP-6279505700.A3 6279505700	£4.83	£5.80
96 - REWIND STARTER HTR4900/4901 MSP-5195003003.A0 5195003003	£32.69	£39.23
97-1 - PULLEY ER2550/BHX2501/ER2650L MSP-168483-1.A5 168483-1	£1.44	£1.73
98-1 - TAPPING SCREW M5X12 ER2650LH MSP-266585-8.A26 266585-8	£1.44	£1.73
99-1 - SWING ARM ER2650/ER2550/CS246 MSP-325923-4.A11 325923-4	£1.44	£1.73
100-1 - COLLAR ER2650LH/ER2550/EY2650 MSP-451938-6.A3 451938-6	£1.44	£1.73
101-1 - REEL RBC201/MS20C/HTR5600 MSP-452972-9.A3 452972-9	£6.40	£7.68
102-1 - STARTER ROPE EM2651/EM2654 MSP-444024-0.A7 444024-0	£1.44	£1.73
103-1 - SPIRAL SPRING RBC201/MS20C MSP-234220-6.A3 234220-6	£11.70	£14.04
104 - *DAMPER EH7500/RPT250/HTR5600 MSP-5255001040.A7 5255001040	£3.74	£4.49
104-1 - DAMPER EM2651/ER2650/EN4951 MSP-424359-5.A16 424359-5	£1.44	£1.73
105-1 - STARTER KNOB ER2650LH/EM2651L MSP-424319-7.A14 424319-7	£2.34	£2.81
106 - LABEL/MODEL HTR4900 MSP-6019508400 6019508400	£7.02	£8.42
107 - SCREW ASSY HTR4900/HTR5600 MSP-0140049760.A0 0140049760	£1.44	£1.73
109 - BLOWER HOUSING HTR4900/4901 MSP-5195500800.A0 5195500800	£12.79	£15.35
110 - LOCK NUT HTR4900/4901 MSP-0173089990.A1 0173089990	£1.44	£1.73
111 - WASHER G4300IS/G3501R/HTR490 MSP-0031008000.A1 0031008000	£1.44	£1.73
112 - FLYWHEEL HTR4900/4901 MSP-5197003014.A0 5197003014	£66.40	£79.68
113 - *CRANK CASE ASSY HTR4900/4901 MSP-5191006000.A1 5191006000	£117.18	£140.62
114-1 - OIL SEAL RBC201/RBC2110 MSP-213638-4.A4 213638-4	£3.28	£3.93
115-2 - HEX SOCKET HD BOLT M5X25/365U MSP-922241-7.A35 922241-7	£1.44	£1.73
116-1 - *BALL BEARING 6000 EH7500/260 MSP-210086-8.A8 210086-8	£11.70	£14.04
117-1 - *BALL BEARING 6000 EH7500/260 MSP-210086-8.A9 210086-8	£11.70	£14.04
118-1 - GASKET CRANKCASE RBC201/MS20C MSP-442174-5.A0 442174-5	£14.35	£17.22
119-1 - OIL SEAL RBC201/RBC2110 MSP-213638-4.A5 213638-4	£3.28	£3.93
120 - *DAMPER EPH1000/EM4251/4340L MSP-5196500302.A2 5196500302	£2.34	£2.81
120-1 - DAMPER ER2550/EBH253L/EBH341U MSP-424104-8.A1 424104-8	£2.02	£2.43
121 - FUEL TANK PLATE HTR4900/4901 MSP-5196500201.A0 5196500201	£5.92	£7.11
122-1 - PAN HD SCREW M5X10 W/CP WASHE MSP-911208-0.A2 911208-0	£1.44	£1.73
123 - TUBE HTR4900/4901 MSP-0851149950.A0 0851149950	£7.49	£8.99
124-1 - HOSE CLAMP ER2550/EBH251L/341 MSP-345920-4.A13 345920-4	£1.44	£1.73
125-2 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A24 163447-0	£3.42	£4.10
125-1 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A49 163447-0	£3.42	£4.10
126 - FUEL TANK HTR4900/4901 MSP-5196011000.A0 5196011000	£23.62	£28.34
127-1 - CAP FUEL TANK ASSY RBC350E MSP-168668-9.A4 168668-9	£14.20	£17.04
128-1 - STRAP ER2550/EBH341U MSP-140436-2.A14 140436-2	£3.96	£4.75
129-1 - FUEL TANK CAP MS221/PB25 MSP-452920-8.A6 452920-8	£8.58	£10.30
131-1 - SPACER GASKET RBC230/260/320E MSP-442177-9.A8 442177-9	£1.44	£1.73
132-1 - CABLE ADJUST SCREW MS3200 MSP-326084-3.A0 326084-3	£10.30	£12.36
133 - NUT M6 EPH1000/RBL500/EM4251 MSP-0022706000.A5 0022706000	£1.44	£1.73
134 - CABLE BRACKET EH561/MH2556 MSP-5256501900.A3 5256501900	£4.99	£5.99
135-1 - SPACER GASKET RBC230/260/320E MSP-442177-9.A7 442177-9	£1.44	£1.73
136 - CARBURETOR HTR4900/4901 MSP-5196038000.A1 5196038000	£123.94	£148.73
137-1 - SROP RING E-3 ER2650LH/BHX250 MSP-257964-1.A0 257964-1	£2.81	£3.37
138-1 - SWIVEL ER2650LH/341U/BHX2501 MSP-325922-6.A27 325922-6	£5.46	£6.55
139-1 - PAN HD SCREW M3X8 ER2650LH/E MSP-266581-6.A14 266581-6	£1.44	£1.73
139-2 - SCREW DCS230T/EN4951SH/CS246.4 MSP-WJ00096364.A6 WJ00096364	£2.34	£2.81
140 - VALVE ASSY THROTTLE RBC3101/H MSP-5196002010.A0 5196002010	£59.92	£71.91
141-1 - O RING 2 ER2650LH/EBH253L/341 MSP-213538-8.A15 213538-8	£3.59	£4.31
142 - JET MS221/HTR4901 MSP-5256024020.A1 5256024020	£9.98	£11.98
143-1 - PUMP GASKET HTR4900/RBC2110 MSP-442172-9.A5 442172-9	£8.27	£9.92
144-2 - PUMP DIAPHRAGM DCS230T/EB7600T MSP-DA00001144.A28 DA00001144	£14.21	£17.05
145-2 - INLET SCREEN DCS230T/EA3201S MSP-WJ00014070.A9 WJ00014070	£1.44	£1.73
146-1 - PUMP BODY ASSY MS3200/RBC420 MSP-140989-1.A6 140989-1	£43.30	£51.96
147-1 - METERING DIAPHRAGM GASET EBH MSP-442154-1.A22 442154-1	£3.59	£4.31
148-1 - METERING DIAPHRAGM ASSY EH760 MSP-168767-7.A2 168767-7	£26.92	£32.31
149-1 - AIR PURGE BODY ASY DBC260L/U MSP-140988-3.A3 140988-3	£14.20	£17.04
150-1 - PRIMER PUMP ER2650LH/BHX2501 MSP-424314-7.A17 424314-7	£4.83	£5.80
151-1 - PRIMER PUMP COVER ER265/EM2511 MSP-346270-0.A21 346270-0	£4.83	£5.80
152-1 - TAPPING SREW M3X24 ER2550/EBH MSP-266582-4.A13 266582-4	£1.44	£1.73
153 - O RING HTR5600 MSP-5236061000.A6 5236061000	£1.44	£1.73
154 - AIR CLEANER HOUSING EH561 MSP-5253003020.A5 5253003020	£17.86	£21.43
155 - AIR FILTER EH561/RST200/HTR560 MSP-5203004010.A5 5203004010	£4.23	£5.08
156 - AIR CLEANER COVER HTR4900/490 MSP-5253055010.A1 5253055010	£16.28	£19.53
157 - SCREW ASSY M5X60 (W/W) HTR490 MSP-0043305600.A1 0043305600	£1.44	£1.73
