Makita EH7500S Petrol Hedge Trimmer Spare Parts

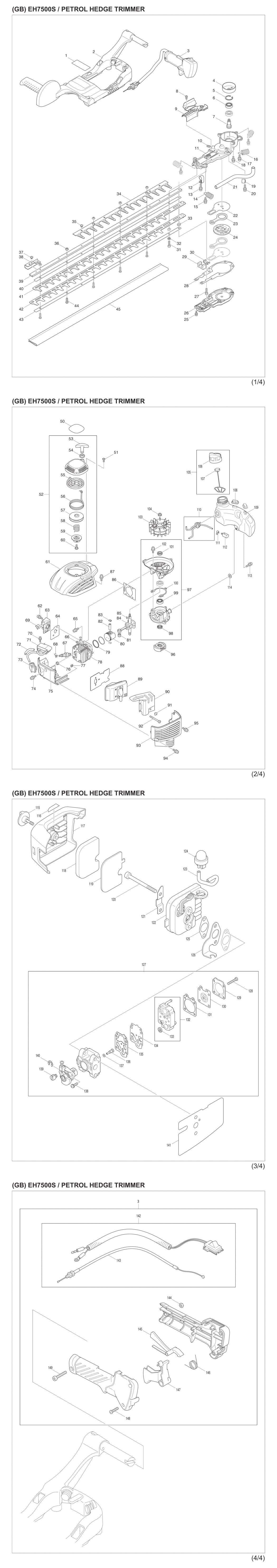

An exploded drawing and spare parts listing for the Makita EH7500S Petrol Hedge Trimmer

	Ex VAT	Inc VAT
1 - LABEL/CAUTION EH7500 MSP-819811-0 819811-0	£5.92	£7.11
2 - HANDLE EH7500 MSP-140504-1 140504-1	£50.02	£60.03
3 - CONTROL LEVER ASSY EH7500 MSP-125772-7 125772-7	£62.83	£75.40
4 - CLUTCH DRUM EH7500/HT2360D MSP-168567-5.A2 168567-5	£19.58	£23.50
5-1 - INTERNAL RETAINING RING-28 MSP-962106-1.A17 962106-1	£1.44	£1.73
6-1 - BALL BEARING 6001LLU HR3000C MSP-211138-8.A3 211138-8	£4.37	£5.24
6 - BALL BEARING EH7500/HT2360D MSP-0600129780.A2 0600129780	£11.39	£13.67
8-1 - CAP HD SCREW M5X12 AN620/CC30 MSP-922212-4.A2 922212-4	£1.44	£1.73
9 - BAFFLE PLATE EH7500/HT2360D MSP-451865-7.A2 451865-7	£4.06	£4.87
10 - GREASE NIPPLE EH7500/HT2360D MSP-243107-1.A0 243107-1	£1.44	£1.73
11-1 - GEAR CASE EH7500/HT2360D MSP-141033-7.A2 141033-7	£56.89	£68.27
12 - CLAMP EH7500/HT2360D MSP-346253-0.A3 346253-0	£2.02	£2.43
13-1 - HEX BOLT M5X12 BHX2501/EBH253 MSP-922213-2.A17 922213-2	£1.44	£1.73
14 - COMPRESSION SPRING 15 EH7500 MSP-234182-8 234182-8	£8.11	£9.73
15 - *SOCKET HD BOLT EH7500/HT2360D MSP-922224-7.A0 922224-7	£1.44	£1.73
16 - COMPRESSION SPRING 15 EH7500 MSP-234202-8.A1 234202-8	£7.18	£8.61
17 - *SOCKET HD BOLT EH7500/HT2360D MSP-922224-7.A1 922224-7	£1.44	£1.73
18-1 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A1 266787-6	£1.44	£1.73
19 - CLAMP EH7500/HT2360D MSP-346252-2.A0 346252-2	£1.44	£1.73
20-1 - HEX BOLT M5X12 BHX2501/EBH253 MSP-922213-2.A18 922213-2	£1.44	£1.73
21 - PIPE EH7500/HT2360D MSP-331896-1.A2 331896-1	£8.11	£9.73
22 - FRICTION PLATE EH7500/HT2360D MSP-346255-6.A0 346255-6	£4.52	£5.43
23 - CONNECTING ROD EH7500/EN4951S MSP-346251-4.A7 346251-4	£11.86	£14.23
24 - SPUR GEAR 43 EH7500/EN4951SH MSP-227248-1.A3 227248-1	£28.51	£34.21
24-1 - SPUR GEAR 43 EH7500/EN4951SH MSP-227248-1.A8 227248-1	£28.51	£34.21
25 - HEX SOCKET BOLT M4X16 EH7500 MSP-922128-3.A13 922128-3	£1.44	£1.73
26 - GEAR CASE COVER EH7500/HT2360D MSP-318610-2.A2 318610-2	£19.58	£23.50
27 - HEX SOCKET HD BOLT M5X22 EH75 MSP-922237-8.A2 922237-8	£1.44	£1.73
27-1 - HSS HD BOLT M5X33 EBH341U/EH7 MSP-266573-5.A3 266573-5	£1.44	£1.73
28 - GEAR CASE GASKET EH7500 MSP-413137-8.A3 413137-8	£4.68	£5.62
29 - SEAL EH7500/EN4951SH/HT2360D MSP-443159-4.A2 443159-4	£7.18	£8.61
30 - HOLDER EH7500/EN4951SH/HT2360D MSP-346256-4.A5 346256-4	£4.06	£4.87
31-1 - HSS HD BOLT M5X33 EBH341U/EH7 MSP-266573-5.A2 266573-5	£1.44	£1.73
31 - HEX SOCKET HD BOLT M5X22 EH75 MSP-922237-8.A3 922237-8	£1.44	£1.73
32-1 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A53 941101-4	£1.44	£1.73
32 - WASHER EH7500/HT2360D MSP-0031105003.A2 0031105003	£1.44	£1.73
33 - SLEEVE 5 EH7500/HT2360D MSP-313195-3.A2 313195-3	£2.81	£3.37
34-1 - BLADE GUARD EH7500 MSP-346731-0 346731-0	£33.70	£40.44
35-1 - *SCREW M5X6 EH7500 MSP-265696-6.A1 265696-6	£1.44	£1.73
35 - *SCREW M5X6 EH7500 MSP-265696-6.A2 265696-6	£1.44	£1.73
36-1 - HEX LOCK NUT M6-10 EN4950H/51 MSP-264089-4.A1 264089-4	£2.58	£3.10
36 - *HEX LOCK NUT M6-10 EH7500 MSP-264089-4.A8 264089-4	£2.58	£3.10
37 - *SCREW M5X6 EH7500 MSP-265696-6.A0 265696-6	£1.44	£1.73
39 - *GUIDE BAR EH7500 MSP-332060-7.A0 332060-7	£29.67	£35.60
40 - *PLATE EH7500 MSP-346257-2.A0 346257-2	£8.11	£9.73
41 - *SHEAR BLADE A EH7500 MSP-725163-8 725163-8	-
42-1 - SHEAR BLADE B EH7500 MSP-725186-6 725186-6	£68.13	£81.76
43 - *PLATE EH7500 MSP-346257-2.A1 346257-2	£8.11	£9.73
44-1 - HS BUTTON HD BOLT M6X20 EN495 MSP-266824-6.A2 266824-6	£1.44	£1.73
44 - *SOCKET BUTTON HD BOLT EH7500 MSP-266743-6.A6 266743-6	£1.44	£1.73
45 - BLADE COVER EH7500 MSP-451868-1 451868-1	£8.27	£9.92
50 - LABEL/MODEL EH7500 MSP-819807-1 819807-1	£3.74	£4.49
51 - TAPPING SCREW M4X14 EH7500 MSP-0150049860.A1 0150049860	£1.44	£1.73
52 - RECOIL STARTER ASSY EH7500 MSP-125753-1.A1 125753-1	£48.58	£58.29
53-1 - STARTER KNOB ER2650LH/EM2651L MSP-424319-7.A9 424319-7	£2.34	£2.81
54 - *DAMPER EH7500/RPT250/HTR5600 MSP-5255001040.A5 5255001040	£3.74	£4.49
54-1 - DAMPER EM2651/ER2650/EN4951 MSP-424359-5.A6 424359-5	£1.44	£1.73
55-1 - SPRIAL SPRING ER2650LH/EM2651 MSP-232258-5.A16 232258-5	£9.98	£11.98
56 - STARTER ROPE EH7500/HT2360D MSP-444028-2.A1 444028-2	£4.21	£5.05
57 - REEL EH7500/HT2360D MSP-452402-0.A2 452402-0	£14.35	£17.22
58 - DAMPER SPRING EH7500/HT2360D MSP-233991-2.A3 233991-2	£9.82	£11.79
59 - CAM PLATE EH7500/HT2360D MSP-452403-8.A1 452403-8	£11.70	£14.04
60-1 - TAPPING SCREW M5X12 ER2650LH MSP-266585-8.A7 266585-8	£1.44	£1.73
61-1 - BLOWER HOUSING EH7500 MSP-452948-6.A1 452948-6	£18.72	£22.46
62-1 - SOCKET HEAD BOLT M5X45 RBC230 MSP-266760-6.A9 266760-6	£1.44	£1.73
62 - *SOCKET HD BOLT M5 X 18 EH750 MSP-0119059450.A3 0119059450	£2.18	£2.62
63 - INSULATOR EH7500/HT2360D MSP-451911-6.A0 451911-6	£9.05	£10.86
64 - INSULATOR GASKET EH7500 MSP-346268-7.A2 346268-7	£2.02	£2.43
65-1 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A2 266787-6	£1.44	£1.73
67-1 - SPARK PLUG CMR6A EB7650TH MSP-168401-9.A1 168401-9	£7.49	£8.99
68-1 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A6 324891-8	£1.44	£1.73
70-1 - HS H BOLT M4X20 BHX2501/EBH34 MSP-922138-0.A7 922138-0	£2.97	£3.56
71-1 - IGNITION COIL EH7500/HT2360D MSP-168684-1.A0 168684-1	£64.89	£77.87
72 - *TUBE EH7500/MH2556/RPT250 MSP-0851069920.A1 0851069920	£1.44	£1.73
73 - PLUG CAP ER2650/2651/EN4951 MSP-424302-4.A2 424302-4	£2.81	£3.37
74-1 - SOCKET HEAD BOLT M5X45 RBC230 MSP-266760-6.A8 266760-6	£1.44	£1.73
75 - CYLINER COVER EH7500/HT2360D MSP-451860-7.A1 451860-7	£5.92	£7.11
76 - SPACER EH7500/RBC3101/HTR560 MSP-5503503001.A2 5503503001	£2.34	£2.81
77-2 - SQUARE NUT M5-8 GN420C/HT2360D MSP-264050-1.A1 264050-1	£1.44	£1.73
78-1 - CYLINDER EH7500/HT2360D MSP-141381-4.A1 141381-4	£46.99	£56.39
79-1 - PISTON RING EH7500/DBC260/RBC MSP-257334-4.A1 257334-4	£2.34	£2.81
80-1 - PISTON EH7500/RBC260L/U/DBC26 MSP-318858-6.A1 318858-6	£10.92	£13.10
81-1 - NEEDLE ROLLER BEARING EH7500 MSP-212702-8.A1 212702-8	£7.96	£9.55
82-1 - PISTON PIN EH7500/HT2360D MSP-256543-2.A1 256543-2	£1.44	£1.73
83-1 - CLIP EH7500/RBC260L/U/DBC260 MSP-234243-4.A1 234243-4	£1.44	£1.73
84 - CRANKSHAFT EH7500/HT2360D MSP-140429-9.A2 140429-9	£43.60	£52.32
85-1 - WOOD RUFF KEY EH7500/HT2360D MSP-254041-0.A1 254041-0	£1.20	£1.44
86 - CYLINDER GASKET EH7500/HT2360 MSP-346267-9.A2 346267-9	£2.18	£2.62
87-1 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A4 266787-6	£1.44	£1.73
88 - MUFFLER GASKET EH7500/HT2360D MSP-346260-3.A1 346260-3	£4.21	£5.05
89-1 - MUFFLER HT2360D MSP-161555-1.A3 161555-1	£52.67	£63.20
90 - MUFFLER COVER EH7500/HT2360D MSP-346343-9.A2 346343-9	£9.36	£11.23
91 - SCREW M5X6 EH7500/EM4251/4340 MSP-0140059962.A5 0140059962	£1.44	£1.73
92-1 - SOCKET HEAD BOLT EH7500/HTR56 MSP-266754-1.A1 266754-1	£1.44	£1.73
93 - MUFFLER COVER EH7500/HT2360D MSP-451861-5.A2 451861-5	£7.80	£9.36
94-1 - SOCKET HEAD BOLT M5X45 RBC230 MSP-266760-6.A7 266760-6	£1.44	£1.73
95-1 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A3 266787-6	£1.44	£1.73
96-1 - CLUTCH EH7500/HT2360D MSP-141150-3.A1 141150-3	£40.75	£48.90
97 - CRANKCASE ASSY EH7500/HT2360D MSP-5231016000.A2 5231016000	£112.77	£135.32
98-2 - OIL SEAL 10 UK360D/ER2650LH MSP-213769-9.A20 213769-9	£3.59	£4.31
98-1 - OIL SEAL 10 BHX2500 2501 MSP-213148-1.A4 213148-1	£2.81	£3.37
99-2 - BALL BEARING 6000 2414NB/LC12 MSP-211064-1.A20 211064-1	£2.34	£2.81
99-1 - *BALL BEARING 6000 EH7500/260 MSP-210086-8.A3 210086-8	£11.70	£14.04
100 - CRANKCASE GASKET EH7500 MSP-413139-4.A2 413139-4	£1.44	£1.73
101-1 - OIL SEAL 10 BHX2500 2501 MSP-213148-1.A3 213148-1	£2.81	£3.37
101-2 - OIL SEAL 10 UK360D/ER2650LH MSP-213769-9.A21 213769-9	£3.59	£4.31
102-1 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A5 266787-6	£1.44	£1.73
103-1 - FLYWHEEL ASSY EH7500/HT2360D MSP-126046-9.A0 126046-9	£32.69	£39.23
105 - FUEL TANK CAP ASSY EH7500 MSP-125770-1.A2 125770-1	£21.17	£25.40
108 - BUFFER RUBBER ER2650LH/DBC260 MSP-424080-6.A9 424080-6	£1.44	£1.73
110 - TUBE EH7500/HT2360D MSP-168568-3.A0 168568-3	£7.80	£9.36
111-1 - HOSE CLAMP ER2550/EBH251L/341 MSP-345920-4.A9 345920-4	£1.44	£1.73
112-1 - FUEL FILTER EM2651LH/ER2650LH MSP-163518-3.A13 163518-3	£3.88	£4.65
115 - THUMB SCREW M4 EH7500/ER2650L MSP-265791-2.A7 265791-2	£1.44	£1.73
116 - LABEL/CHOKE INDICATION EH7500 MSP-819818-6.A1 819818-6	£3.59	£4.31
117 - AIR CLEANER COVER EH7500 MSP-451859-2.A1 451859-2	£5.78	£6.93
118 - AIR FILTER EH7500/HT2360D MSP-443157-8.A2 443157-8	£1.23	£1.48
119 - AIR FILTER EH7500/HT2360D MSP-443158-6.A1 443158-6	£1.54	£1.85
120-1 - HS BUTTON HD BOLT M5X60 ER265 MSP-266618-9.A6 266618-9	£1.44	£1.73
121-1 - PLATE EBH341U MSP-345919-9.A6 345919-9	£1.44	£1.73
121-2 - PLATE ER2550/EBH341U/BHX2501 MSP-346647-9.A0 346647-9	£6.08	£7.30
122-1 - AIR CLEANER PLATE ASSY EH7500 MSP-126029-9.A2 126029-9	£10.61	£12.73
123 - TUBE EH7500/HT2360D MSP-412097-1.A1 412097-1	£1.44	£1.73
124-1 - PRIMER PUMP DCS230T/EA32/EA36 MSP-168398-2.A23 168398-2	£4.52	£5.43
125-1 - GASKET/CARBURETOR EH7500/DBC2 MSP-413158-0.A0 413158-0	£1.44	£1.73
126 - CABLE BRACKET EH7500/HT2360D MSP-346334-0.A1 346334-0	£3.28	£3.93
127 - CARBURETOR EH7500/HT2360D MSP-168569-1.A2 168569-1	£75.60	£90.72
128-2 - SCREW DCS230T/EB7650TH/PM7651 MSP-WJ00096325.A8 WJ00096325	£2.34	£2.81
129-2 - COVER-METERING DIAPHRAGM EB76 MSP-WJ00021158.A7 WJ00021158	£2.18	£2.62
130-1 - METERING DIAPHRAGM ER2650LH MSP-168620-7.A12 168620-7	£18.72	£22.47
131-1 - GASKET EH7500/PB250/RST250/RB MSP-442183-4.A8 442183-4	£3.74	£4.49
132 - BODY ASSEMBLY PUMP EH7500 MSP-140661-5.A1 140661-5	£41.98	£50.37
133-2 - INLET SCREEN DCS230T/EA3201S MSP-WJ00014070.A2 WJ00014070	£1.44	£1.73
134-2 - PUMP DIAPHRAGM DCS230T/EB7600T MSP-DA00001144.A12 DA00001144	£14.21	£17.05
135-1 - PUMP GASKET ER2650LH/BHX2501 MSP-442155-9.A10 442155-9	£2.97	£3.56
136 - JET EH7500/HT2360D MSP-326005-5.A0 326005-5	£15.26	£18.31
137-1 - O RING 2 ER2650LH/EBH253L/341 MSP-213538-8.A10 213538-8	£3.59	£4.31
138-1 - PAN HD SCREW M3X8 ER2650LH/E MSP-266581-6.A20 266581-6	£1.44	£1.73
138-2 - SCREW DCS230T/EN4951SH/CS246.4 MSP-WJ00096364.A2 WJ00096364	£2.34	£2.81
139-1 - SWIVEL ER2650LH/341U/BHX2501 MSP-325922-6.A35 325922-6	£5.46	£6.55
140-1 - SROP RING E-3 ER2650LH/BHX250 MSP-257964-1.A8 257964-1	£2.81	£3.37
141 - CARBURETOR GASKET EH7500 MSP-413147-5.A1 413147-5	£2.18	£2.62
142 - WIRE SET EH7500 MSP-6014021000 6014021000	£57.55	£69.06
143 - WIRE EH7500 MSP-168626-5 168626-5	£28.51	£34.21
145-1 - STOP LEVER EBH253L MSP-451934-4.A1 451934-4	£7.18	£8.61
146-1 - TORSION SPRING EBH253L MSP-233568-3.A3 233568-3	£1.44	£1.73
146 - *SPRING EH7500/U/EM4251/PTR25 MSP-6195006050.A6 6195006050	£2.18	£2.62
148-1 - TAPPING SCREW M4X20 EBH253U MSP-266584-0.A3 266584-0	£1.44	£1.73
149-1 - HEX SOCKET HD BOLT M5X30 AN94 MSP-922252-2.A9 922252-2	£1.44	£1.73
150-1 - PLATE EH7500S MSP-346662-3 346662-3	£1.44	£1.73
151 - FLANGE NUT M5 RBL50/EH7500 MSP-0023705000.A1 0023705000	£1.44	£1.73
152 - SPARE PART MSP-266572-7.A2 266572-7	£1.44	£1.73
153 - LABEL/DATE CODE ER2650LHER25 MSP-801D19-4.A4 801D19-4	£1.44	£1.73
A01 - BOX DRIVER 10-16 ER2650LH/ER25 MSP-782233-6.A11 782233-6	£3.48	£4.17
A02 - *WRENCH 4 ER2650LH/EBH253L/ER MSP-783223-2.A5 783223-2	£1.20	£1.44
