Makita EBH341U Petrol Brushcutter Spare Parts

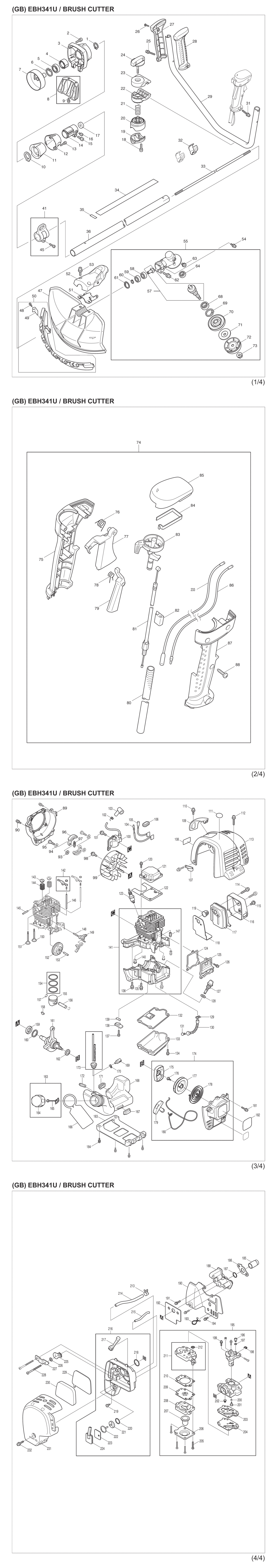

An exploded drawing and spare parts listing for the Makita EBH341U Petrol Brushcutter

	Ex VAT	Inc VAT
1 - EXT DIN 471 CIRCLIP-17/DHR171D MSP-961057-5.A43 961057-5	£1.44	£1.73
2 - CAP HD SCREW M6X20 HM1800/181 MSP-922331-6.A24 922331-6	£1.44	£1.73
3 - CLUTCH CASE EBH341L&U/EM4340 MSP-318421-5.A1 318421-5	£14.35	£17.22
4 - SPACER EBH341U MSP-451157-4.A2 451157-4	£1.44	£1.73
5-1 - BALL BEARING 6003LLU RBC414U MSP-210126-2.A1 210126-2	£2.97	£3.56
5 - BALL BEARINNG 6003LLU MSP-211338-0.A2 211338-0	£8.58	£10.30
6 - RETAINING RING R-35 HP1631/41 MSP-962153-2.A10 962153-2	£1.44	£1.73
7 - CLUTCH DRUM EBH341L&U MSP-165577-3 165577-3	£9.82	£11.79
8 - STAND SET ER2550/EBH253L MSP-195144-0.A3 195144-0	£1.47	£1.76
9 - PAN HD SCREW M5X14 W/CP WASHE MSP-911218-7.A7 911218-7	£1.44	£1.73
10 - RETAINING RING S-32 EBH341U MSP-961151-3.A1 961151-3	£1.44	£1.73
11 - DAMPER EBH341U MSP-424204-4.A2 424204-4	£4.37	£5.24
12 - PIPE RETAINER EBH341L&U MSP-318453-2.A0 318453-2	£5.15	£6.18
13 - CAP HD SCREW M5X20 EBH341U MSP-922231-0.A42 922231-0	£1.44	£1.73
14 - PIPE BRACKET EBH341L&U MSP-318454-0.A2 318454-0	£8.42	£10.11
15 - CAP HD SCREW M6X20 HM1800/181 MSP-922331-6.A23 922331-6	£1.44	£1.73
16 - CAP HD SCREW M5X8 JR3020 MSP-922201-9.A3 922201-9	£1.44	£1.73
17 - FELT SPRING 8 EBH341U/EM4340 MSP-443146-3.A1 443146-3	£1.44	£1.73
18 - CAP HD SCREW M6X25 HM0870/71C MSP-922341-3.A19 922341-3	£1.44	£1.73
19 - PIPE CLAMP EBH341U MSP-318422-3.A1 318422-3	£4.83	£5.80
20 - PIPE HOLDER EBH341U MSP-318423-1.A1 318423-1	£8.58	£10.30
21 - COMPRESSION SPRING 20 HR160DW MSP-233202-5.A6 233202-5	£1.44	£1.73
22 - HANDLE HOLDER EBH341U MSP-318424-9.A1 318424-9	£7.64	£9.17
23 - HANDLE CLAMP EBH341U MSP-318425-7.A2 318425-7	£8.11	£9.73
24-1 - KNOB 57 EBH341U/BBC231URD/EM2 MSP-168796-0.A7 168796-0	£4.83	£5.80
25 - HEX SOCKET BOLT M5X35 AG125 MSP-922256-4.A5 922256-4	£1.44	£1.73
26 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A11 266326-2	£1.44	£1.73
27-1 - GRIP SET EBH341U MSP-188660-9.A0 188660-9	£7.02	£8.42
28-1 - GRIP SET EBH341U MSP-188660-9.A5 188660-9	£7.02	£8.42
29 - HANDLE 22 EBH341U MSP-331863-6.A1 331863-6	£16.28	£19.53
31 - HEX SOCKET BOLT M5X35 AG125 MSP-922256-4.A4 922256-4	£1.44	£1.73
32 - WIRE CLAMP EBH341U MSP-451525-1.A1 451525-1	£1.44	£1.73
33 - SHAFT EBH341U MSP-325675-7.A0 325675-7	£19.58	£23.50
34 - LABEL/CAUTION EBH341U MSP-810500-0 810500-0	£1.44	£1.73
35-3 - LABEL/DATE CODE ER2650LHER25 MSP-801D19-4.A6 801D19-4	£1.44	£1.73
36 - SHAFT PIPE EBH341U MSP-140042-3.A1 140042-3	£46.99	£56.39
41 - HANGER ASSY EBH341U MSP-125558-9.A1 125558-9	£6.24	£7.49
45 - HEX SOCKET HD BOLT M5X20 EM43 MSP-922233-6.A13 922233-6	£1.44	£1.73
48 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A12 266326-2	£1.44	£1.73
49 - CUTTER EM2651LH/EBH253L/EM400M MSP-346074-0.A6 346074-0	-
50-1 - PROTECTOR EXTENSION ASSY EBH MSP-135398-7.A4 135398-7	£4.32	£5.19
51 - PROTECTOR CLAMP EBH341U MSP-346072-4.A2 346072-4	£2.02	£2.43
52 - PROTECTOR COVER EBH341U MSP-451090-0.A0 451090-0	£4.52	£5.43
53 - CAP HD SCREW M6X30 HM1810 MSP-922353-6.A2 922353-6	£1.44	£1.73
53-1 - HEX SOCKET HD BOLT M6X30 BUR3 MSP-266579-3.A6 266579-3	£1.44	£1.73
54 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A2 922218-2	£1.44	£1.73
55-1 - O RING 32 DA4031/4157KB/5903R MSP-213459-4.A27 213459-4	£2.18	£2.62
55-2 - O RING 32 DA4031/4157KB/5903R MSP-213459-4.A30 213459-4	£2.18	£2.62
55-2 - *GEAR CASE ASSY EBH341U MSP-126310-8.A1 126310-8	£98.66	£118.39
57-1 - CUTTER SHAFT SET EBH341L MSP-183K07-8.A0 183K07-8	£29.81	£35.77
58 - BALL BEARING 6000 2414NB/LC12 MSP-211064-1.A19 211064-1	£2.34	£2.81
59 - BALL BEARING 6000ZZCM/2A EBH3 MSP-211062-5.A12 211062-5	£4.68	£5.62
60 - EXT DIN 471 CIRCLIP-10 KP0810 MSP-961006-2.A17 961006-2	£1.44	£1.73
61 - INTERNAL RETAINING RING-26/51 MSP-962105-3.A8 962105-3	£1.44	£1.73
62 - CAP HD SCREW M6X30 HM1810 MSP-922353-6.A3 922353-6	£1.44	£1.73
63 - HEX BOLT M8X10 EBH253L/EBH341 MSP-265590-2.A1 265590-2	£1.44	£1.73
64 - BALL BEARING 629ZZ EBH341U MSP-210081-8.A1 210081-8	£3.59	£4.31
68 - BALL BEARING 6201LLU EBH341U MSP-210116-5.A4 210116-5	£6.40	£7.68
69 - RETAINING RING R-32 BPJ140/81 MSP-962151-6.A63 962151-6	£1.44	£1.73
70-1 - RECIEVE WASHER EBH341U MSP-332114-0.A1 332114-0	£8.89	£10.67
71 - CLAMP WASHER BBC231URD/ELM265 MSP-346084-7.A7 346084-7	£1.44	£1.73
71-1 - CLAMP WASHER EBH253L/EBH341U MSP-346355-2.A3 346355-2	£20.30	£24.36
72 - CUP EBH253L/EBH341L&U/BBC231U MSP-168526-9.A14 168526-9	£5.15	£6.18
73 - HEX NUT M10-17 EBH251U.BBC231 MSP-264025-0.A18 264025-0	£3.28	£3.93
74 - CONTROL LEVER ASSY EBH341U MSP-125545-8 125545-8	£30.24	£36.29
75-2 - LEVER CASE SET EBH341U MSP-183A09-4.A5 183A09-4	£8.42	£10.11
75-1 - *LEVER CASE SET EBH341U MSP-188657-8.A4 188657-8	£12.17	£14.60
76 - TORSION SPRING 11 ER2650LH/ER MSP-233540-5.A1 233540-5	£1.44	£1.73
77 - THROTTLE LEVER EBH341U/ELM265 MSP-451084-5.A1 451084-5	£1.44	£1.73
78 - TORSION SPRING 7 ER2650LH/ER2 MSP-233541-3.A17 233541-3	£1.44	£1.73
79 - LOCK OFF LEVER EBH341U/EM2561 MSP-451083-7.A3 451083-7	£1.44	£1.73
80 - CORRUGATE TUBE EBH341U MSP-451213-0.A0 451213-0	£3.74	£4.49
81 - CONTROL CABLE EBH341U MSP-168539-0 168539-0	£4.83	£5.80
82 - CABLE HOLDER EBH341U MSP-451081-1.A3 451081-1	£1.44	£1.73
83 - SWITCH LEVERZ EBH341U/ELM2651 MSP-451082-9.A0 451082-9	£1.44	£1.73
84 - LEAF SPRING ER2650LH/ER2550 MSP-232251-9.A14 232251-9	£1.44	£1.73
85-1 - SWITCH COVER EBH341U/ELM2651L MSP-455722-1.A0 455722-1	£1.44	£1.73
85 - *SWITCH COVER EBH341U/ELM2651 MSP-451085-3.A2 451085-3	£2.02	£2.43
86 - LEAD UNIT EBH341U MSP-638663-8.A1 638663-8	£1.44	£1.73
87-1 - *LEVER CASE SET EBH341U MSP-188657-8.A5 188657-8	£12.17	£14.60
87-2 - LEVER CASE SET EBH341U MSP-183A09-4.A4 183A09-4	£8.42	£10.11
88 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A146 266326-2	£1.44	£1.73
89 - BLOWER HOUSING EBH341U MSP-318614-4.A0 318614-4	£22.90	£27.48
90 - HSH BOLT M5X16 BHX2501/EBH251 MSP-922223-9.A17 922223-9	£1.44	£1.73
93 - FLAT WASHER 8 EM4340/RBC3100 MSP-267424-5.A2 267424-5	£1.44	£1.73
93-1 - HARD WASHER 8 DST111/DST112 MSP-253762-1.A6 253762-1	£1.44	£1.73
94 - WAVE WASHER 10 EM4350/EM4351 MSP-267832-0.A0 267832-0	£1.44	£1.73
95 - SHOULDER HEX BOLT M8X23 EBH34 MSP-266571-9.A2 266571-9	£2.34	£2.81
96-1 - CLUTCH SHOE EBH341U/EM4340 MSP-AN04002000.A0 AN04002000	£9.20	£11.04
96-1 - CLUTCH ASSY EBH341U/EM4340 MSP-125757-3.A2 125757-3	£12.01	£14.41
98 - HEX HD BOLT M6X16 EBH/BHX2501 MSP-265577-4.A5 265577-4	£1.44	£1.73
99 - *FLYWHEEL EBH341U/EM4340/EPH MSP-318611-0.A0 318611-0	£15.55	£18.66
100-1 - IGNITION COIL EBH341L/EM4340 MSP-168816-0.A0 168816-0	£15.91	£19.09
101 - HS H BOLT M4X20 BHX2501/EBH34 MSP-922138-0.A12 922138-0	£2.97	£3.56
102 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A21 324891-8	£1.44	£1.73
103 - PLUG CAP ER2550/341U/BHX2501 MSP-424105-6.A2 424105-6	£1.44	£1.73
104-1 - LEAD UNIT EBH341/EM4340/EPH100 MSP-632E38-3.A0 632E38-3	£1.44	£1.73
108 - LABEL/MAKITA LOGO ER2650LHKR MSP-819312-8.A26 819312-8	£1.44	£1.73
110 - SPARE PART MSP-266572-7.A0 266572-7	£1.44	£1.73
111 - LABEL/4 STROKE INDICATION EBH MSP-808633-3.A3 808633-3	£1.44	£1.73
112-1 - PAN HEAD SCREW M5X12 ER2550 MSP-911213-7.A27 911213-7	£1.44	£1.73
113 - CYLINER COVER EBH341U MSP-451875-4.A1 451875-4	£13.88	£16.66
114 - HEX SOCKET HD BOLT M5X40 BHX2 MSP-266440-4.A13 266440-4	£1.44	£1.73
115 - SPARE PART MSP-265184-3.A2 265184-3	£1.44	£1.73
116 - MUFFLER COVER ER2550/EBH253L MSP-345915-7.A2 345915-7	£2.65	£3.18
117 - EXHAUST MUFFLER ER2550/EBH253 MSP-168469-5.A0 168469-5	£8.27	£9.92
119 - SPARK ARRESTER ER2550/EBH253L MSP-324980-9.A6 324980-9	£1.44	£1.73
120-1 - HEX SOCKET HD BOLT M5X14 BHX2 MSP-922217-4.A13 922217-4	£1.44	£1.73
121 - ROCKER COVRR EBH253L MSP-140419-2.A0 140419-2	£9.36	£11.23
122 - ROCKER COVER GASKET EBH341L&U MSP-162307-3.A1 162307-3	£2.18	£2.62
123 - SPARK PLUG ER2650LH/EBH341L&U MSP-168534-0.A3 168534-0	£9.36	£11.23
124 - CAM GEAR COVER GASKET ER2650L MSP-162274-2.A12 162274-2	£2.18	£2.62
125 - CAMGEAR COVERER2550/ER2650LH MSP-318443-5.A12 318443-5	£4.21	£5.05
126 - CAP HD SCREW M5X12 AN620/CC30 MSP-922212-4.A17 922212-4	£1.44	£1.73
127 - OIL GAUGE ER2550/EBH251/341 MSP-450565-6.A2 450565-6	£2.18	£2.62
128 - GASKET ER2550/EBH251L/341U MSP-424100-6.A2 424100-6	£1.44	£1.73
129 - HOSE CLAMP ER26/EM26/EA3601 MSP-282020-8.A20 282020-8	£1.44	£1.73
130 - OIL TUBE ER2550/EBH251L/341U MSP-424202-8.A2 424202-8	£3.74	£4.49
131 - OIL WEIGHT ER2650LH/EBH253L MSP-325666-8.A6 325666-8	£1.44	£1.73
132 - CASE GASKET EBH341L&U MSP-162308-1.A0 162308-1	£2.81	£3.37
133 - OIL CASE EBH341I MSP-318612-8.A0 318612-8	£3.55	£4.26
134-1 - HEX SOCKET HD BOLT M5X14 BHX2 MSP-922217-4.A12 922217-4	£1.44	£1.73
135 - HSS HD BOLT M5X33 EBH341U/EH7 MSP-266573-5.A4 266573-5	£1.44	£1.73
136-1 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A16 922222-1	£1.44	£1.73
137-1 - CAP HD SCREW M4X10 BHX2501/43 MSP-922112-8.A12 922112-8	£1.44	£1.73
138 - RETAINER PLATE ER2550/EBH251L MSP-318440-1.A4 318440-1	£2.02	£2.43
139 - LEAD VALVE ER2650LH/EM2651LH MSP-346083-9.A4 346083-9	£2.02	£2.43
140 - CHECK VALVE ER2650LH/EBH251L MSP-424201-0.A13 424201-0	£1.44	£1.73
141 - CYLINDER BLOCK SET EM341U MSP-135373-3.A1 135373-3	£144.48	£173.38
142 - ROCKET ARM ASSY ER2550LH/EM26 MSP-125554-7.A4 125554-7	£4.68	£5.62
143 - SPRING RETAINER EBH341U MSP-325912-9.A1 325912-9	£1.44	£1.73
144 - COMPRESSION SPRING 11 EBH341U MSP-234181-0.A1 234181-0	£1.44	£1.73
144-1 - COMPRESSION SPRING 11 EBH341U MSP-234181-0.A2 234181-0	£1.44	£1.73
145 - PIN 5 ER2650LH/2704/EBH/BHX25 MSP-256200-2.A12 256200-2	£1.44	£1.73
146 - ROD 2.5 EBH341L&U EB5300TH MSP-256866-8.A1 256866-8	£1.44	£1.73
147 - SPACKER ER2650/EM2651/EN4951 MSP-424200-2.A7 424200-2	£1.44	£1.73
148 - PIN 4 ER2650LH/EBH/BHX2501 MSP-268239-3.A13 268239-3	£1.44	£1.73
149 - CAM LIFTER ER2650LH/EM2651LH MSP-313169-4.A13 313169-4	£3.59	£4.31
151 - INTAKE VALVE EBH341U MSP-325914-5.A0 325914-5	£4.52	£5.43
152 - CAM GEAR ASSY EM2651LH/ER2650 MSP-125552-1.A3 125552-1	£12.32	£14.79
153 - PIN 5 ER2650/EBH/BHX/EM2511 MSP-268238-5.A4 268238-5	£1.44	£1.73
154 - PISTON RING SET EBH341L&U MSP-195141-6.A0 195141-6	£18.72	£22.46
155-1 - PISTON EBH341U MSP-318613-6.A0 318613-6	£15.29	£18.35
155-1 - PISTON SET EBH341U MSP-197454-1 197454-1	£15.98	£19.18
155 - PISTON EBH341U MSP-318613-6.A1 318613-6	£15.29	£18.35
156 - PISTON PIN EBH341L&U MSP-257796-6.A1 257796-6	£2.18	£2.62
157 - CLIP EBH341L&U MSP-233983-1.A5 233983-1	£1.44	£1.73
158 - WOODRUFF KEY 3 ER2650LH/EM265 MSP-254040-2.A2 254040-2	£4.06	£4.87
159 - OIL SEAL 12 EBH341U MSP-213537-0.A4 213537-0	£3.74	£4.49
160 - FLAT WASHER 26 EBH341U MSP-267425-3.A0 267425-3	£1.44	£1.73
161 - CRANKSHAFT ASSY EBH341U MSP-125756-5.A0 125756-5	£69.30	£83.16
161-1 - CRANKSHAFT ASSY EBH341U MSP-125756-5.A2 125756-5	£69.30	£83.16
162-1 - OIL SEAL 10 UK360D/ER2650LH MSP-213769-9.A14 213769-9	£3.59	£4.31
162 - OIL SEAL 10 BHX2500 2501 MSP-213148-1.A9 213148-1	£2.81	£3.37
163 - FUEL TANK ASSY ER2550/EBH253/ MSP-125472-9.A5 125472-9	£7.49	£8.99
164 - FUEL TANK CAP ER2550/EBH341U MSP-140435-4.A0 140435-4	£6.71	£8.05
165 - STRAP ER2550/EBH341U MSP-140436-2.A15 140436-2	£3.96	£4.75
166 - CAUTION PLATE ER2650LH/EM2651 MSP-810455-9.A17 810455-9	£1.44	£1.73
167 - DAMPER ER2550/EBH253L/EBH341U MSP-424104-8.A6 424104-8	£2.02	£2.43
168 - FUEL TANK EBH341U MSP-451877-0.A0 451877-0	£16.28	£19.53
169-1 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A19 163447-0	£3.42	£4.10
169 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A54 163447-0	£3.42	£4.10
170 - HOSE CLAMP ER2550/EBH251L/341 MSP-345920-4.A19 345920-4	£1.44	£1.73
171 - GASKET ER2550/ EBH251L/341U MSP-424103-0.A4 424103-0	£1.44	£1.73
172 - PLATE ER2550/ EBH251L/341U MSP-424102-2.A11 424102-2	£1.44	£1.73
173 - TUBE EBH341L&U MSP-162309-9.A0 162309-9	£5.15	£6.18
174 - *RECOIL STARTER SET EBH341L&U MSP-195142-4 195142-4	£33.12	£39.74
174-1 - RECOIL STARTER SET EBH341L&U MSP-126475-6.A0 126475-6	£27.22	£32.66
175-1 - PULLEY EBH341L&U/RBC3110 MSP-168827-5.A1 168827-5	£3.90	£4.68
175 - *PULLEY EBH341L&U MSP-165606-2.A1 165606-2	£5.78	£6.93
176 - TAPPING SCREW M5X10 BH341U MSP-266580-8.A0 266580-8	£1.44	£1.73
177 - REEL EBH341U MSP-451923-9.A1 451923-9	£5.15	£6.18
178 - SPIRAL SPRING EBH341U MSP-232257-7.A0 232257-7	£15.44	£18.53
179 - STARTER KNOB EBH341U MSP-424317-1.A2 424317-1	£3.74	£4.49
180 - STARTER ROPE EBH341U MSP-444018-5.A1 444018-5	£4.06	£4.87
181 - PAN HD SCREW M5X14 W/CP WASHE MSP-911218-7.A3 911218-7	£1.44	£1.73
182 - LABEL/EBH341U MSP-816448-4 816448-4	£1.44	£1.73
183 - TANK GUARD EBH341L&U MSP-162310-4.A1 162310-4	£4.83	£5.80
184-1 - SCREW ASSY M5X14 EPH1000/RBC2 MSP-266809-2.A16 266809-2	£1.44	£1.73
184 - PAN HD SCREW M5X14 W/CP WASHE MSP-911218-7.A2 911218-7	£1.44	£1.73
185 - INTAKE PIPE EBH341U MSP-325915-3.A1 325915-3	£3.90	£4.68
186 - INSULATOR GASKET ER2550/EBH25 MSP-413120-5.A3 413120-5	£1.44	£1.73
187-1 - O RING 10 EBH341/EM4340/EPH MSP-213063-9.A4 213063-9	£4.37	£5.24
187 - O-RING 10 ER2550/EBH253/EM2511 MSP-213078-6.A3 213078-6	£1.44	£1.73
188 - INSULATOR EBH341U MSP-451874-6.A0 451874-6	£4.83	£5.80
190 - CARBURETOR INSULATOR EBH341U MSP-346261-1.A1 346261-1	£6.55	£7.86
191 - HEX BOLT M5X18 DUR188L MSP-922228-9.A13 922228-9	£1.44	£1.73
192 - CARBURETOR GASKET EBH341U MSP-413138-6.A1 413138-6	£1.44	£1.73
193 - CLAMP ER2550/EBH251/341/EM2511 MSP-450562-2.A3 450562-2	£1.44	£1.73
194 - HEX BOLT M5X12 BHX2501/EBH253 MSP-922213-2.A9 922213-2	£1.44	£1.73
195-1 - CARBURETOR EBH341U MSP-168561-7.A0 168561-7	£56.89	£68.27
195 - CARBURETOR EBH341U MSP-168561-7.A3 168561-7	£56.89	£68.27
196 - SWIVEL ER2650LH/341U/BHX2501 MSP-325922-6.A17 325922-6	£5.46	£6.55
197 - WASHER ER2650LH/BHX2501/ER25 MSP-413140-9.A7 413140-9	£1.44	£1.73
198 - SROP RING E-3 ER2650LH/BHX250 MSP-257964-1.A19 257964-1	£2.81	£3.37
199 - PAN HD SCREW M3X8 ER2650LH/E MSP-266581-6.A24 266581-6	£1.44	£1.73
199-1 - SCREW DCS230T/EN4951SH/CS246.4 MSP-WJ00096364.A11 WJ00096364	£2.34	£2.81
200 - O RING 2 ER2650LH/EBH253L/341 MSP-213538-8.A0 213538-8	£3.59	£4.31
201 - JET EBH341U MSP-325921-8.A0 325921-8	£9.67	£11.61
202 - CONICAL SPRING 5-9ER2650 MSP-234183-6.A6 234183-6	£3.28	£3.93
203 - PUMP GASKET ER2650LH/BHX2501 MSP-442155-9.A3 442155-9	£2.97	£3.56
204-1 - PUMP DIAPHRAGM DCS230T/EB7600T MSP-DA00001144.A8 DA00001144	£14.21	£17.05
205 - TAPPING SREW M3X24 ER2550/EBH MSP-266582-4.A3 266582-4	£1.44	£1.73
206 - PRIMER PUMP COVER ER265/EM2511 MSP-346270-0.A25 346270-0	£4.83	£5.80
207 - PRIMER PUMP ER2650LH/BHX2501 MSP-424314-7.A25 424314-7	£4.83	£5.80
208 - CAM GEAR COVER GASKET ER2650L MSP-140438-8.A15 140438-8	£2.18	£2.62
209-2 - DIAPHRAGM ASSY DCS230T MSP-168620-7.A28 168620-7	£18.72	£22.47
209-3 - METERING DIAPHRAGM ER2650LH MSP-168620-7.A17 168620-7	£18.72	£22.47
210 - METERING DIAPHRAGM GASET EBH MSP-442154-1.A25 442154-1	£3.59	£4.31
211 - PUMP BODY ER2650LH/EBH253L/34 MSP-140437-0.A1 140437-0	£28.51	£34.21
212-1 - INLET SCREEN DCS230T/EA3201S MSP-WJ00014070.A16 WJ00014070	£1.44	£1.73
213 - HOSE CLAMP ER2550/2650/EM2511 MSP-345918-1.A19 345918-1	£1.44	£1.73
215 - PIPE ER2550/ EBH251/341/EM2511 MSP-422042-8.A1 422042-8	£1.44	£1.73
216 - CLEANER PLATE ASS ER2550 MSP-125468-0.A7 125468-0	£16.28	£19.53
217 - CHOKE LEVER ER2550/EBH251L MSP-451925-5.A4 451925-5	£2.40	£2.88
218 - O RING 15 ER2550/BHX2501/EBH MSP-213540-1.A0 213540-1	£1.44	£1.73
219 - CHECK VALVE ER2550/EBH251L MSP-424316-3.A16 424316-3	£4.06	£4.87
220 - O RING 14 ER2550/EBH341/EM2511 MSP-213539-6.A7 213539-6	£1.44	£1.73
221 - CHECK VALVE PLATE ER2550/EBH2 MSP-451924-7.A3 451924-7	£1.44	£1.73
222 - CHECK VALVE ER2550/EBH251L/ MSP-424315-5.A1 424315-5	£1.44	£1.73
223 - *SEPARATOR GASKET ER2550/EBH MSP-168577-2.A6 168577-2	£1.44	£1.73
224 - SEPARATOR PLATE ER2550/EBH253 MSP-168576-4.A1 168576-4	£6.40	£7.68
225 - CHOKE PLATE ER2550/341U/BHX25 MSP-450560-6.A4 450560-6	£1.44	£1.73
226 - GASKET ER2550/341U/BHX2501 MSP-423376-2.A4 423376-2	£1.44	£1.73
227 - PLATE EBH341U MSP-345919-9.A3 345919-9	£1.44	£1.73
228 - SPARE PART MSP-265188-5.A3 265188-5	£1.44	£1.73
229 - AIR CLEANER ELEMENT ER2550 MSP-443140-5.A5 443140-5	£2.29	£2.75
230 - AIR CLEANER ELEMENT ER2550 MSP-443141-3.A4 443141-3	-
231 - AIR CLEANER COVER ER2550/EBH MSP-450561-4.A3 450561-4	£2.02	£2.43
232 - PAN HD SCREW M5X14 W/CP WASHE MSP-911218-7.A4 911218-7	£1.44	£1.73
233 - LEAD UNIT EBH341U MSP-638671-9.A1 638671-9	£1.44	£1.73
234 - WASHER BUR360/EM2651LH/EBH253 MSP-413143-3.A13 413143-3	£1.44	£1.73
235 - CAP HD SCREW M6X30 HM1810 MSP-922353-6.A12 922353-6	£1.44	£1.73
A02 - HOOK EM4250/EM4340/MS4211/RBC MSP-168578-0.A0 168578-0	£3.74	£4.49
A01-1 - BAND ASSY EBH341U/BBC231URD MSP-122906-3.A2 122906-3	£27.42	£32.91
A01-1 - HOOK FOR 122906-3 MSP-140400-3.A3 140400-3	£3.94	£4.73
A03 - OIL BOTTLE EBH252/EM2651/MS245 MSP-242072-1.A1 242072-1	£3.09	£3.71
A04 - BOX DRIVER 16-17 EBH253L/2651 MSP-783013-3.A0 783013-3	£2.93	£3.52
A05 - HEX WRENCH 5 EBH341U/EBH253L MSP-783217-7.A27 783217-7	£1.20	£1.44
A06 - *WRENCH 4 ER2650LH/EBH253L/ER MSP-783223-2.A7 783223-2	£1.20	£1.44
A05-2 - HEX WRENCH 5 EBH341U/EBH253L MSP-783217-7.A26 783217-7	£1.20	£1.44
A07 - ACCESSORY BAG ER2650LH/EBH34 MSP-831304-7.A25 831304-7	£2.32	£2.78
A06-1 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A18 783202-0	£1.20	£1.44
A08 - TOOL COVER EBH341U/2651/4350 MSP-451252-0.A0 451252-0	£4.68	£5.62
A11-1 - OIL SET EBH341L MSP-197008-4.A2 197008-4	£6.10	£7.32
E02 - CAUTION TAG ER2650/2550/CS246 MSP-819430-2.A19 819430-2	£1.44	£1.73

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita EBH341U Petrol Brushcutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
