Makita DLM380PF4 Cordless Lawn Mower Spare Parts

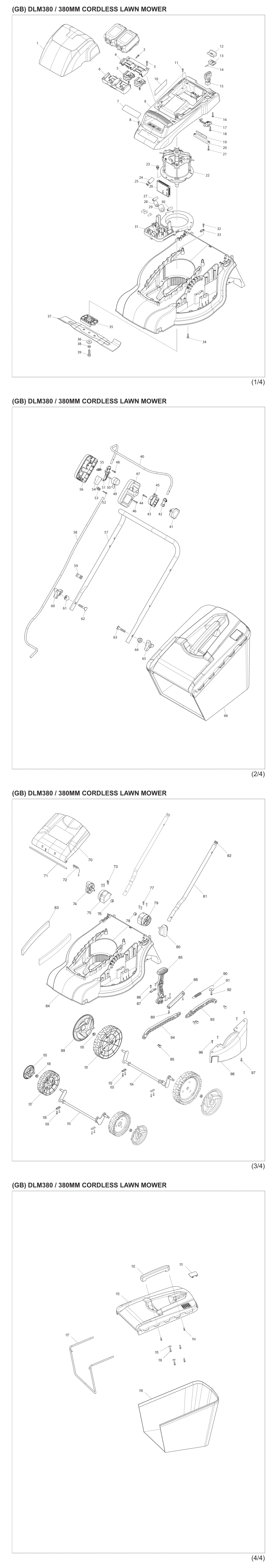

An exploded drawing and spare parts listing for the Makita DLM380PF4 Cordless Lawn Mower

	Ex VAT	Inc VAT
1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A80 263005-3	£1.44	£1.73
1 - BATTERY COVER DLM380/AM3 MSP-142585-1.A0 142585-1	£14.20	£17.04
2 - TAPPING SCREW 4X20 TM3000C MSP-266424-2.A38 266424-2	£1.44	£1.73
3 - TAPPING SCREW 4X20 TM3000C MSP-266424-2.A41 266424-2	£1.44	£1.73
4 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A81 263005-3	£1.44	£1.73
4 - TERMINAL HOUSING SET DLM380/A MSP-187926-4.A0 187926-4	£12.79	£15.35
5 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A46 644808-8	£4.28	£5.14
6 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A82 263005-3	£1.44	£1.73
6 - TERMINAL HOUSING SET DLM380/A MSP-187926-4.A1 187926-4	£12.79	£15.35
7 - LABEL/MAKITA LOGO DML380 MSP-803J08-1.A1 803J08-1	£1.44	£1.73
8 - *TAPPING SCREW 4X16 DLM380/AM3 MSP-266890-3.A12 266890-3	£1.44	£1.73
10 - NAME PLATE DML380 MSP-815M03-7.A0 815M03-7	£1.44	£1.73
11 - *TAPPING SCREW 4X16 DLM380/AM3 MSP-266890-3.A11 266890-3	£1.44	£1.73
14 - COMPRESSION SPRING 4 UC4020A MSP-233173-6.A16 233173-6	£1.44	£1.73
15 - KEY UK360/LM430D/DLM431 MSP-643890-4.A3 643890-4	£3.67	£4.40
16 - TAPPING SCREW 4X20 TM3000C MSP-266424-2.A12 266424-2	£1.44	£1.73
17 - LEAD UNIT LM430D MSP-638946-6.A0 638946-6	£4.21	£5.05
18 - TAPPING SCREW 4X20 TM3000C MSP-266424-2.A13 266424-2	£1.44	£1.73
19 - LED CIRCUIT DLM380/AM3738 MSP-620278-5.A2 620278-5	£6.55	£7.86
21 - TAPPING SCREW 4X20 TM3000C MSP-266424-2.A14 266424-2	£1.44	£1.73
22 - DC MOTOR DLM380/AM3738/BLM381 MSP-629118-4.A0 629118-4	£145.20	£174.24
24 - LINE FILTER DLM380/5143R/M2401 MSP-688162-0.A7 688162-0	£1.44	£1.73
25 - BAND VC3211M/HR4110C/LF1000 MSP-687010-0.A17 687010-0	£1.44	£1.73
26 - CONTROLLER DLM380/AM3738 MSP-620277-7.A0 620277-7	£97.52	£117.03
27 - LINE FILTER UK360/BUB360/TD12 MSP-688165-4.A83 688165-4	£1.44	£1.73
28 - LINE FILTER DLM380/5143R/M2401 MSP-688162-0.A6 688162-0	£1.44	£1.73
29 - LINE FILTER LF1000/BCV01/LS MSP-688140-0.A6 688140-0	£4.83	£5.80
30 - LINE FILTER UK360/BUB360/TD12 MSP-688165-4.A84 688165-4	£1.44	£1.73
31 - MOTOR BRACKET DLM380/AM3738/B MSP-455064-3.A0 455064-3	£13.42	£16.10
32-1 - TAPPING SCREW 4X20 TM3000C MSP-266424-2.A8 266424-2	£1.44	£1.73
32 - *TAPPING SCREW 4X16 DLM380/AM3 MSP-266890-3.A7 266890-3	£1.44	£1.73
34 - TAPPING SCREW 5X20 HR2811FT MSP-266420-0.A0 266420-0	£1.44	£1.73
35 - BLADE SUPPORT DLM380/AM3738/B MSP-455130-6.A1 455130-6	£2.50	£3.00
36 - LARGE WASHER 8 LS1013/ 1019&L MSP-253852-0.A14 253852-0	£1.44	£1.73
37 - BLADE 380 SET DLM380/AM3738/B MSP-191D41-2.A1 191D41-2	£13.72	£16.47
38 - M8 SPRING RING DIN 128 LF1000 MSP-942201-3.A15 942201-3	£1.44	£1.73
39 - HEX BOLT M8X30 DLM380/AM3738/ MSP-266889-8.A2 266889-8	£1.44	£1.73
40 - SWITCH LEVER DLM380/AM3738/BL MSP-332106-9.A1 332106-9	£10.14	£12.17
42 - ARM DLM380/AM3738/BLM381/LM38 MSP-455078-2.A0 455078-2	£1.44	£1.73
44 - TAPPING SCREW 4X20 TM3000C MSP-266424-2.A10 266424-2	£1.44	£1.73
45 - PAN HD SCREW M4X20 9032/LS081 MSP-911138-5.A21 911138-5	£1.44	£1.73
46 - TAPPING SCREW 4X20 TM3000C MSP-266424-2.A11 266424-2	£1.44	£1.73
48 - PAN HD SCREW M4X20 9032/LS081 MSP-911138-5.A20 911138-5	£1.44	£1.73
49 - SWITCH BUTTON DLM380/AM3738/B MSP-455074-0.A0 455074-0	£1.44	£1.73
50 - COMPRESSION SPRING 6 AG125 MSP-233068-3.A13 233068-3	£1.44	£1.73
51 - LEVER DLM380/AM3738/BLM381/LM MSP-455075-8.A6 455075-8	£1.44	£1.73
52 - TAPPING SCREW 4X20 TM3000C MSP-266424-2.A9 266424-2	£1.44	£1.73
53 - STRAIN RELIEF M9001/DVC/RP0900 MSP-687124-5.A119 687124-5	£1.44	£1.73
54 - SWITCH TG72BD-6 DHS710D/DUC252 MSP-650730-9.A5 650730-9	£19.30	£23.16
57 - UPPER HANDLE DLM380/AM3738/BL MSP-332109-3.A3 332109-3	£31.53	£37.84
59 - CORD HOLDER DLM380/AM3738/LM3 MSP-455071-6.A3 455071-6	£1.44	£1.73
60 - THUMB NUT M8 AM3738/BLM381/LM MSP-252657-5.A4 252657-5	£1.44	£1.73
61 - CURL WASHER 8 DLM380/AM3738/B MSP-455131-4.A7 455131-4	£1.44	£1.73
62 - FLAT HEAD BOLT M8X45 DLM380/A MSP-266893-7.A2 266893-7	£1.44	£1.73
63 - FLAT HEAD BOLT M8X45 DLM380/A MSP-266893-7.A5 266893-7	£1.44	£1.73
64 - CURL WASHER 8 DLM380/AM3738/B MSP-455131-4.A6 455131-4	£1.44	£1.73
65 - THUMB NUT M8 AM3738/BLM381/LM MSP-252657-5.A5 252657-5	£1.44	£1.73
66 - GRASS CATCHER ASSY DLM380/BLM MSP-126429-3.A2 126429-3	£58.08	£69.70
70 - REAR COVER ASSY DLM380/BLM381 MSP-DA00000348.A3 DA00000348	£9.67	£11.61
71 - AXIS DLM380/AM3738/BLM381/LM3 MSP-DA00000332.A3 DA00000332	£2.34	£2.81
72 - SPRING DLM380/AM3738/BLM381/L MSP-DA00000352.A0 DA00000352	£1.44	£1.73
73 - SELF DRIVING SCREW 5X16 DLM38 MSP-DA00000326.A23 DA00000326	£1.44	£1.73
77 - SELF DRIVING SCREW 5X16 DLM38 MSP-DA00000326.A24 DA00000326	£1.44	£1.73
81 - LOWER HANDLE BAR DLM380/AM373 MSP-DA00000345.A3 DA00000345	£8.58	£10.30
82 - PIPE PLUG DLM380/AM3738/BLM38 MSP-DA00000346.A0 DA00000346	£1.44	£1.73
83 - WATER PROOF STRIP DLM380/AM37 MSP-DA00000354.A3 DA00000354	£1.44	£1.73
84 - *DECK DLM380/BLM381/LM381D MSP-DA00000334.A3 DA00000334	£64.15	£76.98
85 - HEIGHT ADJUSTMENT HANDLE DLM3 MSP-DA00000339.A3 DA00000339	£8.73	£10.48
86 - *TAPPING SCREW 4X16 DLM380/AM3 MSP-266890-3.A9 266890-3	£1.44	£1.73
87 - HANDLE OF PRESSING BOARD DLM3 MSP-DA00000338.A0 DA00000338	£1.44	£1.73
89 - *TAPPING SCREW 4X16 DLM380/AM3 MSP-266890-3.A8 266890-3	£1.44	£1.73
92 - SELF DRIVING SCREW 5X16 DLM38 MSP-DA00000326.A4 DA00000326	£1.44	£1.73
93 - HEIGHT ADJUSTMENT POLE 2 DLM3 MSP-DA00000341.A3 DA00000341	£2.97	£3.56
94 - HEIGHT ADJUSTMENT POLE 1 DLM3 MSP-DA00000340.A0 DA00000340	£4.37	£5.24
95 - CONNECTION ROD PIN DLM380/AM3 MSP-DA00000333.A0 DA00000333	£1.44	£1.73
96 - *TAPPING SCREW 4X16 DLM380/AM3 MSP-266890-3.A10 266890-3	£1.44	£1.73
97 - SELF DRIVING SCREW 5X16 DLM38 MSP-DA00000326.A1 DA00000326	£1.44	£1.73
98 - SIDE DISCHARGE COVER DLM380/B MSP-DA00000351.A3 DA00000351	£4.83	£5.80
99 - WHEEL COVER DLM380/AM373 MSP-DA00000331.A0 DA00000331	£3.59	£4.31
100 - HEXAGON LOCKING NUT DLM380/AM MSP-DA00000342.A1 DA00000342	£1.44	£1.73
101 - WHEEL ASSY DLM380/AM3738 MSP-DA00000330.A3 DA00000330	£6.40	£7.68
102 - *FRONT AXLE PLATE DLM380/AM37 MSP-DA00000335.A0 DA00000335	£1.44	£1.73
102-1 - METAL PLATE DLM380/DLM381 MSP-161373-7.A2 161373-7	£21.74	£26.09
103 - SELF DRIVING SCREW 5X16 DLM38 MSP-DA00000326.A2 DA00000326	£1.44	£1.73
104 - REAR WHEEL AXLE ASSY DLM380/A MSP-DA00000349.A0 DA00000349	£15.75	£18.90
105 - WHEEL COVER DLM380/AM373 MSP-DA00000329.A0 DA00000329	£2.97	£3.56
106 - HEXAGON LOCKING NUT DLM380/AM MSP-DA00000342.A0 DA00000342	£1.44	£1.73
107 - WHEEL ASSY DLM380/AM3738 MSP-DA00000328.A3 DA00000328	£4.52	£5.43
108 - *FRONT AXLE PLATE DLM380/AM37 MSP-DA00000335.A1 DA00000335	£1.44	£1.73
109 - SELF DRIVING SCREW 5X16 DLM38 MSP-DA00000326.A3 DA00000326	£1.44	£1.73
110 - FRONT WHEEL AXIS ASSY DLM380/ MSP-DA00000336.A3 DA00000336	£15.26	£18.31
111 - LEVEL INDICATOR BLM381/LM381D MSP-DA00000360.A3 DA00000360	£1.44	£1.73
112 - HANDLE OF GRASS CATCHER AM373 MSP-DA00000359.A0 DA00000359	£2.34	£2.81
113 - UPPER COVER OF GRASS CATCHER MSP-DA00000362.A3 DA00000362	£20.16	£24.19
114 - SELF DRIVING SCREW 5X16 DLM38 MSP-DA00000326.A0 DA00000326	£1.44	£1.73
115 - PRESSING PLATE DLM380/AM3738/ MSP-DA00000361.A0 DA00000361	£1.44	£1.73
116 - *TAPPING SCREW 4X16 DLM380/AM3 MSP-266890-3.A14 266890-3	£1.44	£1.73
117 - GRASS CATCHER BRACKET AM3738/ MSP-DA00000358.A3 DA00000358	£11.23	£13.48
118 - GRASS CATCHER DLM380/BLM381/L MSP-DA00000357.A0 DA00000357	£24.19	£29.03
A01 - OFFSET WRENCH 13 LM381D MSP-782016-4.A1 782016-4	£1.20	£1.44
A02 - DC18RD TWIN-PORT FAST CHARGER MSP-*DC18RD.A2 *DC18RD	-
A03 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A79 194204-5	£42.91	£51.49
A03-1 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A130 194204-5	£42.91	£51.49
A04-2 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A101 450128-8	£1.20	£1.44
E01 - LABEL/SOUND 94DB LM381D MSP-800A17-7.A2 800A17-7	£1.44	£1.73
E03 - LABEL/CAUTION LM381D MSP-803J02-3.A3 803J02-3	£1.44	£1.73
