Makita DCS330TH Petrol Chain Saw Spare Parts

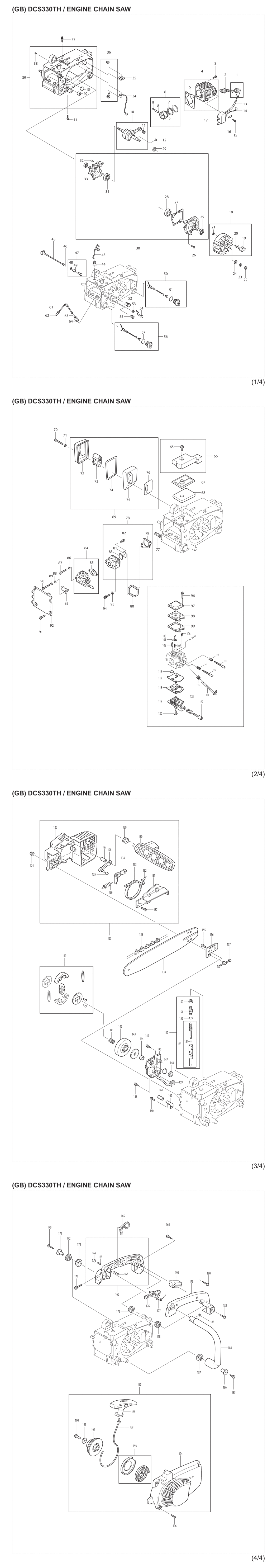

An exploded drawing and spare parts listing for the Makita DCS330TH Petrol Chain Saw

	Ex VAT	Inc VAT
1 - SPARK PLUG CAP DCS330TH MSP-TN00000010.A1 TN00000010	£5.46	£6.55
2 - SPARK PLUG RCJ-8 DCS330TH MSP-TN00001950 TN00001950	£14.51	£17.41
3 - + PAN HEAD SCREW 5X16 DCS330T MSP-TN00000040 TN00000040	£1.44	£1.73
4-2 - CYLINDER SET DCS330TH MSP-TN00004051 TN00004051	£147.00	£176.40
5 - CYLINDER PACKING DCS330TH MSP-TN00000050 TN00000050	£2.18	£2.62
6-2 - PISTON SET DCS330TH MSP-TN00002400 TN00002400	£50.02	£60.03
7 - PISTON RING DCS330TH MSP-TN00000060 TN00000060	£9.36	£11.23
8 - PISTON PIN DCS330TH MSP-TN00000080.A0 TN00000080	£6.08	£7.30
9 - RETAINING RING DCS330TH MSP-TN00000090.A2 TN00000090	£1.44	£1.73
10 - CRANKSHAFT DCS330TH MSP-TN00000100 TN00000100	£156.48	£187.78
11 - NEEDLE BEARING DCS330TH MSP-TN00000110.A0 TN00000110	£12.95	£15.54
12 - WOODRUFF KEY DCS330TH MSP-TN00000120.A1 TN00000120	£1.44	£1.73
13 - INSULATER TUBE DCS330TH MSP-TN00000360.A0 TN00000360	£1.44	£1.73
14 - CORD DCS330TH MSP-TN00000400 TN00000400	£5.46	£6.55
15 - + PAN HEAD SCREW 4X18 DCS330 MSP-TN00000230.A1 TN00000230	£1.44	£1.73
16 - TAB DCS330TH MSP-TN00000240 TN00000240	£1.44	£1.73
17 - IGNITION COIL DCS330TH MSP-TN00000250 TN00000250	£108.61	£130.33
18 - MAGNETO ROTOR ASSY DCS330TH MSP-TN00000190 TN00000190	£91.48	£109.77
19 - CLAW DCS330TH/340TH MSP-TN00000200.A0 TN00000200	£2.65	£3.18
20 - CLAW SPRING DCS330TH MSP-TN00000210.A1 TN00000210	£3.59	£4.31
21 - E-STOP RING 4 DCS330TH MSP-TN00000220.A0 TN00000220	£1.44	£1.73
22 - FLYWHEEL NUT DCS330TH MSP-TN00000160.A1 TN00000160	£2.18	£2.62
23 - SPRING WASHER 7 DCS330TH MSP-TN00000170.A0 TN00000170	£1.44	£1.73
24 - WASHER 7 DCS330TH MSP-TN00000180.A1 TN00000180	£1.44	£1.73
25-1 - OIL SEAL DCS340TH MSP-TN00002670.A3 TN00002670	£4.83	£5.80
26 - +PAN HEAD SCREW 5X20S DCS330 MSP-TN00000260.A0 TN00000260	£1.44	£1.73
27 - CRANKCASE PACKING DCS330TH MSP-TN00000290 TN00000290	£2.65	£3.18
27-1 - CRANKCASE PACKING DCS330TH MSP-TN00004047 TN00004047	£2.81	£3.37
28 - BALL BEARING 6201 DCS330TH MSP-TN00000300.A1 TN00000300	£12.95	£15.54
29 - SHIM 0.1 DCS330TH MSP-TN00000130.A0 TN00000130	£1.44	£1.73
30-1 - CRANKCASE ASSY DCS330TH MSP-TN00004046 TN00004046	£149.64	£179.57
31 - BALL BEARING 6201 DCS330TH MSP-TN00000300.A0 TN00000300	£12.95	£15.54
32 - NEEDLE ROLLER DCS330TH MSP-TN00000310.A1 TN00000310	£4.06	£4.87
33-1 - OIL SEAL DCS340TH MSP-TN00002670.A2 TN00002670	£4.83	£5.80
34 - GROUNDING CORD DCS330TH MSP-TN00000390 TN00000390	£5.46	£6.55
35 - SWITCH PLATE DCS330TH MSP-TN00000380 TN00000380	£1.44	£1.73
36 - STOP SWITCH ASSY DCS330TH MSP-TN00000370 TN00000370	£7.80	£9.36
37 - HEX SOCKET HEAD BOLT 5X20 MSP-TN00000350.A2 TN00000350	£1.44	£1.73
38 - VENTILATING VALVE DCS330TH MSP-TN00000330.A0 TN00000330	£5.46	£6.55
40-1 - O RING S-9 MSP-TN00002530 TN00002530	£1.44	£1.73
40-1 - VENTILATION VALVE ASSY MSP-TN00002520 TN00002520	£12.63	£15.16
41 - HEX SOCKET HEAD BOLT 5X20 MSP-TN00000350.A3 TN00000350	£1.44	£1.73
44 - THROTTLE GUIDE DCS330TH MSP-TN00000760 TN00000760	£2.65	£3.18
45 - OIL PIPE (B) DCS330TH MSP-TN00000700.A0 TN00000700	£9.20	£11.04
46 - CLIP DCS330TH MSP-TN00000710.A2 TN00000710	£1.44	£1.73
47 - OIL FILTER BODY ASSY DCS330TH MSP-TN00000740.A1 TN00000740	£5.46	£6.55
48 - WASHER 5 DCS330TH/340TH MSP-TN00000460.A2 TN00000460	£1.44	£1.73
49 - OIL FILTER DCS330TH MSP-TN00000730.A0 TN00000730	£1.44	£1.73
50 - OIL TANK CAP ASSY DCS330TH MSP-TN00002060 TN00002060	£12.01	£14.41
50 - TANK CAP HOOK DCS330TH MSP-TN00002040.A0 TN00002040	£2.18	£2.62
50 - OIL TANK CAP HOOK DCS330TH MSP-TN00002010 TN00002010	£1.44	£1.73
50 - BALL CHAIN END DCS330TH MSP-TN00002020.A0 TN00002020	£1.44	£1.73
50 - TANK CAP CHAIN DCS330TH MSP-TN00002030.A1 TN00002030	£2.65	£3.18
51 - O-RING P-18 DCS330TH MSP-TN00000840 TN00000840	£1.44	£1.73
52 - ADJUSTING CAP DCS330TH MSP-TN00000850 TN00000850	£2.65	£3.18
53 - RUBBER PLUG (F/CHOKE ROD) MSP-TN00000860 TN00000860	£1.44	£1.73
54 - CHOKE BUTTON DCS330TH MSP-TN00000870 TN00000870	£6.55	£7.86
55 - IDLE GROMMET DCS330TH MSP-TN00000880 TN00000880	£1.44	£1.73
56 - BALL CHAIN END DCS330TH MSP-TN00002020.A1 TN00002020	£1.44	£1.73
56 - TANK CAP ASSY DCS330TH MSP-TN00002070 TN00002070	£12.32	£14.79
56 - TANK CAP HOOK DCS330TH MSP-TN00002040.A1 TN00002040	£2.18	£2.62
56 - TANK CAP HOOK DCS330TH MSP-TN00002050 TN00002050	£1.44	£1.73
56 - TANK CAP CHAIN DCS330TH MSP-TN00002030.A0 TN00002030	£2.65	£3.18
57 - O-RING P-20 DCS330TH MSP-TN00000890 TN00000890	£1.44	£1.73
61-1 - RUBBER PIPE DCS330TH MSP-TN00000791 TN00000791	£10.77	£12.92
62 - CLIP DCS330TH MSP-TN00000710.A3 TN00000710	£1.44	£1.73
63 - CLIP DCS330TH MSP-TN00000710.A4 TN00000710	£1.44	£1.73
64 - PUMP FILTER BODY DCS330TH MSP-TN00000800.A0 TN00000800	£7.49	£8.99
65 - SCREW DCS330TH/340TH MSP-TN00000410.A0 TN00000410	£1.44	£1.73
67 - CLEANER ELEMENT DCS330TH MSP-TN00000440 TN00000440	£8.27	£9.92
68 - CLEANER SPONGE DCS330TH MSP-TN00000430 TN00000430	£2.65	£3.18
69 - MUFFLER SET DCS330TH MSP-TN00000610 TN00000610	£40.03	£48.04
70 - + PAN HEAD SCREW 5X40 DCS330T MSP-TN00000590 TN00000590	£1.44	£1.73
71 - WASHER 5 DCS330TH/340TH MSP-TN00000460.A1 TN00000460	£1.44	£1.73
72 - MUFFLER BODY (B) DCS330TH MSP-TN00000620 TN00000620	£15.58	£18.70
73 - INNER MUFFLER PIPE DCS330TH MSP-TN00000630 TN00000630	£7.80	£9.36
74 - MUFFLER COUPLING PACKING MSP-TN00000640 TN00000640	£1.44	£1.73
75 - MUFFLER BODY (A) DCS330TH MSP-TN00000650 TN00000650	£13.88	£16.66
76 - MUFFLER PACKING DCS330TH MSP-TN00000660 TN00000660	£2.65	£3.18
77 - SEAL COVER DCS330TH MSP-TN00000690 TN00000690	£3.28	£3.93
78 - INSULATING PLATE SET (F/CARB MSP-TN00000530 TN00000530	£37.44	£44.93
79 - SUCTION PIPE PACKING DCS330TH MSP-TN00000580 TN00000580	£2.65	£3.18
80 - INSULATING PLATE F/CARBURETO MSP-TN00000570 TN00000570	£2.65	£3.18
81 - REED HOLDER DCS330TH MSP-TN00000550 TN00000550	£3.28	£3.93
82 - +BLIND SCREW 3X12 DCS330TH MSP-TN00000560 TN00000560	£1.44	£1.73
83 - REED VALVE DCS330TH MSP-TN00000540 TN00000540	£5.46	£6.55
84-1 - CARBURETOR SET DCS330TH MSP-TN00002281 TN00002281	£114.28	£137.14
85 - CARBURETOR PACKING DCS330TH MSP-TN00000500 TN00000500	£2.65	£3.18
86 - CHOKE VALVE SHIM 0.8 DCS330T MSP-TN00000470.A3 TN00000470	£1.44	£1.73
87 - +PAN HEAD SCREW 5X45S DCS330 MSP-TN00000450.A0 TN00000450	£1.44	£1.73
88 - CHOKE VALVE SHIM 0.8 DCS330T MSP-TN00000470.A2 TN00000470	£1.44	£1.73
89 - WASHER 5 DCS330TH/340TH MSP-TN00000460.A0 TN00000460	£1.44	£1.73
90 - +PAN HEAD SCREW 5X45S DCS330 MSP-TN00000450.A1 TN00000450	£1.44	£1.73
91 - + SCREW 4.5X14 DCS330TH MSP-TN00001580.A1 TN00001580	£1.44	£1.73
94 - HEX SOCKET HEAD BOLT 5X20S MSP-TN00000510 TN00000510	£1.44	£1.73
95 - WASHER 5 DCS330TH MSP-TN00000520 TN00000520	£1.44	£1.73
96 - SET SCREW DCS330TH MSP-TN00001240.A1 TN00001240	£2.65	£3.18
97 - DIAPHRAGM COVER DCS330TH MSP-TN00001120.A1 TN00001120	£9.20	£11.04
98 - METERING DIAPHRAGM DCS330TH MSP-TN00001130.A0 TN00001130	£21.89	£26.27
99 - DIAPHRAGM PACKING DCS330TH MSP-TN00001140.A1 TN00001140	£5.46	£6.55
100 - HINGE PIN DCS330TH MSP-TN00001110.A0 TN00001110	£2.65	£3.18
101 - CONTROL LEVER DCS330TH MSP-TN00001080.A1 TN00001080	£5.46	£6.55
102-1 - NEEDLE VALVE DCS330TH MSP-TN00001151.A0 TN00001151	£12.01	£14.41
106 - HINGE PIN SET SCREW DCS330T MSP-TN00001090.A0 TN00001090	£3.90	£4.68
107 - VALVE SPRING DCS330TH MSP-TN00001100.A1 TN00001100	£3.59	£4.31
110 - LOW ADJUST SPRING DCS330TH MSP-TN00001070.A0 TN00001070	£6.71	£8.05
111 - LOW ADJUST SCREW DCS330TH MSP-TN00001060 TN00001060	£12.79	£15.35
112 - HIGH ADJUST SCREW DCS330TH MSP-TN00001220 TN00001220	£12.79	£15.35
114 - HIGH ADJUST SPRING DCS330TH MSP-TN00001230.A0 TN00001230	£6.71	£8.05
116 - INLET SCREEN DCS330TH MSP-TN00001010.A1 TN00001010	£2.50	£3.00
117 - PUMP DIAPHRAGM DCS330TH MSP-TN00001050.A1 TN00001050	£9.20	£11.04
118 - PUMP PACKING DCS330TH MSP-TN00001040.A0 TN00001040	£3.59	£4.31
119 - PUMP BODY DCS330TH MSP-TN00001020.A0 TN00001020	£15.75	£18.90
120 - SET SCREW DCS330TH MSP-TN00001030.A1 TN00001030	£2.65	£3.18
121 - IDLE ADJUST SPRING DCS330TH MSP-TN00001200.A1 TN00001200	£3.59	£4.31
122 - IDLE ADJUST SCREW DCS330TH MSP-TN00001210.A0 TN00001210	£4.83	£5.80
124-1 - CHAIN BAR FIXING NUT DCS340T MSP-TN00003170.A1 TN00003170	£1.44	£1.73
125 - SIDE CASE ASSY DCS330TH MSP-TN00002180 TN00002180	£125.37	£150.44
126 - SIDE COVER ASSY DCS330TH MSP-TN00002200 TN00002200	£43.60	£52.32
127 - SLEEVE (F/CLEANER) DCS330TH MSP-TN00001670.A0 TN00001670	£2.65	£3.18
128 - REINFORCING PLATE (F/BRAKE) MSP-TN00001630.A0 TN00001630	£7.80	£9.36
129 - BRAKE LEVER SPRING DCS330TH MSP-TN00001700.A0 TN00001700	£6.71	£8.05
130 - BRAKE HANDLE DCS330TH MSP-TN00001600 TN00001600	£25.20	£30.24
131-1 - BRAKE LINK COVER DCS340TH MSP-TN00002191.A0 TN00002191	£7.18	£8.61
132 - NEEDLE ROLLER 3X9.8 DCS330TH MSP-TN00001640.A1 TN00001640	£5.46	£6.55
133 - BRAKE BAND DCS330TH MSP-TN00001660.A1 TN00001660	£32.69	£39.23
134 - BRAKE LINK DCS330TH MSP-TN00001650.A0 TN00001650	£25.20	£30.24
135 - COLLAR 7 DCS330TH MSP-TN00001680.A1 TN00001680	£1.44	£1.73
136 - BRAKE SPRING DCS330TH MSP-TN00001620 TN00001620	£6.71	£8.05
137 - +HIGH-LOW SCREW 4X15 DCS330T MSP-TN00001710.A2 TN00001710	£1.44	£1.73
140 - CLUTCH BOSS DCS330TH MSP-TN00001450.A0 TN00001450	£18.72	£22.46
140 - CLUTCH PLATE (A) DCS330TH MSP-TN00001470.A0 TN00001470	£7.80	£9.36
140 - CLUTCH SPRING DCS330TH MSP-TN00001460.A2 TN00001460	£4.99	£5.99
140 - RIVET 4X14 DCS330TH MSP-TN00001480.A0 TN00001480	£1.44	£1.73
140 - CLUTCH DCS330TH MSP-TN00001290.A0 TN00001290	£62.83	£75.40
140 - CLUTCH SHOE DCS330TH MSP-TN00001440.A2 TN00001440	£20.30	£24.36
141 - NEEDLE BEARING DCS330TH MSP-TN00001300.A1 TN00001300	£9.98	£11.98
142 - CLUTCH HOUSING DCS340TH MSP-TN00001310.A1 TN00001310	£79.25	£95.10
142-2 - CLUTCH HOUSING DCS340TH MSP-TN00001310.A2 TN00001310	£79.25	£95.10
143 - CLUTCH WASHER 2.0 DCS330TH MSP-TN00001320.A0 TN00001320	£4.52	£5.43
144 - CRANKSHAFT COLLAR 7.7 DCS330T MSP-TN00001530.A1 TN00001530	£7.80	£9.36
145 - + PAN HEAD SCREW 4X14WS MSP-TN00001330.A1 TN00001330	£1.44	£1.73
146 - OIL PUMP COVER DCS330TH MSP-TN00001340 TN00001340	£10.77	£12.92
147 - AIR VENT DCS330TH MSP-TN00001370 TN00001370	£1.44	£1.73
148 - GEAR DCS330TH MSP-TN00001360.A1 TN00001360	£30.96	£37.15
149 - OIL PUMP ASSY DCS330TH MSP-TN00001380 TN00001380	£54.65	£65.58
150 - OIL ADJUST GROMMET DCS330TH MSP-TN00001390 TN00001390	£1.44	£1.73
151 - OIL PUMP ADJUSTER DCS330TH MSP-TN00001400.A0 TN00001400	£7.80	£9.36
152 - O-RING P-6 DCS330TH MSP-TN00001410.A2 TN00001410	£1.44	£1.73
153 - OIL PUMP CASE SET DCS330TH MSP-TN00001420.A0 TN00001420	£25.20	£30.24
154 - O-RING P-6 DCS330TH MSP-TN00001410.A3 TN00001410	£1.44	£1.73
155 - + HIGH-LOW SCREW 4X10 MSP-TN00001490.A1 TN00001490	£1.44	£1.73
156 - PLATE DCS330TH MSP-TN00001500.A0 TN00001500	£2.65	£3.18
157 - CHAIN ADJUST SCREW DCS330TH MSP-TN00002150 TN00002150	£6.55	£7.86
158 - + SCREW 4.5X14 DCS330TH MSP-TN00001580.A0 TN00001580	£1.44	£1.73
159 - OIL PIPE (A) DCS330TH MSP-TN00001350.A0 TN00001350	£9.20	£11.04
160 - + SCREW 5X14 DCS330TH/PS330 MSP-TN00000920.A2 TN00000920	£1.44	£1.73
161 - FUEL PIPE DCS330TH MSP-TN00001540.A0 TN00001540	£1.44	£1.73
162 - CHAIN CATCHER DCS330TH MSP-TN00001550.A1 TN00001550	£2.65	£3.18
164 - + SCREW 5X14 DCS330TH/PS330 MSP-TN00000920.A3 TN00000920	£1.44	£1.73
165 - SAFETY LEVER DCS330TH MSP-TN00001820.A1 TN00001820	£4.06	£4.87
166 - REAR HANDLE (B) DCS330TH MSP-TN00001780 TN00001780	£37.44	£44.93
167 - PUSH PIN DCS330TH MSP-TN00001810.A0 TN00001810	£2.65	£3.18
168 - STOPPER SPRING DCS330TH MSP-TN00001800.A1 TN00001800	£1.44	£1.73
169 - PUSH PIN CAP DCS330TH MSP-TN00001790.A0 TN00001790	£1.44	£1.73
170 - + SCREW 5X40 DCS330TH MSP-TN00001730.A0 TN00001730	£1.44	£1.73
171 - DAMPER COLLAR (A) DCS330TH MSP-TN00001740 TN00001740	£2.65	£3.18
172 - DAMPER (A) DCS330TH MSP-TN00001750.A0 TN00001750	£2.18	£2.62
173 - DAMPER (A) DCS330TH MSP-TN00001750.A1 TN00001750	£2.18	£2.62
174 - + PAN HEAD SCREW 4X30 DCS330 MSP-TN00001760 TN00001760	£1.44	£1.73
175 - DAMPER DCS330TH MSP-TN00002250.A1 TN00002250	£11.08	£13.29
176 - THROTTLE LEVER DCS330TH MSP-TN00001830 TN00001830	£4.06	£4.87
177 - THROTTLE LEVER SPRING DCS330T MSP-TN00001840.A0 TN00001840	£4.37	£5.24
178 - DAMPER DCS330TH MSP-TN00002250.A0 TN00002250	£11.08	£13.29
179 - REAR HANDLE (A) DCS330TH MSP-TN00001850 TN00001850	£29.38	£35.25
180 - +HIGH-LOW SCREW 4X15 DCS330T MSP-TN00001710.A3 TN00001710	£1.44	£1.73
182 - + SCREW 5X14 DCS330TH/PS330 MSP-TN00000920.A0 TN00000920	£1.44	£1.73
183 - NYLON NUT 4 DCS330TH MSP-TN00001720 TN00001720	£1.44	£1.73
184 - FRONT HANDLE DCS330TH MSP-TN00001880 TN00001880	£37.44	£44.93
185 - + SCREW 5X35 DCS330TH MSP-TN00001860.A0 TN00001860	£1.44	£1.73
186 - DAMPER COLLAR (B) DCS330TH MSP-TN00001900 TN00001900	£2.65	£3.18
187 - DAMPER (B) DCS330TH MSP-TN00001890 TN00001890	£2.65	£3.18
188 - STARTER HANDLE DCS330TH MSP-TN00000970 TN00000970	£5.46	£6.55
189 - ROPE 3X90 DCS330TH MSP-TN00000950.A1 TN00000950	£5.46	£6.55
190 - + SCREW 5X14 DCS330TH/PS330 MSP-TN00000920.A1 TN00000920	£1.44	£1.73
191 - BRAKE SHAFT WASHER 1.6 MSP-TN00000930.A1 TN00000930	£1.44	£1.73
192 - STARTER PULLEY DCS330TH MSP-TN00000940.A0 TN00000940	£12.95	£15.54
193 - SPIRAL SPRING CASE ASSY MSP-TN00000960.A0 TN00000960	£25.20	£30.24
194 - FAN CASE ASSY DCS330TH MSP-TN00000980 TN00000980	£41.98	£50.37
195 - RECOIL STARTER ASSY DCS330TH MSP-TN00002080 TN00002080	£108.61	£130.33
196 - + SCREW 4.5X20 DCS330TH MSP-TN00000990.A0 TN00000990	£1.44	£1.73
198 - HANDLE WEIGHT DCS330TH MSP-TN00002260 TN00002260	£6.71	£8.05
199 - BLIND CAP (A) DCS330TH MSP-TN00001970 TN00001970	£1.44	£1.73
202 - SPONGE 25L DCS340TH MSP-TN00002810.A1 TN00002810	£1.44	£1.73
A01-1 - WRENCH 13-19 DCS340TH MSP-TN00003360.A1 TN00003360	£4.63	£5.56
A02-2 - CHAIN COVER UC3520A/DCS330TH MSP-419288-5.A0 419288-5	£2.17	£2.60

Attribute Name	Value
Brand	Makita

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Makita DCS330TH Petrol Chain Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Makita DCS330TH Petrol Chain Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
