Makita SC161 Steel Rod Cutter Spare Parts

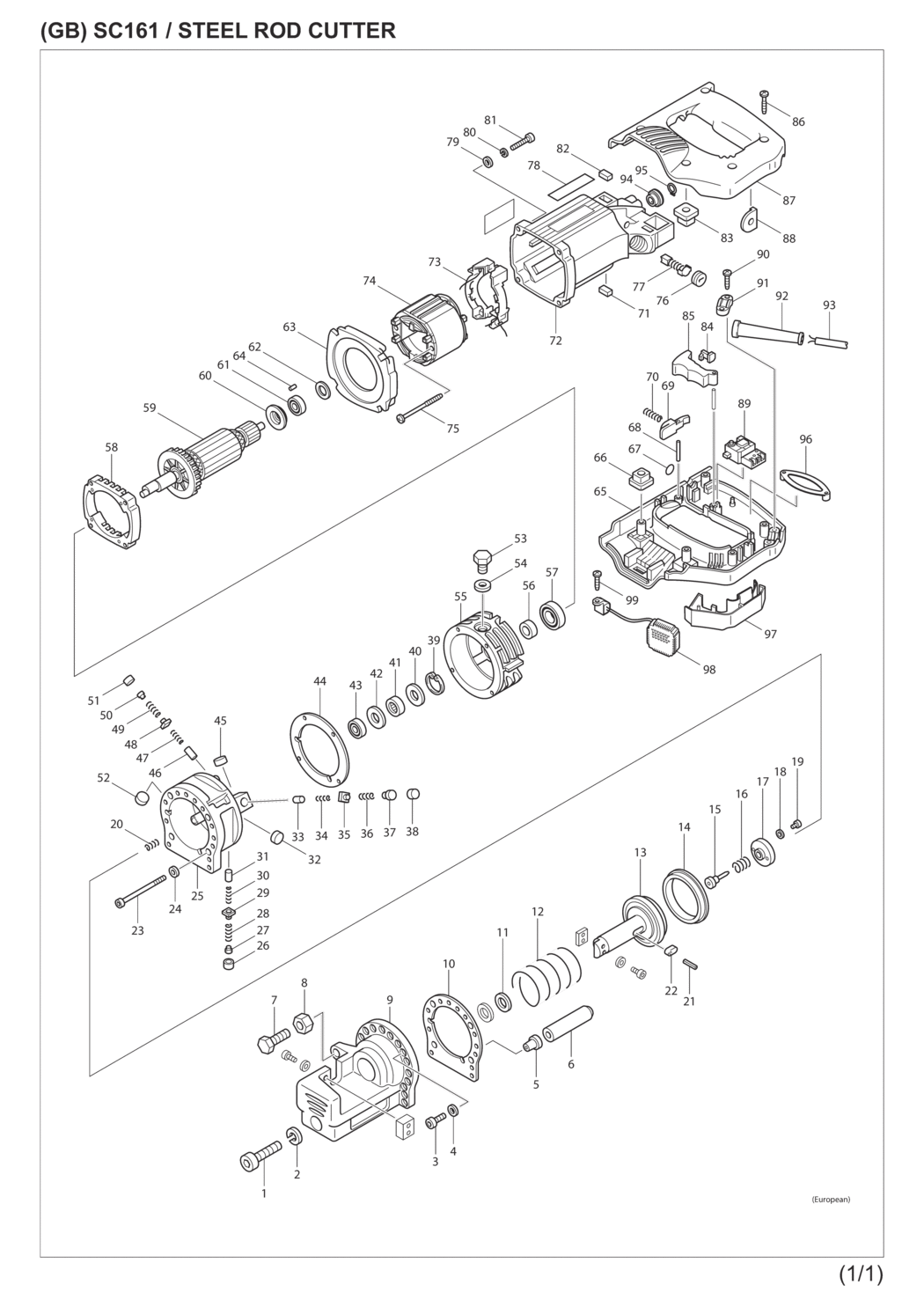

An exploded drawing and spare parts listing for the Makita SC161 Steel Rod Cutter

	Ex VAT	Inc VAT
1 - CAP BOLT PP200 MSP-SC00000083.A1 SC00000083	£4.94	£5.93
2 - M10 SPRING RING DIN128 LS800D MSP-942251-8.A4 942251-8	£1.66	£1.99
3 - H S HD BOLT M6X20/1219&L MSP-922332-4.A7 922332-4	£1.66	£1.99
4 - WASHER 6 DSC162/R/DSC191/DSC25 MSP-SC00000066.A1 SC00000066	£1.66	£1.99
5 - BUSH SC161D MSP-SC00000082.A0 SC00000082	£24.97	£29.96
6 - OIL LEVELLER SACK SC161D/PP2 MSP-SC09004910.A1 SC09004910	£16.17	£19.40
14 - ROD PACKING PP200/DSC191 MSP-SC00000096.A0 SC00000096	£36.08	£43.30
16 - VALVE RETURN SPRING DSC162/R MSP-SC00000032.A0 SC00000032	£4.94	£5.93
17 - STOPPER PLATE PP200 MSP-SC00000031.A1 SC00000031	£33.66	£40.39
18 - WASHER 4 DSC162/DSC162R MSP-SC00000068.A1 SC00000068	£1.66	£1.99
19 - HEX SOCKET HD BOLT M4X6 PP200 MSP-922101-3.A1 922101-3	£1.66	£1.99
20 - RELEASE VALVE SPRING DSC162/R MSP-SC00000023.A0 SC00000023	£4.68	£5.62
21 - SPRING PIN 2.5X10 DSC162/R MSP-SC00000070.A0 SC00000070	£1.66	£1.99
22 - KEY PP200/DSC191 MSP-SC03700020.A1 SC03700020	£7.54	£9.05
23 - SOCKET HEAD BOLT M5X70 PP200 MSP-SC07512140.A1 SC07512140	£2.49	£2.99
24 - WASHER 5 DSC162/DSC162R MSP-SC00000067.A0 SC00000067	£1.66	£1.99
26 - URETHANE PACKING SC161D/PP20 MSP-SC00000076.A3 SC00000076	£6.37	£7.64
26-1 - METAL PACKING DSC162/DSC162R MSP-SC03500540.A2 SC03500540	£10.92	£13.10
27 - SPRING SUPPORTER SC161D/PP200 MSP-SC00000018.A2 SC00000018	£6.24	£7.49
27-1 - O RING S-8 DSC162/DSC162R MSP-SC06505590.A1 SC06505590	£3.64	£4.37
28 - CHECK VALVE SPRING PP200 MSP-SC00000021.A3 SC00000021	£2.49	£2.99
29 - CHECK VALVE #T43445N1 SC161D MSP-SC00000464.A1 SC00000464	£19.25	£23.10
30 - PISTON RETURN SPRING DSC191 MSP-SC00000022.A2 SC00000022	£3.64	£4.37
31 - PISTON DSC191 MSP-SC00000015.A0 SC00000015	£34.65	£41.58
32 - MAGNET PP200 DSC162/R/DSC191 MSP-SC00000020.A2 SC00000020	£3.64	£4.37
33 - PISTON DSC191 MSP-SC00000015.A1 SC00000015	£34.65	£41.58
34 - PISTON RETURN SPRING DSC191 MSP-SC00000022.A1 SC00000022	£3.64	£4.37
35 - CHECK VALVE #T43445N1 SC161D MSP-SC00000464.A0 SC00000464	£19.25	£23.10
36 - CHECK VALVE SPRING PP200 MSP-SC00000021.A4 SC00000021	£2.49	£2.99
37-1 - O RING S-8 DSC162/DSC162R MSP-SC06505590.A0 SC06505590	£3.64	£4.37
37 - SPRING SUPPORTER SC161D/PP200 MSP-SC00000018.A1 SC00000018	£6.24	£7.49
38-1 - METAL PACKING DSC162/DSC162R MSP-SC03500540.A1 SC03500540	£10.92	£13.10
38 - URETHANE PACKING SC161D/PP20 MSP-SC00000076.A4 SC00000076	£6.37	£7.64
39 - STOP RING PP200 MSP-SC00000052.A1 SC00000052	£2.49	£2.99
40 - NEEDLE BEARING SUPPORTER PP2 MSP-SC00000019.A3 SC00000019	£3.90	£4.68
41 - NEEDLE BEARING PP200/DSC191 MSP-SC00000048.A1 SC00000048	£46.64	£55.97
42 - NEEDLE BEARING SUPPORTER PP2 MSP-SC00000019.A2 SC00000019	£3.90	£4.68
43 - BALL BEARING 608 BFS440/BFR5 MSP-211034-0.A17 211034-0	£2.49	£2.99
45 - MAGNET PP200 DSC162/R/DSC191 MSP-SC00000020.A0 SC00000020	£3.64	£4.37
46 - PISTON DSC191 MSP-SC00000015.A2 SC00000015	£34.65	£41.58
47 - PISTON RETURN SPRING DSC191 MSP-SC00000022.A0 SC00000022	£3.64	£4.37
48 - CHECK VALVE #T43445N1 SC161D MSP-SC00000464.A2 SC00000464	£19.25	£23.10
49 - CHECK VALVE SPRING PP200 MSP-SC00000021.A5 SC00000021	£2.49	£2.99
50-1 - O RING S-8 DSC162/DSC162R MSP-SC06505590.A2 SC06505590	£3.64	£4.37
50 - SPRING SUPPORTER SC161D/PP200 MSP-SC00000018.A0 SC00000018	£6.24	£7.49
51-1 - METAL PACKING DSC162/DSC162R MSP-SC03500540.A0 SC03500540	£10.92	£13.10
51 - URETHANE PACKING SC161D/PP20 MSP-SC00000076.A5 SC00000076	£6.37	£7.64
52 - MAGNET PP200 DSC162/R/DSC191 MSP-SC00000020.A1 SC00000020	£3.64	£4.37
54 - SEAL WASHER WF10171.6 DSC162/ MSP-SC00000489.A0 SC00000489	£4.68	£5.62
56 - OIUL SEAL PP200/DSC191 MSP-SC00000054.A1 SC00000054	£12.35	£14.82
57 - BALL BEARING 6002RU DSC162/R MSP-SC00000050.A0 SC00000050	£14.30	£17.16
58 - MOTOR FLANGE PP200 MSP-SC03223200.A1 SC03223200	£51.04	£61.25
59 - ARMATURE WITH SPINDLE PP200 MSP-153806-6.A0 153806-6	£81.98	£98.37
60 - INSULATION WASHER 4157KB MSP-681625-5.A0 681625-5	£1.66	£1.99
61 - BALL BEARING 608LLB(/608VV) 6 MSP-211031-6.A20 211031-6	£3.25	£3.90
62 - HARD NARROW WASHER 16 8410BV MSP-253707-9.A7 253707-9	£1.66	£1.99
63 - FAN GUIDE JR3020/PP200 MSP-415157-8.A0 415157-8	£3.25	£3.90
64 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A275 263002-9	£1.66	£1.99
65 - HANDLE SET PP200 MSP-183820-8.A0 183820-8	£68.58	£82.30
66 - RUBBER (A) JR3020/PP200 MSP-421446-1.A1 421446-1	£1.66	£1.99
67 - LABEL/8406CPP200 MSP-819711-4.A0 819711-4	£1.66	£1.99
68 - PIN 3 DST111/DST112/JR3020 MSP-256221-4.A16 256221-4	£1.66	£1.99
69 - SAFETY LOCK BUTTO PP200 MSP-415373-2.A0 415373-2	£1.66	£1.99
70 - COMPRESSION SPRING 4 6702D MSP-233024-3.A2 233024-3	£1.66	£1.99
71 - RUBBER BLOCK (B) JR3020/PP200 MSP-421447-9.A3 421447-9	£1.66	£1.99
72 - BRUSH HOLDER PC5000/5001C/G MSP-643751-8.A1 643751-8	£4.68	£5.62
72 - MOTOR HOUSING PP200 MSP-151926-0.A0 151926-0	£23.65	£28.38
73 - SUPPORT 8406C/PP200 MSP-632462-0.A1 632462-0	£6.50	£7.80
74 - FIELD 110V 8406C/PP200 MSP-634171-7.A1 634171-7	£30.58	£36.70
75 - PT SCREW 5X65 5703R MSP-266029-8.A18 266029-8	£1.66	£1.99
76 - BRUSH HOLDER CAP 4100KB HS7611 MSP-643750-0.A38 643750-0	£1.66	£1.99
77-1 - CARBON BRUSH CB-253 PC5000/01 MSP-194547-5.A4 194547-5	£4.81	£5.77
79 - WASHER PP200 MSP-SC07600100.A1 SC07600100	£1.66	£1.99
80 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A4 253427-5	£1.66	£1.99
81 - PAN HD SCREW M5X25 W/CP WASHE MSP-911243-8.A14 911243-8	£1.66	£1.99
82 - RUBBER BLOCK (B) JR3020/PP200 MSP-421447-9.A4 421447-9	£1.66	£1.99
83 - RUBBER (A) JR3020/PP200 MSP-421446-1.A0 421446-1	£1.66	£1.99
84 - SPACER 8406C/4304/PP200 MSP-415159-4.A3 415159-4	£2.49	£2.99
85 - SWITCH LEVER PP200 MSP-418577-5.A0 418577-5	£2.49	£2.99
86 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A79 265999-8	£1.66	£1.99
87 - HANDLE SET PP200 MSP-183820-8.A1 183820-8	£68.58	£82.30
89 - SWITCH TG71B PC5000/5001C/KP0 MSP-651922-3.A30 651922-3	£11.44	£13.73
90 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A288 265995-6	£1.66	£1.99
91 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A38 687052-4	£1.66	£1.99
92 - CORD GUARD UH45570/5570/5580 MSP-682505-8.A77 682505-8	£1.66	£1.99
93 - POWER SUPPLY CORD 1.5-2-2.5 MSP-663839-8.A6 663839-8	£10.01	£12.01
94 - MAGNET SLEEVE 8406C/PP200 MSP-688105-2.A1 688105-2	£11.33	£13.60
95 - EXT DIN CIRCLIP-8 HM1317C/CB MSP-961004-6.A33 961004-6	£1.66	£1.99
96 - RUBBER BAND UK360C/JR3020/PP MSP-421448-7.A0 421448-7	£1.66	£1.99
97 - CONTROLLER CASE JR3020/PP200 MSP-415156-0.A2 415156-0	£4.16	£4.99
99 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A287 265995-6	£1.66	£1.99
A02 - CAP HD SCREW M5X18 BST220/1 MSP-922227-1.A6 922227-1	£1.66	£1.99
A03 - HSH BOLT 5X15 DSC162/R/DSC191 MSP-SC00000098 SC00000098	£2.49	£2.99
A04 - WASHER 5 DSC162/DSC162R MSP-SC00000067.A1 SC00000067	£1.66	£1.99
A06 - HEX WRENCH 3 JS1602/43BA/BV/ MSP-783201-2.A35 783201-2	£1.20	£1.44
A07 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A19 783202-0	£1.20	£1.44
A08 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A52 783203-8	£1.20	£1.44
A10 - OIL 35CC DSC162/DSC162R MSP-SC00000106.A0 SC00000106	£5.25	£6.30
