Makita PP200 Hole Puncher Spare Parts

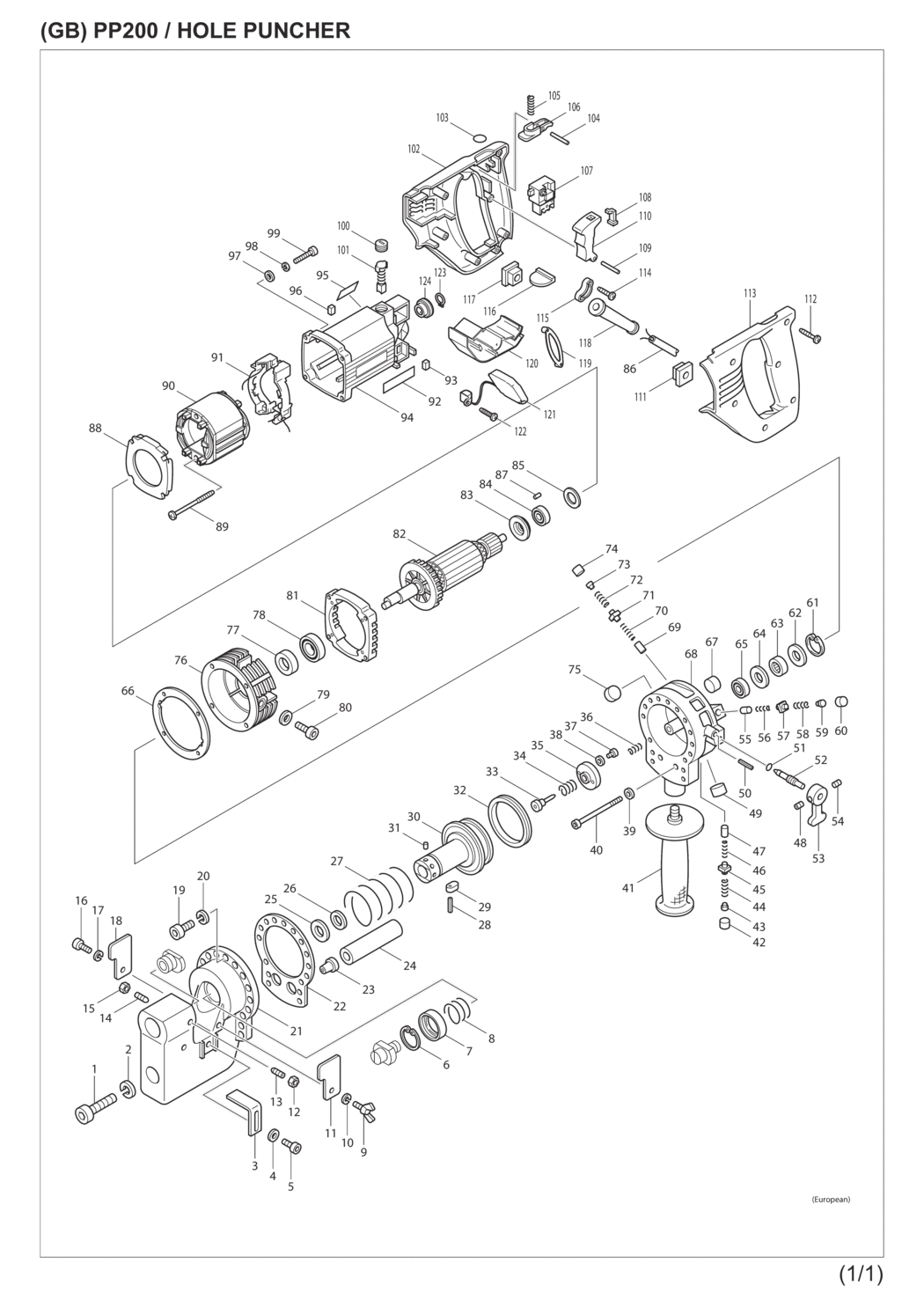

An exploded drawing and spare parts listing for the Makita PP200 Hole Puncher

	Ex VAT	Inc VAT
1 - CAP BOLT PP200 MSP-SC00000083.A0 SC00000083	£4.94	£5.93
2 - M10 SPRING RING DIN128 LS800D MSP-942251-8.A6 942251-8	£1.66	£1.99
3 - SLIDE STOPPER PP200 MSP-SC00000145 SC00000145	£68.58	£82.30
4 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A15 941151-9	£1.66	£1.99
5 - CAP HD SCREW M6X16 UC120D MSP-922321-9.A2 922321-9	£1.66	£1.99
6 - STOP RING PP200 MSP-SC04007900 SC04007900	£4.94	£5.93
7 - COUPLING SLEEVE PP200 MSP-SC03505130 SC03505130	£24.97	£29.96
8 - JOINT SPRING PP200 MSP-SC04007440 SC04007440	£7.54	£9.05
9 - WING BOLT B6X15 PP200 MSP-SC07552000 SC07552000	£1.66	£1.99
10 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A34 253428-3	£1.66	£1.99
11 - STRIPPER S PP200 MSP-SC00000156.A0 SC00000156	£27.39	£32.87
12 - HEX NUT M6 MSP-931301-4.A0 931301-4	£1.66	£1.99
15 - HEX NUT M6 MSP-931301-4.A1 931301-4	£1.66	£1.99
16 - CAP HD SCREW M6X16 UC120D MSP-922321-9.A3 922321-9	£1.66	£1.99
17 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A33 253428-3	£1.66	£1.99
18 - STRIPPER S PP200 MSP-SC00000156.A1 SC00000156	£27.39	£32.87
20 - WASHER HW8 PP200/DSC191 MSP-SC07620040 SC07620040	£1.66	£1.99
21 - PUNCH JAWS PP200 MSP-SC03100810 SC03100810	£1383.51	£1660.21
22 - LINER A PP200 MSP-SC00000152 SC00000152	£7.80	£9.36
23 - BUSH SC161D MSP-SC00000082.A1 SC00000082	£24.97	£29.96
24 - OIL LEVELLER SACK SC161D/PP2 MSP-SC09004910.A0 SC09004910	£16.17	£19.40
25 - BACKUP RING PP200 MSP-SC00000157 SC00000157	£11.77	£14.12
26 - ROD SEAL PACKING PP200 MSP-SC00000053 SC00000053	£19.25	£23.10
27 - ROD RETURN SPRING PP200 MSP-SC00000151 SC00000151	£37.40	£44.88
28 - SPRING PIN 2.5X10 DSC162/R MSP-SC00000070.A1 SC00000070	£1.66	£1.99
29 - KEY PP200/DSC191 MSP-SC03700020.A0 SC03700020	£7.54	£9.05
31 - JOINT PIN PP200 MSP-SC03505180 SC03505180	£11.31	£13.57
32 - ROD PACKING PP200/DSC191 MSP-SC00000096.A1 SC00000096	£36.08	£43.30
33 - RELEASE VALVE PP200 MSP-SC00000116 SC00000116	£41.69	£50.03
34 - VALVE RETURN SPRING DSC162/R MSP-SC00000032.A1 SC00000032	£4.94	£5.93
35 - STOPPER PLATE PP200 MSP-SC00000031.A0 SC00000031	£33.66	£40.39
36 - RELEASE VALVE SPRING DSC162/R MSP-SC00000023.A1 SC00000023	£4.68	£5.62
37 - HEX SOCKET HD BOLT M4X6 PP200 MSP-922101-3.A0 922101-3	£1.66	£1.99
38 - WASHER 4 DSC162/DSC162R MSP-SC00000068.A0 SC00000068	£1.66	£1.99
39 - WASHER 5 DSC162/DSC162R MSP-SC00000067.A2 SC00000067	£1.66	£1.99
40 - SOCKET HEAD BOLT M5X70 PP200 MSP-SC07512140.A0 SC07512140	£2.49	£2.99
41 - GRIP PP200 MSP-SC00000155 SC00000155	£22.44	£26.93
42 - URETHANE PACKING SC161D/PP20 MSP-SC00000076.A0 SC00000076	£6.37	£7.64
43 - SPRING SUPPORTER SC161D/PP200 MSP-SC00000018.A3 SC00000018	£6.24	£7.49
44 - CHECK VALVE SPRING PP200 MSP-SC00000021.A0 SC00000021	£2.49	£2.99
45 - CHECK VALVE PP200 DSC162/R MSP-SC00000149.A2 SC00000149	£24.97	£29.96
46 - PISTON RETURN SPRING PP200 MSP-SC00000150.A0 SC00000150	£2.49	£2.99
47 - PISTON PP200 MSP-SC00000148.A1 SC00000148	£24.97	£29.96
48 - SET SCREW M6X6 PP200 MSP-913301-6.A0 913301-6	£1.66	£1.99
49 - MAGNET PP200 DSC162/R/DSC191 MSP-SC00000020.A5 SC00000020	£3.64	£4.37
50 - TENSION PIN 4-20 DIN 1481 903 MSP-951116-3.A5 951116-3	£1.66	£1.99
51 - O RING P4 PP200 MSP-SC00000158 SC00000158	£2.49	£2.99
52 - RETURN VALVE PP200 MSP-SC00000146 SC00000146	£2.49	£2.99
53 - RETURN LEVER PP200 MSP-SC00000147 SC00000147	£27.39	£32.87
54 - SET SCREW M6X6 PP200 MSP-913301-6.A1 913301-6	£1.66	£1.99
55 - PISTON PP200 MSP-SC00000148.A0 SC00000148	£24.97	£29.96
56 - PISTON RETURN SPRING PP200 MSP-SC00000150.A1 SC00000150	£2.49	£2.99
57 - CHECK VALVE PP200 DSC162/R MSP-SC00000149.A1 SC00000149	£24.97	£29.96
58 - CHECK VALVE SPRING PP200 MSP-SC00000021.A2 SC00000021	£2.49	£2.99
59 - SPRING SUPPORTER SC161D/PP200 MSP-SC00000018.A5 SC00000018	£6.24	£7.49
60 - URETHANE PACKING SC161D/PP20 MSP-SC00000076.A2 SC00000076	£6.37	£7.64
61 - STOP RING PP200 MSP-SC00000052.A0 SC00000052	£2.49	£2.99
62 - NEEDLE BEARING SUPPORTER PP2 MSP-SC00000019.A0 SC00000019	£3.90	£4.68
63 - NEEDLE BEARING PP200/DSC191 MSP-SC00000048.A0 SC00000048	£46.64	£55.97
64 - NEEDLE BEARING SUPPORTER PP2 MSP-SC00000019.A1 SC00000019	£3.90	£4.68
65 - BALL BEARING 608 BFS440/BFR5 MSP-211034-0.A0 211034-0	£2.49	£2.99
66 - LINER B PP200 MSP-SC00000153 SC00000153	£7.02	£8.42
67 - MAGNET PP200 DSC162/R/DSC191 MSP-SC00000020.A3 SC00000020	£3.64	£4.37
68 - CYLINDER PP200 MSP-SC03201600 SC03201600	£653.92	£784.70
69 - PISTON PP200 MSP-SC00000148.A2 SC00000148	£24.97	£29.96
70 - PISTON RETURN SPRING PP200 MSP-SC00000150.A2 SC00000150	£2.49	£2.99
71 - CHECK VALVE PP200 DSC162/R MSP-SC00000149.A0 SC00000149	£24.97	£29.96
72 - CHECK VALVE SPRING PP200 MSP-SC00000021.A1 SC00000021	£2.49	£2.99
73 - SPRING SUPPORTER SC161D/PP200 MSP-SC00000018.A4 SC00000018	£6.24	£7.49
74 - URETHANE PACKING SC161D/PP20 MSP-SC00000076.A1 SC00000076	£6.37	£7.64
75 - MAGNET PP200 DSC162/R/DSC191 MSP-SC00000020.A4 SC00000020	£3.64	£4.37
76 - HOUSING PP200 MSP-SC03211000 SC03211000	£284.82	£341.79
77 - OIUL SEAL PP200/DSC191 MSP-SC00000054.A0 SC00000054	£12.35	£14.82
78 - BALL BEARING 6002RU DSC162/R MSP-SC00000050.A1 SC00000050	£14.30	£17.16
79 - SEAL WASHER WF10171.6 DSC162/ MSP-SC00000489.A1 SC00000489	£4.68	£5.62
80 - SOCKET HD BOLT 10X15 PP200 MSP-SC00000161 SC00000161	£1.66	£1.99
81 - MOTOR FLANGE PP200 MSP-SC03223200.A0 SC03223200	£51.04	£61.25
82 - ARMATURE WITH SPINDLE PP200 MSP-153806-6.A1 153806-6	£81.98	£98.37
83 - INSULATION WASHER 4157KB MSP-681625-5.A11 681625-5	£1.66	£1.99
84 - BALL BEARING 608LLB(/608VV) 6 MSP-211031-6.A78 211031-6	£3.25	£3.90
85 - HARD NARROW WASHER 16 8410BV MSP-253707-9.A2 253707-9	£1.66	£1.99
86 - POWER SUPPLY CORD 1.5-2-2.5 MSP-663839-8.A9 663839-8	£10.01	£12.01
87 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A133 263002-9	£1.66	£1.99
88 - FAN GUIDE JR3020/PP200 MSP-415157-8.A2 415157-8	£3.25	£3.90
89 - PT SCREW 5X65 5703R MSP-266029-8.A1 266029-8	£1.66	£1.99
90 - FIELD 110V 8406C/PP200 MSP-634171-7.A0 634171-7	£30.58	£36.70
91 - SUPPORT 8406C/PP200 MSP-632462-0.A0 632462-0	£6.50	£7.80
92 - LABEL/MAKITA 500 4305HR160DW MSP-819063-3.A102 819063-3	£1.66	£1.99
93 - RUBBER BLOCK (B) JR3020/PP200 MSP-421447-9.A1 421447-9	£1.66	£1.99
94 - BRUSH HOLDER PC5000/5001C/G MSP-643751-8.A2 643751-8	£4.68	£5.62
94 - MOTOR HOUSING PP200 MSP-151926-0.A1 151926-0	£23.65	£28.38
95 - LABEL/CAUTION PP200 MSP-SC08008170 SC08008170	£2.49	£2.99
96 - RUBBER BLOCK (B) JR3020/PP200 MSP-421447-9.A2 421447-9	£1.66	£1.99
97 - WASHER PP200 MSP-SC07600100.A0 SC07600100	£1.66	£1.99
98 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A42 253427-5	£1.66	£1.99
99 - PAN HD SCREW M5X25 W/CP WASHE MSP-911243-8.A32 911243-8	£1.66	£1.99
100 - BRUSH HOLDER CAP 4100KB HS7611 MSP-643750-0.A21 643750-0	£1.66	£1.99
101-1 - CARBON BRUSH CB-253 PC5000/01 MSP-194547-5.A0 194547-5	£4.81	£5.77
102 - HANDLE SET PP200 MSP-183820-8.A2 183820-8	£68.58	£82.30
103 - LABEL/8406CPP200 MSP-819711-4.A1 819711-4	£1.66	£1.99
104 - PIN 3 DST111/DST112/JR3020 MSP-256221-4.A0 256221-4	£1.66	£1.99
105 - COMPRESSION SPRING 4 6702D MSP-233024-3.A10 233024-3	£1.66	£1.99
106 - SAFETY LOCK BUTTO PP200 MSP-415373-2.A1 415373-2	£1.66	£1.99
107 - SWITCH TG71B PC5000/5001C/KP0 MSP-651922-3.A17 651922-3	£11.44	£13.73
108 - SPACER 8406C/4304/PP200 MSP-415159-4.A2 415159-4	£2.49	£2.99
109 - PIN 3 DST111/DST112/JR3020 MSP-256221-4.A1 256221-4	£1.66	£1.99
110 - SWITCH LEVER PP200 MSP-418577-5.A1 418577-5	£2.49	£2.99
111 - RUBBER (A) JR3020/PP200 MSP-421446-1.A2 421446-1	£1.66	£1.99
112 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A5 265999-8	£1.66	£1.99
113 - HANDLE SET PP200 MSP-183820-8.A3 183820-8	£68.58	£82.30
114 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1174 265995-6	£1.66	£1.99
115 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A141 687052-4	£1.66	£1.99
116 - RUBBER PLATE JR3020/PP200 MSP-421452-6.A1 421452-6	£1.66	£1.99
117 - RUBBER (A) JR3020/PP200 MSP-421446-1.A3 421446-1	£1.66	£1.99
118 - CORD GUARD UH45570/5570/5580 MSP-682505-8.A67 682505-8	£1.66	£1.99
119 - RUBBER BAND UK360C/JR3020/PP MSP-421448-7.A2 421448-7	£1.66	£1.99
120 - CONTROLLER CASE JR3020/PP200 MSP-415156-0.A0 415156-0	£4.16	£4.99
121 - CONTROLLER PP200 MSP-631602-7 631602-7	£115.43	£138.52
122 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1175 265995-6	£1.66	£1.99
123 - EXT DIN CIRCLIP-8 HM1317C/CB MSP-961004-6.A46 961004-6	£1.66	£1.99
124 - MAGNET SLEEVE 8406C/PP200 MSP-688105-2.A0 688105-2	£11.33	£13.60
A02-1 - HOLE PUNCH PP200 MSP-SC53300601 SC53300601	£58.40	£70.08
A03 - HOLE DIE B-11 PP200 MSP-SC00000191 SC00000191	£60.88	£73.05
A04 - WORK STAND PP200 MSP-SC00000163 SC00000163	£86.82	£104.19
A05 - HEX WRENCH 3 JS1602/43BA/BV/ MSP-783201-2.A17 783201-2	£1.20	£1.44
A06 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A53 783202-0	£1.20	£1.44
A07 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A35 783203-8	£1.20	£1.44
A08 - HEX WRENCH 6 HS6100/7100/4157 MSP-783204-6.A13 783204-6	£2.49	£2.99
A09 - *HEX WRENCH 8 HM1200K/PP200 MSP-783210-1 783210-1	£2.01	£2.41
A10 - WRENCH PP200 MSP-SC00000166 SC00000166	£5.33	£6.40
A11 - OIL 35CC DSC162/DSC162R MSP-SC00000106.A1 SC00000106	£5.25	£6.30
A12 - CAP HD SCREW M6X16 UC120D MSP-922321-9.A1 922321-9	£1.66	£1.99
