Makita DPB180RFE Cordless Portable Band Saw Spare Parts

Home Details Reviews Delivery

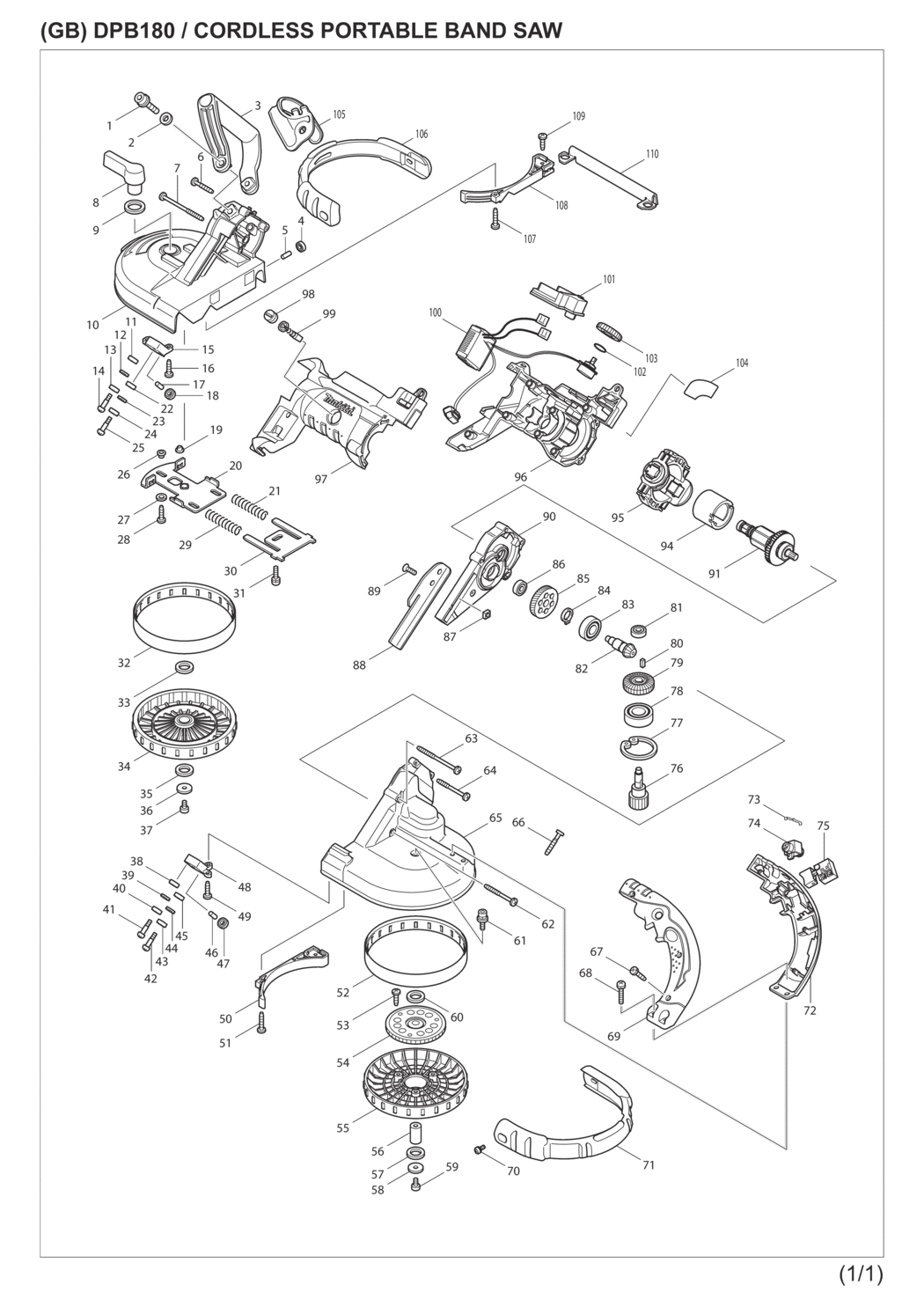

An exploded drawing and spare parts listing for the Makita DPB180RFE Cordless Portable Band Saw

	Ex VAT	Inc VAT
1 - HEX SOCKET HD BOLT M8 X 35 HR MSP-922456-6.A5 922456-6	£1.66	£1.99
2 - FLAT WASHER 8 DIN125-A RP0900 MSP-941202-8.A18 941202-8	£1.66	£1.99
3 - GRIP DPB180 MSP-273525-9.A2 273525-9	£10.01	£12.01
4-1 - BLADE GUIDE 2107/DPB180 MSP-143517-1.A3 143517-1	£11.77	£14.12
5 - HARD ROLLER 6-15 4305 MSP-256033-5.A27 256033-5	£1.66	£1.99
5-1 - PIN 5 GF600/2107/DPB180 MSP-268225-4.A5 268225-4	£1.66	£1.99
6 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A123 265999-8	£1.66	£1.99
7 - PT SCREW 4X55 4306/6826/27 MSP-266147-2.A21 266147-2	£1.66	£1.99
8 - LEVER 60 DPB180/2107F MSP-272223-2.A3 272223-2	£5.98	£7.18
9 - SHIM WASHER 20 VC3211M/9079F MSP-267041-1.A11 267041-1	£1.66	£1.99
10 - LABEL/INDICATION 2107F MSP-816212-3.A5 816212-3	£1.66	£1.99
10 - FRONT WHEEL COVER DPB180 MSP-158703-1.A2 158703-1	£46.64	£55.97
12 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A62 941152-7	£1.66	£1.99
14 - PAN HEAD SCREW I6 2107F/BPB18 MSP-251337-0.A27 251337-0	£1.66	£1.99
15 - UPPER HOLDER 2107F/DPB180 MSP-317824-0.A3 317824-0	£5.59	£6.71
19 - SLEEVE 5 DPB180/2107F MSP-343494-9.A10 343494-9	£1.66	£1.99
20 - SLIDE PLATE DPB180/2107F MSP-163276-1.A3 163276-1	£11.44	£13.73
21 - COMPRESSION SPRING 11 MSP-231449-5.A7 231449-5	£1.66	£1.99
24 - BALL BEARING 696ZZ DGA454/504 MSP-210033-9.A125 210033-9	£1.66	£1.99
25 - PAN HEAD SCREW I6 2107F/BPB18 MSP-251337-0.A1 251337-0	£1.66	£1.99
26 - SLEEVE 5 DPB180/2107F MSP-343494-9.A2 343494-9	£1.66	£1.99
27 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A35 941051-3	£1.66	£1.99
28 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A174 266034-5	£1.66	£1.99
29 - COMPRESSION SPRING 11 MSP-231449-5.A4 231449-5	£1.66	£1.99
30 - TENSION PLATE 2107F MSP-343489-2.A3 343489-2	£2.49	£2.99
31 - PAN HD SCREW M5X16 W/WASHER MSP-911221-8.A20 911221-8	£1.66	£1.99
32 - RUBBER TYRE DPB180/2107F MSP-421333-4.A5 421333-4	£6.37	£7.64
33 - NARROW HARD WASHER 16 LC1230 MSP-253749-3.A13 253749-3	£1.66	£1.99
34-1 - WHEEL 2107F/DPB180 MSP-140B58-0.A1 140B58-0	£21.67	£26.00
35 - NARROW HARD WASHER 16 LC1230 MSP-253749-3.A11 253749-3	£1.66	£1.99
36 - LARGE FLAT WSHER 6 5100BR MSP-253010-8.A20 253010-8	£1.66	£1.99
37 - CAP HD SCREW M6X12 PC5000/500 MSP-922312-0.A4 922312-0	£1.66	£1.99
38 - BALL BEARING 696ZZ DGA454/504 MSP-210033-9.A123 210033-9	£1.66	£1.99
39 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A8 941152-7	£1.66	£1.99
40 - BALL BEARING 696ZZ DGA454/504 MSP-210033-9.A124 210033-9	£1.66	£1.99
41 - PAN HEAD SCREW I6 2107F/BPB18 MSP-251337-0.A19 251337-0	£1.66	£1.99
42 - PAN HEAD SCREW I6 2107F/BPB18 MSP-251337-0.A20 251337-0	£1.66	£1.99
43 - BALL BEARING 696ZZ DGA454/504 MSP-210033-9.A120 210033-9	£1.66	£1.99
44 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A9 941152-7	£1.66	£1.99
45 - BALL BEARING 696ZZ DGA454/504 MSP-210033-9.A121 210033-9	£1.66	£1.99
46 - HARD ROLLER 6-15 4305 MSP-256033-5.A9 256033-5	£1.66	£1.99
47 - BALL BEARING 696ZZ DGA454/504 MSP-210033-9.A122 210033-9	£1.66	£1.99
48 - LOWER HOLDER 2107F/DPB180 MSP-317823-2.A1 317823-2	£5.59	£6.71
49 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A173 266034-5	£1.66	£1.99
50 - SAW GUARD HOLDER DPB180/2107F MSP-418784-0.A3 418784-0	£2.49	£2.99
51 - CT SCREW M4X20 BHS630/5703R MSP-266042-6.A7 266042-6	£1.66	£1.99
52 - RUBBER TYRE DPB180/2107F MSP-421333-4.A4 421333-4	£6.37	£7.64
53 - PT SCREW 5X20 HM1303 MSP-266021-4.A3 266021-4	£1.66	£1.99
54 - GEAR DPB180 MSP-154949-7.A1 154949-7	£12.43	£14.92
55 - WHEEL 2107F/DPB180 MSP-419506-1.A1 419506-1	£10.14	£12.17
56 - LOWER SHAFT DPB180/2107F MSP-324513-0.A2 324513-0	£6.50	£7.80
57 - NARROW HARD WASHER 16 LC1230 MSP-253749-3.A12 253749-3	£1.66	£1.99
58 - LARGE FLAT WSHER 6 5100BR MSP-253010-8.A17 253010-8	£1.66	£1.99
59 - CAP HD SCREW M6X12 PC5000/500 MSP-922312-0.A5 922312-0	£1.66	£1.99
60 - NARROW HARD WASHER 16 LC1230 MSP-253749-3.A18 253749-3	£1.66	£1.99
61 - HEX SOCKET BOLT M6X16 2012NB MSP-922323-5.A5 922323-5	£1.66	£1.99
62 - TRILOBULAR SCREW M4X40 MSP-266203-8.A2 266203-8	£1.66	£1.99
63 - PT SCREW 4X55 4306/6826/27 MSP-266147-2.A1 266147-2	£1.66	£1.99
64 - PT SCREW 4X40 BO3710/711/4334 MSP-266048-4.A3 266048-4	£1.66	£1.99
65 - REAR WHEEL COVER DPB180 MSP-317947-4.A2 317947-4	£44.22	£53.06
66 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1220 265995-6	£1.66	£1.99
67 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1229 265995-6	£1.66	£1.99
68 - PAN HD SCREW M5X25 W/CP WASHE MSP-911243-8.A7 911243-8	£1.66	£1.99
69 - HANDLE SET DPB180 MSP-188108-1.A1 188108-1	£22.44	£26.93
70 - PAN HEAD SCREW M5X12 ER2550 MSP-911213-7.A46 911213-7	£1.66	£1.99
71 - REAR BUMPER DPB180 MSP-168412-4.A0 168412-4	£16.72	£20.06
72 - HANDLE SET DPB180 MSP-188108-1.A0 188108-1	£22.44	£26.93
73 - LEAF SPRING BFL300FZ/BFL400 MSP-232201-4.A16 232201-4	£2.49	£2.99
74 - LOCK OFF BUTTON DPB180 MSP-419504-5.A1 419504-5	£2.49	£2.99
75 - SWITCH SGE120C-3 DPB180 MSP-650229-4.A1 650229-4	£6.37	£7.64
76 - SPUR GEAR 12 DPB180 MSP-227170-2.A1 227170-2	£19.25	£23.10
77 - R-RING R-47 5100BR/2710 MSP-962203-3.A5 962203-3	£1.66	£1.99
78 - BALL BEARING 6204LLB HM1317CC MSP-211306-3.A6 211306-3	£10.14	£12.17
79 - SPIRAL BEVEL GEAR 29 DPB180/2 MSP-227470-0.A1 227470-0	£7.41	£8.89
80 - KEY 4-10 9401/9900B/9402/LF10 MSP-254202-2.A1 254202-2	£1.66	£1.99
81 - BALL BEARING 608ZZ MT361/M5802 MSP-210029-0.A59 210029-0	£2.92	£3.50
82 - SPIRAL BEVEL GEAR 11 DPB180 MSP-227481-5.A2 227481-5	£14.30	£17.16
83 - BALL BEARING 6202DDW PC5000/0 MSP-211241-5.A15 211241-5	£2.49	£2.99
84 - EXT DIN 471 CIRCLIP-15 9217SP MSP-961055-9.A55 961055-9	£1.66	£1.99
85 - HELICAL GEAR 45 DPB180 MSP-226626-2.A0 226626-2	£6.89	£8.27
86 - BALL BEARING 608ZZ MT361/M5802 MSP-210029-0.A58 210029-0	£2.92	£3.50
87 - SQUARE NUT M6 2107F HS7611 MSP-252157-5.A5 252157-5	£1.66	£1.99
88 - STOPPER PLATE 2107F MSP-345467-8.A1 345467-8	£1.66	£1.99
89 - FLAT HD SCREW M6X16 9500D MSP-251981-3.A0 251981-3	£1.66	£1.99
90 - GEAR HOUSING DPB180/2107 MSP-154475-6.A1 154475-6	£30.58	£36.70
91 - ARMATURE DPB180 MSP-619187-3.A0 619187-3	£34.98	£41.98
94 - YOKE UNIT DPB180/CS550/BSS500 MSP-638420-4.A7 638420-4	£23.65	£28.38
95 - ENDBELL DPB180 MSP-638919-9.A2 638919-9	£2.49	£2.99
96 - HOUSING SET DPB180 MSP-187801-4.A2 187801-4	£37.73	£45.28
97 - HOUSING SET DPB180 MSP-187801-4.A3 187801-4	£37.73	£45.28
98 - HOLDER CAP DUB361/BUB360/BDG MSP-643929-3.A22 643929-3	£1.66	£1.99
99 - CARBON BRUSH SET CB-430 MSP-191971-3.A19 191971-3	£4.81	£5.77
100 - CONTROLLER DPB180 MSP-632B82-2.A1 632B82-2	£78.95	£94.74
101 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A10 644808-8	£3.38	£4.06
102 - O RING 17 HM1317C-CB/HR2410/ MSP-213261-5.A1 213261-5	£2.49	£2.99
103 - DIAL DPB180 MSP-419505-3.A1 419505-3	£2.49	£2.99
106 - FRONT BUMPER DPB180 MSP-168413-2.A1 168413-2	£16.72	£20.06
107 - CT SCREW M4X20 BHS630/5703R MSP-266042-6.A5 266042-6	£1.66	£1.99
108 - SAW GUARD HOLDER DPB180/2107F MSP-418784-0.A4 418784-0	£2.49	£2.99
109 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A180 266034-5	£1.66	£1.99
110 - SAW GUARD DPB180/2107F MSP-346669-9.A1 346669-9	£2.49	£2.99
A01 - DC18RC COMPACT CHARGER MSP-*DC18RC.A85 *DC18RC	-
A02 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A64 194204-5	£42.91	£51.49
A02-1 - *BATTERY BL1830 18V LI-ION MSP-194204-5.A145 194204-5	£42.91	£51.49
A04 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A28 783202-0	£1.20	£1.44
A05 - PLASTIC CASE BPB180 MSP-141496-7.A1 141496-7	£57.94	£69.53
A05 - MAKITA LOGO LEBEL 4112HS MSP-819145-1.A14 819145-1	£1.66	£1.99
A05 - LATCH/PLASTIC CASE 824697-9 MSP-163467-4.A19 163467-4	£1.47	£1.76
A06 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A61 450128-8	£1.20	£1.44
E01 - LINEFILTER UK360/DHR164/UR180D MSP-688172-7.A50 688172-7	£1.66	£1.99
