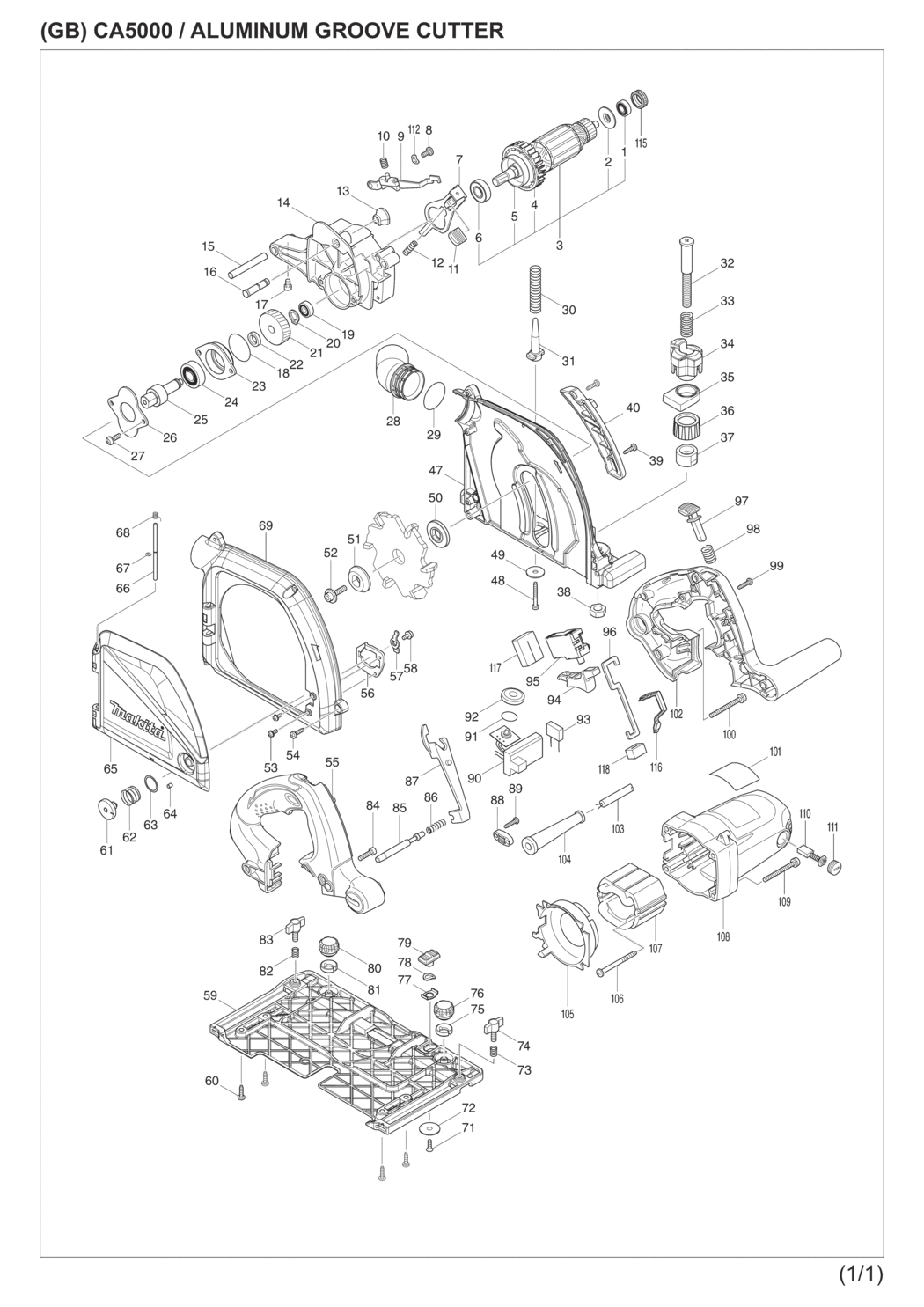

An exploded drawing and spare parts listing for the Makita CA5000XJ Aluminum Groove Cutter
Ex VAT Inc VAT
1 - BALL BEARING 698VV TD0101F/SP MSP-210013-5.A3 210013-5 £5.85 £7.02
2 - INSULATION WASHER 4131 MSP-681634-4.A3 681634-4 £1.66 £1.99
3 - ARMATURE ASSY 110V SP6000/CA MSP-513676-9.A2 513676-9 £85.75 £102.90
3 - ARMATURE ASSY 240V SP6000 MSP-513678-5.A0 513678-5 £85.75 £102.90
4 - FAN 60 SP6000/CA5000 MSP-240091-1.A0 240091-1 £13.09 £15.71
5 - DRUM SP6000/CA5000 MSP-345767-6.A2 345767-6 £7.02 £8.42
6 - BALL BEARING 6001DDW HS7100 MSP-211131-2.A27 211131-2 £6.50 £7.80
7 - SHAFT LOCK SP6000/CA5000 MSP-345742-2.A3 345742-2 £6.89 £8.27
8 - SHOULDER SCREW M5 JR3020 MSP-265011-4.A4 265011-4 £2.49 £2.99
9 - SHOE SP6000/CA5000 MSP-158096-6.A2 158096-6 £10.53 £12.64
10 - COMPRESSION SPRING 7 SP6000 MSP-233480-7.A2 233480-7 £1.66 £1.99
11 - *CAP HS7100/6100/SP6000/5008MB MSP-286039-9.A6 286039-9 £1.66 £1.99
12 - COMPRESSION SPRING 6 5903R MSP-233084-5.A7 233084-5 £1.66 £1.99
13 - *CAP SP6000/CA5000 MSP-286040-4.A6 286040-4 £1.66 £1.99
13-1 - CAP DSP600 CA5000/SP6000 MSP-286040-4.A5 286040-4 £1.66 £1.99
14-1 - GEAR HOUSING SP6000 MSP-144586-5.A3 144586-5 £40.37 £48.44
14-1 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A432 263002-9 £1.66 £1.99
14 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A435 263002-9 £1.66 £1.99
15 - PIN 8 SP6000/CA5000 MSP-327B66-0.A5 327B66-0 £2.49 £2.99
15-2 - PIN 8 SP6000/CA5000 MSP-327B66-0.A6 327B66-0 £2.49 £2.99
16 - STOPPER PIN 8 SP6000/CA5000 MSP-324708-5.A5 324708-5 £3.77 £4.52
17-1 - HEX SOCKET HD BOLT M5X10 AN50 MSP-265907-9.A9 265907-9 £1.66 £1.99
17 - HEX SOCKET HD BOLT M5X8 AG12 MSP-265913-4.A1 265913-4 £1.66 £1.99
18 - O RING 39 HK1800/CA5000 MSP-213512-6.A3 213512-6 £2.49 £2.99
19 - BALL BEARING HP1631/607LLB/43 MSP-211021-9.A51 211021-9 £7.02 £8.42
20 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A38 961052-5 £1.66 £1.99
21 - HELICAL GEAR 39 SP6000/CA5000 MSP-226637-7.A0 226637-7 £10.53 £12.64
22 - RING 12 5600NB/5621RDW/CA5000 MSP-257010-0.A0 257010-0 £1.66 £1.99
23 - BEARING BOX SP6000/CA5000 MSP-318088-9.A0 318088-9 £6.89 £8.27
24 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A64 211129-9 £8.45 £10.14
25 - SPINDLE CA5000 MSP-326555-0 326555-0 £4.68 £5.62
26 - BEARING RETAINER 55 CA5000 MSP-285024-9 285024-9 £3.51 £4.21
27 - PAN HD SCREW M5X16 W/WASHER MSP-911221-8.A8 911221-8 £1.66 £1.99
28 - DUST NOZZLE SP6000/CA5000 MSP-419620-3.A1 419620-3 £2.49 £2.99
29 - O RING 35 HM1303B/LS800DWB/HR MSP-213460-9.A26 213460-9 £2.49 £2.99
30 - COMPRESSION SPRING 11 SP6000 MSP-233479-2.A4 233479-2 £2.49 £2.99
31 - SPRING HOLDER SP6000/CA5000 MSP-419624-5.A5 419624-5 £2.49 £2.99
32 - FLAT HEAD SCREW M10 MSP-266964-0 266964-0 £7.67 £9.20
33 - COMPRESSION SPRING 13 CA5000 MSP-234382-0 234382-0 £1.66 £1.99
34 - STOPPER CA5000 MSP-319316-5 319316-5 £16.06 £19.27
35 - SPACER CA5000 MSP-456060-4 456060-4 £2.49 £2.99
36 - GRIP CA5000 MSP-456059-9 456059-9 £3.51 £4.21
37 - CIRCULAR NUT M10-24 CA5000 MSP-264115-9 264115-9 £6.63 £7.96
38 - *HEX NUT M10/CA5000 MSP-931501-6 931501-6 £1.66 £1.99
39 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A83 266034-5 £1.66 £1.99
40 - DEPTH GUIDE CA5000 MSP-456110-5 456110-5 £4.94 £5.93
47 - BLADE CASE CA5000 MSP-319317-3 319317-3 £67.18 £80.61
48 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A12 266053-1 £1.66 £1.99
49 - LARGE FLAT WSHER 6 5100BR MSP-253010-8.A10 253010-8 £1.66 £1.99
50-1 - INNER FLANGE 35 5008MG/DSS611 MSP-224593-5.A2 224593-5 £2.49 £2.99
50 - INNER FLANGE 35 SP6000/CA5000 MSP-224406-0.A0 224406-0 £12.87 £15.44
51 - OUTER FLANGE 35 CA5000 MSP-224479-3 224479-3 £20.13 £24.16
52 - HEX. SOCKET HEAD BOLT M6X25 C MSP-251475-8 251475-8 £1.66 £1.99
53 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A34 911113-1 £1.66 £1.99
54 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A84 266034-5 £1.66 £1.99
55 - HANDLE SET SP6000/CA5000 MSP-188197-6.A3 188197-6 £28.60 £34.32
56 - LOCK PLATE B CA5000 MSP-346946-9 346946-9 £7.15 £8.58
57 - LOCK PLATE A CA5000 MSP-346945-1 346945-1 £10.01 £12.01
58 - PAN HD SCREW M4X10/DLS714 MSP-911114-9.A27 911114-9 £1.66 £1.99
59 - BASE CA5000 MSP-319314-9 319314-9 £34.21 £41.05
60 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A82 266034-5 £1.66 £1.99
61 - LOCK PIN CA5000 MSP-319315-7 319315-7 £14.30 £17.16
62 - COMPRESSION SPRING 18.5 HR521 MSP-234283-2.A2 234283-2 £1.66 £1.99
63 - THIN NARROW WASHER 18 6310 MSP-253343-1.A1 253343-1 £1.66 £1.99
64 - RUBBER PIN 4 BTD043/063/103 MSP-263032-0.A79 263032-0 £1.66 £1.99
65 - COVER CA5000 MSP-456062-0 456062-0 £19.36 £23.23
66 - ROD 4 CA5000 MSP-256875-7 256875-7 £1.66 £1.99
67 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A66 961017-7 £1.66 £1.99
68 - TORSION SPRING 4 CA5000 MSP-233627-3 233627-3 £1.66 £1.99
69 - BLADE CASE COVER CA5000 MSP-456061-2 456061-2 £14.52 £17.42
71 - COUNTERSUNK SCREW M4X10 RP090 MSP-912112-6.A16 912112-6 £1.66 £1.99
72 - LOCK WASHER SP6000/CA5000 MSP-345748-0.A1 345748-0 £2.49 £2.99
73 - COMPRESSION SPRING 7/DLS714 MSP-231316-4.A7 231316-4 £1.66 £1.99
74 - WING SCREW M6X15 5603R/CA5000 MSP-265726-3.A2 265726-3 £2.49 £2.99
75 - HOLDER SP6000/CA5000 MSP-419627-9.A5 419627-9 £2.49 £2.99
76 - THUMB SCREW M4X3 SP6000 MSP-265775-0.A3 265775-0 £1.66 £1.99
77 - NARROW WASHER 10 SP6000 MSP-345977-5.A1 345977-5 £1.66 £1.99
78 - WAVE WASHER 10 3600B/CA5000 MSP-253932-2.A5 253932-2 £1.66 £1.99
79 - *SLIDE LEVER SP6000/CA5000 MSP-458092-7.A1 458092-7 £1.66 £1.99
80 - THUMB SCREW M4X3 SP6000 MSP-265775-0.A2 265775-0 £1.66 £1.99
81 - HOLDER SP6000/CA5000 MSP-419627-9.A4 419627-9 £2.49 £2.99
82 - COMPRESSION SPRING 7/DLS714 MSP-231316-4.A6 231316-4 £1.66 £1.99
83 - WING SCREW M6X15 5603R/CA5000 MSP-265726-3.A3 265726-3 £2.49 £2.99
84 - CAP HD SCREW M5X20 JS3200/CA MSP-922232-8.A8 922232-8 £1.66 £1.99
85 - LOCK PIN 8 CA5000 MSP-326557-6 326557-6 £2.49 £2.99
86 - COMPRESSION SPRING 7 AN504 MSP-233267-7.A7 233267-7 £1.66 £1.99
87 - LOCK PLATE SP6000/CA5000 MSP-419631-8.A1 419631-8 £2.49 £2.99
88 - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A69 687053-2 £1.66 £1.99
88 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A112 687052-4 £1.66 £1.99
89 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A670 265995-6 £1.66 £1.99
90 - CONTROLLER 110V SP6000/CA5000 MSP-631728-5.A1 631728-5 £78.41 £94.09
90 - CONTROLLER 240V SP6000/CA5000 MSP-631729-3.A1 631729-3 £78.41 £94.09
91 - O RING 17 HM1317C-CB/HR2410/ MSP-213261-5.A8 213261-5 £2.49 £2.99
92 - DIAL JR3070CT/CA5000 MSP-418905-4.A1 418905-4 £1.66 £1.99
93 - NOISE SUPPRESSOR 110V UH4570 MSP-645190-8.A22 645190-8 £1.66 £1.99
93 - NOISE SUPPRESSOR/CONDENSOR MSP-645185-1.A0 645185-1 £1.66 £1.99
94 - SWITCH LEVER SP6000/CA5000 MSP-419622-9.A1 419622-9 £2.49 £2.99
95 - SWITCH TGC31B UC3541A/4041A MSP-650716-3.A1 650716-3 £8.84 £10.61
96 - LINK PLATE SP6000/CA5000 MSP-345745-6.A1 345745-6 £2.49 £2.99
97 - LOCK OFF BUTTON SP6000/CA5000 MSP-419629-5.A3 419629-5 £2.49 £2.99
98 - COMPRESSION SPRING 12 HR2420 MSP-233089-5.A3 233089-5 £1.66 £1.99
99 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A671 265995-6 £1.66 £1.99
100 - PAN HD SCREW M5X50 4157/HR240 MSP-911273-9.A4 911273-9 £1.66 £1.99
101 - NAME PLATE CA5000 MSP-851F08-1 851F08-1 £1.66 £1.99
102 - HANDLE SET SP6000/CA5000 MSP-188197-6.A2 188197-6 £28.60 £34.32
103 - POWER SUPPLY CORD 1.0-2-4.0 MSP-692502-6.A13 692502-6 £19.16 £22.99
104 - CORD GUARD HS6100/7100/MT852 MSP-682540-6.A30 682540-6 £1.66 £1.99
104 - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A22 682505-8 £1.66 £1.99
105 - BAFFLE PLATE SP6000/CA5000 MSP-419626-1.A0 419626-1 £1.66 £1.99
106 - PT SCREW 5X60 HS7100/HM1317C MSP-266044-2.A1 266044-2 £2.49 £2.99
107 - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A51 654020-2 £1.66 £1.99
107 - FIELD ASSY 240V SP6000/CA5000 MSP-525743-8.A0 525743-8 £34.98 £41.98
107 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A94 654501-6 £1.66 £1.99
107 - FIELD ASSY 110V SP6000/CA5000 MSP-525741-2.A2 525741-2 £34.98 £41.98
108 - BRUSH HOLDER 5X11 GA5020/ MSP-643708-9.A21 643708-9 £2.49 £2.99
108 - MOTOR HOUSING COMPL SP6000 MSP-158094-0.A2 158094-0 £32.45 £38.94
109 - PAN HD SCREW M5X50 4157/HR240 MSP-911273-9.A5 911273-9 £1.66 £1.99
110 - CARBON BRUSH CB-303 MT582 MSP-194996-6.A0 194996-6 £5.18 £6.22
111 - BRUSH HOLDER CAP 4100KB HS7611 MSP-643750-0.A14 643750-0 £1.66 £1.99
112 - WAVE WASHER 7 SP6000/CA5000 MSP-267781-1.A1 267781-1 £2.49 £2.99
115 - RUBBER RING 19 HS7100/6100/95 MSP-421479-6.A2 421479-6 £5.59 £6.71
116 - PACKING SP6000/CA5000 MSP-424047-4.A0 424047-4 £1.66 £1.99
117 - SPONGE SP6000/CA5000 MSP-424050-5.A2 424050-5 £1.66 £1.99
118 - FELT SP6000/CA5000 MSP-443137-4.A1 443137-4 £1.66 £1.99
A01 - PT SCREW 4X12 BUR181/BUR141 MSP-266020-6.A1 266020-6 £1.66 £1.99
A01-1 - SKIRT CA5000 MSP-143939-5 143939-5 £6.33 £7.60
A02 - PLATE CA5000 MSP-143396-7 143396-7 £2.32 £2.78
A01-1 - PT SCREW 4X12 BUR181/BUR141 MSP-266020-6.A0 266020-6 £1.66 £1.99
A02 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A58 263002-9 £1.66 £1.99
A03 - HEX WRENCH 5 CA5000/6300LR MSP-783022-2 783022-2 £1.66 £1.99
A04 - CAP HD SCREW M6X20 HM1800/181 MSP-922331-6.A9 922331-6 £1.66 £1.99
A05 - TCT SAW BLADE 118X20/90DEGREES MSP-B-48832 B-48832 £131.32 £157.59
A06 - STACKING CASE TYPE 4 315MM MSP-821552-6.A13 821552-6 £47.12 £56.55
A06 - LATCH FOR STACKING CASE MACPA MSP-453974-8.A122 453974-8 £2.49 £2.99
A07 - INNER TRAY CA5000/SP6000 MSP-838390-9.A0 838390-9 £7.34 £8.81
A08 - INDICATION LABEL CA5000XJ MSP-807E50-4 807E50-4 £4.68 £5.62
A09 - PLASTIC CASE LABEL CA5000XJ MSP-807E51-2 807E51-2 £1.66 £1.99
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A103 654091-9 £1.66 £1.99
