Makita 2414 Portable Cut Off Spare Parts

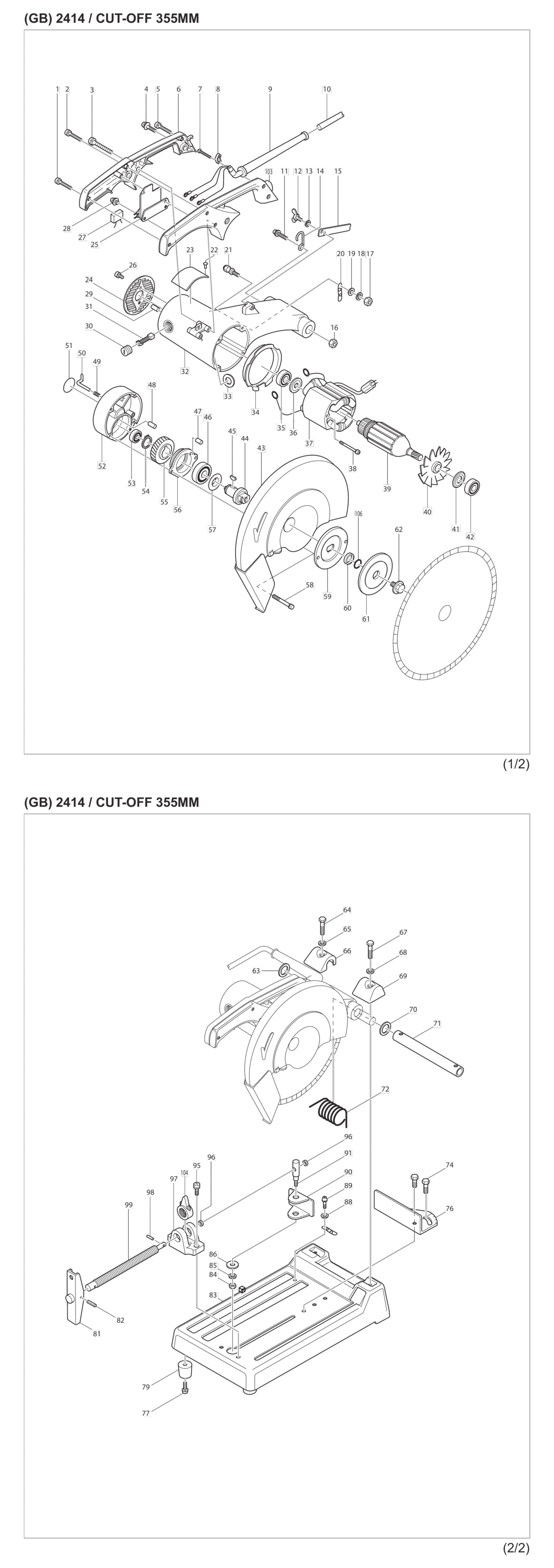

An exploded drawing and spare parts listing for the Makita 2414 Portable Cut Off

	Ex VAT	Inc VAT
1 - PAN HEAD SCREW M4X25 BFS440 MSP-911148-2.A33 911148-2	£1.44	£1.73
2 - PAN HEAD SCREW M4X25 BFS440 MSP-911148-2.A36 911148-2	£1.44	£1.73
3 - PAN HD SCREW M5X50 4157/HR240 MSP-911273-9.A18 911273-9	£1.44	£1.73
4 - PAN HD SCREW M5X30 W/CP WASHE MSP-911253-5.A7 911253-5	£1.44	£1.73
5 - PAN HEAD SCREW M4X25 BFS440 MSP-911148-2.A28 911148-2	£1.44	£1.73
6-1 - HANDLE SET 2414/2414K TIB235 MSP-182751-8.A3 182751-8	£20.30	£24.36
7-4 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A29 265995-6	£1.44	£1.73
7-3 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A59 911133-5	£1.44	£1.73
8A - STRAIN RELIEF 4157KB/6820V MSP-687001-1.A30 687001-1	£1.44	£1.73
8-2 - STRAIN RELIEF 3612C/5103R/411 MSP-687054-0.A15 687054-0	£1.44	£1.73
8A1 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A10 687052-4	£1.44	£1.73
9 - CORD GUARD 1805B MSP-682507-4.A1 682507-4	£2.50	£3.00
10F1 - POWER SUPPLY CORD 1.0-3-2.5 MSP-692234-5.A4 692234-5	£17.86	£21.43
12 - HOOK 2412N/2414/2414B/NB/LC12 MSP-322049-3.A2 322049-3	£1.44	£1.73
13 - WING SCREW M5X10 N1923BDD MSP-924206-5.A1 924206-5	£1.44	£1.73
14 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A6 253427-5	£1.44	£1.73
15 - STOPPER PLATE 2412N/14 MSP-341395-5.A1 341395-5	£1.44	£1.73
16 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A62 931302-2	£1.44	£1.73
17 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A65 931302-2	£1.44	£1.73
18 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A78 253428-3	£1.44	£1.73
19 - FLAT WASHER 6 2414/PC5001C MSP-253011-6.A1 253011-6	£1.44	£1.73
20-1 - CHAIN 2414 MSP-282013-5.A0 282013-5	£3.59	£4.31
21-1 - SPECIAL PIN SCREW M6X18 MSP-265380-3.A0 265380-3	£3.90	£4.68
22 - RIVET 0-5 9402/1806B MSP-953106-2.A24 953106-2	£1.44	£1.73
24 - REAR COVER 2412N/2414 MSP-284010-7.A0 284010-7	£1.44	£1.73
25A - SWITCH HPAHR2-3S 9217SPC MSP-651018-0.A0 651018-0	£11.86	£14.23
26 - PAN HD SCREW M5X12 W/SP WASHE MSP-911211-1.A0 911211-1	£1.44	£1.73
27-1 - NOISE SUPPRESSOR/CONDENSOR 64 MSP-645105-5.A52 645105-5	£2.34	£2.81
27D - LINE COIL 2414 MSP-646329-6.A1 646329-6	£32.69	£39.23
28 - PAN HD SCREW M4X6 VC3211M MSP-911103-4.A8 911103-4	£1.44	£1.73
29 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A309 263002-9	£1.44	£1.73
30 - BRUSH HOLDER CAP CB-5/HS6100 MSP-643650-4.A46 643650-4	£1.44	£1.73
30-1 - BRUSH HOLDER CAP CB-5/HS6100 MSP-643650-4.A47 643650-4	£1.44	£1.73
31-2 - CARBON BRUSH CB-153 (CB-22)/9 MSP-181044-0.A30 181044-0	£5.42	£6.50
32 - BRUSH HOLDER CB-5 6.5=13.5 MSP-643653-8.A33 643653-8	£3.74	£4.49
32-1 - MOTOR HOUSING 2412N/2414 MSP-156409-5.A1 156409-5	£229.92	£275.90
32-1 - BRUSH HOLDER CB-5 6.5=13.5 MSP-643653-8.A34 643653-8	£3.74	£4.49
32A - BRUSH HOLDER CB-5 6.5=13.5 MSP-643653-8.A39 643653-8	£3.74	£4.49
32A - SET SCREW (STOPPER PIN) M5X8 MSP-913206-0.A12 913206-0	£1.44	£1.73
32 - *MOTOR HOUSING 2412N/2414 MSP-156419-2.A0 156419-2	£110.00	£132.00
32 - SET SCREW (STOPPER PIN) M5X8 MSP-913206-0.A16 913206-0	£1.44	£1.73
32-1 - SET SCREW (STOPPER PIN) M5X8 MSP-913206-0.A21 913206-0	£1.44	£1.73
33 - INSULATION WASHER 2412N/14/8 MSP-681002-1.A1 681002-1	£1.44	£1.73
34 - FAN GUIDE 2412N/2414 MSP-343299-7.A1 343299-7	£1.44	£1.73
35 - BALL BEARING 6200LLB MSP-211066-7.A0 211066-7	£5.92	£7.11
36 - DUST SEAL 6210-10 MSP-213051-6.A5 213051-6	£1.44	£1.73
37A - FIELD 110V 2412/2414 MSP-524491-6 524491-6	£48.58	£58.29
37D - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A14 654020-2	£1.44	£1.73
37D - TERMINAL RING CONNECTOR 2.00 MSP-654502-4.A13 654502-4	£1.44	£1.73
37D - FIELD 240V 2412N/2414 MSP-524494-0 524494-0	£48.58	£58.29
37A - TERMINAL RING CONNECTOR 2.00 MSP-654502-4.A14 654502-4	£1.44	£1.73
37A - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A13 654020-2	£1.44	£1.73
38-1 - PAN HD SCREW M6X85 MSP-911938-3.A3 911938-3	£1.44	£1.73
39A - ARMATURE 110V 2414/2412N MSP-514541-5 514541-5	£97.15	£116.58
39D - ARMATURE 240V 2414/2412 MSP-514544-9 514544-9	£97.15	£116.58
40-1 - FAN 92 2414B MSP-241515-0.A0 241515-0	£1.44	£1.73
41 - DUST SEAL 15 MSP-213202-1.A2 213202-1	£1.44	£1.73
42 - BALL BEARING 6202LLB/LF1000 MSP-211206-7.A27 211206-7	£3.90	£4.68
43B3 - SAFETY COVER FOR 241 MSP-150053-0.A1 150053-0	£64.94	£77.93
44 - SPINDLE 2412N/2414 TIB177 MSP-325517-5.A1 325517-5	£14.51	£17.41
45 - WOODRUFF KEY 5-12 2414 MSP-254032-1.A0 254032-1	£1.44	£1.73
46 - BALL BEARING 6204LLB HM1317CC MSP-211306-3.A8 211306-3	£12.17	£14.60
47 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A398 263005-3	£1.44	£1.73
48 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A308 263002-9	£1.44	£1.73
49 - COMPRESSION SPRING 7 RP0900/ MSP-231240-1.A5 231240-1	£1.44	£1.73
50 - STOPPER 2412N/2414 MSP-325518-3.A0 325518-3	£1.44	£1.73
51-1 - O RING 35 HM1303B/LS800DWB/HR MSP-213460-9.A0 213460-9	£2.18	£2.62
52-1 - GEAR HOUSING CO 2414/N-BL799 MSP-157331-9.A1 157331-9	£32.69	£39.23
53 - BALL BEARING 6000LLB BTW200 MSP-211061-7.A15 211061-7	£8.73	£10.48
54 - EXT DIN 471 CIRCLIP-20 VC3211 MSP-961060-6.A3 961060-6	£1.44	£1.73
55 - HELICAL GEAR 54 2412N/2414 MSP-221628-3 221628-3	£17.86	£21.43
56 - BEARING HOUSING 2412N/2414 MSP-157026-4.A0 157026-4	£12.79	£15.35
57 - THIN HARD WASHER 20 2414 MSP-253755-8.A0 253755-8	£1.44	£1.73
58 - PAN HD SCREW M5X55 2414 MSP-911276-3.A2 911276-3	£1.44	£1.73
59 - INNER FLANGE 120 2414 MSP-224141-0.A0 224141-0	£12.48	£14.98
60 - RING 20 2412N/2414/4110C/411 MSP-257054-0.A1 257054-0	£2.50	£3.00
61 - OUTER FLANGE 120 2414 MSP-224142-8.A0 224142-8	£12.48	£14.98
62 - HEX HD BOLT M10 2414/LW1401 MSP-251680-7.A1 251680-7	£2.81	£3.37
63 - NARROW HARD WASHER 24 2414 MSP-253751-6.A1 253751-6	£1.44	£1.73
64 - HEX HD SETSCREW M8X40 2414 MSP-251683-1.A2 251683-1	£1.44	£1.73
65 - M8 SPRING RING DIN 128 LF1000 MSP-942201-3.A10 942201-3	£1.44	£1.73
66 - PIPE COVER (L) 2412N 2414 MSP-345141-8.A1 345141-8	£4.06	£4.87
67 - HEX HD SETSCREW M8X40 2414 MSP-251683-1.A3 251683-1	£1.44	£1.73
68 - M8 SPRING RING DIN 128 LF1000 MSP-942201-3.A12 942201-3	£1.44	£1.73
69 - PIPE COVER (R) 2412N 2414 MSP-345142-6.A0 345142-6	£4.06	£4.87
70 - NARROW HARD WASHER 24 2414 MSP-253751-6.A0 253751-6	£1.44	£1.73
71 - PIPE 24 2412N 2414 MSP-331087-4.A0 331087-4	£15.29	£18.35
74 - HEX BOLT M10X25 2412N/2414/2 MSP-265201-9.A3 265201-9	£1.44	£1.73
76 - GUIDE PLATE 2412N/14 MSP-345145-0.A1 345145-0	£11.08	£13.29
77-1 - PAN HD SCREW M6X28 2414B MSP-911349-2.A0 911349-2	£1.44	£1.73
79-1 - CUSHION 2414K MSP-421277-8.A1 421277-8	£1.44	£1.73
81 - HANDLE 130 2412N 2414 MSP-272014-1 272014-1	£5.78	£6.93
81-1 - HANDLE 120 2414B/NB MSP-272021-4.A0 272021-4	£1.44	£1.73
82 - TENSION PIN 5-28 DIN1481 2400 MSP-951169-2 951169-2	£1.44	£1.73
82-1 - TENSION PIN 5-20 DIN1481 2414 MSP-951163-4.A7 951163-4	£1.44	£1.73
83 - BASE ASSY 2412N/2414 MSP-132385-7.A1 132385-7	£72.82	£87.39
84-1 - HEX FULLNUT M8 LS1013/HR1840 MSP-931402-8.A53 931402-8	£1.44	£1.73
85 - M8 SPRING RING DIN 128 LF1000 MSP-942201-3.A11 942201-3	£1.44	£1.73
86 - THICK HARD WASHER 8 DVC863L MSP-253752-4.A4 253752-4	£1.44	£1.73
87 - LEAF SPRING 2412N/2414 MSP-232047-8 232047-8	£1.44	£1.73
88 - FLAT WASHER 6 2414/PC5001C MSP-253011-6.A0 253011-6	£1.44	£1.73
89 - PAN HD SCREW M6X14 2414 MSP-911316-7.A1 911316-7	£1.44	£1.73
90 - VICE PLATE 2412N/2414 MSP-342495-4 342495-4	£3.59	£4.31
91 - HEX HD SPECIALSHOULDER BOLT M MSP-251679-2 251679-2	£1.44	£1.73
92 - SCREW COVER 2412N/2414 MSP-342497-0 342497-0	£2.18	£2.62
93-1 - HARD WASHER 8 LS800D/DLS714 MSP-253731-2.A12 253731-2	£1.44	£1.73
93 - NARROW THIN WASHER 12 TW100D MSP-253052-2.A1 253052-2	£1.44	£1.73
94 - CONNECTOR 2412N 2414 MSP-342496-2 342496-2	£1.44	£1.73
95 - PAN HD SCREW M8X30 LC1230 MSP-911451-1.A3 911451-1	£1.44	£1.73
96 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A79 253744-3	£1.44	£1.73
96-1 - HARD WASHER 8 LS800D/DLS714 MSP-253731-2.A13 253731-2	£1.44	£1.73
97 - VICE NUT 2412N 2414 MSP-311402-8 311402-8	£8.73	£10.48
97-2 - SCREW GUIDE 2414NB/LC1230 MSP-311949-2.A0 311949-2	£10.92	£13.10
98-1 - TENSION PIN 3-18 DIN 1481 MSP-951066-2.A1 951066-2	£1.44	£1.73
98 - TENSION PIN 4-20 DIN 1481 903 MSP-951116-3.A3 951116-3	£1.44	£1.73
99 - *VICE SCREW 2412N/14 MSP-323689-0 323689-0	£8.42	£10.11
99-1 - VICE SCREW 2412B/NB MSP-322239-8.A1 322239-8	£12.63	£15.16
100 - EXT E-RING JIS JE-6 MSP-961012-7.A6 961012-7	£1.44	£1.73
101 - KNOB 20 2412N/2414 MSP-271607-1 271607-1	£1.44	£1.73
102 - PIN 8 2412N/2414 MSP-256614-5 256614-5	£1.44	£1.73
103-1 - HANDLE SET 2414/2414K TIB235 MSP-182751-8.A2 182751-8	£20.30	£24.36
104 - VICE NUT 2412NB/LC1230 MSP-322209-7.A2 322209-7	£10.30	£12.36
105 - LABEL/MAKITA LS10305603R241 MSP-819064-1.A28 819064-1	£1.44	£1.73
106 - O RING 16 2414K/HK1820L MSP-213218-6.A4 213218-6	£1.44	£1.73
400 - SOCKET WRENCH 17 14/12N/4110C MSP-782210-8.A8 782210-8	£4.07	£4.88
500A - VICE ASSY 2412N/2414/2414K MSP-134548-1.A1 134548-1	£34.53	£41.44
901 - PAN HD SCREW M4X14 9BGA450/45 MSP-911121-2.A21 911121-2	£1.44	£1.73
