Makita SG1251J Wall Chaser Spare Parts

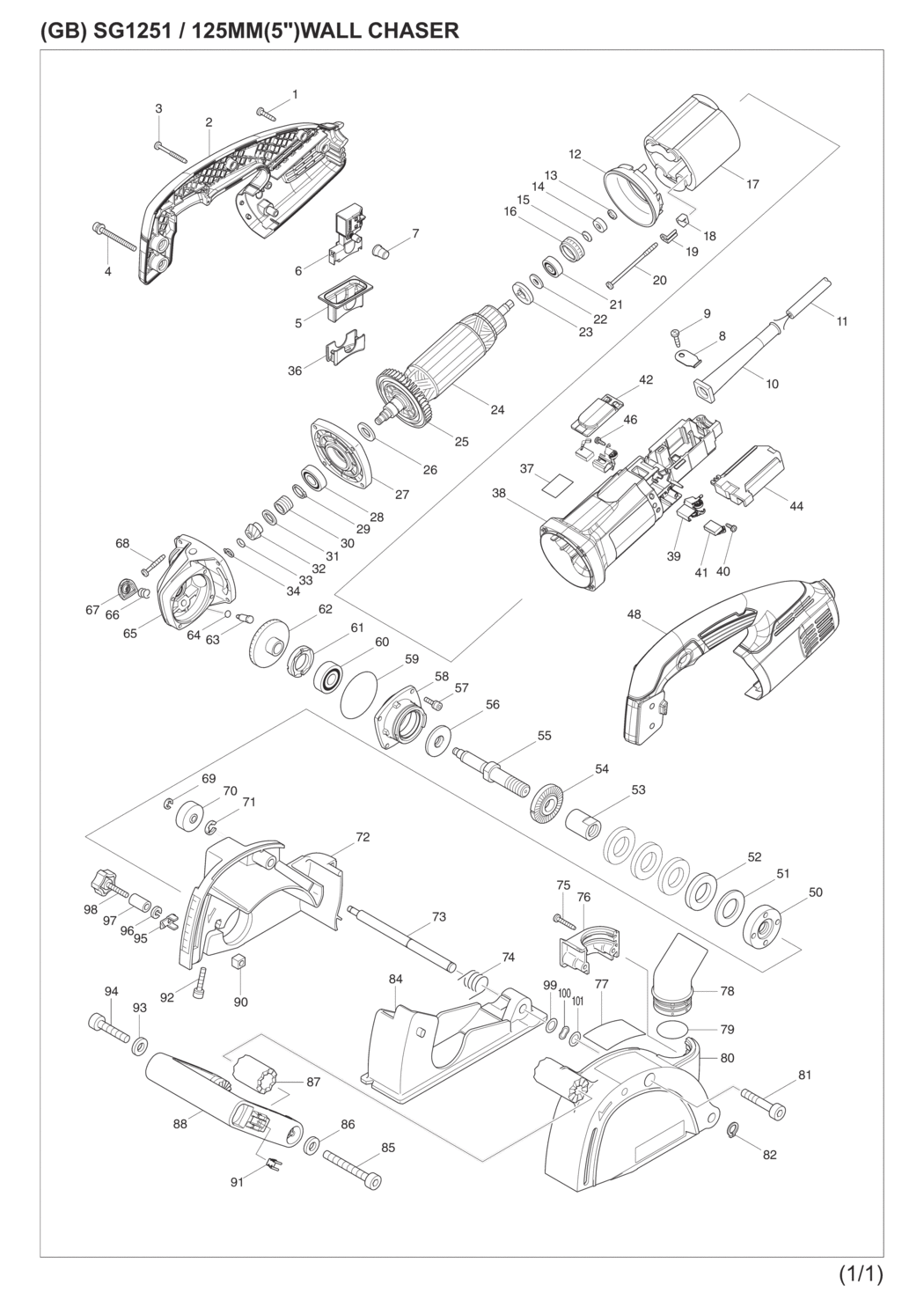

An exploded drawing and spare parts listing for the Makita SG1251J Wall Chaser

	Ex VAT	Inc VAT
1 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1164 265995-6	£1.44	£1.73
2 - HANDLE SET SG1251 MSP-187942-6.A0 187942-6	£42.42	£50.90
3 - PT SCREW 4X40 BO3710/711/4334 MSP-266048-4.A20 266048-4	£1.44	£1.73
4 - PAN HD SCREW M5X40 W/CP WASHE MSP-911263-2.A13 911263-2	£1.44	£1.73
5 - DUST COVER SG1251J MSP-424457-5 424457-5	£4.06	£4.87
6 - SWITCH SGEL115CDY-15 SG1251 MSP-650113-3 650113-3	£11.08	£13.29
7 - DUST COVER 101RH/SG1251J MSP-421459-2.A0 421459-2	£1.44	£1.73
8 - STRAIN RELIEF GA/GD/SG125 MSP-687169-3.A50 687169-3	£1.44	£1.73
9 - TAPPING SCREW 4X14 VC3211M MSP-266192-7.A66 266192-7	£1.44	£1.73
10 - CORD GUARD 10 GA7010/9010/SA MSP-682573-1.A9 682573-1	£1.44	£1.73
11 - POWER SUPPLY CORD PC5000/01C MSP-695237-8.A2 695237-8	£32.69	£39.23
11 - POWER SUPPLY CORD 1.00-2-5.0 MSP-692541-6.A0 692541-6	£27.50	£33.00
12 - BAFFLE PLATE GD0800C/810C/BO6 MSP-413076-2.A12 413076-2	£1.44	£1.73
13 - SELF LOCK 6 GD0801C/811C MSP-259039-2.A35 259039-2	£1.44	£1.73
14 - MAGNET SLEEVE GD0801C/GD0811 MSP-688117-5.A4 688117-5	£4.18	£5.02
15 - WAVE WASHER TM3000C/9564&65CV MSP-267756-0.A31 267756-0	£1.44	£1.73
16 - LABYRINTH RUBBER RING 22 BO60 MSP-421738-8.A17 421738-8	£9.05	£10.86
17 - FIELD 110V SG1251 MSP-626676-1 626676-1	£11.08	£13.29
17 - FIELD 240V SG1251 MSP-626678-7 626678-7	£11.70	£14.04
18 - INSULATION COVER MT814/GD080 MSP-417237-6.A25 417237-6	£1.44	£1.73
19 - RETAINER GD0801C/811C/MT814 MSP-344871-8.A34 344871-8	£1.44	£1.73
20 - TAPPING SCREW 4X70 9564/65CV& MSP-266258-3.A10 266258-3	£1.44	£1.73
21 - BALL BEARING 627DDW BO6040 MSP-210027-4.A7 210027-4	£3.28	£3.93
22 - THIN BLUE WASHER BHS630/JS160 MSP-253823-7.A0 253823-7	£1.44	£1.73
23 - INSULATION WASHER/PO6000C MSP-681656-4.A4 681656-4	£1.44	£1.73
24 - ARMATURE ASS 110V SG1250/9566 MSP-515330-1.A0 515330-1	£88.58	£106.29
24 - ARMATURE ASS 240V SG1250/1251 MSP-515208-8.A1 515208-8	£75.60	£90.72
25 - FAN 57 9564/65CV/DZ&H/SG1250 MSP-240033-5.A0 240033-5	£4.68	£5.62
26 - THIN WASHER 12 8419B/9565H MSP-253084-9.A19 253084-9	£1.44	£1.73
27 - GEAR HOUSING COVER BO6040/956 MSP-317359-1.A10 317359-1	£5.62	£6.74
28 - BALL BEARING 6001LLU PW5000C MSP-210105-0.A11 210105-0	£4.99	£5.99
29 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A85 961052-5	£1.44	£1.73
30 - LOCK SPRING 12 GD0801C/GD0811 MSP-233901-9.A17 233901-9	£3.90	£4.68
31 - NARROW THIN WASHER 12 TW100D MSP-253052-2.A3 253052-2	£1.44	£1.73
32 - SPIRAL BEVEL GEAR 9 SG1250125 MSP-227429-7.A1 227429-7	£15.42	£18.51
33 - NARROW WASHER 6 4300BV/9564DZ MSP-253077-6.A34 253077-6	£1.44	£1.73
34 - RETAINING RING S-6 M9502R MSP-961002-0.A30 961002-0	£1.44	£1.73
36 - SWITCH COVER SG1251J MSP-452942-8 452942-8	£1.44	£1.73
37 - LABEL/SJS MARK SG1251J MSP-804W32-5 804W32-5	£1.44	£1.73
38 - MOTOR HOUSING SG1251 MSP-455385-3 455385-3	£8.42	£10.11
39 - BRUSH HOLDER BO6040/GD0801C MSP-643760-7.A47 643760-7	£3.28	£3.93
40 - PT SCREW 3X10 W. CAPTIVE WASH MSP-266256-7.A18 266256-7	£1.44	£1.73
41 - CARBON BRUSH CB-318 AC/PO6000C MSP-191978-9.A13 191978-9	£10.92	£13.10
42 - MOTOR HOUSING COVER SG1251 MSP-455386-1 455386-1	£1.44	£1.73
44 - CONTROLLER 110V SG1251 MSP-620337-5 620337-5	£60.72	£72.86
44 - CONTROLLER 240V SG1251 MSP-620336-7 620336-7	£44.48	£53.38
46 - PT SCREW 3X10 W. CAPTIVE WASH MSP-266256-7.A19 266256-7	£1.44	£1.73
48 - HANDLE SET SG1251 MSP-187942-6.A1 187942-6	£42.42	£50.90
50 - LOCK NUT 14-45 SG1250/SG1251J MSP-224577-3.A0 224577-3	£9.36	£11.23
51 - SPACER 3 SG1250/SG1251J MSP-331661-8.A0 331661-8	£3.90	£4.68
52 - SPACER 6 SG1250/SG1251J MSP-331662-6.A0 331662-6	£3.90	£4.68
53 - SLEEVE 14 SG1250/SG1251J MSP-257732-2.A0 257732-2	£7.64	£9.17
55 - SPINDLE SG1250/SG1251J MSP-324393-4.A0 324393-4	£15.44	£18.53
56 - LABYRINTH RING 9540/9541/9565 MSP-415300-9.A2 415300-9	£1.44	£1.73
57 - HEX SOCKET HD BOLT M4X16 MSP-265490-6.A25 265490-6	£1.44	£1.73
58 - BEARING BOX 9 SG1250/SG1251J MSP-318302-3.A1 318302-3	£4.83	£5.80
59 - O RING 52 9564/65CV/DZ&H/SG12 MSP-213673-2.A12 213673-2	£1.44	£1.73
60 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A6 211129-9	£10.14	£12.17
61 - BEARING RETAINER 9564/65CV/DZ MSP-285841-7.A3 285841-7	£1.44	£1.73
62 - SPIRAL BEVEL GEAR 35 SG1250/5 MSP-227430-2.A0 227430-2	£15.26	£18.31
63 - PIN 9564/65CV/DZ&H/SG1251J MSP-256459-1.A0 256459-1	£1.44	£1.73
64 - O RING 6 9564/65CV/DZ&H/1251 MSP-213048-5.A11 213048-5	£1.44	£1.73
65 - GEAR HOUSING 9564/65CV/D MSP-153488-4.A14 153488-4	£29.38	£35.25
66 - COMPRESSION SPRING 8 BGA450 MSP-233072-2.A50 233072-2	£1.71	£2.05
67 - PIN CAP 9564/65CV/DZ/H/9565CV MSP-418067-8.A14 418067-8	£1.44	£1.73
68 - TAPPING SCREW 4X28 VC3211M/95 MSP-266257-5.A17 266257-5	£1.44	£1.73
69 - EXT E-RING JIS E-4 EA3201 MSP-961011-9.A60 961011-9	£1.44	£1.73
70 - RING 6 SG1250/SG1251J MSP-257227-5.A0 257227-5	£5.78	£6.93
71 - EXT E-RING JIS JE-8 BPJ140/18 MSP-961014-3.A41 961014-3	£1.44	£1.73
72 - BLADE CASE SG1250/SG1251 MSP-153685-2.A0 153685-2	£43.60	£52.32
73 - SHOULDER SHAFT SG1250/SG1251J MSP-324392-6.A0 324392-6	£4.06	£4.87
74 - TORSION SPRING 11 SG1250/1251 MSP-231655-2.A0 231655-2	£1.44	£1.73
75 - CT SCREW M4X25 MSP-266040-0.A15 266040-0	£1.44	£1.73
76 - DUST COVER SG1250/SG1251J MSP-418390-1.A0 418390-1	£4.06	£4.87
77 - NAME PLATE SG1251J MSP-850F04-6 850F04-6	£1.44	£1.73
78 - ELBOW SG1250/SG1251J/4100KB MSP-416741-2.A1 416741-2	£4.83	£5.80
79 - O RING 30 SG1250/2702/SG1251J MSP-213423-5.A0 213423-5	£1.44	£1.73
80 - COVER SG1251J MSP-317725-2 317725-2	£57.16	£68.59
81 - HEX SOCKET BOLT M8X45 UK360D MSP-922466-3.A0 922466-3	£1.44	£1.73
82 - EXT DIN 471 CIRCLIP-10 KP0810 MSP-961006-2.A36 961006-2	£1.44	£1.73
84 - BASE SG1250/SG1251J MSP-317723-6.A0 317723-6	£25.20	£30.24
85 - HEX SOCKET BOLT M8X65 SG1250 MSP-922487-5.A1 922487-5	£1.44	£1.73
86 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A26 941201-0	£1.44	£1.73
87 - CAM SG1250/SG1251J MSP-223145-9.A0 223145-9	£2.81	£3.37
88 - FRONT GRIP DA4031/SG1250/S125 MSP-417665-5.A2 417665-5	£7.64	£9.17
90 - SQUARE NUT M6 SG1250/SG1251J MSP-252185-0.A0 252185-0	£1.44	£1.73
91 - BIT HOLDER 6313DW/8413D-43D MSP-344391-2.A0 344391-2	£1.66	£1.99
92 - HEX SOCKET BOLT M5X30 SG1250 MSP-922251-4.A3 922251-4	£1.44	£1.73
93 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A27 941201-0	£1.44	£1.73
94 - HEX SOCKET BOLT M8X40 SG1250 MSP-922462-1.A0 922462-1	£1.44	£1.73
95 - INDICATOR SG1250/SG1251J MSP-345364-8.A1 345364-8	£1.44	£1.73
96 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A35 253428-3	£1.44	£1.73
97 - SLEEVE 7 SG1250/SG1251J MSP-257731-4.A0 257731-4	£1.44	£1.73
98 - SCREW M6X33 SG1250/SG1251J MSP-251897-2.A0 251897-2	£4.06	£4.87
99 - *THIN WASHER 10 5600D MSP-253310-6.A2 253310-6	£1.44	£1.73
100 - WAVE WASHER 10 SG1250/SG1251J MSP-267783-7.A0 267783-7	£1.44	£1.73
101 - *THIN WASHER 10 5600D MSP-253310-6.A3 253310-6	£1.44	£1.73
A03 - HEX WRENCH 6 HS6100/7100/4157 MSP-783204-6.A11 783204-6	£2.49	£2.99
A04 - STACKING CASE TYPE 4 315MM MSP-821552-6.A6 821552-6	£47.12	£56.55
A04 - LATCH FOR STACKING CASE MACPA MSP-453974-8.A72 453974-8	£1.71	£2.05
A05 - INNER TRAY SG1251J MSP-838111-9 838111-9	£7.34	£8.81
A06 - LABEL/INDICATION SG1251J MSP-804Y88-0 804Y88-0	£5.62	£6.74
A07 - LABEL/PLASTIC CASE SG1251J MSP-804Y89-8 804Y89-8	£5.62	£6.74
E01 - TERMINAL BLOCK HS7100/KP0800 MSP-654532-5.A30 654532-5	£3.74	£4.49
E02 - NOISE SUPPRESSOR GD0801C/0811 MSP-645089-7.A13 645089-7	£2.50	£3.00
E04 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A40 654091-9	£1.44	£1.73
