Makita CP100DZ Cordless Multi Cutter Spare Parts

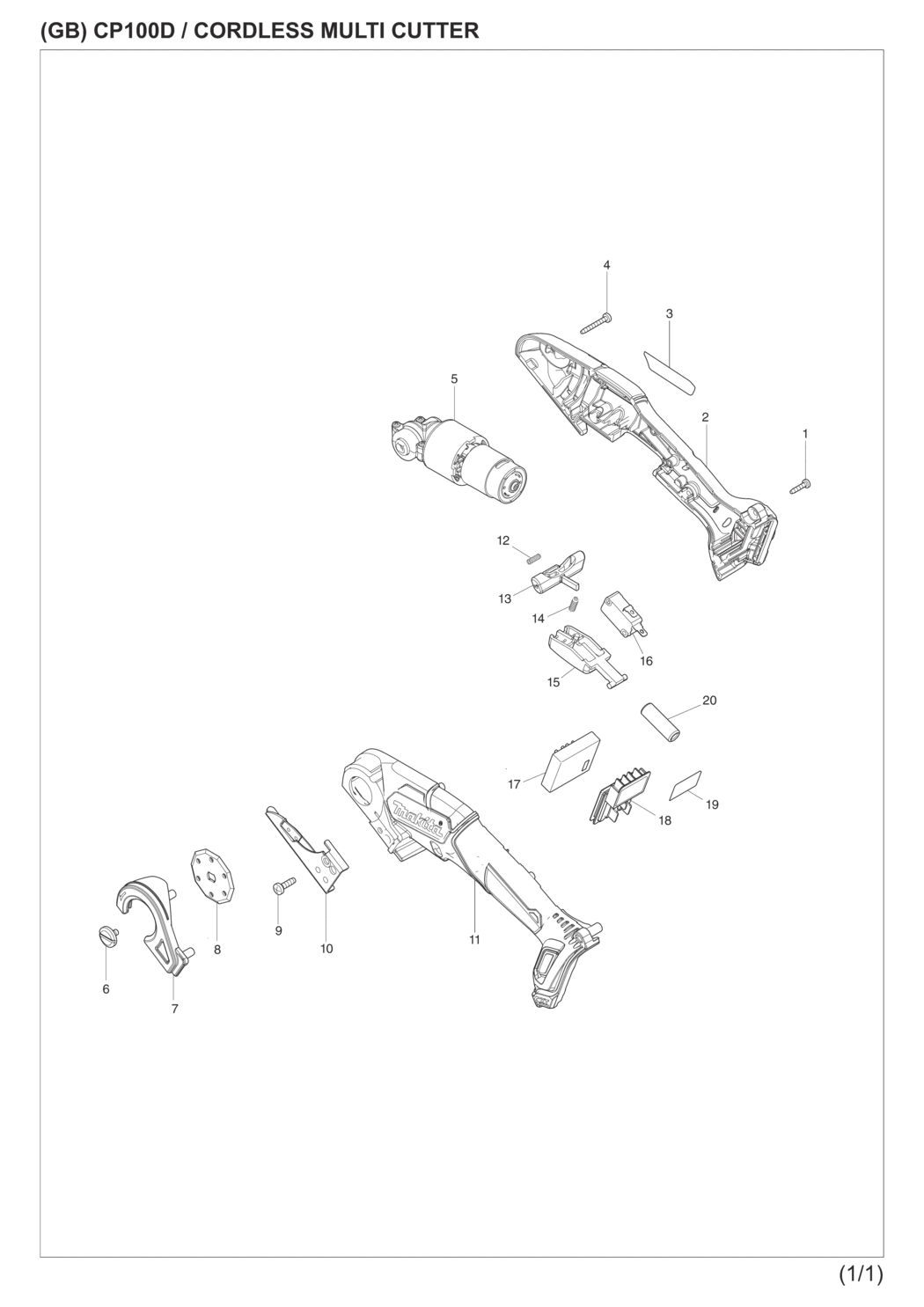

An exploded drawing and spare parts listing for the Makita CP100DZ Cordless Multi Cutter

	Ex VAT	Inc VAT
1 - TAPPING SCREW BIND 3X14 TD020 MSP-266404-8.A0 266404-8	£1.44	£1.73
2 - HOUSING SET CP100D MSP-183G66-8.A3 183G66-8	£15.55	£18.66
7 - BLADE COVER CP100D MSP-457828-1.A1 457828-1	£3.74	£4.49
8 - MULTI CUTTER BLADE SET CP100D MSP-198603-3.A1 198603-3	£9.82	£11.79
9 - TAPPING SCREW 4X14 M8701 MSP-266385-6.A0 266385-6	£1.44	£1.73
10 - UNDER BLADE CP100D MSP-144620-1.A1 144620-1	£10.73	£12.88
11 - HOUSING SET CP100D MSP-183G66-8.A0 183G66-8	£15.55	£18.66
12 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A3 231469-9	£1.44	£1.73
14 - COMPRESSION SPRING 4 BHPBDF45 MSP-233438-6.A33 233438-6	£1.44	£1.73
16 - SWITCH D3V-16-3C26 CL183D MSP-650744-8.A6 650744-8	£2.18	£2.62
18 - TERMINAL DF331/HP331/TD110D MSP-644813-5.A30 644813-5	£2.65	£3.18
20 - LINE FILTER UK360/BUB360/TD12 MSP-688165-4.A71 688165-4	£1.44	£1.73

Attribute Name	Value
Brand	Makita
