Makita HM1317CB Electric Breaker Spare Parts

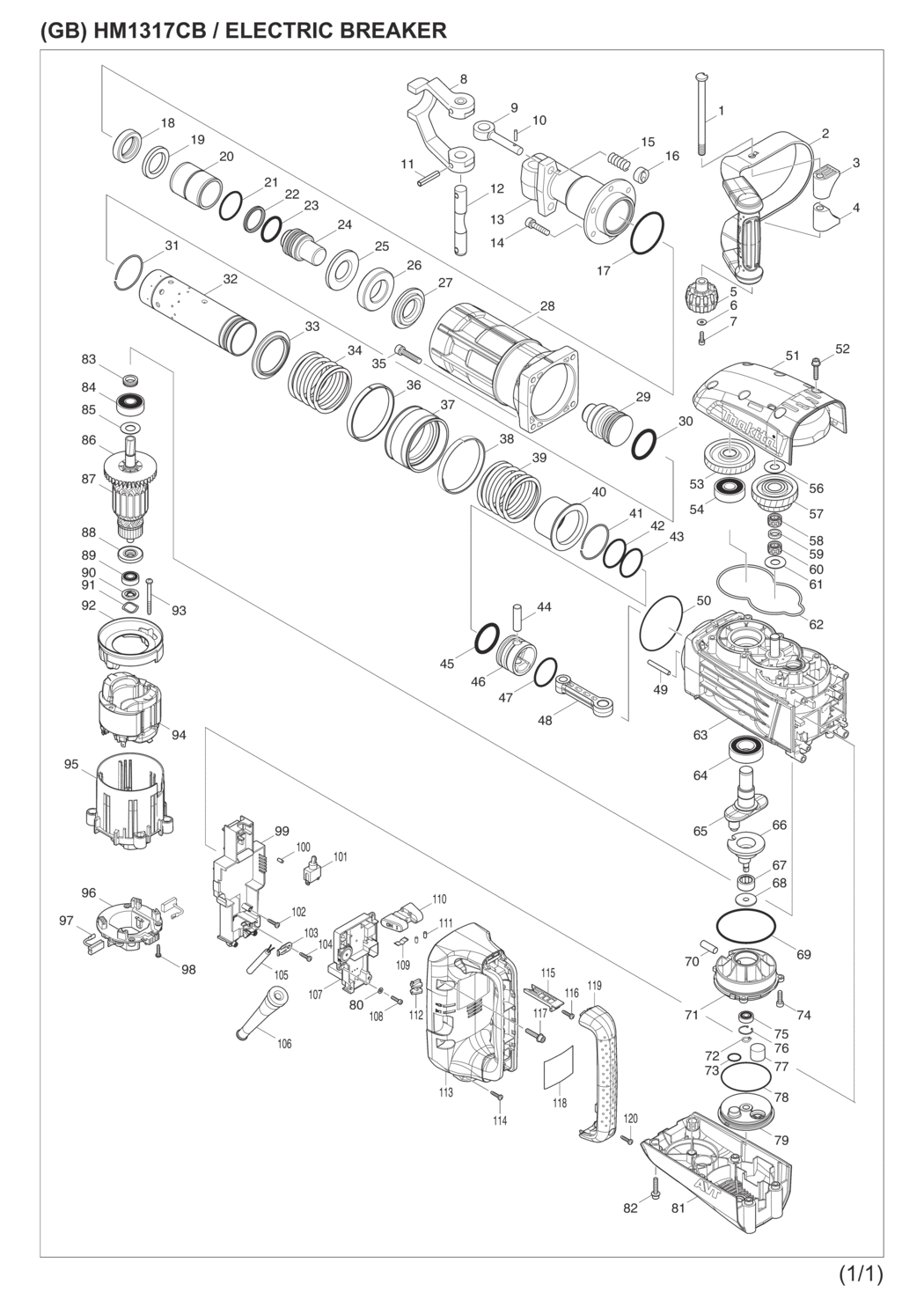

An exploded drawing and spare parts listing for the Makita HM1317CB Electric Breaker

	Ex VAT	Inc VAT
1 - SET BOLT M10X142 HM1317C/CB MSP-266512-5.A0 266512-5	£10.77	£12.92
2 - SIDE HANDLE HM1317C/CB MSP-163506-0.A1 163506-0	£37.44	£44.93
3 - HANDLE BASE HM1317C/CB MSP-451331-4.A0 451331-4	£1.44	£1.73
4 - HANDLE BASE HM1317C/CB MSP-451331-4.A3 451331-4	£1.44	£1.73
5 - THUMB NUT M10 HM1317C/CB MSP-252654-1.A1 252654-1	£5.62	£6.74
6 - WASHER 5 HM1317C/CB/KP0810C/K MSP-253194-2.A13 253194-2	£1.44	£1.73
7 - CAP HD SCREW M5X16 HM1200 MSP-922221-3.A2 922221-3	£1.44	£1.73
8 - TOOL RETAINER HM1317CB MSP-325895-3 325895-3	£204.12	£244.94
9 - TOOL RETAINER HM1317CB/HM1800 MSP-322477-2.A1 322477-2	£37.44	£44.93
10 - PIN 4 HM1317CB/HM1303B/HR3000 MSP-256219-1.A3 256219-1	£1.44	£1.73
11 - TENSION PIN 8-40 DIN 1481 HM1 MSP-951272-9.A4 951272-9	£1.44	£1.73
12 - TOOL RETAINER SHAFT HM1317CB/ MSP-324238-6.A3 324238-6	£33.70	£40.44
13 - TOOL HOLDER HM1317CB MSP-331872-5 331872-5	£337.44	£404.93
14 - HEX SOCKET HD BOLT M8X35 HM13 MSP-266011-7.A1 266011-7	£2.34	£2.81
15 - COMPRESSION SPRING 12 HM1317C MSP-233083-7.A2 233083-7	£2.02	£2.43
16 - RETAINER RING HM1317CB/4B/181 MSP-322560-5.A3 322560-5	£16.70	£20.04
17 - O RING 67 GA7050/GA9050/ MSP-213720-9.A6 213720-9	£1.44	£1.73
18 - URETHAN RING HM1317CB MSP-262151-9 262151-9	£9.82	£11.79
19 - RING 35 HM1317CB MSP-257301-9 257301-9	£16.28	£19.53
20 - SLEEVE 43 HM1317CB MSP-257788-5 257788-5	£28.51	£34.21
21 - O RING 45 HM1317C-CB/AN621 MSP-213569-7.A5 213569-7	£1.44	£1.73
22 - X RING 36 HM1317C-CB MSP-213192-8.A1 213192-8	£9.67	£11.61
23 - O-RING 36 HM1317C-CB MSP-213150-4.A1 213150-4	£2.81	£3.37
24 - IMPACT BOLT HM1317CB MSP-325687-0 325687-0	£54.65	£65.58
25 - WASHER 30 HM1317C-CB MSP-325683-8.A1 325683-8	£20.30	£24.36
26 - RUBBER RING 36 HM1317C-CB MSP-424206-0.A1 424206-0	£19.58	£23.50
27 - SHOULDER RING 32 HM1317C-CB MSP-325684-6.A1 325684-6	£25.20	£30.24
28 - BARREL HM1317C/CB MSP-318458-2.A0 318458-2	£89.97	£107.96
29-1 - STRIKER HM1317C/CB MSP-325685-4.A1 325685-4	£22.90	£27.48
29 - STRIKER HM1317C/CB MSP-325685-4.A2 325685-4	£22.90	£27.48
30 - O RING 42 HM1317C/CB MSP-213193-6.A0 213193-6	£4.52	£5.43
31 - RING SPRING 55 HM1317C/CB MSP-233977-6.A2 233977-6	£1.44	£1.73
32 - CYLINDER 52 HM1317C/CB MSP-331870-9.A1 331870-9	£161.88	£194.26
33 - SHOULDER SLEEVE HM1317C/CB MSP-451168-9.A1 451168-9	£3.90	£4.68
34 - COMPRESSION SPRING 66 HM1317C MSP-234111-1.A1 234111-1	£21.17	£25.40
35 - HEX SOCKET HD BOLT M8X40 HM13 MSP-265367-5.A0 265367-5	£2.02	£2.43
36 - WEIGHT GUIDE HM1317C/CB MSP-451169-7.A1 451169-7	£2.34	£2.81
37 - COUNTER WEIGHT HM1317C/CB MSP-331867-8.A1 331867-8	£21.17	£25.40
38 - WEIGHT GUIDE HM1317C/CB MSP-451169-7.A0 451169-7	£2.34	£2.81
39 - COMPRESSION SPRING 66 HM1317C MSP-234111-1.A0 234111-1	£21.17	£25.40
40 - SLIDE SLEEVE HM1317C/CB MSP-331868-6.A0 331868-6	£15.55	£18.66
41 - RING SPRING 55 HM1317C/CB MSP-233977-6.A3 233977-6	£1.44	£1.73
42 - O RING 45 HM1317C-CB/AN621 MSP-213569-7.A8 213569-7	£1.44	£1.73
43 - O RING 45 HM1317C-CB/AN621 MSP-213569-7.A9 213569-7	£1.44	£1.73
44 - PIN 12 HM1317C-CB/HM1303/B MSP-256238-7.A2 256238-7	£3.28	£3.93
45 - O RING 42 HM1317C/CB MSP-213193-6.A1 213193-6	£4.52	£5.43
46 - PISTON HM1317C/CB MSP-318459-0.A1 318459-0	£40.03	£48.04
47 - O RING 45 HM1317C-CB/AN621 MSP-213569-7.A2 213569-7	£1.44	£1.73
48 - CONNECTING ROD HM1317C/CB MSP-451164-7.A1 451164-7	£6.40	£7.68
49 - PIN 6 HM1317C/CB MSP-268241-6.A1 268241-6	£1.44	£1.73
50 - O RING 90 HM1317C-CB/HR2510 MSP-213806-9.A2 213806-9	£2.34	£2.81
51 - GEAR COVER HM1317C/CB MSP-318462-1.A1 318462-1	£55.31	£66.37
52 - HEX BOLT M6X30 HM1317C-CB/121 MSP-266499-1.A3 266499-1	£1.44	£1.73
53 - HELICAL GEAR 47 HM1317C/CB MSP-227709-1.A1 227709-1	£47.92	£57.50
54 - BALL BEARING 6204LLB HM1317CC MSP-211306-3.A1 211306-3	£12.17	£14.60
56 - FLAT WASHER 14 HM1317C-CB/HM MSP-267166-1.A4 267166-1	£1.44	£1.73
57 - GEAR 31-43 HM1317C/CB MSP-226156-3.A0 226156-3	£97.15	£116.58
58 - NEEDLE CAGE 1412 HM1317C-CB/H MSP-212159-3.A2 212159-3	£7.18	£8.61
59 - NYLON RING 14 HM1317C/CB MSP-262157-7.A0 262157-7	£1.44	£1.73
60 - NEEDLE CAGE 1412 HM1317C-CB/H MSP-212159-3.A3 212159-3	£7.18	£8.61
61 - FLAT WASHER 14 HM1317C-CB/HM MSP-267166-1.A3 267166-1	£1.44	£1.73
62 - SEAL RING HM1317CB MSP-424207-8.A1 424207-8	£1.44	£1.73
63 - CRANK HOUSING HM1317C/CB MSP-140056-2.A1 140056-2	£306.12	£367.34
64 - BALL BEARING 6205LLU HM1317CC MSP-211373-8.A0 211373-8	£11.86	£14.23
65 - CRANK SHAFT HM1317C/CB MSP-331871-7.A1 331871-7	£21.17	£25.40
66 - COUNTER SHAFT HM1317C/CB MSP-331869-4.A1 331869-4	£78.50	£94.20
67 - NEEDLE BEARING 1813 HM1317C/C MSP-212264-6.A1 212264-6	£19.58	£23.50
68 - SHOULDER WASHER 8 HM1317C/CB MSP-325686-2.A1 325686-2	£3.59	£4.31
69 - O RING 87 HM1317C-CB/AN942/94 MSP-213809-3.A1 213809-3	£2.65	£3.18
70 - PIN 10 HM1317C/CB MSP-268240-8.A0 268240-8	£2.34	£2.81
71 - BEARING BOX HM1317C/CB MSP-140057-0.A0 140057-0	£39.17	£47.00
72 - EXT DIN CIRCLIP-8 HM1317C/CB MSP-961004-6.A43 961004-6	£1.44	£1.73
73 - O RING 17 HM1317C-CB/HR2410/ MSP-213261-5.A11 213261-5	£1.44	£1.73
74 - HEX SOCKET BOLT M6/20 HM1317C MSP-265844-7.A2 265844-7	£1.44	£1.73
75 - BALL BEARING 608ZZCNM/2A BUR1 MSP-211032-4.A4 211032-4	£9.05	£10.86
76 - RETAINING RING S22 HM1317C-CB MSP-962112-6.A7 962112-6	£1.44	£1.73
77 - FILTER HM1317C-B/HM1203/HM121 MSP-443127-7.A0 443127-7	£1.44	£1.73
78 - O RING 74 HM1317C/CB MSP-213758-4.A0 213758-4	£4.37	£5.24
79 - CRANK CAP COVER HM1317C/CB MSP-451166-3.A1 451166-3	£4.68	£5.62
80 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A10 941051-3	£1.44	£1.73
80-1 - *PLATE HM1214C/HM1317C/HM1317 MSP-346546-5.A1 346546-5	£1.44	£1.73
81 - REAR COVER HM1317C/CB MSP-451167-1.A0 451167-1	£28.51	£34.21
82 - HEX BOLT M6X30 HM1317C-CB/121 MSP-266499-1.A4 266499-1	£1.44	£1.73
83 - SEALING SCREW HM1317C-B/HM121 MSP-331855-5.A1 331855-5	£1.44	£1.73
84 - BALL BEARING 6000DDW HM1317C- MSP-211249-9.A0 211249-9	£15.70	£18.84
85 - FLAT WASHER 15 HM1317C-CB/HM1 MSP-267397-2.A1 267397-2	£1.44	£1.73
86 - FAN 80 HM1317C-CB/2702/LF1000 MSP-240003-4.A7 240003-4	£3.59	£4.31
87 - ARMATURE ASSY 110V HM1317C-CB MSP-517785-6.A0 517785-6	£145.56	£174.67
88 - INSULATION WASHER HM1317C-CB/ MSP-681642-5.A2 681642-5	£10.77	£12.92
89 - BALL BEARING 6000DDW 2RDCM MSP-210059-1.A9 210059-1	£3.74	£4.49
90 - WASHER GUIDE HM1317C-B/HM1214 MSP-451107-9.A0 451107-9	£2.18	£2.62
91 - WAVE WASHER 19 158581-9 MSP-267809-5.A1 267809-5	£1.44	£1.73
92 - BAFFLE PLATE HM1317C/1214C/13 MSP-451111-8.A1 451111-8	£4.68	£5.62
93 - PT SCREW 5X60 HS7100/HM1317C MSP-266044-2.A18 266044-2	£2.34	£2.81
94 - FIELD 110V HR1317C/CB MSP-636331-7.A0 636331-7	£43.30	£51.96
95 - MOTOR HOUSING HM1317C-CB/HM12 MSP-451117-6.A1 451117-6	£27.65	£33.18
96-1 - BRUSH HOLDER UNIT HR1317C-CB/ MSP-632D00-2.A1 632D00-2	£9.67	£11.61
97-1 - CARBON BRUSH CB-175 MSP-195844-2.A5 195844-2	£9.67	£11.61
98 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1113 265995-6	£1.44	£1.73
99 - CONTROLLER COVER HM1317C MSP-158986-3.A3 158986-3	£15.91	£19.09
100 - RUBBER PIN 4 HM1317C-CB/HM086 MSP-263027-3.A3 263027-3	£1.44	£1.73
101 - SWITCH BTM/3707F/3708F/DTM51 MSP-651423-1.A19 651423-1	£11.39	£13.67
102 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1114 265995-6	£1.44	£1.73
103 - STRAIN RELIEF GA/GD/SG125 MSP-687169-3.A44 687169-3	£1.44	£1.73
104 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1112 265995-6	£1.44	£1.73
106 - CORD GUARD 10 HM1317C/CB/HR30 MSP-682560-0.A5 682560-0	£2.34	£2.81
107-2 - CONTROLLER HM1317C/CB 110V MSP-620229-8.A0 620229-8	£105.46	£126.55
108 - HEX SOCKET HD BOLT M4X16 MSP-265490-6.A26 265490-6	£1.44	£1.73
108-1 - HEX SOCKET HD BOLT M4X18 MSP-266834-3.A0 266834-3	£1.44	£1.73
109 - LEAF SPRING HM1110/HM1317C/CB MSP-232209-8.A4 232209-8	£1.44	£1.73
110 - SLIDE LEVER HM1317C/CB/HM1203 MSP-451112-6.A0 451112-6	£5.62	£6.74
111 - RUBBER PIN 4 HM1317C-CB/HM086 MSP-263027-3.A2 263027-3	£1.44	£1.73
112 - LENSE HM1317C-CB/1214C/1203C MSP-451105-3.A0 451105-3	£2.97	£3.56
113 - HANDLE HM1317C-CB/1214C/1203C MSP-451118-4.A0 451118-4	£50.02	£60.03
114 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1115 265995-6	£1.44	£1.73
115 - SWITCH LEVER HM1317C-CB/1214C MSP-451106-1.A1 451106-1	£3.90	£4.68
116 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1116 265995-6	£1.44	£1.73
117 - HEX BOLT M6X30 HM1317C-CB/121 MSP-266499-1.A5 266499-1	£1.44	£1.73
118 - NAME PLATE HM1317CB MSP-867310-6 867310-6	£1.44	£1.73
119 - HANDLE COVER HM1214C/1317C-CB MSP-451119-2.A1 451119-2	£27.65	£33.18
120 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1117 265995-6	£1.44	£1.73
121 - *DOUBLE SIDED TAPE HM1317C MSP-442180-0.A0 442180-0	£1.44	£1.73
A01-1 - BULL POINT 410 HM1317CB MSP-D-17631 D-17631	£11.82	£14.18
A02 - LATCH FOR HM1203/1203/1214 MSP-162271-8.A0 162271-8	£1.20	£1.44
A02 - PLASTIC CASE HM1317C/CB MSP-824897-1.A0 824897-1	£152.96	£183.55
A03 - LABEL/PLASTIC CASE HM1317CB MSP-809557-6 809557-6	£1.44	£1.73
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A0 654091-9	£1.44	£1.73
