Makita HM1303B Demolition Hammer Spare Parts

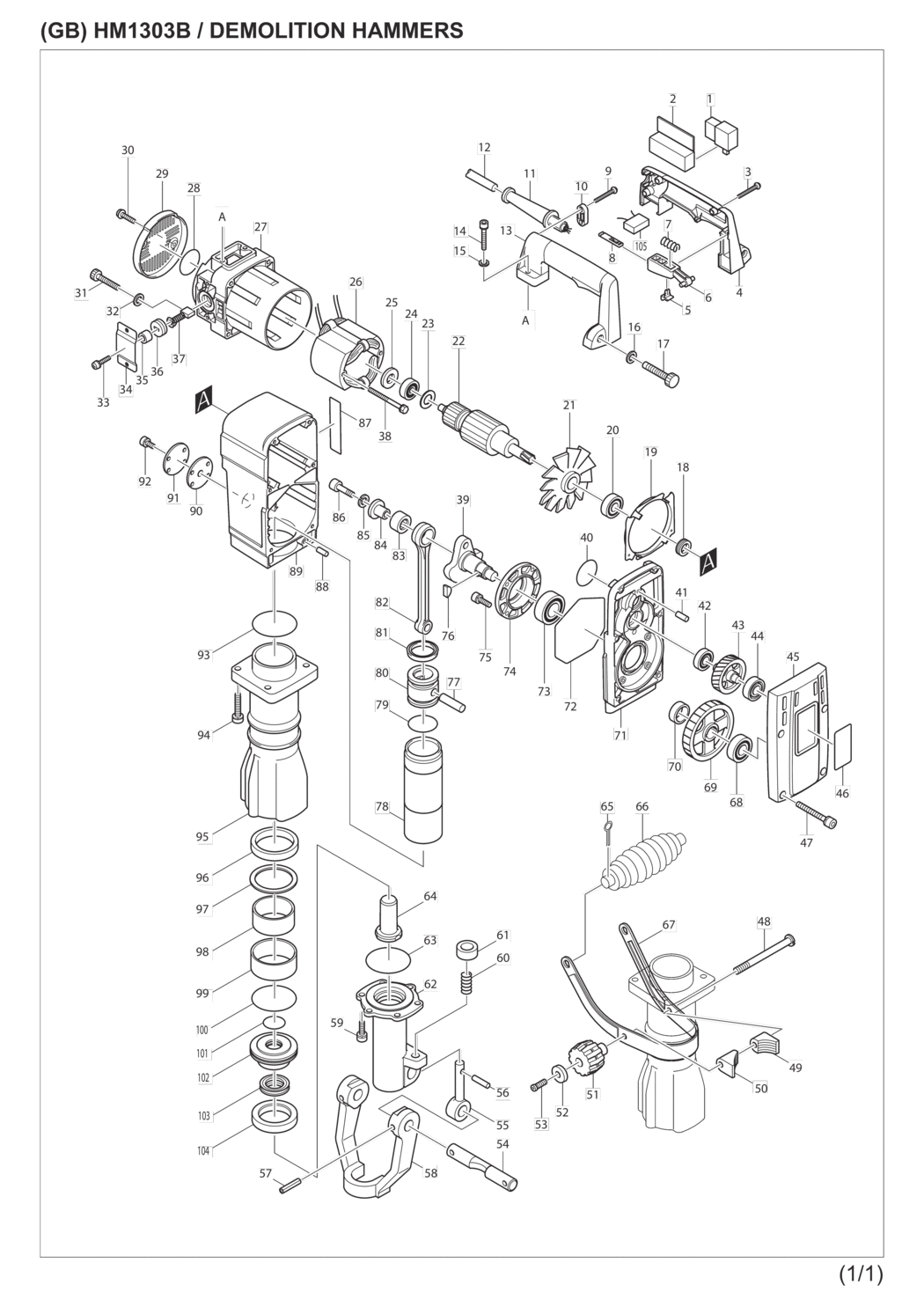

An exploded drawing and spare parts listing for the Makita HM1303B Demolition Hammer

	Ex VAT	Inc VAT
3 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A239 265995-6	£1.44	£1.73
4 - HANDLE SET HM1303/B MSP-182844-1.A0 182844-1	£35.86	£43.03
5 - LOCK BUTTON HM1303/B/HM1304 MSP-415805-9.A1 415805-9	£1.44	£1.73
7 - COMPRESSION SPRING 3 HM1303B/ MSP-231457-6.A0 231457-6	£1.44	£1.73
8 - LOCK PLATE HM1303/B/HM1304 MSP-415806-7.A1 415806-7	£1.44	£1.73
9 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A238 265995-6	£1.44	£1.73
10 - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A17 687053-2	£1.44	£1.73
11C - CORD GUARD 12-90 110V 9029 MSP-682506-6.A22 682506-6	£1.44	£1.73
11C1 - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A39 682505-8	£1.44	£1.73
12A1 - POWER SUPPLY CORD PC5000/01C MSP-695237-8.A9 695237-8	£32.69	£39.23
13 - HANDLE SET HM1303/B MSP-182844-1.A1 182844-1	£35.86	£43.03
14 - CAP HD SCREW M6X40 HR5211C MSP-922361-7.A0 922361-7	£1.44	£1.73
15 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A59 941152-7	£1.44	£1.73
16 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A60 941152-7	£1.44	£1.73
17 - CAP HD SCREW M6X55 HR3850K MSP-922376-4.A1 922376-4	£1.44	£1.73
18 - SEAL HM1400/HM1303B/1304/B MSP-331212-7.A2 331212-7	£4.06	£4.87
20 - BALL BEARING 6202DDW BO3710/1 MSP-211228-7.A14 211228-7	£10.14	£12.17
23 - INSULATION WASHER HM1200K/HM1 MSP-681635-2.A2 681635-2	£1.44	£1.73
24 - BALL BEARING VC3211M/KP0810/C MSP-211087-9.A45 211087-9	£9.67	£11.61
25 - BLUE NARROW WASHER 18 6905B MSP-253794-8.A2 253794-8	£1.44	£1.73
27 - BRUSH HOLDER HM1303/1304 MSP-643711-0.A4 643711-0	£8.89	£10.67
27 - SET RING HM1303/HM1304 MSP-414665-6.A3 414665-6	£1.44	£1.73
28 - O RING 30 VC3211M/HR5000/HM13 MSP-213406-5.A7 213406-5	£1.44	£1.73
30 - PT SCREW 5X20 HM1303 MSP-266021-4.A1 266021-4	£1.44	£1.73
31 - CAP HD SCREW M6X55 HR3850K MSP-922376-4.A2 922376-4	£1.44	£1.73
32 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A139 941151-9	£1.44	£1.73
33 - PAN HD SCREW M5X16 W/WASHER MSP-911221-8.A16 911221-8	£1.44	£1.73
35 - RUBBER RING 6 HM1303B/500 MSP-262049-0.A0 262049-0	£1.44	£1.73
36 - BRUSH HOLDER CAP 7-18 GA7050/ MSP-643700-5.A5 643700-5	£1.44	£1.73
37 - CARBON BRUSH CB-204/M9001 MSP-191957-7.A18 191957-7	£14.82	£17.78
38 - HEX HD SCREW M5X65 MSP-265428-1.A2 265428-1	£1.44	£1.73
40 - O RING 35 HM1303B/LS800DWB/HR MSP-213460-9.A7 213460-9	£2.18	£2.62
41 - PIN 6 HM1303B/HM1304/JN1600 MSP-256111-1.A8 256111-1	£1.44	£1.73
42 - BALL BEARING 6001 HM1300B/510 MSP-211104-5.A1 211104-5	£9.20	£11.04
43 - HELICAL GEAR 34 HM1303/B/1304 MSP-226449-8.A0 226449-8	£30.96	£37.15
44 - BALL BEARING 6201 HM1400K/HM1 MSP-211109-5.A6 211109-5	£7.18	£8.61
47 - CAP HD SCREW M6X50 HM0810 MSP-922371-4.A8 922371-4	£1.44	£1.73
49 - HANDLE BASE HM1303/B/HM1304 MSP-416228-4.A4 416228-4	£1.44	£1.73
50 - HANDLE BASE HM1303/B/HM1304 MSP-416228-4.A5 416228-4	£1.44	£1.73
51 - WING NUT M10 HM1303/B/1304B MSP-252633-9.A1 252633-9	£4.99	£5.99
52 - WASHER 5 HM1317C/CB/KP0810C/K MSP-253194-2.A4 253194-2	£1.44	£1.73
53 - CAP HD SCREW M5X16 HM1200 MSP-922221-3.A27 922221-3	£1.44	£1.73
54 - TOOL RETAINER SHAFT HM1303B/0 MSP-322550-8.A2 322550-8	£34.28	£41.13
55 - TOOL RETAINER HM1317CB/HM1800 MSP-322477-2.A5 322477-2	£37.44	£44.93
56 - PIN 4 HM1317CB/HM1303B/HR3000 MSP-256219-1.A0 256219-1	£1.44	£1.73
57 - TENSION PIN 8-40 DIN 1481 HM1 MSP-951272-9.A0 951272-9	£1.44	£1.73
58 - TOOL RETAINER HM1303B/1304B MSP-322478-0.A0 322478-0	£244.92	£293.90
59 - HEX SOCKET HD BOLT M8X30 MSP-266010-9.A1 266010-9	£1.44	£1.73
60 - COMPRESSION SPRING 12 HM1317C MSP-233083-7.A5 233083-7	£2.02	£2.43
61 - RETAINER RING HM1317CB/4B/181 MSP-322560-5.A0 322560-5	£16.70	£20.04
62 - TOOL HOLDER HM1303B MSP-322901-5 322901-5	£153.72	£184.46
63 - O RING 65 HM1303/HR1800/AN635H MSP-213707-1.A4 213707-1	£1.44	£1.73
65 - SPLIT COTTER PIN 3-20 BS1574 MSP-952257-8.A2 952257-8	£1.44	£1.73
66 - GRIP 38 HR5000K/HM1303B MSP-273492-8.A1 273492-8	£5.56	£6.67
68 - BALL BEARING 6302 HM1400K/HM1 MSP-211214-8.A4 211214-8	£10.77	£12.92
69 - HELICAL GEAR 57 HM1303/B MSP-226450-3.A1 226450-3	£32.69	£39.23
70 - RING 25 HM1303/1303B/1304 MSP-257196-0.A0 257196-0	£2.50	£3.00
73 - BALL BEARING 6205LLU HM1317CC MSP-211373-8.A5 211373-8	£11.86	£14.23
74 - BEARING BOX HM1303/B/1304 MSP-316730-6.A1 316730-6	£6.71	£8.05
75 - CAP SCREW M6X22 MSP-265366-7.A0 265366-7	£1.44	£1.73
76 - WOODRUFF KEY 4 9609B/EB7660TH MSP-254001-2.A5 254001-2	£1.44	£1.73
77 - PIN 12 HM1317C-CB/HM1303/B MSP-256238-7.A0 256238-7	£3.28	£3.93
85 - M10 SPRING RING DIN128 LS800D MSP-942251-8.A3 942251-8	£1.44	£1.73
87 - LABEL/MAKITA 5103RHM1303B MSP-819084-5.A1 819084-5	£1.44	£1.73
88 - PIN 6 HM1303B/HM1304/JN1600 MSP-256111-1.A9 256111-1	£1.44	£1.73
90 - MOTOR HOUSING PACKING HM1303B MSP-442009-0.A2 442009-0	£1.44	£1.73
91 - MOTOR HOUSING COVER HM1303B MSP-341397-1.A0 341397-1	£1.44	£1.73
92 - PAN HD SCREW M5X12 W/SP WASHE MSP-911211-1.A1 911211-1	£1.44	£1.73
93 - O RING 65 HM1303/HR1800/AN635H MSP-213707-1.A6 213707-1	£1.44	£1.73
94 - HEX SOCKET HD BOLT M8X40 HM13 MSP-265367-5.A2 265367-5	£2.02	£2.43
100 - O RING 65 HM1303/HR1800/AN635H MSP-213707-1.A5 213707-1	£1.44	£1.73
103 - X RING 25 HM1303B MSP-213383-1.A1 213383-1	£17.13	£20.56
105 - NOISE SUPPRESSOR/CONDENSOR 64 MSP-645105-5.A46 645105-5	£2.34	£2.81
E03 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A224 654091-9	£1.44	£1.73
